X-440, Year 1992

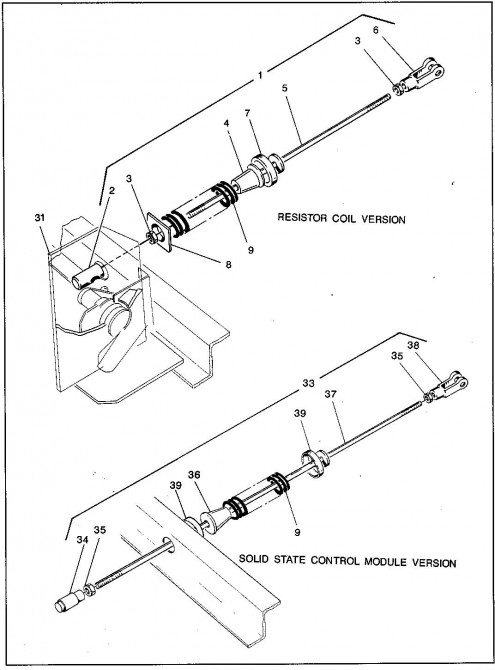

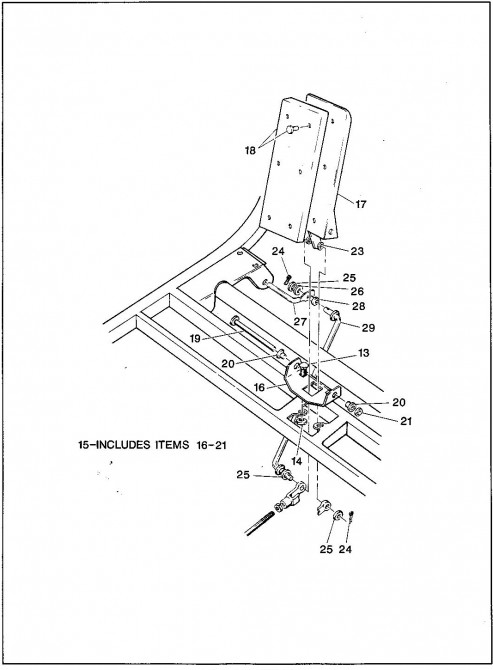

Accelerator and Hill Brake Linkage
| Sl. No. | Part description | Part number | Notes | Quantity (3 Wheel) | Quantity (4 Wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Accelerator rod assembly | 18043-G1 | includes items 2-7 | 1 | 1 | |
| 2 | Ball joint, socket | 14444-G3 | 1 | 1 | ||
| 3 | Nut | 00544-G4 | 5/16 - 24 | 2 | 2 | |
| 4 | Bushing, accelerator rod | 17979-G1 | 1 | 1 | ||
| 5 | Accelerator rod | 19710-G1 | 1 | 1 | ||
| 6 | Clevis yoke | 10385-G4 | 1 | 1 | ||
| 7 | Retainer, spring | 17677-G1 | 2 | 2 | ||
| 8 | Retainer, spring | 18034-G1 | 1 | 1 | ||
| 9 | Spring, compression | 17675-G1 | 1 | 1 | ||
| 13 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 2 | 2 | |
| 14 | Nut, lock | 11027-G2 | 1/4 - 20 | 2 | 2 | |
| 15 | Accelerator pedal assembly | 18083-G1 | includes items 16 - 21 | 1 | 1 | |
| 16 | Base plate, accelerator | 12511-G1 | 1 | 1 | ||
| 17 | Pedal, accelerator | 18084-G1 | 1 | 1 | ||
| 18 | Accelerator pedal, pad kit | 15827-G1 | includes rivets | 1 | 1 | |
| 19 | Pin, accelerator pedal | 12512-G1 | 1 | 1 | ||
| 20 | Bearing, plastic | 12513-G1 | 2 | 2 | ||
| 21 | Nut, push | 12064-G2 | 1 | 1 | ||
| 23 | Washer, teflon | 17255-G1 | 2 | 2 | ||
| 24 | Cotter pin | 10387-G3 | 3/16 x 3/4 LG | 2 | 2 | |
| 25 | Washer, flat | 00559-G8 | 5/16 | 2 | 2 | |
| 26 | Washer, nylon | 20835-G1 | 1 | 1 | ||
| 27 | Arm, pivot | 19708-G1 | 1 | 1 | ||
| 28 | Bushing, nyliner | 17838-G1 | 1 | 1 | ||
| 29 | Rod, linkage | 24030-G1 | 1 | 1 | ||
| 31 | Accelerator switch assembly | XXXX-XX | See accelerator switch assembly illustration | 1 | 1 | |
| 33 | Accelerator rod assembly, solid state control module only | 25780-G1 | includes items 34-39 | 1 | 1 | |
| 34 | Ball joint, socket | 14444-G3 | 1 | 1 | ||
| 35 | Nut | 00544-G4 | 5/16 - 24 | 2 | 2 | |
| 36 | Bushing, accelerator rod | 17979-G1 | 1 | 1 | ||
| 37 | Accelerator rod | 19710-G1 | 1 | 1 | ||
| 38 | Clevis yoke | 10385-G4 | 1 | 1 | ||
| 39 | Retainer, spring | 17677-G1 | 1 | 1 |

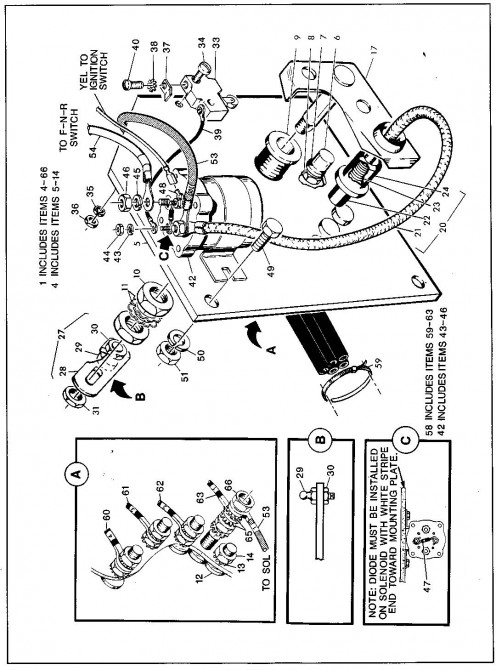

Accelerator Switch Assembly
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Accelerator switch assembly, heavy duty | 20467-G2 | includes items 4-66 | 1 | 1 | |
| 4 | Contact board assembly | 18741-G1 | includes items 5-14 | 1 | 1 | |
| 5 | Plate, accelerator | * | 1 | 1 | ||
| 6 | Stud, stop | 17491-G1 | 1 | 1 | ||
| 7 | Washer | 00560-G1 | 3/8 | 1 | 1 | |
| 8 | Nut, lock | 14390-G1 | 3/8 - 24 | 1 | 1 | |
| 9 | Bushing, shaft | 11902-G1 | 1 | 1 | ||
| 10 | Nut | 00545-G8 | 3/4 - 16 | 2 | 2 | |
| 11 | Washer, lock, external tooth | 00568-G6 | 3/4 | 2 | 2 | |
| 12 | Stud, contact | * | 5 | 5 | ||
| 13 | Washer, lock, external tooth | * | 5/16 | 5 | 5 | |
| 14 | Nut | * | 5/16 - 24 | 5 | 5 | |
| 17 | Shaft and arm assembly | 17973-G1 | 1 | 1 | ||
| 20 | Brush and lead assembly | 17504-G2 | includes items 21-24 | 1 | 1 | |
| 21 | Terminal, ring | * | #6 x 5/16 | 1 | 1 | |
| 22 | Copper brush with lead | * | 1 | 1 | ||
| 23 | Spring, arm contact | * | 1 | 1 | ||
| 24 | Holder, brush | * | 1 | 1 | ||
| 27 | Pivot arm assembly | 17663-G1 | includes items 28 - 30 | 1 | 1 | |
| 28 | Arm, accelerator linkage | 17655-G1 | 1 | 1 | ||
| 29 | Ball, ball joint | 15944-G3 | 1 | 1 | ||
| 30 | Nut, lock | 11098-G9 | 5/16 - 24 | 1 | 1 | |
| 31 | Nut, lock | 11098-G3 | 1/2 - 20 | 1 | 1 | |
| 33 | Switch, micro | 10606-G2 | 1 | 1 | ||
| 34 | Screw | 00139-G2 | #6 - 32 x1 1/4 LG | 2 | 2 | |
| 35 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 36 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 37 | Faston tab | 14628-G1 | 1 | 1 | ||
| 38 | Washer, lock, external tooth | 00567-G4 | #8 | 1 | 1 | |
| 39 | Wire, black | 20464-G1 | 1 | 1 | ||
| 40 | Screw, brass | 13514-G1 | #8 | 2 | 2 | |
| 42 | Solenoid, 36 volt, heavy duty | 20468-G1 | includes items 43 - 46 | 1 | 1 | |
| 43 | Washer, lock | 00565-G5 | #10 | 2 | 2 | |
| 44 | Nut | 00526-G4 | #10 - 32 | 2 | 2 | |
| 45 | Washer, lock | 00565-G8 | #10 - 32 | 2 | 2 | |
| 46 | Nut | 00544-G4 | 5/16 - 24 | 2 | 2 | |
| 47 | Diode | 30353-G1 | 1 | 1 | ||
| 48 | Faston tab | 12914-G1 | 1 | 1 | ||
| 49 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 2 | 2 | |
| 50 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 51 | Nut | 00532-G1 | 1/4 - 20 | 2 | 2 | |
| 53 | Wire, LO speed, solenoid | 17965-G1 | 1 | 1 | ||
| 54 | Wire, solenoid, F-N-R switch | 13493-G1 | 1 | 1 | ||
| 58 | Wire harness, accelerator switch assembly | 18902-G1 | includes items 59 - 63 | 1 | 1 | |
| 59 | Clamp, nylon | 17618-G1 | 4 | 4 | ||
| 60 | Wire | 18897-G5 | #4 | 1 | 1 | |
| 61 | Wire | 18897-G4 | #3 | 1 | 1 | |
| 62 | Wire | 18897-G2 | #2 | 1 | 1 | |
| 63 | Wire | 18897-G1 | #1 | 1 | 1 | |
| 65 | Washer, lock, external tooth | 00567-G8 | 5/16 | 5 | 5 | |
| 66 | Nut | 00544-G4 | 5/16 - 24 | 4 | 4 |
Battery Charger, Total Charge
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Battery charger, 36V, 10 FT. D.C. Cord | 20484-G01 | includes items 3-90 | 1 | 1 | |
| 3 | Top cover | 19096-G1 | 1 | 1 | ||
| 4 | Chassis | 24919-G1 | 1 | 1 | ||
| 6 | Label, opearing instructions | * | Serialized | 1 | 1 | |
| 8 | Capacitor | 17077-G1 | includes item 9 | 1 | 1 | |
| 9 | Bracket, capacitor | 11559-G1 | 1 | 1 | ||
| 10 | Screw | 00372-G4 | #8 - 32 x 1/2 LG | 2 | 2 | |
| 11 | Washer, lock | 00565-G4 | #8 | 2 | 2 | |
| 12 | Nut | 00526-G1 | #8 - 32 | 2 | 2 | |
| 13 | Heat sink assembly, service | 18768-G2 | includes items 14 - 18 | 1 | 1 | |
| 14 | Heat sink | 18489-G1 | 1 | 1 | ||
| 15 | Diode,silicone rectifier | 18488-G1 | 2 | 2 | ||
| 16 | Washer, lock | 00567-G7 | 1/4 | 2 | 2 | |
| 17 | Nut | 00532-G2 | 1/4 - 28 | 2 | 2 | |
| 18 | Nut, plastic expansion | 11572-G2 | 3 | 3 | ||
| 19 | Washer, lock, externtal tooth | 00567-G3 | #6 | 2 | 2 | |
| 20 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 21 | Screw | 00138-G3 | #6 - 32 x 3/8 LG | 2 | 2 | |
| 22 | Screw, self-tapping | 00512-G7 | #8 x 7/8 LG | 3 | 3 | |
| 23 | Screw | 00378-G4 | #10 - 24 x 1/2 LG | 1 | 1 | |
| 24 | Nut | 00526-G3 | #10 - 24 | 1 | 1 | |
| 25 | Washer, lock | 00565-G5 | #10 | 1 | 1 | |
| 28 | Ammeter | 24243-G1 | 1 | 1 | ||
| 29 | Bracket, ammeter | * | 1 | 1 | ||
| 30 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 31 | Washer, lock | 00565-G5 | #10 | 2 | 2 | |
| 32 | Nut | 00526-G4 | #10 - 32 | 2 | 2 | |
| 33 | Faston tab | 12914-G1 | 2 | 2 | ||
| 34 | Wire, 18 gauge, red | 19952-G1 | 1 | 1 | ||
| 35 | Timer | 18052-G6 | 1 | 1 | ||
| 36 | Screw | 00372-G2 | #8 - 32 x 1/4 LG | 2 | 2 | |
| 37 | Knob, timer | 11575-G1 | 1 | 1 | ||
| 38 | Setscrew | 00486-G4 | #8 - 32 x 1/2 LG | 1 | 1 | |
| 40 | Screw | 00372-G3 | #8 - 32 x 3/8 LG | 1 | 1 | |
| 41 | Washer, lock | 00565-G4 | #8 | 1 | 1 | |
| 42 | Nut | 00526-G1 | #8 - 32 | 1 | 1 | |
| 44 | Transformer | 19928-G1 | 1 | 1 | ||
| 45 | Nut, lock | 11027-G2 | 1/4 - 20 | 4 | 4 | |
| 46 | Screw | 00414-G5 | 1/4 - 20 x 5/8 LG | 4 | 4 | |
| 47 | A.C. Cord | 19388-G1 | 1 | 1 | ||
| 48 | Strain relief, plastic | 13557-G2 | A.C. cord | 1 | 1 | |
| 49 | D.C. cord assembly, 10 FT. | 18747-G1 | includes items 51-63 | 1 | 1 | |
| 51 | D.C. cord, 10 FT | 14489-G2 | 1 | 1 | ||
| 53 | Contact, connector | * | 2 | 2 | ||
| 54 | Connector | 18782-G1 | Black | 1 | 1 | |
| 55 | Handle installation kit | 18972-G1 | includes items 56 - 63 | 1 | 1 | |
| 56 | Handle, half, L.H. | * | 1 | 1 | ||
| 57 | Handle, half, R.H. | * | 1 | 1 | ||
| 59 | Screw, stainless steel | 00647-G8 | #6 - 32 x 29/32 LG | 2 | 2 | |
| 60 | Screw, stainless steel | 00647-G3 | # 6 - 32 x 3/8 LG | 2 | 2 | |
| 61 | Nut, lock | 13521-G5 | #6 - 32 | 4 | 4 | |
| 62 | Washer, flat | 00650-G2 | #5 | AR | AR | |
| 63 | Label, caution | 20628-G1 | 1 | 1 | ||
| 64 | Strain relief, plastic | 13557-G3 | D.C. cord | 1 | 1 | |
| 67 | Screw, self-tapping | 00614-G4 | #8 x 1/2 LG | 10 | 10 | |
| 68 | Electronic module assembly | 19950-G2 | includes items 69 - 78 | 1 | 1 | |
| 69 | Module | * | 1 | 1 | ||
| 70 | Bracket | 19459-G1 | 1 | 1 | ||
| 71 | Screw | 00138-G5 | #6 - 32 x 5/8 LG | 4 | 4 | |
| 72 | Standoff | 19081-G1 | 4 | 4 | ||
| 73 | Washer, flat, nylon | 00736-G1 | 4 | 4 | ||
| 74 | Nut, nylon | 00735-G1 | #6 - 32 | 4 | 4 | |
| 75 | Wire, 16 gauge, black | 19402-G1 | 1 | 1 | ||
| 76 | Wire, 16 gauge, yellow | 19949-G1 | 1 | 1 | ||
| 77 | Wire, 18 gauge, black | 19954-G1 | 1 | 1 | ||
| 78 | Washer | 00559-G3 | #8 | 2 | 2 | |
| 81 | Fuse block | 19363-G1 | 1 | 1 | ||
| 82 | Fuse, 15 AMP | 19361-G1 | 1 | 1 | ||
| 83 | Label, identification | 19434-G1 | 1 | 1 | ||
| 84 | Wire, 12 gauge, white | 19441-G1 | 1 | 1 | ||
| 85 | Circuit breaker, 50 AMP | 19362-G1 | includes items 86 and 87 | 2 | 2 | |
| 86 | Washer | 00559-G5 | #10 | 4 | 4 | |
| 87 | Nut | 00526-G4 | #10 - 32 | 2 | 2 | |
| 88 | Washer, lock | 00565-G4 | #8 | 2 | 2 | |
| 89 | Nut | 00526-G1 | #8 - 32 | 2 | 2 | |
| 90 | Screw | 00372-G6 | #8 - 32 x 3/4 LG | 2 | 2 |

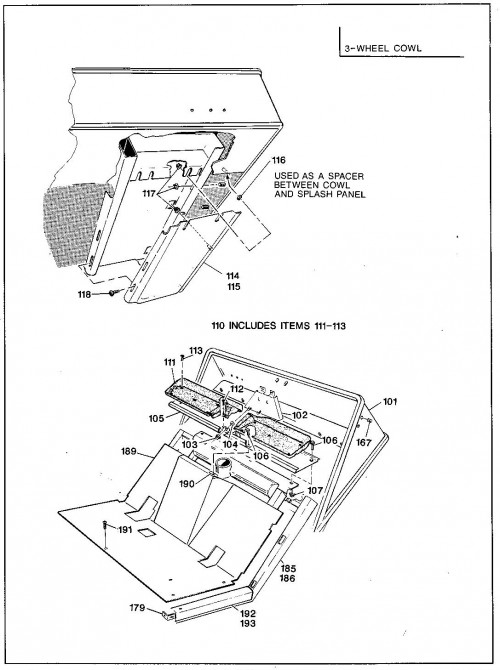

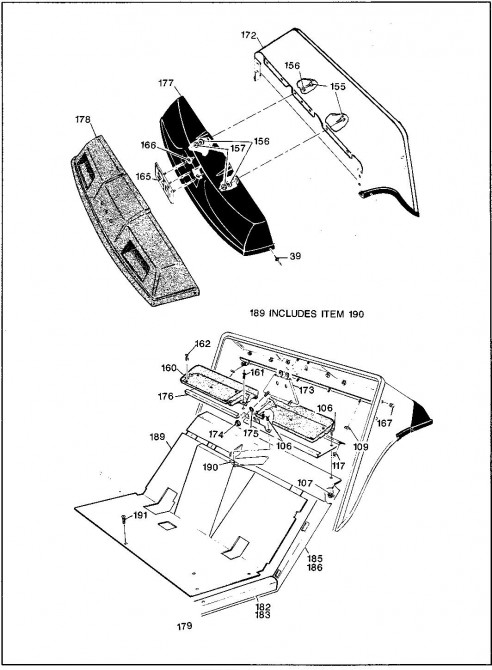

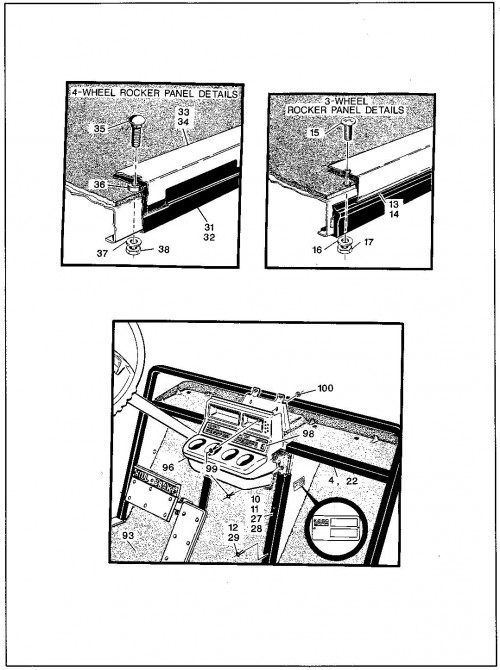

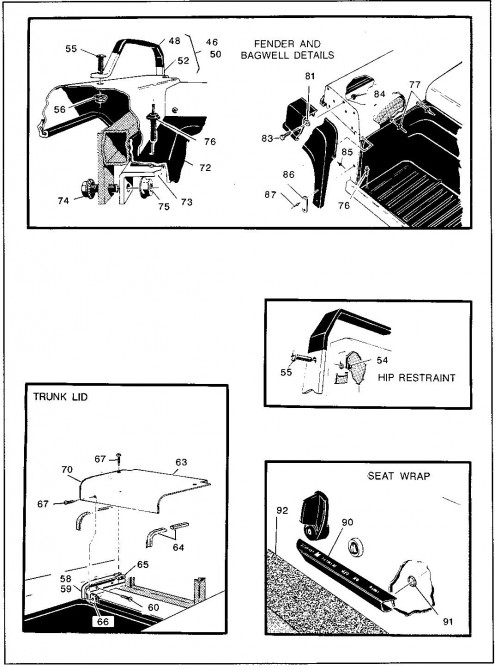

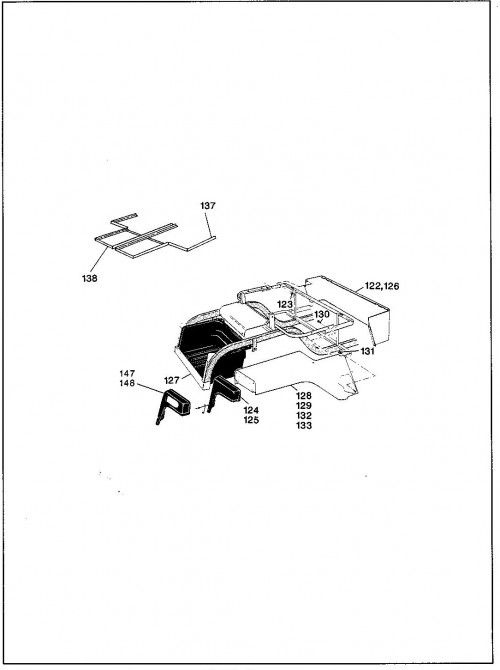

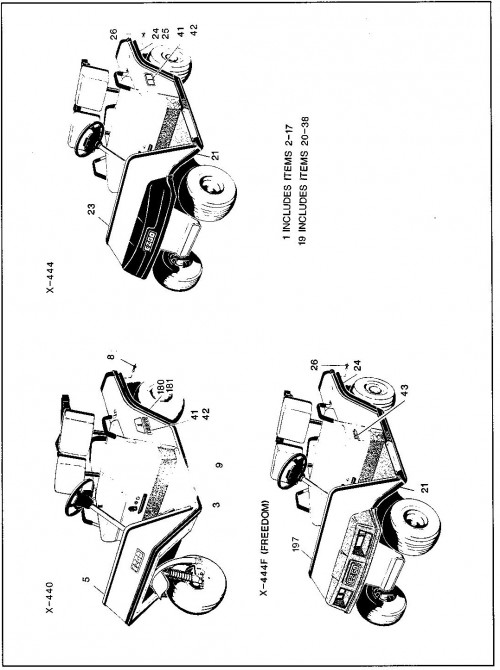

Body and Associated Parts
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Vinyl bumper trim kit, 3 wheel vehicle only | 24578-G1 | includes items 2 thru 17 | 1 | ||
| 2 | Vinyl bumper, bulk length, 180 LG | 22888-G1 | Includes material to make items 3 thru 4 | 1 | ||
| 3 | Vinyl bumper, body trim, sides and front | 22888-G3 | 1 | |||
| 4 | Vinyl bumper, body trim, dash tray | 17203-G9 | 2 | |||
| 5 | Vinyl bumper, body trim, back of cowl | 22273-G1 | 1 | |||
| 6 | Trim, fender, passenger side | 23931-G5 | 1 | |||
| 7 | Trim, fender, driver side | 23931-G4 | 1 | |||
| 8 | Fastener, ratchet type | 24198-G1 | 8 | |||
| 9 | Rivet, aluminum, black | 15058-G4 | 4 | |||
| 10 | Trim, floormat, passenger side | 24620-G1 | 1 | |||
| 11 | Trim, floormat, driver side | 24620-G2 | 1 | |||
| 12 | Rivet, plastic drive 1/4 | 18436-G1 | 8 | |||
| 13 | Trim, rocker panel, passenger side | 22223-G1 | 1 | |||
| 14 | Trim, rocker panel, dirver side | 22223-G2 | 1 | |||
| 15 | Screw, stainless steel | 16705-G1 | 1/4 - 20 x 1 LGA | 4 | ||
| 16 | Washer | 00559-G7 | 1/4 | 4 | ||
| 17 | Nut, lock | 14390-G4 | 1/4 - 20 | 4 | ||
| 19 | Vinyl bumper, trim kit, 4 wheel vehicle only | 24579-G1 | includes items 20 thru 38 | 1 | ||
| 20 | Vinyl bumper, bulk length, 71 LG | 22888-G4 | includes materials to make items 21, 22 | 1 | ||
| 21 | Vinyl bumber, body trim, sides | 17203-G1 | 1 | |||
| 22 | Vinyl bumber, body trim, dash tray | 17203-G9 | 2 | |||
| 23 | Vinyl bumper, body trim, back of cowl | 22273-G1 | 1 | |||
| 24 | Trim, fender, passenger side | 23931-G1 | 1 | |||
| 25 | Trim, driver side | 23931-G2 | 1 | |||
| 26 | Fastener, ratchet type | 24198-G1 | 12 | |||
| 27 | Trim, floormat, passenger side | 24620-G1 | 1 | |||
| 28 | Trim, floormat, driver side | 24620-G2 | 1 | |||
| 29 | River, plastic drive | 18436-G1 | 1/4 | 4 | ||
| 31 | Rocker panel, passenger side | 23868-G1 | 1 | |||
| 32 | Rocker panel, drive side | 23868-G2 | 1 | |||
| 33 | Sill plate, rocker panel, passenger side | 23850-G1 | 1 | |||
| 34 | Sill plate, rocker panel, driver side | 23850-G2 | 1 | |||
| 35 | Bolt, carriage, stainless steel | 00823-G8 | 1/4 - 20 x 1 LG | 4 | ||
| 36 | Spacer | 23726-G2 | 4 | |||
| 37 | Washer | 00660-G7 | 1/4 | 4 | ||
| 38 | Nut, lock | 00891-G2 | 1/4 - 20 | 4 | ||
| 39 | Rivet, aluminum, black | 15058-G4 | 2 | |||
| 41 | Decal installation kit, trapezoid | 20514-G1 | Specify no. 1 - 200 | AR | AR | |
| 42 | Decal installation kit, rectangle | 22530-G1 | Specify no. 1 - 200 | AR | AR | |
| 43 | Label, freedom | 23676-G1 | 2 | |||
| 46 | Restraint, Hip handhold assembly, passenger side | 22229-G1 | includes item 48 | 1 | 1 | |
| 48 | Handgrip | 23152-G1 | 1 | 1 | ||
| 50 | Restraint, hip handhold assembly, driver side | 24004-G1 | Includes item 52 | 1 | 1 | |
| 52 | Handgrip | 23152-G1 | 1 | 1 | ||
| 54 | Nut, J type | 14776-G1 | 1/4 - 20 | 4 | 4 | |
| 55 | Screw, truss | 16705-G1 | 1/4 - 20 x1 LG | 6 | 6 | |
| 56 | Nut, lock | 11027-G2 | 1/4 - 20 | 2 | 2 | |
| 58 | Fillet, trunk, passenger side | 19538-G3 | 1 | 1 | ||
| 59 | Fillet, trunk, driver side | 19538-G4 | 1 | 1 | ||
| 60 | Screw, self drill & tap | 00106-G6 | #12 - 24 x 3/4 LG | 4 | 4 | |
| 61 | Trunk lid installation kit | 19533-G4 | includes items 63-67 | 1 | 1 | |
| 63 | Trunk lid | 19544-G2 | 1 | 1 | ||
| 64 | Noise suppressor, trunk lid | 17684-G1 | 4 | 4 | ||
| 65 | Nut "U" type | 24722-G1 | #10 - 12 x 1 3/2 THK. | 2 | 2 | |
| 66 | Nut "U" type | 24722-G2 | #10 - 12 x 1/8 THK | 2 | 2 | |
| 67 | Screw, self-tappin | 00923-G6 | #10 - 12 x 3/4 LG | 4 | 4 | |
| 72 | Bagwell, plastic | 19034-G1 | 1 | 1 | ||
| 73 | Mount, bagwell | 19524-G1 | 2 | 2 | ||
| 74 | Screw, lock | 13437-G1 | 3/8 - 16 x 1 LG | 2 | 2 | |
| 75 | Nut, lock | 11027-G5 | 3/8 - 16 | 2 | 2 | |
| 76 | Rivet, plastic drive | 18436-G1 | 1/4 | 4 | 4 | |
| 77 | Rivet, aluminum, black | 15058-G1 | 3/16 | 4 | 4 | |
| 81 | Washer, special | 10669-G6 | 6 | 6 | ||
| 83 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 6 | 6 | |
| 84 | Nut, lock | 11027-G2 | 1/4 - 20 | 6 | 6 | |
| 85 | Rivet, aluminum, black | 15058-G1 | 3/16 | 2 | 2 | |
| 86 | Trim strip | 14705-G1 | 2 | 2 | ||
| 87 | Rivet, aluminum | 14601-G2 | 4 | 4 | ||
| 90 | Indicator, foward - neutral - reverse | 19882-G1 | 1 | 1 | ||
| 91 | Retainer, pushon | 12064-G3 | 3 | 3 | ||
| 92 | Scuffguard, seatwrap | 18787-G1 | 1 | 1 | ||
| 93 | Floormat | 25091-G1 | 3/16 | 1 | 1 | |
| 96 | Contsole, 4-cup | 24967-G1 | 1 | 1 | ||
| 98 | Decal, safety | 24968-G1 | includes with item 96 | 1 | 1 | |
| 99 | Rivet, plastic cover | 18436-G1 | 1/4 | 4 | 4 | |
| 100 | Washer | 00559-G7 | 1/4 | 2 | 2 | |
| 101 | Cowl | 20211-G2 | 1 | |||
| 102 | Cowl support | 18348-G1 | 1 | |||
| 103 | Nut, lock | 11027-G2 | 1/4 - 20 | 4 | ||
| 104 | Washer | 00560-G1 | 3/8 | 2 | ||
| 105 | Dash tray | 18352-G2 | 1 | |||
| 106 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 5 | 5 | |
| 107 | Nut, lock | 11027-G2 | 1/4 - 20 | 3 | 3 | |
| 109 | Washer | 00559-G8 | 5/16 | 5 | 5 | |
| 110 | Dash tray liner kit | 18799-G3 | includes items 111-113 | 1 | ||
| 111 | Liner, dash tray | 18796-G2 | 1 | |||
| 112 | Rivet, plastic, drive | 18436-G1 | 1/4 | 2 | ||
| 113 | Fastener, ratchet | 16816-G1 | 2 | |||
| 114 | Splash panel | 15680-G2 | Passenger side | 1 | ||
| 115 | Splash panel | 15681-G2 | Driver's side | 1 | ||
| 116 | Nut | 00544-G3 | 5/16 - 18 | 4 | ||
| 117 | Nut, lock | 11027-G2 | 1/4 - 20 | 16 | 13 | |
| 118 | Screw, self-drill and tap | 00106-G6 | #12 - 24 x 3/4 LG | 4 | ||
| 122 | Seat wrap | 20297-G2 | 1 | 1 | ||
| 123 | Nut, lock | 11027-G2 | 1/4 - 20 | 8 | 8 | |
| 124 | Fender cap, flexible, passenger side | 14700-G1 | 1 | 1 | ||
| 125 | Fender cap, flexible, driver's side | 14700-G2 | 1 | 1 | ||
| 126 | Seat wrap, freedom only | 20297-G4 | 1 | |||
| 127 | Bumper, rear | 23800-G3 | 1 | 1 | ||
| 128 | Fender | 19555-G3 | Passenger side | 1 | ||
| 129 | Fender | 19555-G4 | Driver's side | 1 | ||
| 130 | Screw, self-drill and tap | 00106-G6 | #12 - 24 x 3/4 LG | 6 | 6 | |
| 131 | Nut, lock | 11027-G2 | 1/4 - 20 | 4 | 4 | |
| 132 | Fender | 24070-G3 | Passenger side | 1 | ||
| 133 | Fender | 24070-G4 | Driver's side | 1 | ||
| 137 | Battery rack | 25457-G2 | Passenger side | 1 | 1 | |
| 138 | Battery rack | 25457-G3 | Driver's side | 1 | 1 | |
| 147 | Flexible fender cap | 21748-G1 | Passenger side (freedom only) | 1 | ||
| 148 | Flexible fender cap | 21748-G2 | Driver's side, (Freedom only) | 1 | ||
| 155 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 9 | ||
| 156 | Washer | 00559-G7 | 1/4 | 18 | ||
| 157 | Nut, lock | 14390-G4 | 1/4 - 20 | 9 | ||
| 160 | Liner, dash tray | 22911-G1 | 1 | 1 | ||
| 161 | Rivet, plastic, drive | 18436-G1 | 1/4 | 2 | 2 | |
| 162 | Fastener, ratchet | 16816-G1 | 2 | 2 | ||
| 165 | Nameplate, E-Z-GO | 19817-G1 | 1 | 1 | ||
| 166 | Nut, pushon | 12064-G3 | 3 | 3 | ||
| 167 | Plug, button | 20271-G4 | 4 | 4 | ||
| 172 | Cowl | 23063-G5 | 1 | |||
| 173 | Cowl support | 23148-G1 | 1 | |||
| 174 | Nut, lock | 11027-G2 | 1/4 - 20 | 4 | ||
| 175 | Washer | 00560-G1 | 3/8 | 2 | ||
| 176 | Dash tra | 18353-G2 | 1 | |||
| 177 | Cap, cowl | 22914-G1 | 1 | |||
| 178 | Cap, cowl, freedom only | 23674-G1 | 1 | |||
| 179 | Angle, rail | 19013-G2 | 2 | 2 | ||
| 182 | Side rail | 24081-G1 | Passenger side | 1 | ||
| 183 | Side rail | 24081-G2 | Driver's side | 1 | ||
| 185 | Top rail | 15536-G1 | Passenger side | 1 | 1 | |
| 186 | Top rail | 15536-G2 | Driver's side | 1 | 1 | |
| 189 | Floorboard assembly | 15671-G2 | includes item 190 | 1 | 1 | |
| 190 | Nut "J" type | 14776-G1 | 1/4 - 20 | 2 | 2 | |
| 191 | Screw, self-drill and tap | 00106-G6 | #12 - 24 x 3/4 LG | 23 | 23 | |
| 192 | Side rail | 24161-G1 | Passenger side | 1 | ||
| 193 | Side rail | 24161-G2 | Driver's side | 1 |

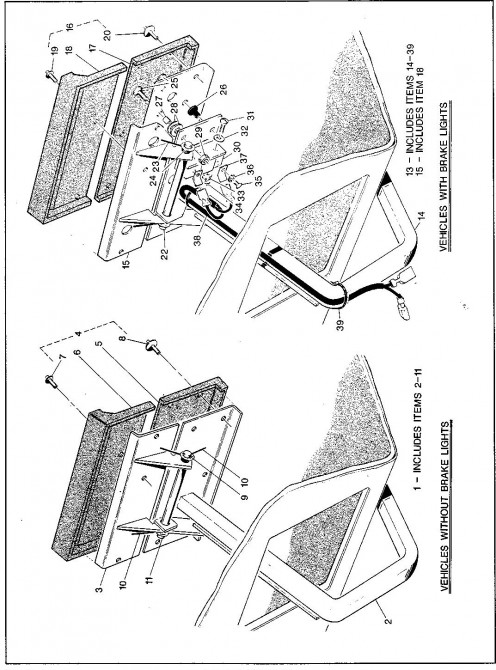

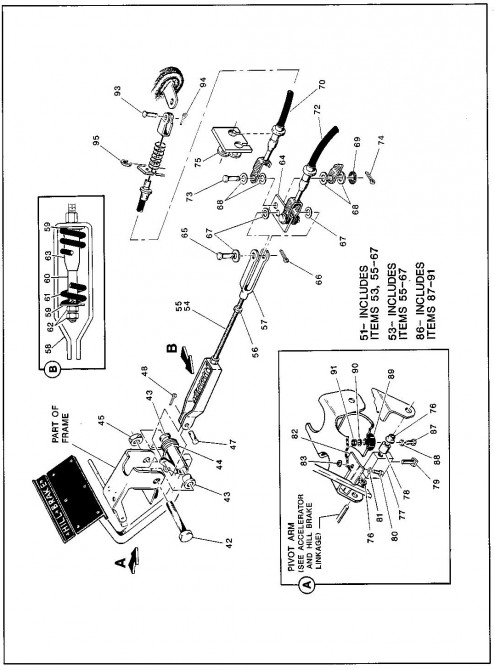

Brake Linkage
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Brake pedal assembly, vehicles without brake lights | 25253-G1 | includes items 2-11 | 1 | 1 | |
| 2 | Pedal, brake | 23037-G2 | with pad, item 5 | 1 | 1 | |
| 3 | Pedal, hill brake | 15813-G1 | with pad, item 6 | 1 | 1 | |
| 4 | Brake/hill brake pedal pad kit | 15826-G1 | includes items 5-8 | 1 | 1 | |
| 5 | Pad, brake pedal | * | 1 | 1 | ||
| 6 | Pad, hill brake pedal | * | 1 | 1 | ||
| 7 | Rivet, small head | 15766-G1 | 3 | 3 | ||
| 8 | Rivet, large head | 16409-G1 | 6 | 6 | ||
| 9 | Pin, hill brake pedal | 15932-G1 | 1 | 1 | ||
| 10 | Spring, torsion | 11737-G1 | 2 | 2 | ||
| 11 | Push, nut | 12064-G1 | 1 | 1 | ||
| 13 | Brake pedal assembly, vehicles with brake lights | 22449-G1 | includes items 14 - 39 | 1 | 1 | |
| 14 | Pedal, brake | 22357-G1 | 1 | 1 | ||
| 15 | Pedal, hill brake | 15813-G2 | with pad, item 18 | 1 | 1 | |
| 16 | Brake/hill brake pedal pad kit | 15826-G1 | includes items 17 - 20 | 1 | 1 | |
| 17 | Pad, brake pedal | * | 1 | 1 | ||
| 18 | Pad, hill brake pedal | * | 1 | 1 | ||
| 19 | Rivet, small head | 15766-G1 | 3 | 3 | ||
| 20 | Rivet, large head | 16409-G1 | 6 | 6 | ||
| 21 | Plate, brake pedal | 15809-G2 | 1 | 1 | ||
| 22 | Pin, hill brake pedal | 15932-G1 | 1 | 1 | ||
| 23 | Spring, torsion | 11737-G1 | 2 | 2 | ||
| 24 | Push, nut | 12064-G1 | 1 | 1 | ||
| 25 | Screw | 00737-G7 | #10 - 24 x 3/4 LG | 4 | 4 | |
| 26 | Nut, captive | 00739-G1 | #10 - 24 | 2 | 2 | |
| 27 | Standoff, brake pedal | 22362-G1 | 2 | 2 | ||
| 28 | Spring, conical | 24938-G1 | 2 | 2 | ||
| 29 | Nut, lock | 11098-G7 | #10 - 24 | 2 | 2 | |
| 30 | Switch, micro | 10606-G1 | 1 | 1 | ||
| 31 | Screw | 00139-G2 | #6 - 32 x 1 1/4 LG | 2 | 2 | |
| 32 | Washer | 00559-G3 | #6 | 4 | 4 | |
| 33 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 34 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 35 | Screw, brass | 13514-G1 | 2 | 2 | ||
| 36 | Washer, lock, external tooth | 00567-G3 | #6 | 2 | 2 | |
| 37 | Faston tab | 14628-G1 | 2 | 2 | ||
| 38 | Wire harness, brake | 22447-G1 | 1 | 1 | ||
| 39 | Clamp, nylon | 17618-G1 | 3 | 3 | ||
| 42 | Bolt, shoulder | 14158-G1 | 3/8 - 16 | 1 | 1 | |
| 43 | Bushing, flanged, nylon | 11079-G1 | 2 | 2 | ||
| 44 | Spring, torsion | 25292-G1 | 1 | 1 | ||
| 45 | Nut, lock | 13521-G4 | 3/8 - 16 | 1 | 1 | |
| 47 | Pin, clevis | 10386-G3 | 1 | 1 | ||
| 48 | Cotter pin | 10387-G3 | 3/32 x 3/4 LG | 1 | 1 | |
| 50 | Brake linkage assembly, gasoline vehicle | 25101-G1 | includes items 52, 54, 56-67 | 1 | 1 | |
| 51 | Brake linkage assembly, electric vehicle | 25101-G2 | includes items 53, 55-67 | 1 | 1 | |
| 52 | Compensating link assembly, gasoline vehicle | 23062-G1 | includes items 54, 56-67 | 1 | 1 | |
| 53 | Compensating link assembly, electric vehicle | 23062-G2 | includes items 55-67 | 1 | 1 | |
| 54 | Rod, gasoline vehicle | * | 1 | 1 | ||
| 55 | Rod, electric vehicle | 23175-G2 | 1 | 1 | ||
| 56 | Nut | 00544-G4 | 5/16 - 24 | 1 | 1 | |
| 57 | Yoke, clevis | 10385-G4 | 1 | 1 | ||
| 58 | Yoke, brake | 23030-G1 | 1 | 1 | ||
| 59 | Washer | 15121-G1 | 5/16 | 2 | 2 | |
| 60 | Tube | 23061-G2 | 1 | 1 | ||
| 61 | Spring, compression | 23463-G1 | 1 | 1 | ||
| 62 | Nut, lock | 00532-G4 | 5/16 - 24 | 2 | 2 | |
| 63 | Bushing, accelerator rod | 17979-G1 | 1 | 1 | ||
| 64 | Bar, equalizer | 13659-G1 | 1 | 1 | ||
| 65 | Pin, clevis | 10386-G3 | 1 | 1 | ||
| 66 | Cotter pin | 10387-G3 | 3/32 x 3/4 LG | 1 | 1 | |
| 67 | Washer, nylon | 17255-G1 | 3 | 3 | ||
| 68 | Washer, nylon | 17255-G1 | 8 | 8 | ||
| 69 | Washer, flat | 00559-G8 | 2 | 2 | ||
| 70 | Cable, brake, passenger side | 25187-G2 | 1 | 1 | ||
| 72 | Cable, brake, driver's side | 25187-G1 | 1 | 1 | ||
| 73 | Pin, clevis | 10386-G3 | 2 | 2 | ||
| 74 | Cotter pin | 10387-G3 | 3/32 x 3/4 LG | 2 | 2 | |
| 75 | Ring, retaining | 12305-G1 | 2 | 2 | ||
| 76 | Bearing, flanged | 10097-G6 | 2 | 2 | ||
| 77 | Cam, hill brake | 25103-G1 | 1 | 1 | ||
| 78 | Spacer | 14134-G2 | 1 | 1 | ||
| 79 | Setscrew | 00491-G4 | 1/4 - 20 x 3/8 LG | 2 | 2 | |
| 80 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 2 | 2 | |
| 81 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 82 | Bracket, catch | 15022-G1 | 1 | 1 | ||
| 83 | Nut, lock | 11027-G2 | 1/4 - 20 | 2 | 2 | |
| 86 | Pedal bumper service kit | 14061-G1 | includes items 87 - 91 | 1 | 1 | |
| 87 | Screw | 00150-G6 | #10 - 24 x 3/4 LG | 1 | 1 | |
| 88 | Washer | 00559-G5 | #10 | 1 | 1 | |
| 89 | Bumper, rubber | 13728-G1 | 1 | 1 | ||
| 90 | Washer lock | 00565-G5 | #10 | 1 | 1 | |
| 91 | Nut | 00526-G3 | #10 - 24 | 1 | 1 | |
| 93 | Pin, clevis | 10386-G3 | 2 | 2 | ||
| 94 | Cotter pin | 10387-G3 | 3/32 x 3/4 LG | 2 | 2 | |
| 95 | Ring, retaining | 12305-G1 | 2 | 2 |

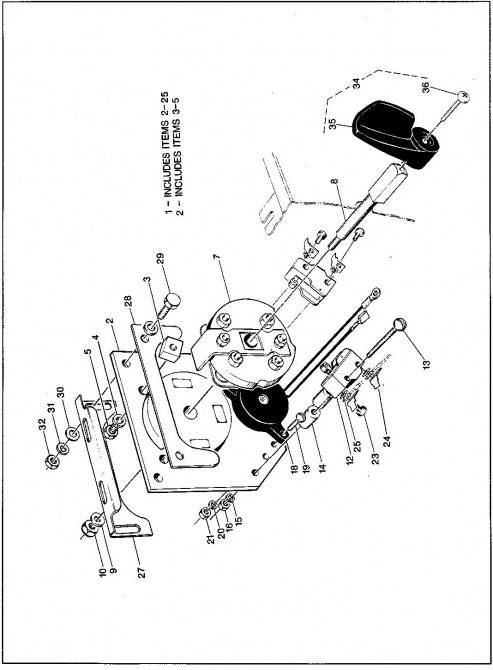

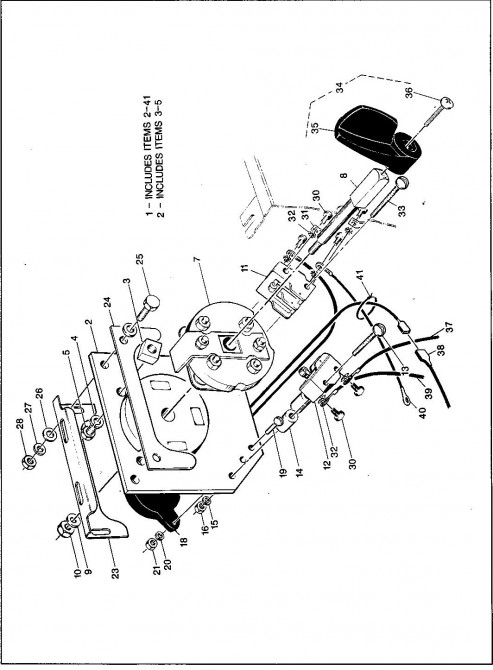

Direction Selector
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Forward-Neutral-Reverse switch assembly | 25396-G1 | includes items 2-25 | 1 | 1 | |
| 2 | Contact board assembly | 14651-G1 | includes items 3-5 | 1 | 1 | |
| 3 | Stop | 24940-G1 | 2 | 2 | ||
| 4 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 5 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 2 | 2 | |
| 7 | Cam unit, forward-neutral-reverse switch | 12835-G1 | 1 | 1 | ||
| 8 | Shaft, forward-neutral-reverse switch | 19470-G1 | 1 | 1 | ||
| 9 | Washer | 00560-G1 | 3/8 | 1 | 1 | |
| 10 | Nut, lock | 14390-G1 | 3/8 - 24 | 1 | 1 | |
| 12 | Switch, micro | 10608-G4 | 2 | 2 | ||
| 13 | Screw | 00139-G8 | #6 - 32 x 1 3/4 LG | 4 | 4 | |
| 14 | Spacer, micro switch | 12806-G1 | 4 | 4 | ||
| 15 | Washer, lock | 00565-G3 | #6 | 4 | 4 | |
| 16 | Nut | 00525-G5 | #6 - 32 | 4 | 4 | |
| 18 | Buzzer | 17940-G2 | 1 | 1 | ||
| 19 | Screw | 00138-G5 | #6 - 32 x 5/8 LG | 2 | 2 | |
| 20 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 21 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 23 | Screw, brass | 13514-G1 | #6 -32 x .22 LG | 4 | 4 | |
| 24 | Faston tab | 14628-G1 | 4 | 4 | ||
| 25 | Washer, lock, external tooth | 00567-G3 | #6 | 4 | 4 | |
| 27 | Bracket, mounting | 12863-G1 | 1 | 1 | ||
| 28 | Support, bracket mounting | 15461-G1 | 1 | 1 | ||
| 29 | Screw | 00414-G8 | 1/4 - 20 x 1 LG | 2 | 2 | |
| 30 | Washer | 00559-G7 | 1/4 | 2 | 2 | |
| 31 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 32 | Nut | 00532-G1 | 1/4 - 20 | 2 | 2 | |
| 34 | Switch handle kit | 20325-G1 | includes items 35 and 36 | 1 | 1 | |
| 35 | Handle, plastic | 19886-G1 | 1 | 1 | ||
| 36 | Screw | 00740-G4 | #10 - 32 x 1/ 2 LG | 1 | 1 |
Direction Selector
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Forward-neutral-reverse switch assembly | 25259-G2 | includes items 2-41 | 1 | 1 | |
| 2 | Contact board assembly | 14651-G1 | includes items 3-5 | 1 | 1 | |
| 3 | Stop | 24940-G1 | 2 | 2 | ||
| 4 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 5 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 2 | 2 | |
| 7 | Cam unit, forward-neutral-reverse switch | 12835-G1 | 1 | 1 | ||
| 8 | Shaft, forward-neutral-reverse switch | 19470-G1 | 1 | 1 | ||
| 9 | Washer | 00560-G1 | 3/8 | 1 | 1 | |
| 10 | Nut, lock | 14390-G1 | 3/8 - 24 | 1 | 1 | |
| 11 | Switch, micro, double | 12796-G1 | 1 | 1 | ||
| 12 | Switch, micro | 10606-G4 | 1 | 1 | ||
| 13 | Screw | 00139-G6 | #6 - 32 x 1 3/4 LG | 2 | 2 | |
| 14 | Spacer, micro switch | 12806-G1 | 2 | 2 | ||
| 15 | Washer, lock | 00565-G3 | #6 | 4 | 4 | |
| 16 | Nut | 00525-G5 | #6 - 32 | 4 | 4 | |
| 18 | Buzzer | 17940-G1 | 1 | 1 | ||
| 19 | Screw | 00138-G5 | #6 - 32 x 5/8 LG | 2 | 2 | |
| 20 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 21 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 23 | Bracket, mounting | 12863-G1 | 1 | 1 | ||
| 24 | Support, bracket mounting | 15461-G1 | 1 | 1 | ||
| 25 | Screw | 00414-G8 | 1/4 - 20 x 1 LG | 2 | 2 | |
| 26 | Washer | 00559-G7 | 1/4 | 2 | 2 | |
| 27 | Washer, lock | 00565-G7 | 1/4 | 2 | 2 | |
| 28 | Nut | 00532-G1 | 1/4 - 20 | 2 | 2 | |
| 30 | Screw, brass | 13514-G1 | #6 - 32 x .22 LG | 6 | 6 | |
| 31 | Tab, faston | 14628-G1 | 2 | 2 | ||
| 32 | Washer, lock, external tooth | 00567-G3 | #6 | 6 | 6 | |
| 33 | Screw | 00139-G8 | #6 - 32 x 2 LG | 2 | 2 | |
| 34 | Switch handle kit | 20325-G1 | includes items 35 and 36 | 1 | 1 | |
| 35 | Handle, plastic | 19886-G1 | 1 | 1 | ||
| 36 | Screw | 00740-G4 | #10 - 32 x 1/2 LG | 1 | 1 | |
| 37 | Wire | 14619-G2 | blue | 1 | 1 | |
| 38 | Wire | 21743-G1 | Black | 1 | 1 | |
| 39 | Wire | 23862-G2 | Red | 1 | 1 | |
| 40 | Wire | 23645-G1 | 1 | 1 | ||
| 41 | Clamp, nylon | 17618-G1 | 3 | 3 |

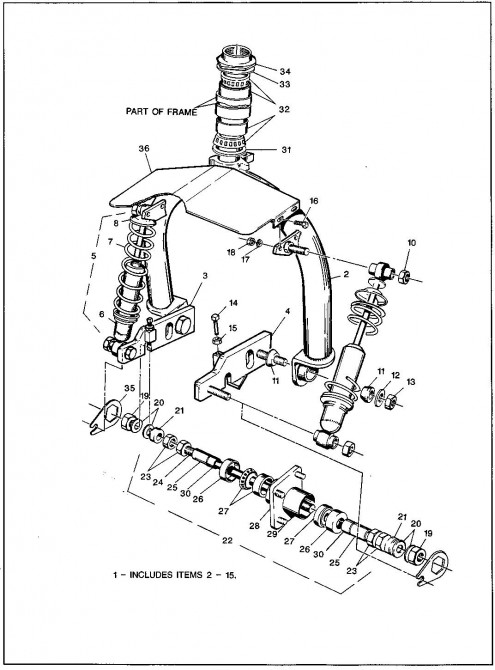

Fork
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Purchase |
|---|---|---|---|---|---|
| 1 | Fork assembly | 17533-G3 | includes items 2-15 | 1 | |
| 2 | Fork | 17537-G1 | 1 | ||
| 3 | Axle bracket | 17542-G1 | passenger side | 1 | |
| 4 | Axle bracket | 17542-G2 | driver's side | 1 | |
| 5 | Shock absorber assembly | 19796-G3 | includes items 6-8 | 2 | |
| 6 | Shock absorber | 17907-G1 | 1 | ||
| 7 | Spring, compression | 19795-G2 | 1 | ||
| 8 | Retainer, spring | 17816-G2 | 1 | ||
| 10 | Nut, lock | 00897-G1 | 1/2 - 13 | 4 | |
| 11 | Bushing, pivot | 15588-G1 | 4 | ||
| 12 | Washer | 00653-G5 | 5/8 | 2 | |
| 13 | Nut, lock | 00654-G7 | 5/8 - 11 | 2 | |
| 14 | Setscrew, square head | 00655-G4 | 1/4 -20 x 1 3/4 LG | 2 | |
| 15 | Nut | 00898-G1 | 1/4 - 20 | 2 | |
| 16 | Screw | 00671-G4 | #10- 24 x 1/2 LG | 4 | |
| 17 | Washer, lock | 00882-G5 | #10 | 4 | |
| 18 | Nut | 00896-G3 | #10 - 24 | 4 | |
| 19 | Nut, lock | 00894-G1 | 3/4 - 16 | 2 | |
| 20 | Washer | 00985-G6 | 3/4 | 4 | |
| 21 | Ring, adjuster | 17650-G2 | 2 | ||
| 22 | Hub and axle assembly | 17535-G2 | includes items 23 - 30 | 1 | |
| 23 | Nut | 00899-G8 | 3/4 - 16 | 4 | |
| 24 | Axle, front | 10223-G5 | 1 | ||
| 25 | Spacer, axle | 17536-G2 | 2 | ||
| 26 | Seal, grease | 19471-G1 | 2 | ||
| 27 | Bearing, roller | 11750-G1 | 2 | ||
| 28 | Hub assembly | 19888-G1 | includes item 29 | 1 | |
| 29 | Bolt, hub | 19862-G1 | 1/2 - 20 | 4 | |
| 30 | Spacer, axle | 11655-G1 | 2 | ||
| 31 | Spacer | 13136-G1 | 1 | ||
| 32 | Bearing, roller | 13756-G1 | 2 | ||
| 33 | Washer, special | 10669-G3 | 1 | ||
| 34 | Nut, lock | 11098-G1 | 1 3/8 - 12 | 1 | |
| 35 | Retainer, axle nut | 18256-G2 | 2 | ||
| 36 | Shield | 15643-G1 | 1 |

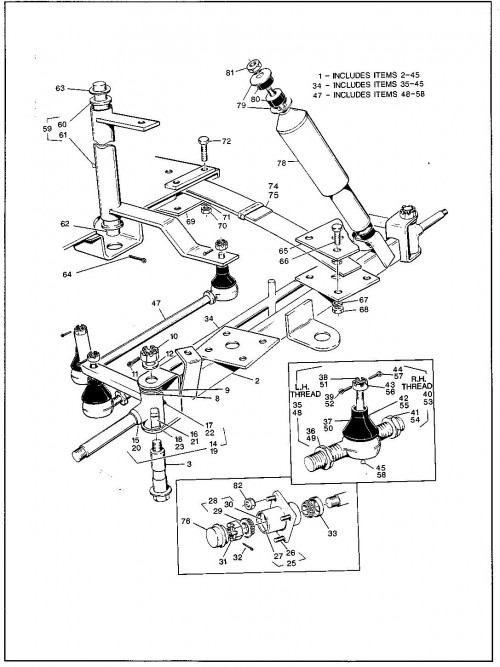

Four Wheel Front Suspension
| Sl. No. | Part description | Part number | Notes | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|
| 1 | Front axle assembly | 24054-G5 | includes items 2-45 | 1 | |
| 2 | Axle | 23918-G2 | 1 | ||
| 3 | King pin | 25177-G2 | 2 | ||
| 8 | Bearing, thrust | 16982-G1 | 2 | ||
| 9 | Washer | 00879-G7 | 7/8 | 2 | |
| 10 | Nut, slotted | 00886-G1 | 5/8 - 18 | 2 | |
| 11 | Cotter pin | 19060-G1 | 1/4 x 1 1/2 LG | 2 | |
| 12 | Washer | 00879-G5 | 5/8 | 2 | |
| 14 | Spindle assembly, driver's side | 23925-G1 | includes items 15-18 | 1 | |
| 15 | Spindle, driver's side | * | 1 | ||
| 16 | Bearing, bronze | 16623-G1 | 2 | ||
| 17 | Grease fitting | 10389-G3 | 1 | ||
| 18 | Seal | 16626-G1 | 1 | ||
| 19 | Spindle assembly, passenger side | 23924-G2 | includes items 20-23 | 1 | |
| 20 | Spindle, passenger side | * | 1 | ||
| 21 | Bearing, bronze | 16623-G1 | 2 | ||
| 22 | Grease fitting | 10389-G3 | 1 | ||
| 23 | Seal | 16626-G1 | 1 | ||
| 25 | Hub assembly | 19932-G1 | includes items 26 and 27 | 2 | |
| 26 | Bolt, hub | 19862-G1 | 1/2 - 20 | 4 | |
| 27 | Race, bearing | * | 2 | ||
| 28 | Bearing and race assembly | 50892-G1 | includes items 29 and 30 | 2 | |
| 29 | Roller, bearing | 11750-G2 | 2 | ||
| 30 | Race, bearing | * | 2 | ||
| 31 | Nut, slotted | 12093-G1 | 1- 14 | 2 | |
| 32 | Cotter pin | 00798-G8 | 5/32 x 1 3/4 LG | 2 | |
| 33 | Seal | 25146-G1 | 1 | ||
| 34 | Tie rod assembly | 19202-G1 | includes items 35 - 45 | 1 | |
| 35 | Tie rod assembly, L.H. thread | 20795-G1 | includes items 36 - 39 | 1 | |
| 36 | Nut | 18434-G1 | 9/16 - 18 L.H. thread | 1 | |
| 37 | Boot, rubber | 50641-G1 | 1 | ||
| 38 | Nut, slotted | 50209-G1 | 7/16 - 20 | 1 | |
| 39 | Cotter pin | 10387-G2 | 3/16 x 1 LG | 1 | |
| 40 | Tie rod end assembly, R.H. thread | 20795-G2 | includes items 41 - 44 | 1 | |
| 41 | Nut | 18434-G2 | 9/16 - 18, R.H. thread | 1 | |
| 42 | Boot, rubber | 50641-G1 | 1 | ||
| 43 | Nut, slotted | 50209-G1 | 7/16 - 20 | 1 | |
| 44 | Cotter pin | 10387-G2 | 3/16 - 1 LG | 1 | |
| 45 | Grease fitting | 10389-G3 | 2 | ||
| 47 | Tie rod assembly | 18377-G1 | includes items 48 - 58 | 1 | |
| 48 | Tie rod end assembly, L.H. thread | 20795-G1 | includes items 49- 52 | 1 | |
| 49 | Nut | 18434-G1 | 9/16 - 18, L.H., thread | 1 | |
| 50 | Boot, rubber | 50641-G1 | 1 | ||
| 51 | Nut, slotted | 50209-G1 | 7/16 - 20 | 1 | |
| 52 | Cotter pin | 10387-G2 | 3/16 X 1 LG | 1 | |
| 53 | Tie rod end assembly, R.H. thread | 20795-G2 | includes items 54 - 57 | 1 | |
| 54 | Nut | 18434-G2 | 9/16 - 18, R.H. thread | 1 | |
| 55 | Boot, rubber | 50641-G1 | 1 | ||
| 56 | Nut, slotted | 50209-G1 | 7/16 - 20 | 1 | |
| 57 | Cotter pin | 10387-G2 | 3/16 x 1 LG | 1 | |
| 58 | Grease fitting | 10389-G3 | 2 | ||
| 59 | Idler assembly | 23929-G1 | includes items 60 and 61 | 1 | |
| 60 | Bushing, flanged | 15012-G1 | 2 | ||
| 61 | Grease fitting | 10389-G3 | 1 | ||
| 62 | Shaft, idler | 16417-G2 | 1 | ||
| 63 | Washer, wave type, spring | 13221-G1 | 1 | ||
| 64 | Cotter pin | 10387-G1 | 1/4 x 1 1/ 2 LG | 1 | |
| 65 | Retainer, spring | 15023-G2 | 2 | ||
| 66 | Screw, black | 00876-G4 | 3/8 - 16 x 1 1/2 LG | 8 | |
| 67 | Washer, lock, black | 00878-G1 | 3/8 | 8 | |
| 68 | Nut, black | 00877-G5 | 3/8 - 16 | 8 | |
| 69 | Retainer, spring | 15023-G2 | 2 | ||
| 70 | Nut | 00532-G5 | 3/8 - 16 | 6 | |
| 71 | Washer, lock | 00566-G1 | 3/8 | 6 | |
| 72 | Screw | 00427-G6 | 3/8 - 16 x 2 LG | 6 | |
| 74 | Leaf spring | 24025-G1 | 2 leaf | 2 | |
| 76 | Cap, spindle | 12091-G1 | 2 | ||
| 78 | Shock absorber | 15707-G1 | 2 | ||
| 79 | Washer | 10435-G1 | 13/32 | 8 | |
| 80 | Bushing, rubber | 10194-G1 | 8 | ||
| 81 | Nut | 00532-G6 | 3/8 - 24 | 4 | |
| 82 | Nut, lug | 14723-G1 | 1/2 - 20 | 8 |

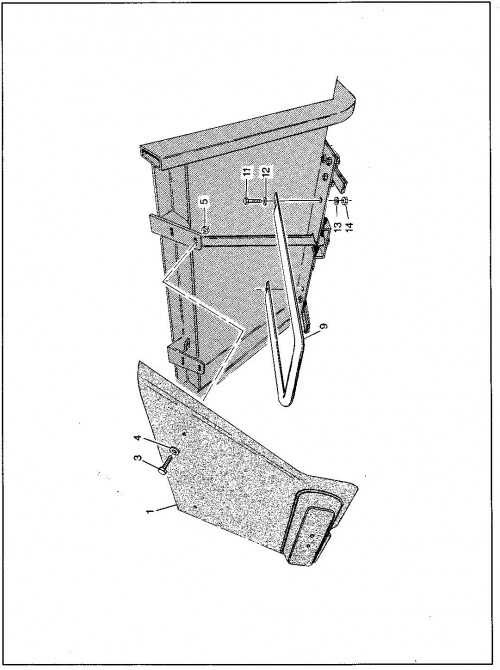

Front Shield
| Sl. No. | Part description | Part number | Notes | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|
| 1 | Shield | 23881-G1 | 1 | ||
| 3 | Screw | 00414-G8 | 1/4 -20 x 1 LG | 2 | |
| 4 | Washer | 00559-G7 | 1/4 | 2 | |
| 5 | Nut, lock | 14390-G4 | 1/4 - 20 | 2 | |
| 9 | Support, shield | 25054-G1 | 1 | ||
| 11 | Screw | 00258-G8 | 3/8 - 16 x 1 LG | 2 | |
| 12 | Washer | 005660-G1 | 3/8 | 2 | |
| 13 | Washer, lock | 00566-G1 | 3/8 | 2 | |
| 14 | Nut | 00532-G5 | 3/8 - 16 | 2 |

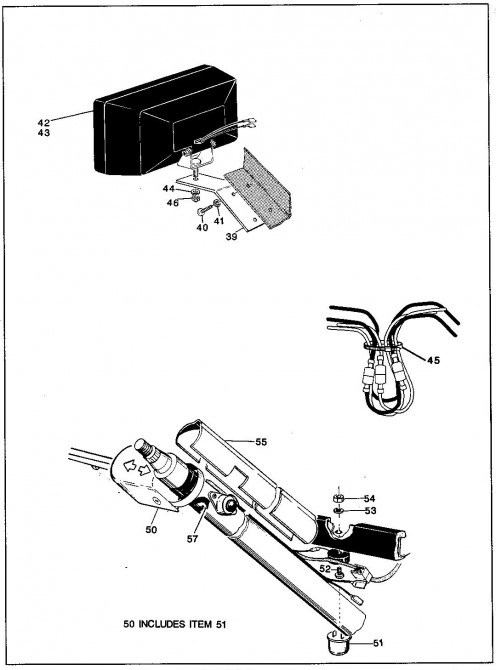

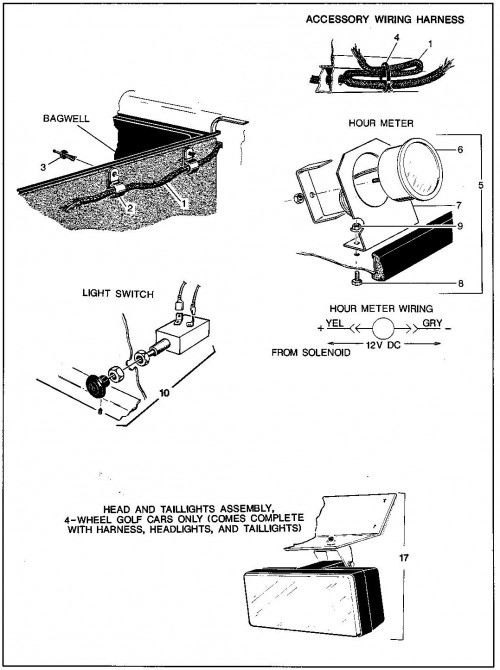

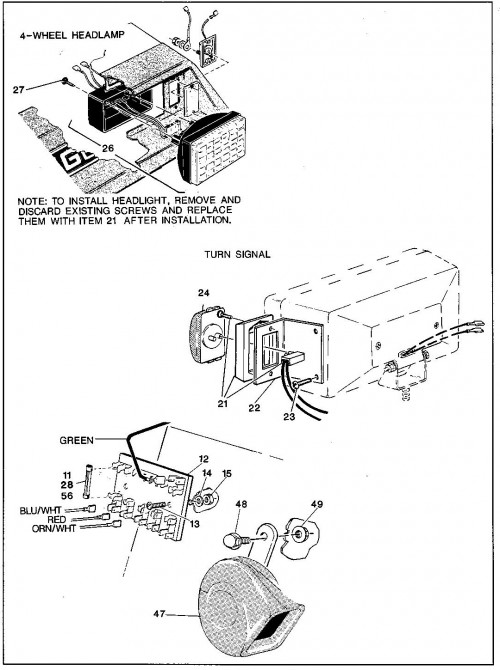

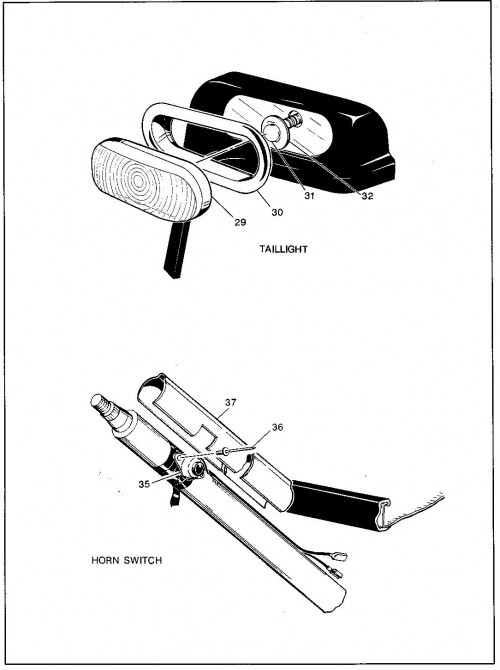

Horn and Accessory Wiring
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Wiring harness | 22069-G1 | 1 | 1 | ||
| 2 | Clip, cable, insulated | 11845-G5 | 3 | 3 | ||
| 3 | Rivet, drive, plastic | 18436-G1 | 3 | 3 | ||
| 4 | Clamp, nylon | 17618-G1 | 5 | 5 | ||
| 5 | Hour meter kit | 19318-G2 | includes items 6- 9 | 1 | 1 | |
| 6 | Hour meter | 21573-G1 | includes mounting hardware | 1 | 1 | |
| 7 | Bracket, hour meter | 18001-G1 | 1 | 1 | ||
| 8 | Screw | 00414-G4 | 1/4 - 20 x 1/2 LG | 2 | 2 | |
| 9 | Nut, lock | 11027-G2 | 1/4 - 20 | 2 | 2 | |
| 10 | Switch, headlamp | 18431-G1 | 1 | 1 | ||
| 11 | Fuse, 15 AMP | 18392-G1 | hour meter | 1 | 1 | |
| 12 | Fuse block | 22674-G1 | 1 | 1 | ||
| 13 | Screw | 00138-G4 | #6 - 32 x 1/2 LG | 2 | 2 | |
| 14 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 15 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 17 | Head and taillamp assembly | 20062-G1 | 1 | |||
| 21 | Mount kit, turn signal | 18927-G1 | 2 | 2 | ||
| 22 | Bracket, turn signal | 21806-G1 | 2 | 2 | ||
| 23 | Screw, self drill and tap | 00598-G4 | #8-18 x 1/2 LG | 4 | 4 | |
| 24 | Signal, lamp, yellow | 19180-G2 | 2 | 2 | ||
| 26 | Hedlamp | 23686-G1 | Requires item 27 for installation | 2 | ||
| 27 | Screw | 00906-G6 | 10 - 16 x 1 LG | 2 | ||
| 28 | Fuse, 20 AMPS | 18392-G2 | headlights and tail lights | 1 | 1 | |
| 29 | Lens, taillight | 22000-G1 | 1 | |||
| 30 | Grommet | 21999-G1 | 1 | |||
| 31 | Bulb | 21759-G1 | 1 | |||
| 32 | Socket | 21998-G2 | 1 | |||
| 35 | Switch, horn | 22242-G1 | includes wires | 1 | 1 | |
| 36 | Rivet | 14601-G8 | 2 | 2 | ||
| 37 | Cover, steering column | 20961-G3 | without turn signals | 1 | 1 | |
| 39 | Bracket, headlamp mounting | 22274-G1 | 2 | |||
| 40 | Screw, self drill and tap | 00106-G6 | #12-24 x 3/4 LG | 4 | ||
| 41 | Washer, lock, internal tooth | 00594-G7 | 1/4 | 4 | ||
| 42 | Headlamp assembly | 20209-G2 | 2 | |||
| 43 | Bulb, halogen, replacement | 22523-G1 | 2 | |||
| 44 | Washer, lock | 00566-G3 | 1/2 | 4 | ||
| 45 | Clamp, nylon | 16172-G1 | 4 | |||
| 46 | Nut | 00533-G1 | 1/2 - 13 | 4 | ||
| 47 | Horn | 32860-G1 | 1 | 1 | ||
| 48 | Screw | 13437-G9 | 1/4 - 20 x 3/4 LG | 1 | 1 | |
| 49 | Nut,lock | 11027-G2 | 1/4 - 20 | 1 | 1 | |
| 50 | Switch, turn signal assembly | 17867-G1 | includes item 51 | 1 | 1 | |
| 51 | Flasher, turn signal | 21640-G1 | 1 | 1 | ||
| 52 | Screw | 00372-G4 | #8 - 32 x 1/2 LG | 1 | 1 | |
| 53 | Washer, lock | 00565-G4 | #8 | 1 | 1 | |
| 54 | Nut | 00526-G1 | #8 - 32 | 1 | 1 | |
| 55 | Cover, steering column | 20965-G3 | with turn signals | 1 | 1 | |
| 56 | Fuse, 20 AMP | 18392-G2 | Turnsignals | 1 | 1 | |
| 57 | Tape, vinyl | 19344-G1 | AR | AR | ||
| 60 | Turn signal assembly | 20570-G2 | freedom, includes items 61 - 66 | 2 | ||
| 61 | Terminal, male | 18995-G1 | 1 | |||
| 62 | Turn signal, amber | 20574-G2 | includes items 63 - 66 | 1 | ||
| 63 | Screw | * | 2 | |||
| 64 | Lens, turn signal | * | 1 | |||
| 65 | Bulb | 21760-G1 | 1 | |||
| 66 | Housing, turn signal | * | 1 | |||
| 67 | Washer, lock | 00563-G7 | 1/4 | 1 | ||
| 68 | Wire, jumper | 20606-G1 | 1 | |||
| 69 | Nut, lock | 00532-G1 | 1/4 - 20 | 1 | ||
| 73 | Meter kit, state of charge (square) | 19197-G3 | includes items 74 - 78 | 1 | 1 | |
| 74 | Meter, state of charge | 19196-G2 | 1 | 1 | ||
| 75 | Screw | 00372-G5 | #8 - 32 x 5/8 LG | 2 | 2 | |
| 76 | Washer | 00559-G4 | #8 | 2 | 2 | |
| 77 | Washer, lock | 00565-G4 | #8 | 2 | 2 | |
| 78 | Nut | 00526-G1 | #8 - 32 | 2 | 2 |

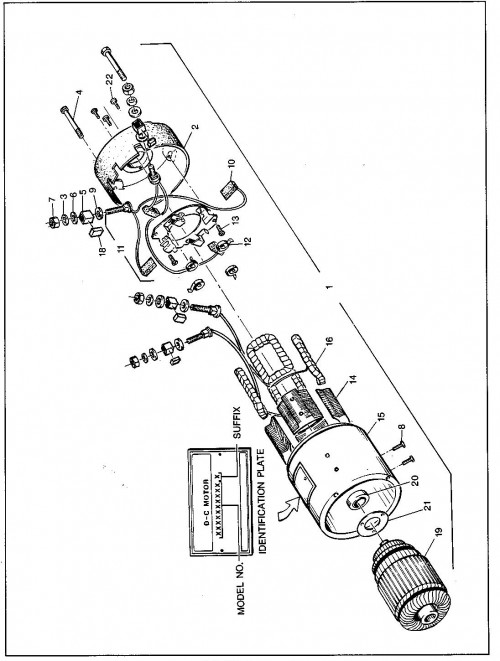

Motor
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Motor | 22858-G1 | Includes items 2-22 | 1 | 1 | |
| 2 | Endshield, commutator end | 16922-G1 | 1 | 1 | ||
| 3 | Washer | 13483-G1 | 4 | 4 | ||
| 4 | Screw, motor clamp | 16919-G1 | 2 | 2 | ||
| 5 | Bushing, insulator | 15437-G1 | 4 | 4 | ||
| 6 | Washer, insulator | 15438-G1 | 4 | 4 | ||
| 7 | Nut, lock | 15440-G1 | 4 | 4 | ||
| 8 | Screw, pole piece | 23234-G1 | 8 | 8 | ||
| 9 | Washer, insulator, terminal | 15442-G1 | 4 | 4 | ||
| 10 | Brush | 16917-G1 | 2 | 2 | ||
| 11 | Brush rigging | 16916-G1 | includes item 12 | 1 | 1 | |
| 12 | Brush spring | 15446-G1 | 4 | 4 | ||
| 13 | Screw, brush rigging mount | 51333-G1 | 2 | 2 | ||
| 14 | Field pole pieces | * | 4 | 4 | ||
| 15 | Shell, stator | * | 1 | 1 | ||
| 16 | Field coils | 23235-G1 | Set | 1 | 1 | |
| 18 | Gasket | 16948-G1 | 4 | 4 | ||
| 19 | Armature | * | 1 | 1 | ||
| 20 | Ball bearing, commutator end | 16918-G1 | 1 | 1 | ||
| 21 | Retainer, bearing | 16930-G1 | 1 | 1 | ||
| 22 | Screw, bearing retainer | 23236-G1 | 3 | 3 |

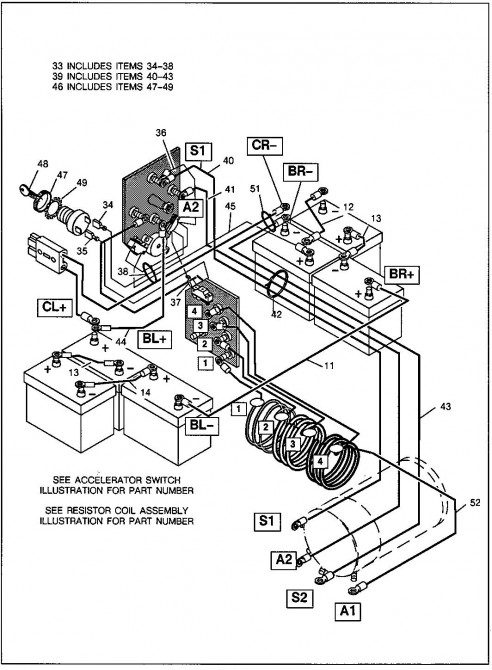

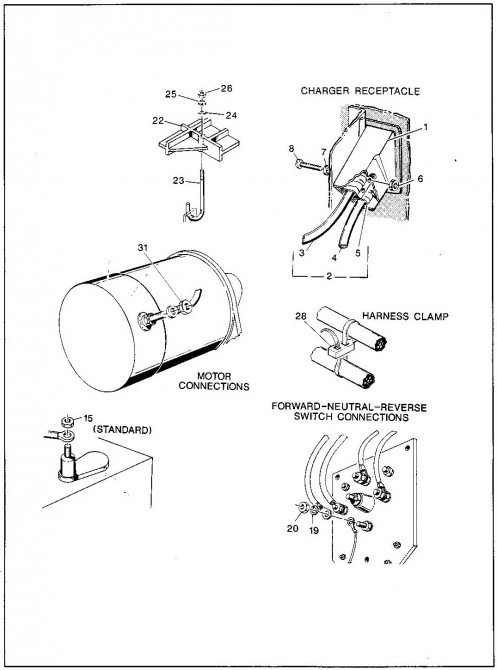

Power Wiring
| Sl. No. | Part description | Part number | Notes | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|
| 1 | Charger receptacle holder | 18724-G1 | 1 | ||
| 2 | Wiring harness charger connector | 18784-G1 | includes items 3-5 | 1 | |
| 3 | Wire | 14852-G1 | CR- | 1 | |
| 4 | Wire | 14852-G2 | CL+ | 1 | |
| 5 | Connector, anderson | 18782-G1 | 1 | ||
| 6 | Nut, lock | 14390-G9 | #6 - 32 | 2 | |
| 7 | Washer | 00559-G3 | #6 | 2 | |
| 8 | Screw | 00645-G2 | #6 - 32 x 1 1/4 LG | 2 | |
| 11 | Wire | 11885-G4 | 1 | ||
| 12 | Wire | 23540-G1 | 1 | ||
| 13 | Wire | 11893-G1 | 2 | ||
| 14 | Wire | 11894-G1 | 1 | ||
| 15 | Nut | 00702-G2 | 5/16 - 18 | 12 | |
| 16 | Screw | 00270-G6 | 5/16 - 18 x 3/4 LG | 12 | |
| 17 | Bolt, battery, square head | 12649-G1 | 5/16 - 18 x 1 LG | 12 | |
| 19 | Washer, lock | 00565-G8 | 5/16 | 4 | |
| 20 | Nut | 00702-G2 | 5/16 - 18 | 4 | |
| 22 | Battery hold down | 15736-G1 | 2 | ||
| 23 | J bolt, battery | 15734-G2 | 2 | ||
| 24 | Washer | 00559-G8 | 5/16 | 2 | |
| 25 | Washer, lock | 00565-G8 | 5/16 | 2 | |
| 26 | Nut | 00702-G2 | 5/16 - 18 | 2 | |
| 28 | Clamp, nylon, double | 23544-G1 | 4 | ||
| 30 | Washer, lock, external tooth | 00567-G8 | 5/16 | 2 | |
| 31 | Nut | 00532-G3 | 5/16 - 18 | 4 | |
| 33 | Control wiring harness, F-N-R switch | 17868-G1 | includes items 34 - 38 | 1 | |
| 34 | Wire | 14619-G2 | Light blue | 1 | |
| 35 | Wire | 17870-G2 | Yellow | 1 | |
| 36 | Wire | 14615-G1 | Black | 1 | |
| 37 | Wire | 17869-G1 | Red and white | 1 | |
| 38 | Clamp, nylon | 17618-G1 | 2 | ||
| 39 | Wiring harness, F-N-R switch | 18894-G1 | includes items 40 - 43 | 1 | |
| 40 | Wire | 17855-G1 | S1 | 1 | |
| 41 | Wire | 17856-G1 | A2 | 1 | |
| 42 | Clamp, nylon | 17618-G1 | black | 5 | |
| 43 | Wire | 17858-G1 | S2 | 1 | |
| 44 | Wire | 14610-G1 | BL+ | 1 | |
| 45 | Wire | 23645-G1 | 1 | ||
| 46 | Ignition switch kit | 17421-G1 | includes items 47 - 49 | 1 | |
| 47 | Face nut | 17137-G1 | 1 | ||
| 48 | Ignition key | 17063-G1 | 1 | ||
| 49 | Washer,lock, external tooth | 00568-G6 | 3/4 | 1 | |
| 51 | Clamp, nylon | 17618-G1 | 2 | ||
| 52 | Wire | 18897-G3 | A1-4 | 1 | |
| Current indicator | ** | NA | |||
| Battery tester | ** | Discharge machine | NA | ||
| Hydrometer | ** | NA | |||
| OHM meter | ** | Multi-meter | NA |

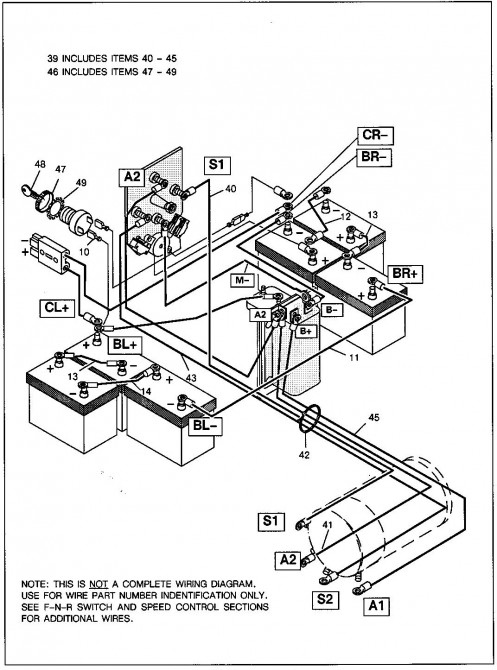

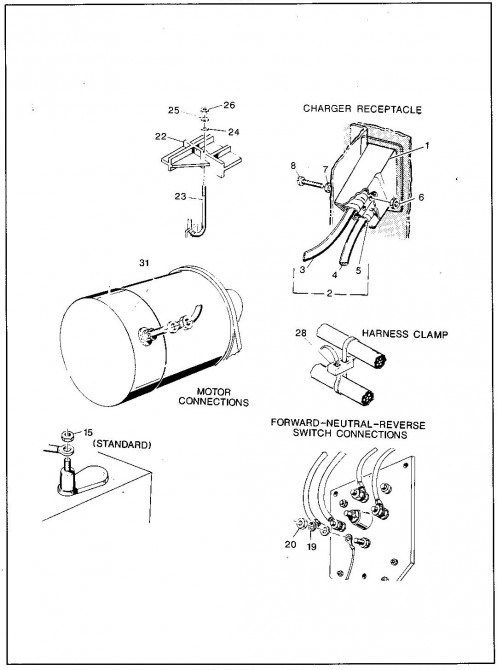

Power wiring
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Holder, charge receptacle | 18724-G1 | 1 | 1 | ||
| 2 | Wiring harness charger connector | 18784-G1 | includes items 3-5 | 1 | 1 | |
| 3 | Wire | 14852-G1 | CR- | 1 | 1 | |
| 4 | Wire | 14852-G2 | CL+ | 1 | 1 | |
| 5 | Connector | 18782-G1 | 1 | 1 | ||
| 6 | Nut, lock | 14390-G9 | #6 - 32 | 2 | 2 | |
| 7 | Washer | 00559-G3 | #6 | 2 | 2 | |
| 8 | Screw | 00645-G2 | #6 - 32 x 1 1/4 LG | 2 | 2 | |
| 10 | Wire | 23968-G1 | Red | 1 | 1 | |
| 11 | Wire | 11885-G4 | 1 | 1 | ||
| 12 | Wire | 23540-G1 | 1 | 1 | ||
| 13 | Wire | 11893-G1 | 2 | 2 | ||
| 14 | Wire | 11894-G1 | 1 | 1 | ||
| 15 | Nut | 00702-G2 | 5/16 - 18 | 12 | 12 | |
| 19 | Washer, lock | 00565-G8 | 5/16 | 4 | 4 | |
| 20 | Nut | 00702-G2 | 5/16 - 18 | 4 | 4 | |
| 22 | Battery hold down | 15736-G1 | 2 | 2 | ||
| 23 | J bolt | 15734-G2 | 2 | 2 | ||
| 24 | Washer | 00559-G8 | 5/16 | 2 | 2 | |
| 25 | Washer, lock | 00565-G8 | 5/16 | 2 | 2 | |
| 26 | Nut | 00702-G2 | 5/16 - 18 | 2 | 2 | |
| 28 | clamp, nylon, double | 23544-G1 | 4 | 4 | ||
| 30 | Washer, lock, external tooth | 00567-G8 | 5/16 | 2 | 2 | |
| 31 | Nut | 00532-G3 | 5/16 - 18 | 4 | 4 | |
| 33 | Wiring harness, charger connector | 22344-G1 | XI-300/500 vehicles only, includes items 34- 38 | 1 | 1 | |
| 34 | Wire | 22349-G1 | CR- | 1 | 1 | |
| 35 | Wire | 22349-G2 | CR+ | 1 | 1 | |
| 36 | Connector | 18782-G1 | 1 | 1 | ||
| 37 | Loom, flex | 22351-G1 | 1 | 1 | ||
| 38 | Clamp, nylon | 16172-G1 | 2 | 2 | ||
| 39 | Wiring harness, direction selector | 25772-G01 | includes items 40 - 45 | 1 | 1 | |
| 40 | Wire | 25559-G04 | SI | 1 | 1 | |
| 41 | Wire | 25559-G02 | A2 | 1 | 1 | |
| 42 | Clamp, nylon | 17618-G1 | Black | 5 | 5 | |
| 43 | wire | 25559-G03 | S2 | 1 | 1 | |
| 45 | Wire | 25559-G01 | A1 | 1 | 1 | |
| 46 | Ignition switch kit | 17421-G1 | includes items 47 - 49 | 1 | 1 | |
| 47 | Face nut | 17137-G1 | 1 | 1 | ||
| 48 | Ignition key | 17063-G1 | 1 | 1 | ||
| 49 | Washer, lock, external tooth | 00568-G6 | 3/4 | 1 | 1 | |
| 51 | Clamp, nylon | 17618-G1 | 2 | 2 | ||
| Current indicator | ** | NA | NA | |||
| Battery tester | ** | Discharge machine | NA | NA | ||
| Hydrometer | ** | NA | NA | |||
| OHM meter | ** | multi-meter | NA | NA |

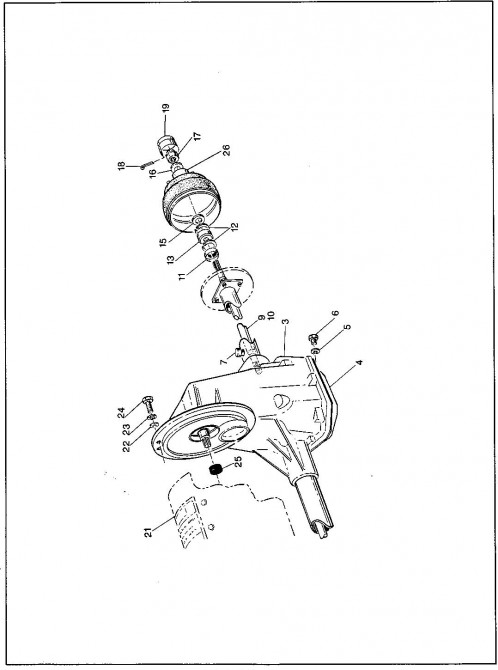

Rear Axle
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|

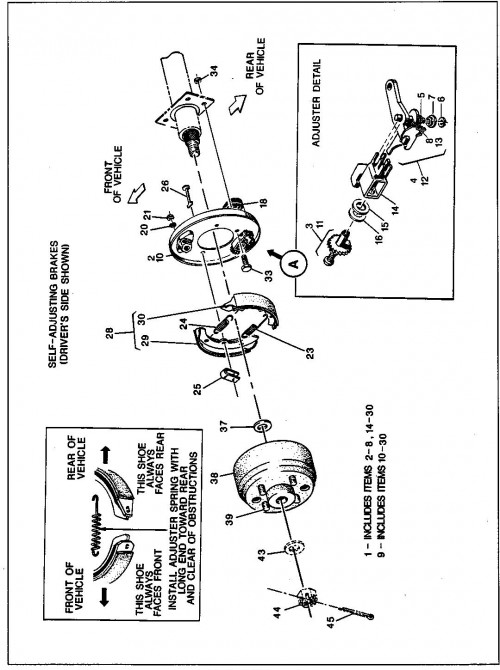

| 1 | Wheel brake set | XXXX-XX | See section U for part number and quantity | 1 | 1 | |
| 3 | Rear axle assembly | 25283-G1 | includes items 4 - 13 | 1 | 1 | |
| 4 | Cover | 25228-G1 | 1 | 1 | ||
| 5 | Washer | 25227-G1 | 1 | 1 | ||
| 6 | Plug, fill / check | 25226-G1 | 1 | 1 | ||
| 7 | Vent, valve | 25229-G1 | 1 | 1 | ||
| 9 | Shaft, axle | 20377-G4 | Passenger side | 1 | 1 | |
| 10 | Shaft, axle | 20377-G3 | Driver's side | 1 | 1 | |
| 11 | Seal, axle | 15114-G1 | 2 | 2 | ||
| 12 | Ring, retaining | 15113-G1 | 4 | 4 | ||
| 13 | Ball, bearing, axle | 15112-G1 | 2 | 2 | ||
| 15 | Washer, 20 MM | 15485-G1 | 2 | 2 | ||
| 16 | Washer, brake drum | 15487-G1 | 5/8 | 2 | 2 | |
| 17 | Nut, slotted | 15483-G1 | 5/8 - 18 | 2 | 2 | |
| 18 | Pin, cotter | 10387-G1 | 1/8 x 1 1/2 LG | 2 | 2 | |
| 19 | Cap, spindle | 12091-G1 | 2 | 2 | ||
| 21 | Motor | XXXX-XX | See section L for part number and quantity | 1 | 1 | |
| 22 | Washer | 00559-G7 | 1/4 | 3 | 3 | |
| 23 | Washer, lock | 00565-G7 | 1.4 | 3 | 3 | |
| 24 | Screw | 00797-G2 | 1/4 - 20 x 1 1/4 LG | 3 | 3 | |
| 25 | Bumper, spline | 24261-G1 | 1 | 1 | ||
| 26 | Adaptor, spindle cap | 24939-G1 | 2 | 2 |

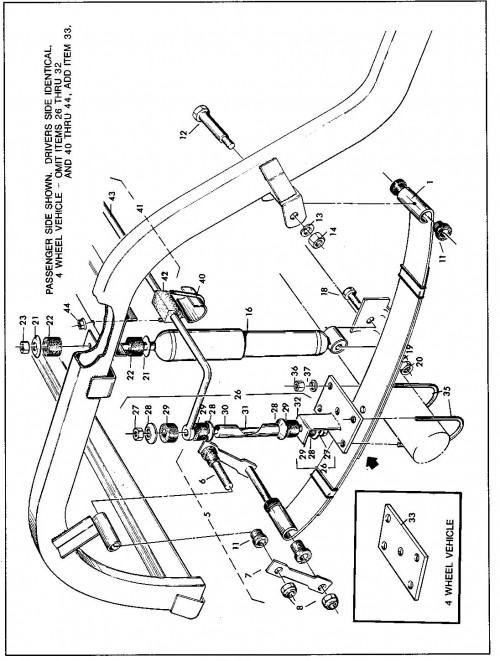

Rear Suspension Components
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Leaf spring | 20398-G1 | 2 | 2 | ||
| 2 | Leaf spring, heavy duty | 11645-G2 | 2 | 2 | ||
| 5 | Spring shackle | 19675-G1 | includes items 6 - 8 | 2 | 2 | |
| 6 | Stud plate, shackle | * | 2 | 2 | ||
| 7 | Plate, shackle | * | 2 | 2 | ||
| 8 | Nut, lock | 19676-G1 | 3/8 - 24 | 4 | 4 | |
| 11 | Bushing, rubber | 20098-G1 | 12 | 12 | ||
| 12 | Bolt, shoulder | 15727-G1 | 3/8 - 16 | 2 | 2 | |
| 13 | Washer, lock | 00566-G1 | 3/8 | 2 | 2 | |
| 14 | Nut | 00532-G5 | 3/8 - 16 | 2 | 2 | |
| 16 | Shock absorber | 20278-G1 | 2 | 2 | ||
| 17 | Shock absorber, heavy duty | 20279-G1 | 2 | 2 | ||
| 18 | Screw | 00428-G4 | 3/8 - 16 x 2 1/2 LG | 2 | 2 | |
| 19 | Washer | 00560-G1 | 3/8 | 2 | 2 | |
| 20 | Nut, lock | 00550-G5 | 3/8 - 16 | 2 | 2 | |
| 21 | Washer, shock absorber | 10435-G1 | 4 | 4 | ||
| 22 | Bushing, shock absorber | 10194-G1 | 4 | 4 | ||
| 23 | Nut | 00532-G6 | 3/8 - 24 | 2 | 2 | |
| 26 | Stabilizer bar spring bracket assembly | 14770-G1 | includes items 27 - 32 | 2 | ||
| 27 | Nut | 00532-G5 | 3/8 - 16 | 4 | ||
| 28 | Washer, shock absorber | 10435-G1 | 4 | |||
| 29 | Bushing, shock absorber | 10194-G1 | 4 | |||
| 30 | Spacer | 10840-G3 | 1 | |||
| 31 | Rod, threaded | 10579-G6 | 1 | |||
| 32 | Bracket, spring retainer | 17141-G1 | 1 | |||
| 33 | Plate, spring retainer | 17034-G1 | 2 | |||
| 35 | "U" bolt, axle | 12058-G2 | 4 | 4 | ||
| 36 | Nut | 00532-G5 | 3/8 - 16 | 8 | 8 | |
| 37 | Washer, lock | 00566-G1 | 3/8 | 8 | 8 | |
| 40 | Bracket, stabilizer bar | 11640-G1 | 2 | |||
| 41 | Stabilizer bar assembly | 17284-G1 | includes items 42 - 43 | 1 | ||
| 42 | Bushing, stabilizer | 11155-G1 | 2 | |||
| 43 | Bar, stabilizer | * | 1 | |||
| 44 | Nut, lock | 11027-G4 | 5/16 - 24 | 4 |

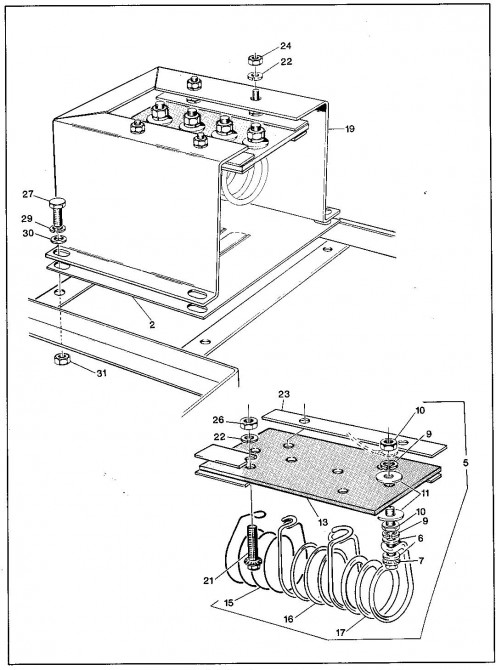

Resistor Coil and Housing Assembly
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Resistor coil assembly | 23319-G1 | includes items 2 - 17 | 1 | 1 | |
| 2 | Panel, resistor | 25174-G1 | 1 | 1 | ||
| 4 | Resistor coil assembly | 24904-G1 | Includes items 5 - 26 | 1 | 1 | |
| 5 | Resistor board assembly | 24903-G1 | includes items 6 - 17 | 1 | 1 | |
| 6 | Washer, flat, stainless steel | 00660-G8 | 5/16 | 8 | 8 | |
| 7 | Screw | 00685-G9 | 5/16 - 18 x 2 LG | 4 | 4 | |
| 9 | Washer, lock, stainless steel | 00664-G8 | 5/16 | 8 | 8 | |
| 10 | Nut, hex | 51401-G1 | 5/16 - 18 | 4 | 4 | |
| 11 | Washer, flat | 00907-G3 | 8 | 8 | ||
| 13 | Board, resistor | 18811-G1 | 1 | 1 | ||
| 15 | Coil, resistor, light | 23293-G1 | 1 | 1 | ||
| 16 | Coil, resistor, medium | 23294-G1 | 1 | 1 | ||
| 17 | Coil, resistor, heavy | 23295-G1 | 1 | 1 | ||
| 19 | Shield, resistor | 18814-G1 | 1 | 1 | ||
| 21 | Screw | 00661-G8 | 1/4 - 20 x1 LG | 4 | 4 | |
| 22 | Washer, lock, stainless steel | 00664-G7 | 1/4 | 8 | 8 | |
| 23 | Support, strip | 22951-G1 | 4 | 4 | ||
| 24 | Nut | 00883-G1 | 1/4 - 20 | 4 | 4 | |
| 26 | Nut | 00544-G1 | 1/4 - 20 | 4 | 4 | |
| 27 | Screw | 00661-G8 | 1/4 - 20 x 1 LG | 4 | 4 | |
| 29 | Washer, lock | 00565-G7 | 4 | 4 | ||
| 30 | Washer | 00559-G7 | 1/4 | 8 | 8 | |
| 31 | Nut, CPCT | 00883-G1 | 4 | 4 |

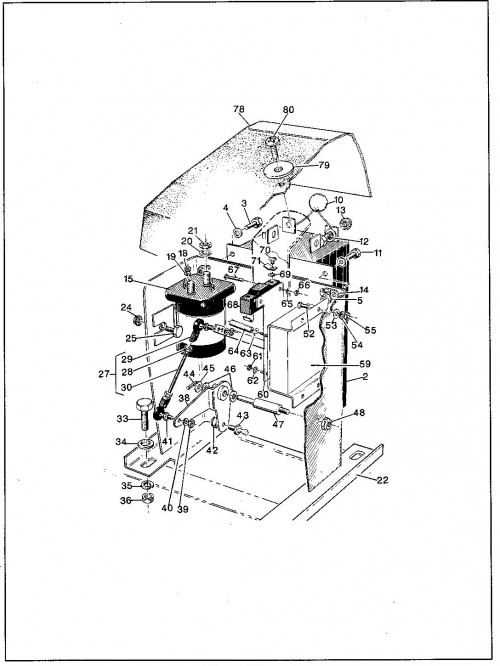

Solid State Control Module

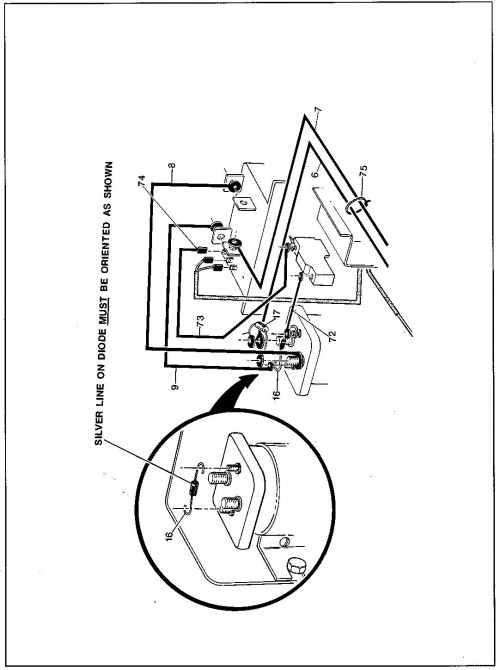

| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Electronic speed control assembly | * | includes items 2 - 65 | 1 | 1 | |
| 2 | Control, box, LDI | 20972-G1 | 1 | 1 | ||
| 3 | Screw | 00414-G5 | 1/4 - 20 x 5/8 LG | 3 | 3 | |
| 4 | Washer | 00561-G7 | 1/4 | 4 | 4 | |
| 5 | Nut, lock | 11027-G2 | 1/4 - 20 | 4 | 4 | |
| 6 | Wire | 23793-G3 | SOL- BL+ | 1 | 1 | |
| 7 | Wire | 23793-G4 | M - C | 1 | 1 | |
| 8 | Wire | 23793-G1 | SOL - B+ | 1 | 1 | |
| 9 | Wire | 24021-G1 | Black | 1 | 1 | |
| 10 | Varistor, mov | 25949-G01 | 1 | 1 | ||
| 11 | Screw | 00414-G6 | 1/4 - 20 x 3/4 LG | 1 | 1 | |
| 12 | Screw | 00270-G5 | 5/6 - 18 x 5/8 LG | 4 | 4 | |
| 13 | Nut, lock | 11027-G1 | 5/16 - 18 | 4 | 4 | |
| 14 | Clip, cable | 11845-G5 | 1 | 1 | ||
| 15 | Solenoid | 20468-G1 | 1 | 1 | ||
| 16 | Diode | 30353-G1 | 1 | 1 | ||
| 17 | Resistor | 21764-G1 | 1 | 1 | ||
| 18 | Nut | 00526-G4 | 2 | 2 | ||
| 19 | Washer, lock | 00565-G5 | #10 | 2 | 2 | |
| 20 | Washer, lock | 00565-G8 | 5/16 | 2 | 2 | |
| 21 | Nut, jam | 00544-G4 | 5/16 - 24 | 2 | 2 | |
| 22 | Bracket, mounting | 23603-G1 | 1 | 1 | ||
| 24 | Nut, lock | 11027-G2 | 1/4 - 20 | 2 | 2 | |
| 25 | Screw | 00414-G4 | 1/4 - 20 x 1/2 LG | 2 | 2 | |
| 27 | Rod, adjustable assembly | 22587-G5 | includes item 28-30 | 1 | 1 | |
| 28 | Nut | 00526-G4 | #10 - 32 | 2 | 2 | |
| 29 | Socket | 24465-G1 | 2 | 2 | ||
| 30 | Rod, control | 23722-G1 | 1 | 1 | ||
| 33 | Screw, stainless steel | 00661-G8 | 1/4 - 20 x 1 LG | 4 | 4 | |
| 34 | Washer | 00559-G7 | 1/4 | 4 | 4 | |
| 35 | Washer, lock | 00565-G7 | 1/4 | 4 | 4 | |
| 36 | Nut | 00532-G1 | 1/4 - 20 | 4 | 4 | |
| 38 | Pivot arm | 25331-G1 | 1 | 1 | ||
| 39 | Nut | 00526-G4 | #10 - 32 | 2 | 2 | |
| 40 | Washer, lock | 00565-G5 | #10 | 2 | 2 | |
| 41 | Ball, ball joint | 24479-G1 | 2 | 2 | ||
| 42 | Nut, lock | 11098-G9 | 5/16 - 24 | 1 | 1 | |
| 43 | Ball, ball joint | 15944-G3 | 5/16 | 1 | 1 | |
| 44 | Pin, cotter | 10387-G3 | 1 | 1 | ||
| 45 | Washer | 00559-G8 | 5/16 | 1 | 1 | |
| 46 | Washer, nylon | 24621-G1 | 2 | 2 | ||
| 47 | Rod, pivot | 25328-G1 | 1 | 1 | ||
| 48 | Nut | 14390-G1 | 3/8 - 24 | 2 | 2 | |
| 52 | Screw | 00150-G4 | 3 | 3 | ||
| 53 | Washer, flat | 00559-G8 | 3 | 3 | ||
| 54 | Washer, lock | 00565-G5 | #10 | 3 | 3 | |
| 55 | Nut | 00526-G3 | #10 - 24 | 3 | 3 | |
| 59 | Potentiometer | 25399-G1 | 1 | 1 | ||
| 61 | Nut | 00525-G1 | #8 - 32 | 1 | 1 | |
| 62 | Washer, lock, external tooth | 00567-G4 | #8 | 1 | 1 | |
| 63 | Washer | 00559-G4 | #8 | 6 | 6 | |
| 64 | Stand off | 00955-G1 | 1 | 1 | ||
| 65 | Washer, lock | 00565-G3 | #6 | 2 | 2 | |
| 66 | Nut | 00525-G5 | #6 - 32 | 2 | 2 | |
| 67 | Screw | 00138-G8 | #6 - 32 x 1 LG | 2 | 2 | |
| 68 | Micro switch | 10606-G5 | 1 | 1 | ||
| 69 | Washer, lock, external tooth | 00567-G3 | #6 | 2 | 2 | |
| 70 | Screw, brass | 13514-G1 | #6 - 32 x 7/32 LG | 2 | 2 | |
| 71 | Faston-tab | 14628-G1 | 1 | 1 | ||
| 72 | Wire | 23975-G1 | Orange | 1 | 1 | |
| 73 | Wire | 24019-G2 | Blue | 1 | 1 | |
| 74 | Terminal, push on | 17064-G1 | 3 | 3 | ||
| 75 | Clamp, nylon | 17618-G1 | 1 | 1 | ||
| 78 | Cover, speed control | 23723-G2 | 1 | 1 | ||
| 79 | Washer, fender | 16469-G1 | 1 | 1 | ||
| 80 | Screw | 00106-G6 | #12 - 24 x 3/4 | 1 | 1 |

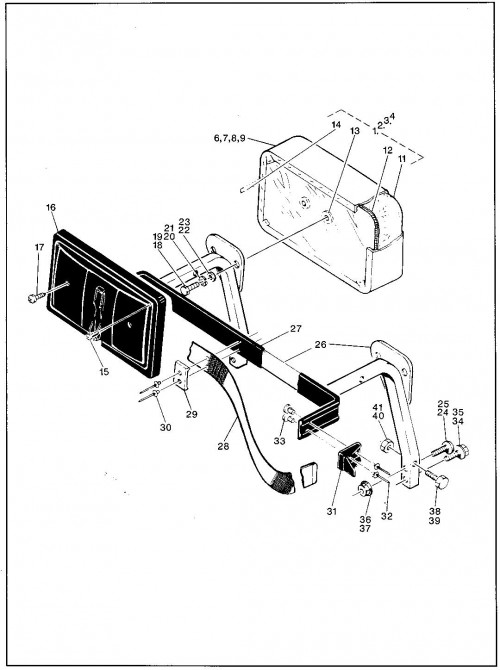

Seats and Bag Holder

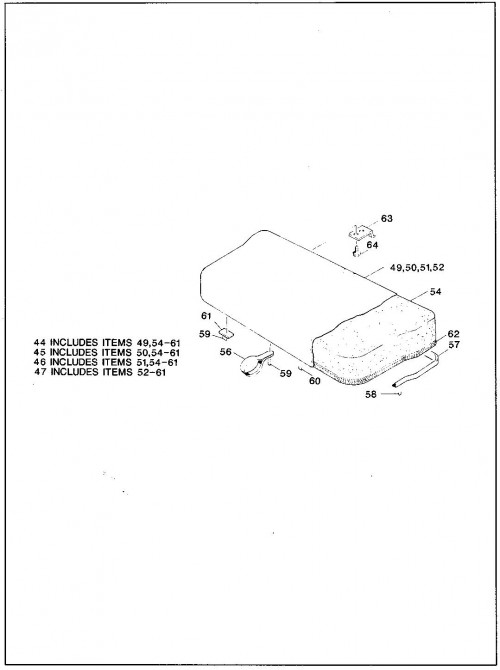

| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Back rest assembly, white | 24115-G2 | includes items 6, 11- 14 | 2 | 2 | |
| 2 | Back rest assembly, oyster | 24115-G6 | includes items 7, 11-14 | 2 | 2 | |
| 3 | Back rest assembly, Tan | 24115-G7 | includes items 8, 11-14 | 2 | 2 | |
| 4 | Back rest assembly, gray | 24115-G8 | includes items 9, 11-14 | 2 | 2 | |
| 6 | Cover, back rest cushion, white | 14371-G1 | 1 | 1 | ||
| 7 | Cover, back rest cushion, oyster | 14371-G4 | 1 | 1 | ||
| 8 | Cover, back rest cushion, tan | 14371-G5 | 1 | 1 | ||
| 9 | Cover, back rest cushion, gray | 14371-G6 | 1 | 1 | ||
| 11 | Cushion foam, back rest | 25433-G1 | 1 | 1 | ||
| 12 | Plywood seat back | 19226-G1 | 1 | 1 | ||
| 13 | Nut, tee | * | 2 | 2 | ||
| 14 | Staple, flat | * | 60 | 60 | ||
| 15 | Screw, self-thread, stainless steel | 00924-G6 | #8 - 15 x 3/4 LG | 4 | 4 | |
| 16 | Cover, back rest, black | 19056-G3 | 2 | 2 | ||
| 17 | Screw, self-thread, stainless steel | 00666-G6 | #10 - 16 x 3/4 LG | 4 | 4 | |
| 18 | Screw | 00414-G8 | 1/4 - 20 x 1 LG | 4 | 4 | |
| 19 | Screw, stainless steel | 00661-G8 | 1/4 - 20 x 1 LG, freedom only | 4 | 4 | |
| 20 | Washer, lock | 00565-G7 | 1/4 | 4 | 4 | |
| 21 | Washer, lock, stainless steel | 00664-G7 | 1/4, freedom only | 4 | 4 | |
| 22 | Washer, lock | 00559-G7 | 1/4 | 4 | 4 | |
| 23 | Washer, stainless steel | 00660-G7 | 1/4, freedom only | 4 | 4 | |
| 24 | Screw, truss | 00763-G4 | 5/16 - 18 x 1 1/2 LG | 2 | 2 | |
| 25 | Screw, truss, stainless steel | 00762-G4 | 5/16 - 18 x 1 1/2 LG, freedom only | 2 | 2 | |
| 26 | Seat back bracket and bag holder | 16924-G2 | 1 | 1 | ||
| 27 | Extrusion, vinyl | 14643-G2 | 1 | 1 | ||
| 28 | Strap, retainer | 15902-G1 | 1 | 1 | ||
| 29 | Anchor, plate | 16610-G1 | 1 | 1 | ||
| 30 | Rivet | 17226-G1 | 2 | 2 | ||
| 31 | Retainer, strap | 16920-G1 | 2 | 2 | ||
| 32 | Rivet, aluminum black | 15058-G1 | 4 | 4 | ||
| 33 | Nut, tee | 16935-G1 | 4 | 4 | ||
| 34 | Screw, lock | 00439-G6 | 5/16 - 18 x 1 3/4 LG | 4 | 4 | |
| 35 | Screw, lock, stainless steel | 00685-G7 | 5/16 - 18 x 1 3/4 LG, freedom only | 2 | 2 | |
| 36 | Nut, lock | 11027-G1 | 5/16 - 18 | 4 | 4 | |
| 37 | Nut, lock | 00891-G3 | 5/16 - 18, freedom only | 4 | 4 | |
| 38 | Screw | 00427-G4 | 3/8 - 16 x 1 1/2 LG | 2 | 2 | |
| 39 | Screw, stainless steel | 00665-G4 | 3/8 - 16 x 1 1/2 LG, freedom only | 2 | 2 | |
| 40 | Nut, lock | 11027-G5 | 3/8 - 16 | 2 | 2 | |
| 41 | Nut, lock | 00891-G5 | 3/8 - 16, freedom only | 2 | 2 | |
| 44 | Seat bottom assembly, white | 24077-G2 | includes items 49, 54-61 | 1 | 1 | |
| 45 | Seat bottom assembly, oyster | 24077-G6 | includes items 50, 54-61 | 1 | 1 | |
| 46 | Seat bottom assembly, tan | 24077-G7 | includes items 51, 54-61 | 1 | 1 | |
| 47 | Seat bottom assembly, gray | 24077-G8 | includes items 52 - 61 | 1 | 1 | |
| 49 | Cover, seat bottom cushion, white | 15146-G1 | 1 | 1 | ||
| 50 | Cover, seat bottom cushion, oyster | 15146-G2 | 1 | 1 | ||
| 51 | Cover, seat bottom cushion, tan | 15146-G3 | 1 | 1 | ||
| 52 | Cover, seat bottom cushion, gray | 15146-G4 | 1 | 1 | ||
| 54 | Cushion foam | 25432-G1 | 1 | 1 | ||
| 56 | Webbing | 11394-G1 | 1 | 1 | ||
| 57 | Trim, vinyl | 17113-G1 | 1 | 1 | ||
| 58 | Staple | * | 24 | 24 | ||
| 59 | Staple | * | 4 | 4 | ||
| 60 | Staple, flat | * | 110 | 110 | ||
| 61 | Soiling slab | 17074-G1 | 2 | 2 | ||
| 62 | Plywood, seat bottom | 12441-G2 | 1 | 1 | ||
| 63 | Bracket, seat hinge | 18250-G1 | 2 | 2 | ||
| 64 | Screw, self-tapping | 00114-G6 | 1/4 - 10 x 3/4 LG | 4 | 4 |

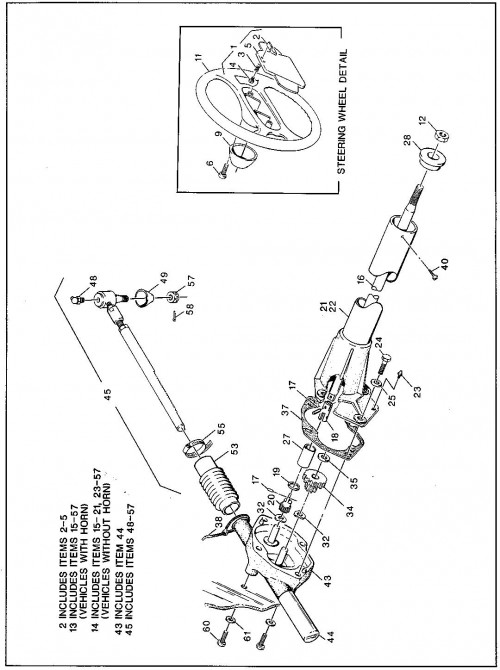

Steering
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Plate, scorecard holder assembly | 27102-G1 | includes items 2 - 5 | 1 | 1 | |
| 2 | Clip, scorecard | 18409-G1 | 1 | 1 | ||
| 3 | Spring, stainless steel | 18410-G1 | 2 | 2 | ||
| 4 | Plate, scorecard holder | 18411-G1 | 2 | 2 | ||
| 5 | Plate, scorecard holder | 27101-G1 | 1 | 1 | ||
| 6 | Screw, self-tapping | 18464-G1 | #8 x 7/8 LG | 2 | 2 | |
| 9 | Hub, cover extension | 23225-G1 | 1 | 1 | ||
| 11 | Wheel, steering | 23172-G1 | 1 | 1 | ||
| 12 | Nut,lock | 14390-G2 | 5/8 - 18 | 1 | 1 | |
| 13 | Steering unit assembly | 19152-G3 | Vehicles with horn - includes items 15-57 | 1 | 1 | |
| 14 | Steering unit assembly | 19152-G1 | Vehicles with horn - includes items 15-21, 23-57 | 1 | 1 | |
| 15 | Steering, shaft assembly | 17163-G1 | includes items 16-20 | 1 | 1 | |
| 16 | Shaft, steering | 1 | 1 | |||
| 17 | Pin, dowel | 1/4 | 2 | 2 | ||
| 18 | Coupling | 1 | 1 | |||
| 19 | Washer, thrust | 1 | 1 | |||
| 20 | Pinion, steering | 1 | 1 | |||
| 21 | Steering column unit | 19153-G1 | 1 | 1 | ||
| 22 | Steering column unit | 19153-G4 | 1 | 1 | ||
| 23 | Fitting, grease | 1 | 1 | |||
| 24 | Screw | 00448-G8 | 5/16 - 24 x 1 LG | 4 | 4 | |
| 25 | Washer, lock | 00565-G8 | 5/16 | 4 | 4 | |
| 27 | Sleeve | 17140-G1 | 1 | 1 | ||
| 28 | Bushing and seal | 17161-G1 | 1 | 1 | ||
| 32 | Washer, wave type, spring | 51294-G1 | 2 | 2 | ||
| 34 | Gear reduction | 23279-G1 | 1 | 1 | ||
| 35 | Washer, thrust | 13059-G2 | 1 | 1 | ||
| 37 | Gasket, housing | 19154-G1 | 1 | 1 | ||
| 38 | Clamp, nylon | 17618-G1 | 1 | 1 | ||
| 43 | Housing assembly | 13097-G1 | includes item 44 | 1 | 1 | |
| 44 | Cover, rack | 13570-G1 | 1 | 1 | ||
| 45 | Rack and rod assembly | 15407-G1 | includes items 48 - 57 | 1 | 1 | |
| 48 | Fitting, grease | 18456-G1 | 1 | 1 | ||
| 49 | Rubber boot, tie rod end | 50641-G1 | 1 | 1 | ||
| 53 | Bellows | 17617-G1 | 1 | 1 | ||
| 55 | Clamp, hose | 11391-G1 | 1 | 1 | ||
| 57 | Nut, slotted | 50209-G1 | 7/ 16 - 20 | 1 | 1 | |
| 58 | Pin, cotter | 10387-G2 | 3/16 x 1 LG | 1 | 1 | |
| 60 | Screw | 00276-G6 | 5/16 - 24 x 3/4 LG | 3 | 3 | |
| 61 | Washer, lock | 00565-G8 | 5/16 | 3 | 3 |
Wheel Brake
| Sl. No. | Part description | Part number | Notes | Quantity (3 wheel) | Quantity (4 wheel) | Purchase |
|---|---|---|---|---|---|---|
| 1 | Brake assembly, passenger side | 22997-G2 | includes items 2-8, 14-30 | 1 | ||
| 2 | Backing plate, passenger side | 22518-G1 | 1 | |||
| 3 | Adjuster, passenger side | 23360-G1 | 1 | |||
| 4 | Lever assembly, passenger side | 23357-G1 | includes items 5-8 | 1 | ||
| 5 | Spring | * | 1 | |||
| 6 | Retainer | * | 1 | |||
| 7 | Washer, shoulder | * | 1 | |||
| 8 | Spring, torsion, passenger side | 23536-G1 | 1 | |||
| 9 | Brake assembly, driver's side | 22997-G1 | includes items 10 - 30 | 1 | ||
| 10 | Backing plate, driver's side | 22519-G1 | 1 | |||
| 11 | Adjuster, driver's side | 23361-G1 | 1 | |||
| 12 | Lever assembly, driver's side | 23358-G1 | includes items 5-7 and 13 | 1 | ||
| 13 | Spring, torsion, driver's side | 23537-G1 | 1 | |||
| 14 | Adjuster body | 23363-G1 | 1 | |||
| 15 | Washer | 23382-G1 | 1 | |||
| 16 | Washer, thrust | 23362-G1 | 1 | |||
| 18 | Dust cover | 22519-G1 | 1 | |||
| 19 | Anchor block | 23356-G1 | 1 | |||
| 20 | Washer, lock | 00565-G1 | 1/4 | 2 | ||
| 21 | Nut | 13632-G1 | 6 MM | 2 | ||
| 23 | Spring, brake, adjuster | 23359-G1 | 1 | |||
| 24 | Spring, brake, anchor | 17290-G1 | 1 | |||
| 25 | Spring, shoe, clamp | 17291-G1 | 2 | |||
| 26 | Pin, tension | 17292-G1 | 2 | |||
| 28 | Brake shoe set | 23364-G1 | includes items 29 and 30 | 1 | ||
| 29 | Brake shoe, leading | * | 1 | |||
| 30 | Brake shoe, trailing | * | 1 | |||
| 33 | Bolt | 17083-G1 | 5/16 - 24 x 3/4 LG | 8 | ||
| 34 | Nut, lock | 15126-G1 | 5/16 - 24 | 8 | ||
| 37 | Washer | 15485-G1 | 51/64 | 2 | ||
| 38 | Brake drum assembly | 19186-G1 | includes item 39 | 2 | ||
| 39 | Lug bolt | 19862-G1 | 1/2 - 20 x 1 7/32 LG | 4 | ||
| 43 | Washer | XXXXX-XX | See section N for part number and quantity | |||
| 44 | Nut, slotted | XXXXX-XX | See section N for part number and quantity | |||
| 45 | Cotter pin | XXXXX-XX | See section N for part number and quantity |

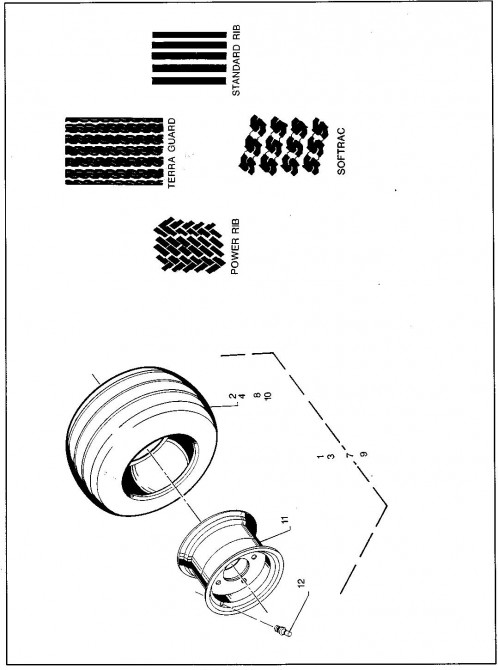

Wheel and Tires
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | 18 x 8.50 x 8 tire and wheel rim assembly, standard RIB | 15170-G1 | AR | ||
| 2 | 18 x 8.50 x 8 tire, standard RIB | 11591-G1 | AR | ||
| 3 | 18 x 8.50 x 8 tire and wheel rim assembly, softrac | 14697-G2 | AR | ||
| 4 | 18 x 8.50 x 8 tire, softrac | 14697-G1 | AR | ||
| 7 | 18 x 8.50 x 8 tire and wheel rim assembly, power RIB | 14728-G2 | AR | ||
| 8 | 18 x 8.50 x 8 tire, power RIB | 14728-G1 | AR | ||
| 9 | 18 x 8.50 x 8 tire and wheel rim assembly, terra guard | 20258-G1 | AR | ||
| 10 | 18 x 8.50 x 8 tire, terra guard | 20259-G1 | AR | ||
| 11 | Wheel rim, 1 piece 8.50/9.50 x 8, standard | 15169-G1 | included in items 1, 3, 7 and 9 | AR | |
| 12 | Valve stem | 11657-G1 | includes in items 1, 3, 7 and 9 | AR | |
| 13 | 18 x 8.50 x 8 tire and wheel rim assembly, power RIB white wall | 14728-G4 | AR | ||
| 14 | 18 x 8.50 x 8 tire, power RIB, white wall | 14728-G3 | AR |
Service Accessories and Special Tools
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Currect indicator | 16489-G2 | |||
| 2 | Seal installation tool | 18739-G1 | Rear axle shaft seal | ||
| 3 | Slide hammer kit | 18753-G1 | Axle puller | ||
| 4 | Volt OHM multi-meter | 51020-G2 | VOM | ||
| 5 | Dipstick, service | 23528-G1 |
