EZGO Golf Cart

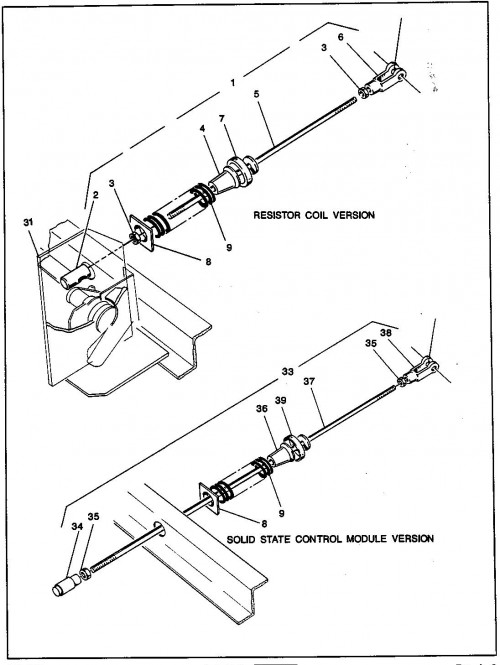

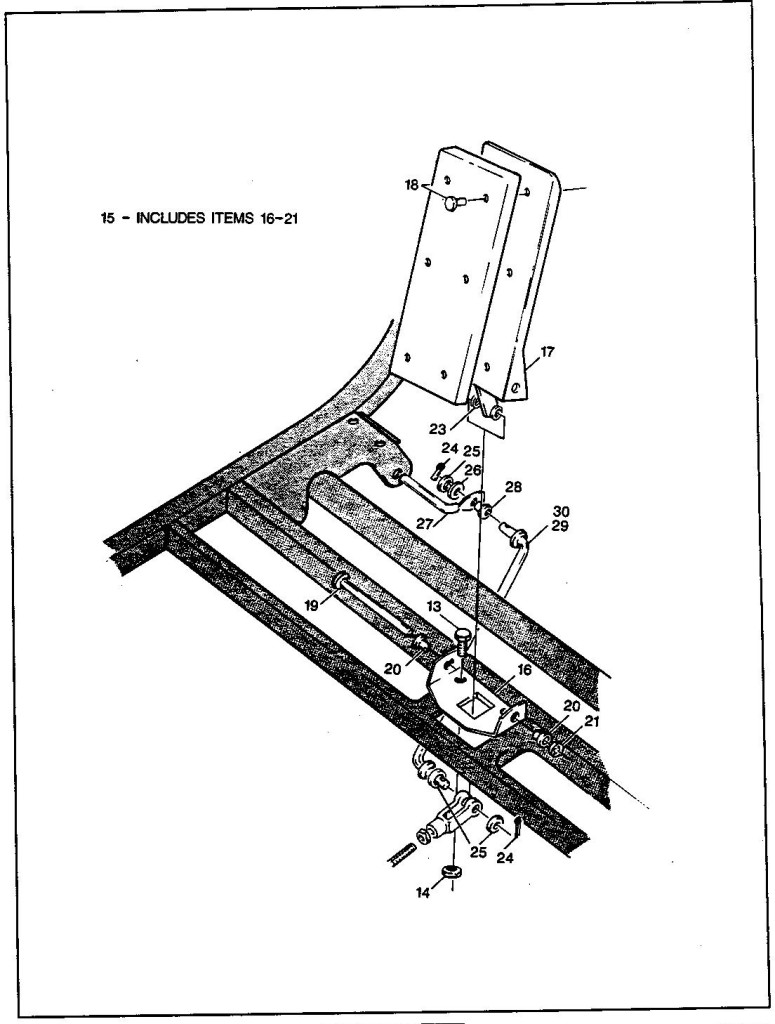

Accelerator and Hill Brake Linkage

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Accelerator rod assembly	25780-G1	includes items 2-7	1	1
2	Ball joint, socket	14444-G3		1	1
3	Nut	00544-G4	5/16 - 24	2	2
4	Bushing, accelerator rod	17979-G1		1	1
5	Accelerator rod	23613-G1		1	1
6	Clevis yoke	10385-G4		1	1
7	Retainer, spring	17677-G1		2	2
8	Retainer, spring	18034-G1		1	1
9	Spring, compression	17675-G1		1	1
13	Screw	00414-G6	1/4 - 20 x 3/4 LG	2	2
14	Nut,lock	11027-G2	1/4 - 20	2	2
15	Accelerator pedal assembly	18083-G1	includes items 16 - 21	1	1
16	Base plate, accelerator	12511-G1		1	1
17	Pedal, accelerator	18084-G1		1	1
18	Accelerator pedal, pad kit	15827-G1	includes rivets	1	1
19	Pin, accelerator pedal	12512-G1		1	1
20	Bearing, plastic	12513-G1		2	2
21	Nut, push	12064-G2		1	1
23	Washer, teflon	17255-G1		2	2
24	Cotter pin	10387-G3	3/16 x 3/4 LG	2	2
25	Washer, flat	00559-G8	5/16	2	2
26	Washer, nylon	20835-G1		1	1
27	Arm, pivot	19708-G1		1	1
28	Bushing, nyliner	17838-G1		1	1
29	Rod, linkage	24030-G1		1	1
31	Accelerator switch assembly	XXXX-XX	See accelerator switch assembly illustration	1	1
33	Accelerator rod assembly, solid state control module only	25780-G1	includes items 34-39	1	1
34	Ball joint, socket	14444-G3		1	1
35	Nut	00544-G4	5/16 - 24	2	2
36	Bushing, accelerator rod	19979-G1		1	1
37	Accelerator rod	19710-G1		1	1
38	Clevis yoke	10385-G4		1	1
39	Retainer, spring	17677-G1		1	1

Accelerator Switch Assembly

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Accelerator switch assembly	19255-G2	includes items 4-57	1	1
4	Contact board assembly	18741-G1	includes items 5-14	1	1
5	Plate, accelerator	*		1	1
6	Stud, stop	17491-G1		1	1
7	Washer	00560-G1	3/8	1	1
8	Nut, lock	14390-G1	3/8 - 24	1	1
9	Bushing, shaft	11902-G1		1	1
10	Nut	00545-G8	3/4 - 16	2	2
11	Washer, lock, external tooth	00568-G6	3/4	2	2
12	Stud, contact	*		5	5
13	Washer, lock	*	5/16	5	5
14	Nut	*	5/16 - 24	5	5
17	Shaft and arm assembly	17973-G1		1	1
20	Brush and lead assembly	17504-G1	includes items 21 - 24	1	1
21	Terminal ring	*	#6 x 5/16	1	1
22	Copper brush with lead	*		1	1
23	Spring, arm contact	*		1	1
24	Holder, brush	*		1	1
27	Pivot arm assembly	17663-G1	includes items 28 - 30	1	1
28	Arm, accelerator linkage	17655-G1		1	1
29	Ball, ball joint	15944-G3		1	1
30	Nut, lock	11098-G9	5/16 - 24	1	1
31	Nut, lock	11098-G3	1/2 - 20	1	1
32	Wire, lo speed, solenoid	17965-G1		1	1
33	Wire, solenoid, F-N-R switch	13493-G1		1	1
34	Washer, lock, external tooth	00567-G8	5/16	9	9
35	Switch, micro	10606-G2		1	1
36	Wire, black	17969-G1		1	1
37	Nut	00544-G4	5/16 - 24	6	6
38	Screw, brass	13514-G1	#8	2	2
39	Washer, lock, external tooth	00567-G4	#8	1	1
40	Faston tab	14628-G1		1	1
43	Screw, brass	00139-G2	#6 - 32 x 1 1/4 LG	2	2
45	Washer, lock	00565-G3	#6	2	2
46	Nut	00525-G5	#6 - 32	2	2
49	Faston tab	12914-G1		1	1
50	Washer, lock	00565-G5	#10	2	2
51	Nut	00526-G4	#10 - 32	2	2
54	Solenoid, 36 volt	11761-G1		1	1
55	Screw	00414-G6	1/4 - 20 x 3/4 LG	2	2
56	Washer, lock	00565-G7	1/4	2	2
57	Nut	00532-G1	1/4 - 20	2	2
58	Wire harness, accelerator switch assembly	18902-G1	includes items 59 - 65	1	1
59	Clamp, nylon	17618-G1		5	5
62	Wire	18897-G5	#4	1	1
63	Wire	18897-G4	#3	1	1
64	Wire	18897-G2	#2	1	1
65	Wire	18897-G1	#1	1	1

Accelerator Switch Assembly -First Used for Model Year 1990

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Accelerator switch assembly, heavy duty	20467-G2	includes items 4 - 66	1	1
4	Contact board assembly	18741-G1	includes items 5-14	1	1
5	Plate, accelerator	*		1	1
6	Stud, stop	17491-G1		1	1
7	Washer	00560-G1	3/8	1	1
8	Nut,lock	14390-G1	3/8 - 24	1	1
9	Bushing, shaft	11902-G1		1	1
10	Nut	00545-G8	3/4 - 16	2	2
11	Washer, lock, external tooth	00568-G6	3/4	2	2
12	Stud, contact	*		5	5
13	Washer, lock, external tooth	*	5/16	5	5
14	Nut	*	5/16 - 24	5	5
17	Shaft and arm assembly	17973-G1		1	1
20	Brush and lead assembly	17504-G2	includes items 21 - 24	1	1
21	Terminal, ring	*	#6 x 5/16	1	1
22	Copper brush with lead	*		1	1
23	Spring, arm contact	*		1	1
24	Holder, brush	*		1	1
27	Pivot arm assembly	17663-G1	includes items 28 - 30	1	1
28	Arm, accelerator linkage	17655-G1		1	1
29	Ball, ball joint	15944-G3		1	1
30	Nut, lock	11098-G9	5/16 - 24	1	1
31	Nut, lock	11098-G3	1/2 - 20	1	1
33	Switch, micro	10606-G2		1	1
34	Screw	00139-G2	#6 - 32 x 1 1/4 LG	2	2
35	Washer, lock	00565-G3	#6	2	2
36	Nut	00525-G5	#6 - 32	2	2
37	Faston tab	14628-G1		1	1
38	Washer, lock, external tooth	00567-G4	#8	1	1
39	Wire, black	20464-G1		1	1
40	Screw, brass	13514-G1	#8	2	2
42	Solenoid, 36 volt, heavy duty	20468-G1	includes items 43 - 46	1	1
43	Washer, lock	00565-G5	#10	2	2
44	Nut	00526-G4	#10 - 32	2	2
45	Washer, lock	00565-G8	#10 - 32	2	2
46	Nut	00544-G4	5/16 - 24	2	2
47	Diode	30353-G1		1	1
48	Faston tab	12914-G1		1	1
49	Screw	00414-G6	1/4 - 20 x 3/4 LG	2	2
50	Washer, lock	00565-G7	1/4	2	2
51	Nut	00532-G1	1/4 - 20	2	2
53	Wire, lo speed, solenoid	17965-G1		1	1
54	Wire, solenoid, F-N-R switch	13493-G1		1	1
58	Wire harness, accelerator switch assembly	18902-G1	includes items 59 - 63	1	1
59	Clamp, nylon	17618-G1		4	4
60	Wire	18897-G5	#4	1	1
61	Wire	18897-G4	#3	1	1
62	Wire	18897-G2	#2	1	1
63	Wire	18897-G1	#1	1	1
65	Washer, lock, external tooth	00567-G8	5/16	5	5
66	Nut	00544-G4	5/16 - 24	4	4

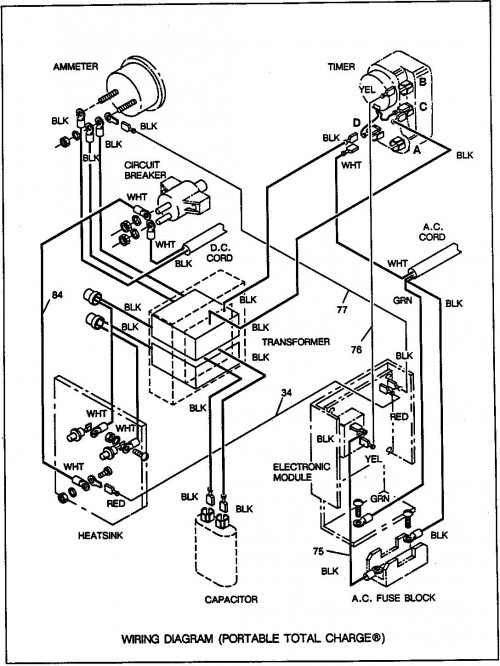

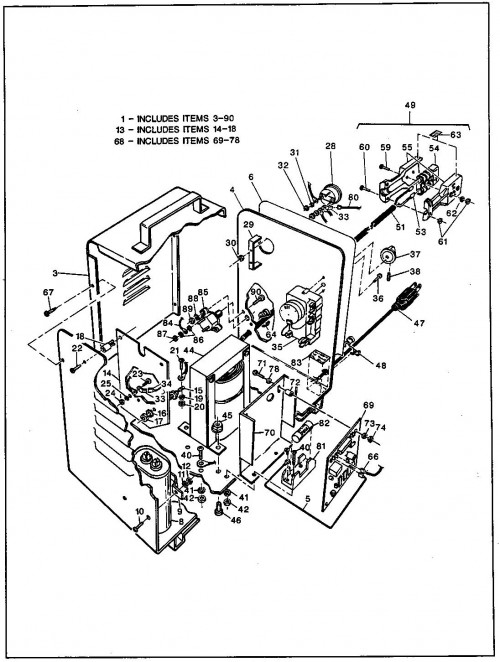

Battery Charger, Total Charge

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Battery charger, 36V, 10 FT. D.C. cord	20484-G01	includes items 3-90	1	1
3	Top cover	19096-G1		1	1
4	Chassis	24919-G1		1	1
6	Label, operating instruction	*	Serialized	1	1
8	Capacitor	17077-G1	Includes item 9	1	1
9	Bracket, capacitor	11559-G1		1	1
10	Screw	00372-G4	#8 - 32 x 1/2 LG	2	2
11	Washer, lock	00565-G4	#8	2	2
12	Nut	00526-G1	#8 - 32	2	2
13	Heat sink assembly, service	18768-G2	includes items 14 - 18	1	1
14	Heat sink	18489-G1		1	1
15	Diode, silicone rectifier	18488-G1		2	2
16	Washer, lock	00567-G7	1/4	2	2
17	Nut	00532-G2	1/4 - 28	2	2
18	Nut, plastic expansion	11572-G2		3	3
19	Washer, lock, external tooth	00567-G3	#6	2	2
20	Nut	00525-G5	#6 - 32	2	2
21	Screw	00138-G3	#6 - 32 x 3/8 LG	2	2
22	Screw, self-tapping	00512-G7	#8 x 7/8 LG	3	3
23	Screw	00378-G4	#10 - 24 x 1/2 LG	1	1
24	Nut	00526-G3	#10 - 24	1	1
25	Washer, lock	00565-G5	#10	1	1
28	Ammeter	18764-G1		1	1
29	Bracket, ammeter	*		1	1
30	Nut	00525-G5	#6 - 32	2	2
31	Washer, lock	00565-G5	#10	2	2
32	Nut	00526-G4	#10 - 32	2	2
33	Faston tab	12914-G1		2	2
34	Wire, 18 gauge, red	19952-G1		1	1
35	Timer	18052-G1		1	1
36	Screw	00372-G2	#8 - 32 x 1/4 LG	2	2
37	Knob, timer	11575-G1		1	1
38	Setscrew	00486-G4	#8 - 32 x 1/2 LG	1	1
40	Screw	00372-G3	#8 - 32 x 3/8 LG	1	1
41	Washer, lock	00565-G4	#8	1	1
42	Nut	00526-G1	#8 - 32	1	1
44	Transformer	19928-G1		1	1
45	Nut,lock	11027-G2	1/4 - 20	4	4
46	Screw	00414-G5	1/4 - 20 x 5/8 LG	4	4
47	A.C. cord	19388-G1		1	1
48	Strain relief, plastic	13557-G2	A.C. cord	1	1
49	D.C. cord assembly, 10 FT.	18747-G1	includes items 51 - 63	1	1
51	D.C. cord, 10 FT	14489-G2		1	1
53	Contact, connector	*		2	2
54	Connector	18782-G1	Black	1	1
55	Handle installation kit	18972-G1	Includes items 56 - 63	1	1
56	Handle, half, L.H.	*		1	1
57	Handle, half, R.H.	*		1	1
59	Screw, stainless steel	00647-G8	#6 - 32 x 29/32 LG	2	2
60	Screw, stainless steel	00647-G3	#6 - 32 x 3/8 LG	2	2
61	Nut, lock	13521-G5	#6 - 32	4	4
62	Washer, flat	00650-G2	#5	AR	AR
63	Label, caution	20628-G1		1	1
64	Strain relief, plastic	13557-G3	D.C. cord	1	1
67	Screw, self-tapping	00614-G4	#8 x 1/2 LG	10	10
68	Electronic module assembly	19950-G2	includes items 69 - 78	1	1
69	Module	*		1	1
70	Bracket	19459-G1		1	1
71	Screw	00138-G5	#6 - 32 x 5/8 LG	4	4
72	Standoff	19081-G1		4	4
73	washer, flat, nylon	00736-G1		4	4
74	Nut, nylon	00735-G1	#6 - 32	4	4
75	Wire, 16 gauge, black	19402-G1		1	1
76	Wire, 16 gauge, yellow	19949-G1		1	1
77	Wire, 18 gauge, black	19954-G1		1	1
78	Washer	00559-G3	#8	2	2
81	Fuse block	19363-G1		1	1
82	Fuse, 15 AMP	19361-G1		1	1
83	Label, identification	19434-G1		1	1
84	Wire, 12 gauge, white	19441-G1		1	1
85	Circuit breaker, 50 AMP	19362-G1	includes items 86 and 87	2	2
86	Washer	00559-G5	#10	4	4
87	Nut	00526-G4	#10 - 32	2	2
88	Washer, lock	00565-G4	#8	2	2
89	Nut	00526-G1	#8 - 32	2	2
90	Screw	00372-G6	#8 - 32 x 3/4 LG	2	2

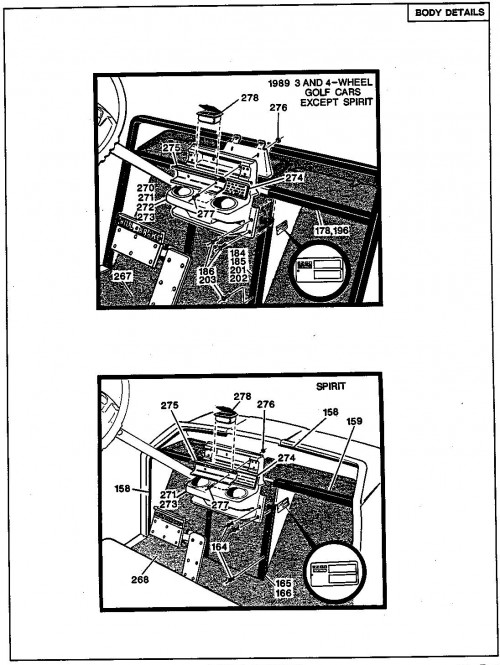

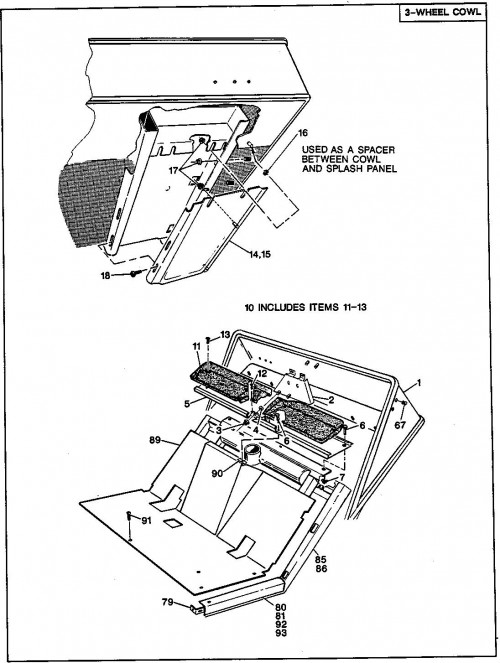

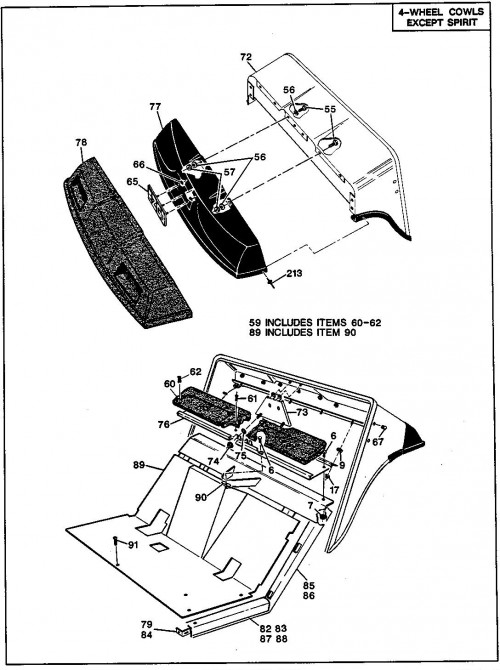

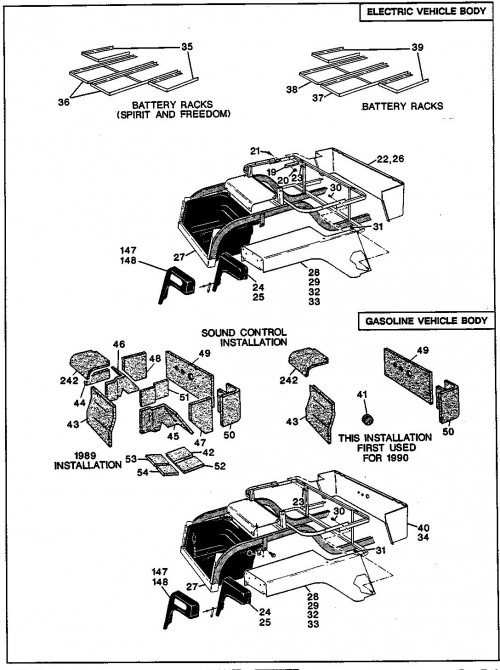

Body and Associated Parts

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Cowl	20211-G2		1
2	Cowl support	18348-G1		1
3	Nut, lock	11027-G2	1/4 - 20	4	4
4	Washer	00560-G1	3/8	2	2
5	Dash tray	18352-G2		1
6	Screw	00414-G6	1/4 - 20 x 3/4 LG	5	5
7	Nut, lock	11027-G2	1/4 - 20	3	3
9	Washer	00559-G8	5/16	5	5
11	Liner, dash tray	18796-G2		1
12	Rivet, plastic, drive	18436-G1	1/4	2
13	Fastener, ratchet	16816-G1		2
14	Splash panel, passenger side	15680-G2		1
15	Splash panel, driver's side	15681-G2		1
16	Nut	00544-G3	5/16 - 18	4
17	Nut, lock	11027-G2	1/4 - 20	16	13
18	Screw, self-drill and tap	00106-G6	#12 - 24 x 3/4 LG	4
19	Angle, side, seat frame	18817-G2	1989 only	1	1
20	Nut, lock	11027-G2	1/4 - 20 (1989 only)	1	1
21	Screw	00414-G6	1/4 - 20 x 3/4 LG (1989 only)	1	1
22	Seat wrap	20297-G2		1	1
23	Nut, lock	11027-G2	1/4 - 20	8	8
24	Fender cap, flexible, passenger side	14700-G1		1	1
25	Fender cap, flexible, driver's side	14700-G2		1	1
26	Seat wrap, electric spirit and freedom only	20297-G4			1
27	Bumper, rear	23800-G3		1	1
28	Fender, passenger side	19555-G3		1
29	Fender, driver's side	19555-G4		1
30	Screw, self-drill and tap	00106-G6	#12 - 24 x 3/4 LG	6	6
31	Nut, lock	11027-G2	1/4 - 20	4	4
32	Fender, passenger side	24070-G3			1
33	Fender, driver's side	24070-G4			1
34	Seat wrap, gasoline spirit and freedom only	24031-G6			1
35	Battery rack, inner, S.S., spirit and freedom only	25459-G1		2	2
36	Battery rack, outer, S.S., spirit and freedom only	25459-G4		2	2
37	Battery rack, inner, passenger side	17026-G1		1	1
38	Battery rack, inner, driver's side	25459-G2		1	1
39	Battery rack, outer	15528-G2		2	2
40	Seat wrap	24031-G2		1	1
41	Foam, drop	24759-G1	only used for 1990 vehicles	1	1
42	Panel, engine frame, left front	22342-G4	1989 only	1	1
43	Panel, bagwell	22744-G1		1	1
44	Panel, rear	23272-G1	1989 only	2	2
45	Panel, wheel liner, passenger side	22394-G1	1989 only	1	1
46	Panel, wheel liner, driver's side	18365-G2	1989 only	1	1
47	Panel, sound, side, passenger side	14399-G2	1989 only	1	1
48	Panel, sound, side, driver's side	14399-G1	1989 only	1	1
49	Panel, sound, front	22428-G1		1	1
50	Panel, sound, intake	23451-G1		1	1
51	Panel, sound, heat shield	23271-G1	1989 only	1	1
52	Panel, engine frame, right front	22342-G3	1989 only	1	1
53	Panel, engine frame, left rear	22342-G2	1989 only	1	1
54	Panel, engine frame, right rear	22342-G1	1989 only	1	1
55	Screw	00414-G6	1/4 - 20 x 3/4 LG		9
56	Washer	00559-G7	1/4		18
57	Nut, lock	14390-G4	1/4 - 20		9
60	Liner, dash tray	22911-G1			1
61	Rivet, plastic, drive	18436-G1	1/4		2
62	Fastener, ratchet	16816-G1			2
65	Nameplate, E-Z-GO	19817-G1		1	1
66	Nut, pushon	12064-G3		3	3
67	Plug, button	20271-G4		4	4
72	Cowl	23063-G5			1
73	Cowl support	23148-G1			1
74	Nut, lock	11027-G2	1/4 -20		4
75	Washer	00560-G1	3/8		2
76	Dash tray	18353-G2			1
77	Cap, cowl	22914-G1			1
78	Cap, cowl, freedom only	23674-G1			1
79	Angle rail, electric vehicle	19013-G2		2	2
80	Side rail, passenger side, gasoline vehicle	24273-G1		1
81	Side rail, driver's side, gasoline vehicle	24273-G2		1
82	Side rail, passenger side, electric vehicle	24081-G1			1
83	Side rail, driver's side, electric vehicle	24081-G2			1
84	Angle, rail, stainless steel, electric freedom only	19013-G1			2
85	Top rail, passenger side	15536-G1		1	1
86	Top rail, driver's side	15536-G2		1	1
87	Side rail, passenger side, gasoline vehicle	24236-G1			1
88	Side rail, driver's side, gasoline vehicle	24236-G2			1
89	Floorboard assembly	15671-G2	All models except spirit, includes item 90	1	1
90	Nut, "J" type	14776-G1	1/4 - 20	2	2
91	Screw, self-drill and tap	00106-G6	#12 - 24 x 3/4 LG	23	23
92	Side rail, passenger side, electric vehicle	24161-G1		1
93	Side rail, driver's side, electric vehicle	24161-G2		1
99	Cowl, paintable	20569-G2	Spirit only		1
100	Headlamp bezel, passenger sid e	21747-G1			1
101	Headlamp bezel, driver's side	21747-G2			1
102	Screw	00744-G8	#6 - 18 x 1 LG		4
103	Nut, speed	00745-G3	#6		4
104	Rivet, aluminum	14601-G6			31
105	Washer	00559-G5	#10		31
106	Retainer, pushon	12064-G3			3
107	Trim, flange, side	20600-G1			2
108	Trim, flange, front	20601-G1			2
109	Nameplate, E-Z-GO	19817-G1			1
110	Shield	20571-G1			1
113	Liner, dash tray	20575-G1			1
114	Dash tray	18353-G2			1
115	Screw	00414-G6	1/4 - 20 x 3/4 LG		5
116	Nut, lock	11027-G2	1/4 - 20		3
117	Floorboard assembly	15671-G3	Spirit only, includes item 118		1
118	Nut, "J" type	14776-G1	1/4 - 20		2
119	Screw, self-drill and tap	00106-G6	#12 - 24 x 3/4 LG		13
120	Washer, plastic	11855-G1			4
121	Nut, lock	11027-G2	1/4 - 20		4
123	Rivet, plastic, drive	18436-G1	1/4		2

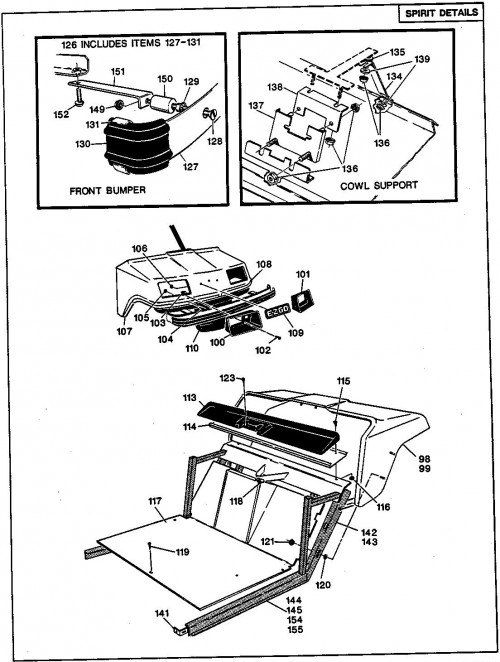

126	Bumper assembly	20674-G1	includes items 127-131		1
127	Bumper	20583-G1			1
128	Screw	00743-G1	5/16 - 18 x 3 1/2 LG		2
129	Nut, lock	11027-G1	5/16 - 18		2
130	Trim, vinyl	20584-G1			1
131	Clip	20687-G1			2
134	Bracket, mounting, cowl	20578-G1			1
135	Spacer, neoprene	12905-G1			1
136	Nut, lock	11027-G2	1/4 - 20		8
137	Cowl support	22347-G1			1
138	Bracket, cowl support	22522-G1			1
139	Washer	00559-G7	1/4		2
141	Angle, rail, electric vehicle	19013-G1			2
142	Top rail, passenger side	15536-G1			1
143	Top rail, driver's side	15536-G2			1
144	Side rail, passenger side, electric vehicle	24161-G1			1
145	Side rail, driver's side, electric vehicle	24161-G2			1
147	Flexible fender cap, passenger side, spirit and freedom only	21748-G1			1
148	Flexible fender cap, driver's side, spirit and freedom only	21748-G2			1
149	Nut, lock	11027-G1	5/16 - 18		2
150	Spacer, bumper	20653-G1			2
151	Bracket, bumper mounting	20585-G1			2
152	Screw	13437-G4	3/8 - 16 x 1 LG		2
154	Side rail, driver's side, gasoline vehicle	24273-G2			1
155	Side rail, passenger side, gasoline vehicle	24273-G1			1

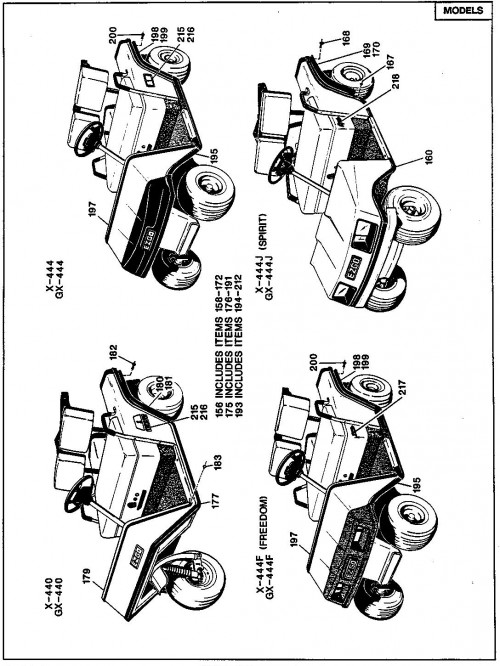

156	Vinyl bumper trim kit, spirit only	24578-G5	includes items 158 - 172		1
158	Vinyl bumper, body trim, cowl	20987-G1			2
159	Vinyl bumper, body trim, dash	17203-G9			2
160	Vinyl bumper, body trim	17203-G8			1
161	Nut, lock	14390-G1	1/4 - 20		4
162	Washer	00559-G7	1/4		4
163	Screw, stainless steel	16705-G1	1/4 - 20 x 1 LG		4
164	Rivet, plastic, drive	18436-G1	1/4		8
165	Trim, floormat, driver's side	24620-G2			1
166	Trim, floormat, passenger side	24620-G1			1
167	Rivet, aluminum, black	15058-G2			2
168	Fastener, ratchet type	24198-G1			12
169	Trim, fender, driver's side	23931-G2			1
170	Trim, fender, passenger side	23931-G1			1
171	Trim, rocker panel, driver's side	22222-G1			1
172	Trim, rocker panel, passenger side	22222-G2			1
175	Vinyl bumper trim kit, 3 wheel vehicles only	24578-G1	includes items 176 - 191	1
176	Vinyl bumper, bulk length, 180 LG	22888-G1	includes material to make items 177 and 178	1
177	Vinyl bumper, body trim, sides and front	22888-G3		1
178	Vinyl bumper, body trim, dash tray	17203-G9		2
179	Vinyl bumper, body trim, back of cowl	22273-G1		1
180	Trim, fender, passenger side	23931-G5		1
181	Trim, fender, driver's side	23931-G4		1
182	Fastener, ratchet type	24198-G1		8
183	Rivet, aluminum, black	15058-G4		4
184	Trim, floormat, passenger side	24620-G1		1
185	Trim, floormat, driver's side	24620-G2		1
186	Rivet, plastic, drive	18436-G1	1/4	8
187	Trim, rocker panel, passenger side	22223-G1		1
188	Trim, rocker panel, driver's side	22223-G2		1
189	Screw, stainless steel	16705-G1	1/4 - 20 x 1 LG	4
190	Washer	00559-G7	1/4	4
191	Nut, lock	14390-G4	1/4 - 20	4
193	Vinyl bumper, trim kit, 4 wheel vehicles except spirit	24579-G1	includes items 194 - 212		1
194	Vinyl bumper, bulk length, 71 LG	22888-G4	includes material to make items 195, 196		1
195	Vinyl bumper, body trim, sides	17203-G1			1
196	Vinyl bumper, body trim, dash tray	17203-G9			2
197	Vinyl bumper, body trim, back of cowl	22273-G1			1
198	Trim, fender, passenger side	23931-G1			1
199	Trim, fender, driver's side	23931-G2			1
200	Fastener, ratchet type	24198-G1			12
201	Trim, floormat, passenger side	24620-G1			1
202	Trim, floormat, driver's side	24620-G2			1
203	Rivet, plastic, drive	18436-G1	1/4		4

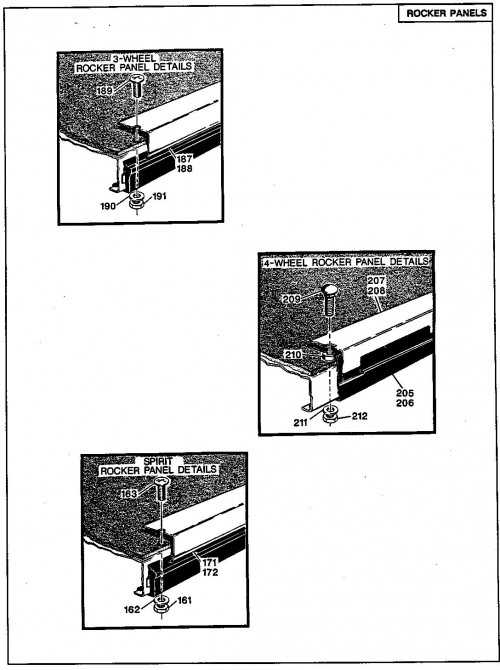

205	Rocker panel, passenger side	23868-G1			1
206	Rocker panel, driver's side	23868-G2			1
207	Sill plate, rocker panel, passenger side	23850-G1			1
208	Sill plate, rocker panel, driver's side	23850-G2			1
209	Bolt, carriage, stainless steel	00827-G8	1/4 - 20 x 1 LG		4
210	Spacer	23726-G2			4
211	Washer	00660-G7	1/4		4
212	Nut, lock	00891-G2	1/4 - 20		4
213	Rivet, aluminum, black	15058-G4			2
215	Decal, installation kit, trapezoid	20514-G1	Specify no. 1 through 200	AR	AR
216	Decal, installation kit, rectangular	22530-G1	Specify no. 1 through 200	AR	AR
217	Label, freedom	23676-G1			2
218	Label, spirit	21835-G1			2

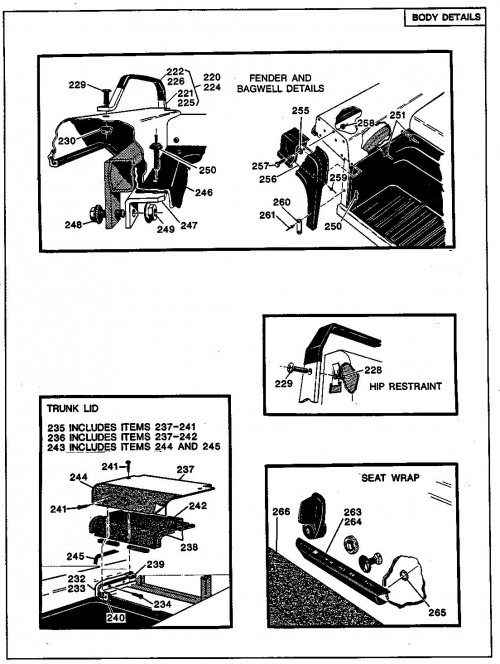

220	Restraint, hip handhold assembly, passenger side	22229-G1	includes items 221 and 222	1	1
222	Handgrip	23152-G1		1	1
224	Restraint, hip handhold assembly, driver's side	24004-G1	includes items 225 and 226	1	1
226	Handgrip	23152-G1		1	1
228	Nut "J" type	14776-G1	1/4 - 20	4	4
229	Screw, truss	16705-G1	1/4 - 20 x 1 LG	6	6
230	Nut, lock	11027-G2	1/4 - 20	2	2
232	Fillet, trunk, passenger side	19534-G3		1	1
233	Fillet, trunk, driver's side	19534-G4		1	1
234	Screw, self-drill and tap	00106-G6	#12 -24 x 3/4 LG	4	4
235	Trunk lid installation kit, electric vehicle	19533-G4	includes items 237 - 241	1	1
236	Trunk kid installation kit, gasoline vehicle	19533-G2	includes items 237- 242	1	1
237	Trunk lid	19554-G2		1	1
238	Noise, suppressor, trunk lid	17684-G1		4	4
239	Nut, "U" type	24722-G1	#10 - 12 x 1/32 THK.	2	2
240	Nut, "U" type	24722-G2	#10 - 12 x 1/8 THK.	2	2
241	Screw, self-tapping	00923-G6	#10 - 12 x 3/4 LG	4	4
242	Sound panel, trunk lid	22455-G1		1	1
243	Scuffguard kit	23282-G1	1989 only, includes items 244 and 245	1	1
244	Scuffguard, trunk lid	23259-G1		1	1
245	Scuffguard, strip, fillet	23457-G1		2	2
246	Bagwell, plastic	19034-G1		1	1
247	Mount, bagwell	19524-G1		2	2
248	Screw,lock	13437-G4	3/8 - 16 x 1 LG	2	2
249	Nut,lock	11027-G5	3/8 - 16	2	2
250	Rivet, plastic, drive	18436-G1	1/4	4	4
251	Rivet, aluminum, black	15058-G1	3/16	4	4
255	Washer, special	10669-G6	First used for 1990 vehicles	6	6
256	Plate, mounting	14726-G1	1989 only	2	2
257	Screw	00414-G6	1/4 - 20 x 3/4 LG	6	6
258	Nut, lock	11027-G2	1/4 - 20	6	6
259	Rivet, aluminum, black	15058-G1	3/16	2	2
260	Trim strip	14705-G1		2	2
261	Rivet, aluminum	14601-G2		4	4
263	Indicator, forward-neutral-reverse, gasoline vehicle	23791-G3		1	1
264	Indicator, forward-neutral-reverse, electric vehicle	19882-G1		1	1
265	Retainer, pushon	12064-G3		3	3
266	Scuffguard, seat wrap	18787-G1		1	1
267	Floormat	25091-G1	3/16	1	1
268	Floormat	23795-G1	Spirit only		1
270	Console, center	18487-G1	Does not accept ashtray	1
271	Console, center	18487-G2	Does not accept ashtray		1
272	Console, center	18487-G3	Accepts ashtray	1
273	Console, center	18487-G4	Accepts ashtray		1
274	Decal, safety	20405-G1	included in items 270 - 273	1	1
275	Ball holder	18275-G1	Used with items 270 - 273	1	1
276	Washer	00559-G7	1/4	2	2
277	Rivet, plastic, drive	18436-G1	1/4	6	6
278	Ashtray	17581-G1		1	1

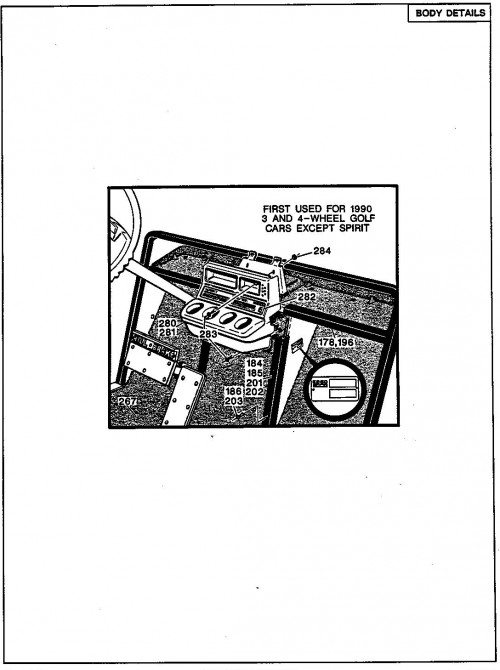

280	Console, 4-cup, 3-wheel	24967-G1	First used on 1990 models	1
281	Console, 4-cup, 4-wheel	24967-G1	First used on 1990 models		1
282	Decal, safety	24968-G1	included in items 280 - 282	1	1
283	Rivet, plastic, drive	18436-G1	1/4	4	4
284	Washer	00559-G7	1/4	2	2

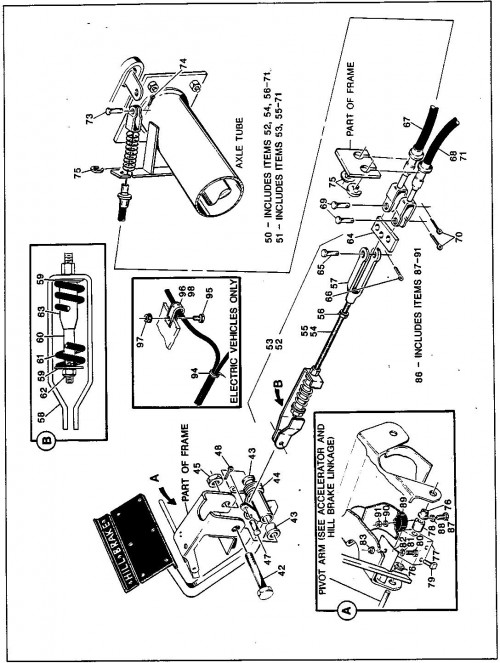

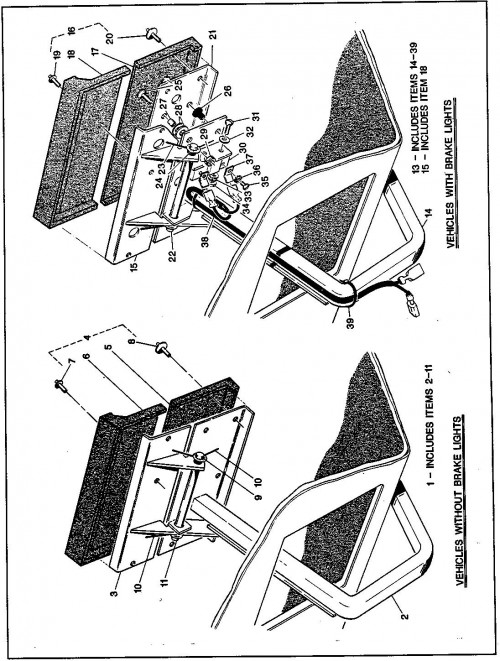

Brake Linkage

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Brake pedal assembly, vehicles without brake lights	23033-G1	includes items 2-11	1	1
2	Pedal brake	23037-G1	Complete with pad, item 5	1	1
3	Pedal, hill brake	15813-G1	Complete with pad, item 6	1	1
4	Brake/hill brake pedal pad kit	15826-G1	includes items 5 - 8	1	1
5	Pad, brake pedal	*		1	1
6	Pad, hill brake pedal	*		1	1
7	Rivet, small head	15766-G1		3	3
8	Rivet, large head	15767-G1		6	6
9	Pin, hill brake pedal	15932-G1		1	1
10	Spring, torsion	11737-G1		2	2
11	Push nut	12064-G1		1	1
13	Brake pedal assembly, vehicles with brake lights	22449-G2	includes items 14 - 39	1	1
14	Arm, brake pedal	22357-G2		1	1
15	Pedal, hill brake	22360-G1	Complete with pad, item 18	1	1
16	Brake/hill brake pedal pad kit	15826-G1	includes items 17 - 20	1	1
17	Pad, brake pedal	*		1	1
18	Pad, hill brake pedal	*		1	1
19	Rivet, small head	15766-G1		3	3
20	Rivet, large head	15767-G1		6	6
21	Plate, brake pedal	15809-G2		1	1
22	Pin, hill brake pedal	15932-G1		1	1
23	Spring, torsion	11737-G1		2	2
24	Push nut	12064-G1		1	1
25	Screw	00737-G6	#10 - 24 x 3/4 LG	4	4
26	Nut, captive	00739-G1	#10 - 24	2	2
27	Standoff, brake pedal	22362-G1		2	2
28	Washer, spring, curved	00731-G2		4	4
29	Nut,lock	11098-G7	#10 - 24	2	2
30	Switch, micro	10606-G1		1	1
31	Screw	00139-G2	#6 - 32 x 1 1/4 LG	2	2
32	Washer	00559-G3	#6	4	4
33	Washer, lock	00565-G3	#6	2	2
34	Nut	00525-G5	#6 - 32	2	2
35	Screw, brass	13514-G1		2	2
36	Washer, lock, external tooth	00567-G3	#6	2	2
37	Faston tab	14628-G1		2	2
38	Wire, harness, brake	22447-G1		1	1
39	Clamp, nylon	16172-G1		2	2
42	Bolt, shoulder	14158-G1	3/8 - 16	1	1
43	Bushing, flanged, nylon	11079-G1		2	2
44	Spring, torsion	25292-G1		1	1
45	Nut, lock	13521-G4	3/8 - 16	1	1
47	Pin, clevis	10386-G3		1	1
48	Cotter pin	10387-G3	3/32 x 3/4 LG	1	1
50	Brake linkage assembly, gasoline vehicle	23026-G1	includes items 52, 54, 56-70	1	1
51	Brake linkage assembly, electric vehicle	23026-G2	includes items 53, 55 - 70	1	1
52	Compensating link assembly, gasoline vehicle	23062-G1	includes items 54, 56 - 70	1	1
53	Compensating link assembly, electric vehicle	23062-G2	includes items 55 - 70	1	1
54	Rod, gasoline vehicle	23059-G1		1	1
55	Rod, electric vehicle	23059-G2		1	1
56	Nut	00544-G4	5/16 - 24	1	1
57	Yoke, clevis	10385-G4		1	1
58	Yoke, brake	23030-G1		1	1
59	Washer	15121-G1	5/18	2	2
60	Tube	23061-G1		1	1
61	Spring, compression	23463-G1		1	1
62	Nut, lock	00892-G4	5/16 - 24	1	1
63	Bushing, accelerator rod	17979-G1		1	1
64	Bar, equalizer	13659-G1		1	1
65	Pin, clevis	10386-G3		1	1
66	Cotter pin	10387-G3	3/32 x 3/4 LG	1	1
67	Cable, brake, passenger side	25124-G2	Gas/Elec	1	1
68	Cable, brake, driver's side	25124-G1	Elec only	1	1
69	Pin, clevis	10386-G3		2	2
70	Cotter pin	10387-G3	3/32 x 3/4 LG	2	2
71	Cable, brake, driver's side	25124-G4	Gas only	1	1
73	Pin, clevis	10386-G3		2	2
74	Cotter pin	10387-G3	3/32 x 3/4 LG	2	2
75	Ring, retaining	12305-G1		4	4
76	Bearing, flanged	10097-G6		2	2
77	Cam, hill brake	12156-G1		1	1
78	Spacer	14134-G2		1	1
79	Setscrew	00491-G3	1/4 - 20 x 3/8 LG	2	2
80	Screw	00414-G6	1/4 - 20 x 3/4 LG	2	2
81	Washer, lock	00565-G7	1/4	2	2
82	Bracket, catch	15022-G1		1	1
83	Nut, lock	11027-G2	1/4 - 20	2	2
86	Pedal number service kit	14061-G1	includes items 87 - 91	1	1
87	Screw	00150-G6	#10 - 24 x 3/4 LG	1	1
88	Washer	00559-G5	#10	1	1
89	Bumper, rubber	13728-G1		1	1
90	Washer, lock	00565-G5	#10	1	1
91	Nut	00526-G3	#10 - 24	1	1
94	Clamp, nylon	16172-G1		1	1
95	Screw	00414-G6	1/4 - 20 x 3/4 LG	3	3
96	Clip, cable	11845-G2		1	1
97	Nut, lock	11027-G2	1/4 - 20	3	3
98	Clip, cable	11845-G4		2	2

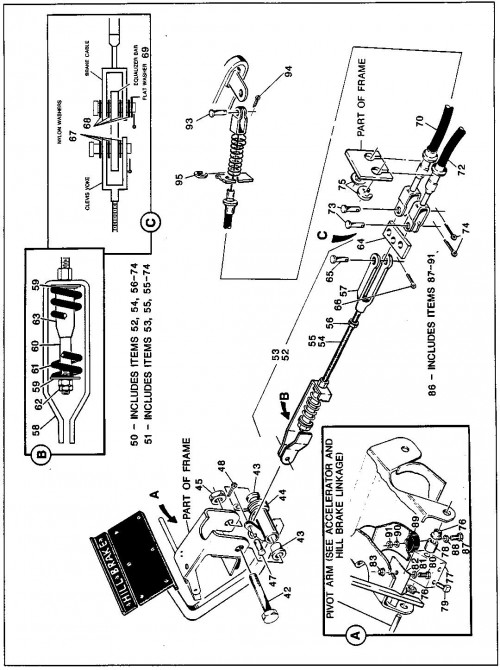

Brake Linkage – First Used for Model Year 1990

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Brake pedal assembly, vehicles without brake lights	25253-G1	includes items 2-11	1	1
2	Pedal brake	23037-G2	Complete with pad, item 5	1	1
3	Pedal, hill brake	15813-G1	Complete with pad, item 6	1	1
4	Brake/hill brake pedal pad kit	15826-G1	includes items 5-8	1	1
5	Pad, brake pedal	*		1	1
6	Pad, hill brake pedal	*		1	1
7	Rivet, small head	15766-G1		3	3
8	Rivet, large head	15767-G1		6	6
9	Pin, hill brake pedal	15932-G1		1	1
10	Spring, torsion	11737-G1		2	2
11	Push nut	12064-G1		1	1
13	Brake pedal assembly, vehicles with brake lights	22449-G1	includes items 14 - 39	1	1
14	arm, brake pedal	22357-G1		1	1
15	Pedal, hill brake	22360-G1	Complete with pad, item 18	1	1
16	Brake/hill brake pedal pad kit	15826-G1	includes items 17 - 20	1	1
17	Pad, brake pedal	*		1	1
18	Pad, hill brake pedal	*		1	1
19	Rivet, small head	15766-G1		3	3
20	Rivet, large head	15767-G1		6	6
21	Plate, brake pedal	15809-G2		1	1
22	Pin, hill brake pedal	15932-G1		1	1
23	Spring, torsion	11737-G1		2	2
24	Push nut	12064-G1		1	1
25	Screw	00737-G7	#10 - 24x 3/4 LG	4	4
26	Nut, captive	00739-G1	#10 - 24	2	2
27	Standoff, brake pedal	22362-G1		2	2
28	Spring, conical	24938-G1		2	2
29	Nut, lock	11098-G7	#10 - 24	2	2
30	Switch, micro	10606-G1		1	1
31	Screw	00139-G2	#6 - 32 x 1 1/4 LG	2	2
32	Washer	00559-G3	#6	4	4
33	Washer, lock	00565-G3	#6	2	2
34	Nut	00525-G5	#6 - 32	2	2
35	Screw, brass	13514-G1		2	2
36	Washer, lock, external tooth	00567-G3	#6	2	2
37	Faston tab	14828-G1		2	2
38	Wire harness, brake	22447-G1		1	1
39	Clamp, nylon	16172-G1		2	2
42	Bolt, shoulder	14158-G1	3/8 - 16	1	1
43	Bushing, flanged, nylon	11079-G1		2	2
44	Spring, torsion	25292-G1		1	1
45	Nut, lock	13521-G4	3/8 - 16	1	1
47	Pin, clevis	10386-G3		1	1
48	Cotter pin	10387-G3	3/32 x 3/4 LG	1	1
50	Brake linkage assembly, gasoline vehicle	25101-G1	includes items 52, 54, 56-67	1	1
51	Brake linkage assembly, electric vehicle	25102-G2	includes items 53, 55-67	1	1
52	Compensating link assembly, gasoline vehicle	23062-G1	includes items 54, 56-67	1	1
53	Compensating link assembly, electric vehicle	23062-G2	includes items 55 - 67	1	1
54	Rod, gasoline vehicle	23175-G1		1	1
55	Rod, electric vehicle	23175-G2		1	1
56	Nut	00544-G4	5/16 - 24	1	1
57	Yoke, clevis	10385-G4		1	1
58	Yoke, brake	23030-G1		1	1
59	Washer	15121-G1	5/16	2	2
60	Tube	23061-G2		1	1
61	Spring, compression	23463-G1		1	1
62	Nut, lock	00892-G4	5/16 - 24	1	1
63	Bushing, accelerator rod	17979-G1		1	1
64	Bar, equalizer	13659-G1		1	1
65	Pin, clevis	10386-G3		1	1
66	Cotter pin	10387-G3	3/32 x 3/4 LG	1	1
67	Washer, nylon	17255-G1		3	3
68	Washer, nylon	17255-G1		8	8
69	Washer, flat	00559-G8		2	2
70	Cable, brake, passenger side	25187-G2	Gas/Elec	1	1
72	Cable, brake, driver's side	25187-G1	Gas/Elec	1	1
73	Pin, clevis	10386-G3		2	2
74	Cotter pin	10387-G3	3/32 x 3/4 LG	2	2
76	Bearing, flanged	10097-G8		2	2
77	Cam, hill brake	25103-G1		1	1
78	Spacer	14134-G2		1	1
79	Setscrew	00491-G4	1/4 - 20 x 3/8 LG	2	2
80	Screw	00414-G8	1/4 - 20 x 3/4 LG	2	2
81	Washer, lock	00565-G7	1/4	2	2
82	Bracket, catch	15022-G1		1	1
83	Nut, lock	11027-G2	1/4 - 20	2	2
86	Pedal bumper service kit	14061-G1	includes items 87 - 91	1	1
87	Screw	00150-G6	#10 - 24 x 3/4 LG	1	1
88	Washer	00559-G5	#10	1	1
89	Bumper, rubber	13728-G1		1	1
90	Washer, lock	00565-G5	#10	1	1
91	Nut	00526-G3	#10 - 24	1	1
93	Pin, clevis	10386-G3		2	2
94	Cotter pin	10387-G3	3/32 x 3/4 LG	2	2
95	Ring, retainer	12305-G1		4	4

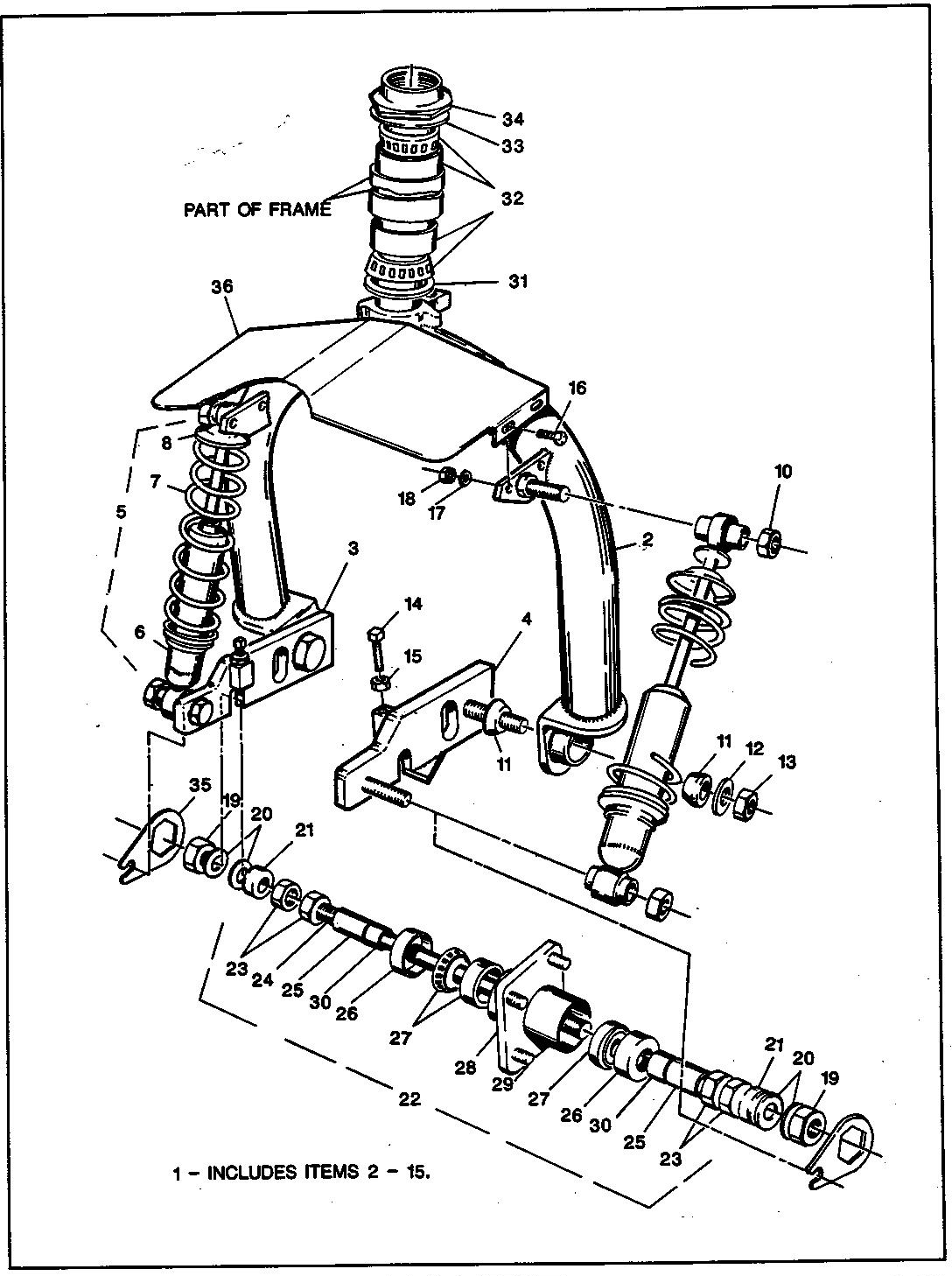

Fork Assembly

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Purchase
1	Fork assembly	17533-G1	includes items 2-15	1
2	Fork	17537-G1		1
3	Axle bracket, passenger side	17542-G1		1
4	Axle bracket, driver's side	17542-G2		1
5	Shock absorber assembly	19796-G1	includes items 6-8	2
6	Shock absorber	17907-G1		1
7	Spring, compression	19794-G2		1
8	Retainer, spring	17816-G1		1
10	Nut, lock	00557-G1	1/2 - 13	4
11	Bushing, pivot	15588-G1		4
12	Washer	00560-G5	5/8	2
13	Nut, lock	14390-G7	5/8 - 11	2
14	Setscrew, square head	00492-G6	1/4 - 20 x 1 3/4 LG	2
15	Nut	00544-G1	1/4 - 20	2
16	Screw	00378-G4	#10 - 24 x 1/2 LG	4
17	Washer, lock	00565-G5	#10	4
18	Nut	00526-G3	#10 - 24	4
19	Nut,lock	11081-G1	3/4 - 16	2
20	Washer	00560-G6	3/4	4
21	Ring, adjuster	17650-G1		2
22	Hub and axle assembly	17535-G1	includes items 23 - 30	1
23	Nut	00545-G8	3/4 - 16	4
24	Axle, front	10223-G5		1
25	Spacer, axle	17536-G1		2
26	Seal, grease	19471-G1		2
27	Bearing, race	50908-G1		2
28	Hub assembly	19888-G1	includes item 29	1
29	Bolt, hub	19862-G1	1/2 - 20	4
30	Spacer, axle	11655-G1		2
31	Spacer	13136-G1		1
32	Bearing, roller	11103-G1		2
33	Washer, special	10669-G3		1
34	Nut, lock	11098-G1	1 3/8 - 12	1
35	Retainer, axle nut	18256-G1		2
36	Shield	15643-G1		1

Forward-Neutral-Reverse Switch

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Forward-neutral-reverse switch assembly	25396-G1	includes items 2-32	1	1
2	Contact board assembly	14651-G1	includes items 3-5	1	1
3	Stop	24940-G1		2	2
4	Washer,lock	00565-G7	1/4	2	2
5	Screw	00414-G7	1/4 - 20 x 3/4 LG	2	2
7	Cam unit, forward-neutral-reverse switch	12835-G1		1	1
8	Shaft, forward-neutral-reverse switch	19470-G1		1	1
9	Washer	00560-G1	3/8	1	1
10	Nut, lock	14390-G1	3/8 - 24	1	1
12	Switch, micro	10606-G4		2	2
13	Screw	00139-G6	#6 - 32 x 1 3/4 LG	4	4
14	Spacer, micro switch	12806-G1		4	4
15	Washer, lock	00565-G3	#6	4	4
16	Nut	00525-G5	#6 - 32	4	4
18	Buzzer	17940-G2		1	1
19	Screw	00138-G5	#6 - 32 x 5/8 LG	2	2
20	Washer, lock	00565-G3	#6	2	2
21	Nut	00525-G5	#6 - 32	2	2
23	Bracket, mounting	12863-G1		1	1
24	Support, bracket mounting	15461-G1		1	1
25	Screw	00414-G8	1/4 - 20 x 1 LG	2	2
26	Washer	00559-G7	1/4	2	2
27	Washer, lock	00565-G7	1/4	2	2
28	Nut	00532-G1	1/4 - 20	2	2
30	Screw, brass	13514-G1	#6 - 32 x .22 LG	4	4
31	Faston tab	14628-G1		4	4
32	Washer, lock, external tooth	00567-G3	#6	4	4
34	Switch handle kit	20325-G1	includes items 35 and 36	1	1
35	Handle, plastic	19886-G1		1	1
36	Screw	00740-G4	#10 - 32 x 1/2 LG	1	1

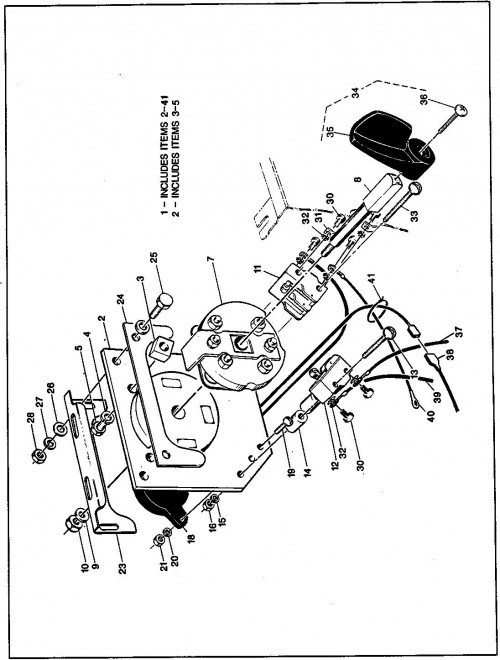

Forward-Neutral-Reverse Switch

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Forward-neutral-reverse switch assembly	25396-G2	includes items 2-41	1	1
2	Contact board assembly	14651-G1	includes items 3-5	1	1
3	Stop	24940-G1		2	2
4	Washer, lock	00565-G7	1/4	2	2
5	Screw	00414-G7	1/4 - 20 x 3/4 LG	2	2
7	Cam unit, forward-neutral-reverse switch	12835-G1		1	1
8	Shaft, forward-neutral-reverse switch	19470-G1		1	1
9	Washer	00560-G1	3/8	1	1
10	Nut, lock	14390-G1	3/8 - 24	1	1
11	Switch, micro, double	12796-G1		1	1
12	Switch, micro	10606-G4		1	1
13	Screw	00139-G6	#6 - 32 x 1 3/4 LG	2	2
14	Spacer, micro switch	12806-G1		2	2
15	Washer, lock	00565-G3	#6	4	4
16	Nut	00525-G5	#6 - 32	4	4
18	Buzzer	17940-G1		1	1
19	Screw	00138-G5	#6 - 32 x 5/8 LG	2	2
20	Washer, lock	00565-G3	#6	2	2
21	Nut	00525-G5	#6 - 32	2	2
23	Bracket, mounting	12863-G1		1	1
24	Support, bracket mounting	15461-G1		1	1
25	Screw	00414-G8	1/4 - 20 x 1 LG	2	2
26	Washer	00559-G7	1/4	2	2
27	Washer, lock	00565-G7	1/4	2	2
28	Nut	00532-G1	1/4 - 20	2	2
30	Screw, brass	13514-G1	#6 - 32 x .22 LG	6	6
31	Tab, faston	14628-G1		2	2
32	Washer,lock, external tooth	00567-G3	#6	6	6
33	Screw	00139-G8	#6 - 32 x 2 LG	2	2
34	Switch handle kit	20325-G1	includes items 35 and 36	1	1
35	Handle, plastic	19886-G1		1	1
36	Screw	00740-G4	#10 - 32 x 1/2 LG	1	1
37	Wire	14619-G2	Blue	1	1
38	Wire	21743-G1	Black	1	1
39	Wire	23862-G2	Red	1	1
40	Wire	23645-G1		1	1
41	Clamp, nylon	17618-G1		3	3

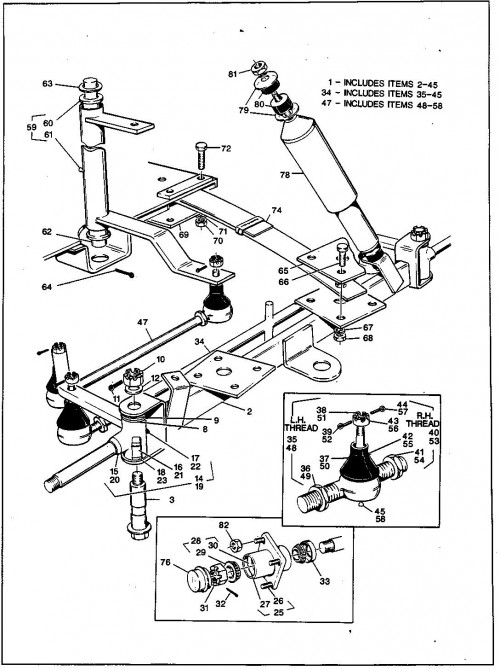

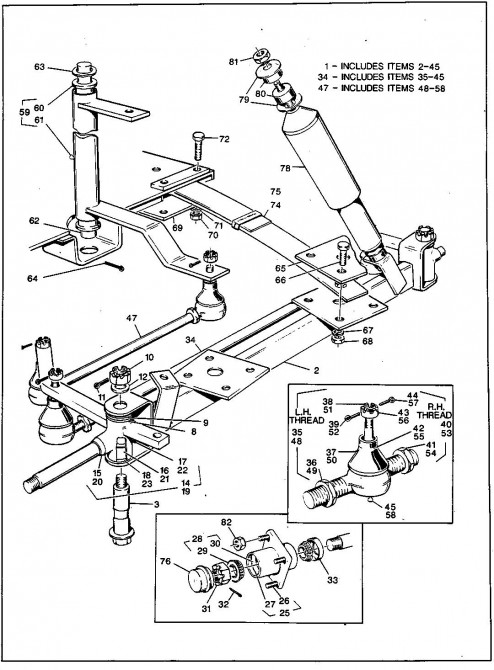

Four Wheel Front Suspension

Sl. No.	Part description	Part number	Notes	Quantity (4 wheel)	Purchase
1	Front axle assembly	24054-G3	includes items 2-45	1
2	Axle	23918-G1		1
3	King pin	25177-G2		2
8	Bearing, thrust	16982-G1		2
9	Washer	00879-G7	7/8	2
10	Nut, slotted	00886-G1	5/8 - 18	2
11	Cotter pin	10387-G1	1/4 x 1 1/2 LG	2
12	Washer	00879-G5	5/8	2
14	Spindle assembly, driver's side	23925-G1	includes items 15 - 18	1
15	Spindle, driver's side	*		1
16	Bearing, bronze	16623-G1		2
17	Grease fitting	10389-G3		1
18	Seal	16626-G1		1
19	Spindle assembly, passenger side	23924-G1	includes items 20 - 23	1
20	Spindle, passenger side	*		1
21	Bearing, bronze	16623-G1		2
22	Grease fitting	10389-G3		1
23	Seal	16626-G1		1
25	Hub assembly	19932-G1	includes items 26 and 27	2
26	Bolt, hub	19862-G1	1/2 - 20	4
27	Race, bearing	*		2
28	Bearing and race assembly	50892-G1	includes items 29 and 30	2
29	Roller, bearing	11750-G2		2
30	Race, bearing	*		2
31	Nut, slotted	12093-G1	1- 14	2
32	Cotter pin	10387-G1	1/4 x 1 1/2 LG	2
33	Seal	19472-G1
34	Tie rod assembly	19202-G2	includes items 35 - 45	1
35	Tie rod end assembly, L.H. thread	20795-G1	includes items 36 - 39	1
36	Nut	18434-G1	9/16 - 18, L.H., thread	1
37	Boot, rubber	50641-G1		1
38	Nut, slotted	50209-G1	7/16 - 20	1
39	Cotter pin	10387-G2	3/16 x 1 LG	1
40	Tie rod end assembly, R.H., thread	20795-G2	includes items 41 - 44	1
41	Nut	18434-G2	9/16 - 18, R.H., thread	1
42	Boot, rubber	50641-G1		1
43	Nut, slotted	50209-G1	7/16 - 20	1
44	Cotter pin	10387-G2	3/16 x 1 LG	1
45	Grease fitting	10389-G3		2
47	Tie rod assembly	18377-G1	includes items 48 - 58	1
48	Tir rod end assembly, L.H. thread	20795-G1	includes items 49 - 52	1
49	Nut	18434-G1	9/16 - 18, L.H., thread	1
50	Boot, rubber	50641-G1		1
51	Nut, slotted	50209-G1	7/16 - 20	1
52	Cotter pin	10387-G2	3/16 x 1 LG	1
53	Tie rod end assembly, R.H., thread	20795-G2	includes items 54 - 57	1
54	Nut, 9/16 - 18, R.H. Thread	18434-G2		1
55	Boot, rubber	50641-G1		1
56	Nut, slotted	50209-G1	7/16 - 20	1
57	Cotter pin	10387-G2	3/16 x 1 LG	1
58	Grease fitting	10389-G3		2
59	Idler assembly	23929-G1	includes items 60 and 61	1
60	Bushing, flanged	15012-G1		2
61	Grease fitting	10389-G3		1
62	Shaft, idler	16417-G2		1
63	Washer, wave type, spring	13221-G1		1
64	Cotter pin	10387-G1	1/4 x 1 1/2 LG	1
65	Retainer, spring	15023-G2		2
66	Screw, black	00876-G4	3/8 - 16 x 1 1/2 LG	8
67	Washer, lock, black	00878-G1	3/8	8
68	Nut,black	00877-G5	3/8 - 16	8
69	Retainer, spring	15023-G2		2
70	Nut	00532-G5	3/8 -16	6
71	Washer, lock	00566-G1	3/8	6
72	Screw	00427-G8	3/8 - 16 x 2 LG	6
74	Leaf spring	24025-G1	2 leaf	2
75	Leaf spring	24065-G1	3 leaf	2
76	Cap, spindle	12091-G1		2
78	Shock absorber	15707-G1		2
79	Washer	10435-G1	13/ 32	8
80	Bushing, rubber	10194-G1		8
81	Nut	00532-G6	3/8 - 24	4
82	Nut, lug	14723-G1	1/2 - 20	8

Four Wheel Front Suspension – First Used for Model Year 1990

Sl. No.	Part description	Part number	Notes	Quantity (4 wheel)	Purchase
1	Front axle assembly	24054-G5	includes items 2-45	1
2	Axle	23918-G2		1
3	King pin	25177-G2		2
8	Bearing, thrust	16982-G1		2
9	Washer	00879-G7	7/8	2
10	Nut, slotted	00886-G1	5/8 - 18	2
11	Cotter pin	19060-G1	1/4 x 1 1/2 LG	2
12	Washer	00879-G5	5/8	2
14	Spindle assembly, driver's side	23925-G1	includes items 15 - 18	1
15	Spindle, driver's side	*		1
16	Bearing, bronze	16623-G1		2
17	Grease fitting	10389-G3		1
18	Seal	16626-G1		1
19	Spindle assembly, passenger side	23924-G2	includes items 20 - 23	1
20	Spindle, passenger side	*		1
21	Bearing, bronze	16623-G1		2
22	Grease fitting	10389-G3		1
23	Seal	16626-G1		1
25	Hub assembly	19932-G1	includes items 26 and 27	2
26	Bolt, hub	19862-G1	1/2 - 20	4
27	Race, bearing	*		2
28	Bearing and race assembly	50892-G1	includes items 29 and 30	2
29	Roller, bearing	11750-G2		2
30	Race, bearing	*		2
31	Nut, slotted	12093-G1	1- 14	2
32	Cotter pin	00798-G8	1/4 x 1 1/2 LG	2
33	Seal	25146-G1		1
34	Tie rod assembly	19202-G1	includes items 35 - 45	1
35	Tie rod end assembly,L.H. thread	20795-G1	includes items 36 - 39	1
36	Nut	18434-G1	9/16 - 18, L.H., thread	1
37	Boot, rubber	50641-G1		1
38	Nut, slotted	50209-G1	7/16 - 20	1
39	Cotter pin	10387-G2	3/16 x 1 LG	1
40	Tie rod end assembly, R.H. thread	20795-G2	includes items 41 - 44	1
41	Nut	18434-G2	9/16 - 18 R.H. thread	1
42	Boot, rubber	50641-G1		1
43	Nut, slotted	50209-G1	7/16 - 20	1
44	Cotter pin	10387-G2	3/16 x 1 LG	1
45	Grease fitting	10389-G3		2
47	Tie rod assembly	18377-G1	includes items 48 - 58	1
48	Tie rod end assembly,L.H. thread	20795-G1	Includes items 49 - 52	1
49	Nut	18434-G1	9/16 - 18, L.H. thread	1
50	Boot, rubber	50641-G1		1
51	Nut, slotted	50209-G1	7/ 16 - 20	1
52	Cotter pin	10387-G2	3/16 x 1 LG	1
53	Tir rod end assembly, R.H. thread	20795-G2	includes items 54 - 57	1
54	Nut	18434-G2	9/16 - 18 , R.H. thread	1
55	Boot, rubber	50641-G1		1
56	Nut, slotted	50209-G1	7/ 16 - 20	1
57	Cotter pin	10387-G2	3/16 x 1 LG	1
58	Grease fitting	10389-G3		2
59	Idler assembly	23929-G1	includes items 60 and 61	1
60	Bushing, flanged	15012-G1		2
61	Grease fitting	10389-G3		1
62	Shaft, idler	16417-G2		1
63	Washer, wave type, spring	13221-G1		1
64	Cotter pin	10387-G1	1/4 x 1 1/2 LG	1
65	Retainer, spring	15023-G2		2
66	Screw, black	00876-G4	3/8 - 16 x 1 1/2 LG	8
67	Washer, lock, black	00878-G1	3/8	8
68	Nut, black	00877-G5	3/8 - 16	8
69	Retainer, spring	15023-G2		2
70	Nut	00532-G5	3/8 - 16	6
71	Washer, lock	00566-G1	3/8	6
72	Screw	00427-G6	3/8 - 16 x 2 LG	6
74	Leaf spring	24025-G1	2 leaf	2
75	Leaf spring	24065-G1	3 leaf	2
76	Cap, spindle	12091-G1		2
78	Shock, absorber	15707-G1		2
79	Washer	10435-G1	13/32	8
80	Bushing, rubber	10194-G1		8
81	Nut	00532-G6	3/8 - 24	4
82	Nut, lug	14723-G1	1/2 - 20	8

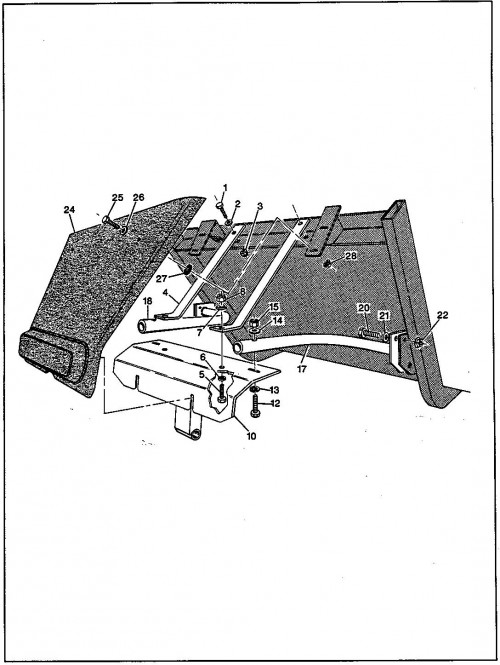

Front Shield Bumper and Shield

Sl. No.	Part description	Part number	Notes	Quantity (4 wheel)	Purchase
1	Screw	00427-G2	3/8 - 16 x 1 1/4 LG	2
2	Washer	00560-G1	3/8	2
3	Nut, lock	11098-G5	3/8 - 16	2
4	Support, bumper	23885-G1		2
5	Screw	00427-G2	3/8 - 16 x 1 1/4 LG	2
6	Washer, lock	00566-G1	3/8	2
7	Washer	00560-G1	3/8	2
8	Nut, lock	11098-G5	3/8 - 16	2
10	Bumper	23876-G1		1
12	Screw	00427-G8	3/8 - 16 x 2 LG	2
13	Washer, lock	00566-G1	3/8	2
14	Washer	00560-G1	3/8	2
15	Nut, lock	11098-G5	3/8 - 16	2
17	Rail, bumper, driver's side	23879-G1		1
18	Rail, bumper, passenger side	23879-G2		1
20	Screw	00427-G2	3/8 - 16 x 1 1/4 LG	4
21	Washer, lock	00566-G1	3/8	4
22	Nut, lock	11098-G5	3/8 - 16	4
24	Shield	23881-G1		1
25	Screw	00414-G8	1/4 - 20 x 1 LG	2
26	Washer	00559-G7	1/4	2
27	Washer, neoprene	12905-G1	1/4	2
28	Nut, lock	14390-G4	1/4 - 20	2

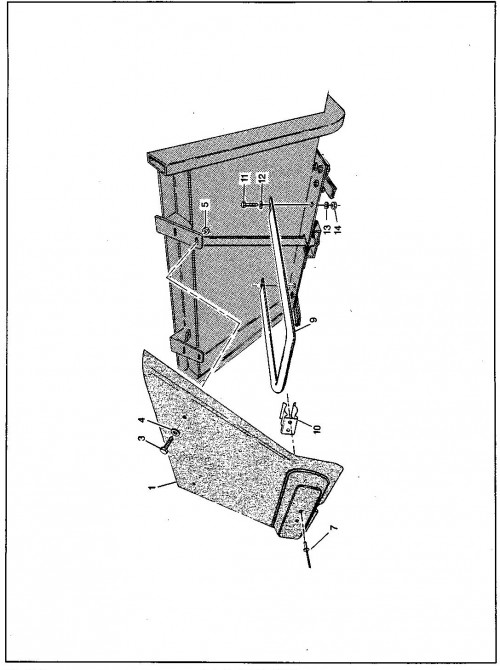

Front Shield

Sl. No.	Part description	Part number	Notes	Quantity (4 wheel)	Purchase
1	Shield	23881-G1		1
3	Screw	00414-G8	1/4 - 20 x 1 LG	2
4	Washer	00559-G7	1/4	2
5	Nut, lock	14390-G4	1/4 - 20	2
9	Support, shield	25054-G1		1
11	Screw	00258-G8	3/8 - 16 x 1 LG	2
12	Washer	005660-G1	3/8	2
13	Washer, lock	00566-G1	3/8	2
14	Nut	00532-G5	3/8 - 16	2

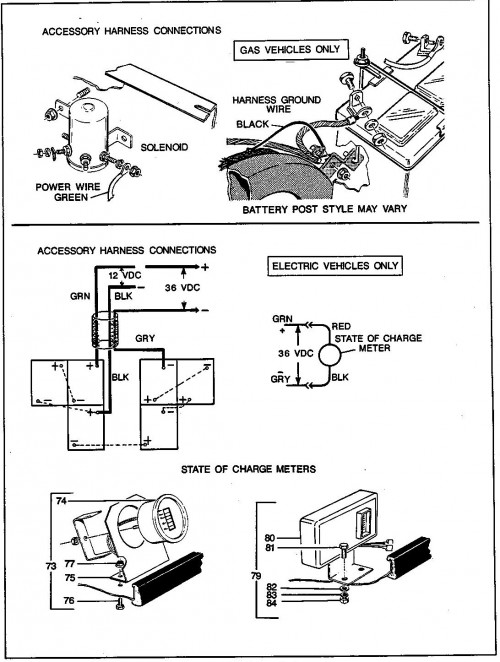

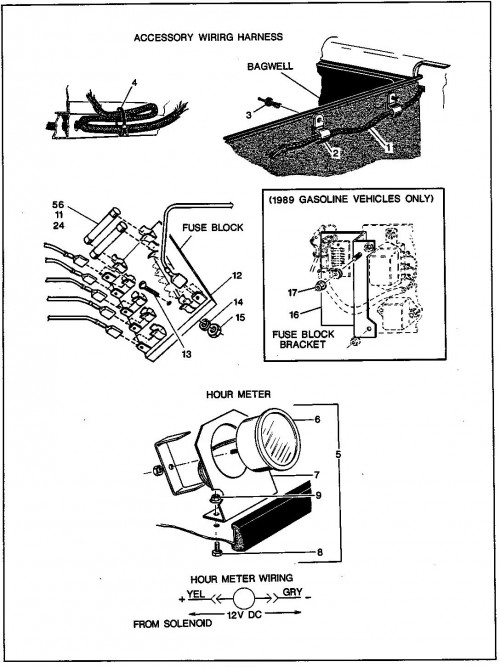

Horn and Accessory Wiring

Sl. No.	Part description	Part number	Notes	Quantity (4 wheel)	Purchase
1	Wiring harness	22069-G1		1
2	Clip, cable, insulated	11845-G5		3
3	Rivet, drive, plastic	18436-G1		3
4	Clamp, nylon	17618-G1		5
5	Hour meter kit	19318-G2	includes items 6 -9	1
6	Hour meter	21573-G1	Includes mounting hardware	1
7	Bracket, hour meter	18001-G1		1
8	Screw	00414-G4	1/4 - 20 x 1/ 2 LG	2
9	Nut,lock	11027-G2	1/4 - 20	2
11	Fuse, 15 AMP	18392-G1	hour meter	1
12	Fuse block	22674-G1		1
13	Screw	00138-G4	#6 - 32 x 1/2 LG	2
14	Washer, lock	00565-G3	#6	2
15	Nut	00525-G5	#6 - 32	2
16	Bracket, mounting, fuse block	24602-G1	1989 gas vehicles only	1
17	Nut, lock	11027-G2	1/4 - 20 (1989 gas vehicles only)	1

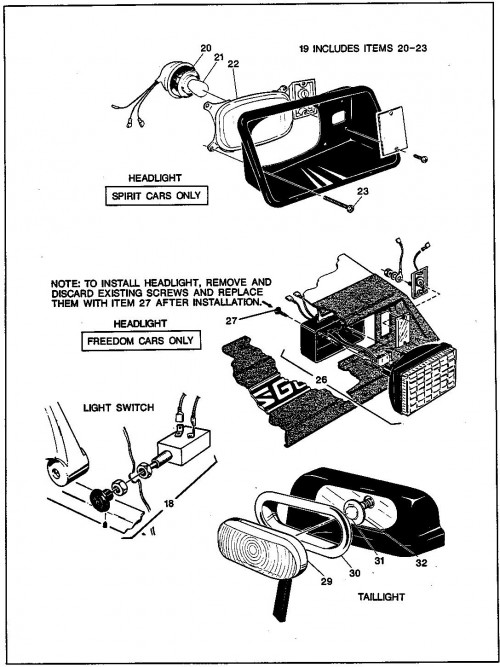

18	Switch, headlamp	18431-G1		1
19	Headlamp assembly	20572-G1	Spirit, includes items 20 - 23	2
20	Socket	*		1
21	Bulb	22491-G1		1
22	Lens, headlamp	*		1
23	Screw	20607-G1	#10 - 24 x 2 LG	4
24	Fuse, 20 Amp	18392-G2	headlamps and taillights	1
26	Headlamp	23686-G1	Requires item 27 for installation	2
27	Screw	00906-G6	10 - 16 x 1 LG	2
28	Taillight assembly	20642-G1		2
29	Lens, taillight	22000-G1		1
30	Grommet	21999-G1		1
31	Bulb	21759-G1		1
32	Socket	21998-G2		1

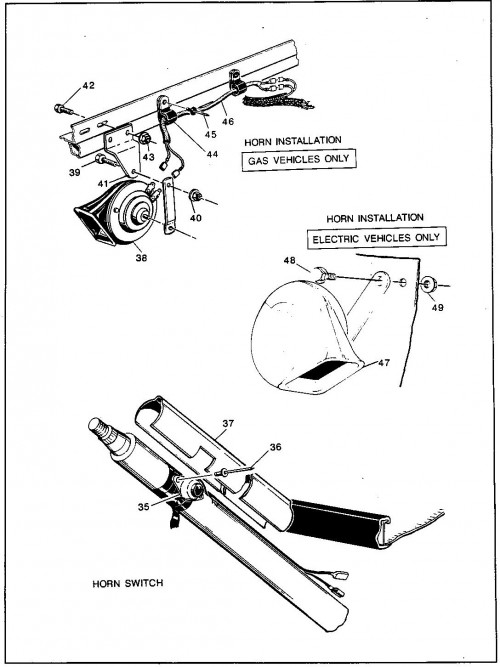

35	Switch, horn	22242-G1	includes wires	1
36	Rivet	14601-G8		2
37	Cover, steering column	20961-G3	without turn signals	1
38	Horn	32860-G1		1
39	Screw	00438-G6	5/16 - 18 x 3/4 LG	1
40	Nut, lock	11027-G1	5/16 - 18	1
41	Bracket, horn	24617-G1		1
42	Screw, stainless steel	16705-G2	1/4 - 20 x 5/8 LG	2
43	Nut, lock	11027-G2	1/4 - 20	2
44	Clip, cable, insulated	24676-G1		2
45	Rivet	10570-G2		2
46	Wiring harness	24605-G1		1
47	Horn	32860-G1		1
48	Screw	13437-G9	1/4 - 20 x 3/4 LG	1
49	Nut, lock	11027-G2	1/4 - 20	1

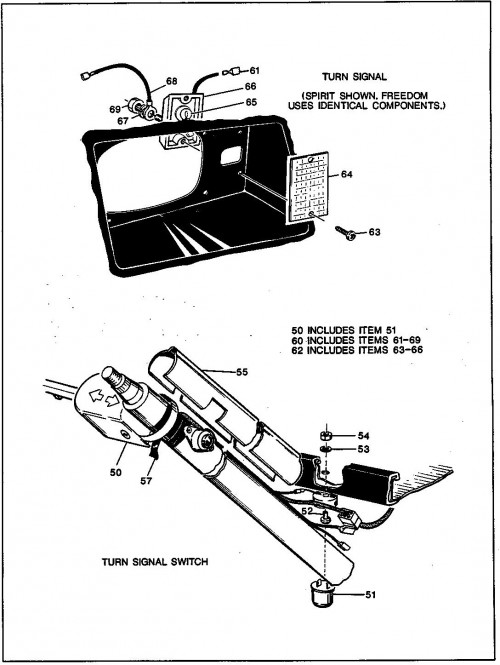

50	Switch, turn signal assembly	17867-G1	includes item 51	1
51	Flasher, turn signal	21640-G1		1
52	Screw	00372-G4	#8 - 32 x 1/2 LG	1
53	Washer, lock	00565-G4	#8	1
54	Nut	00526-G1	#8 - 32	1
55	Cover, steering column	20965-G3	with turn signals	1
56	Fuse, 20 AMP	18392-G2	turnsignals	1
57	Tape, vinyl	19344-G1		AR
60	Turn signal assembly	20570-G2	includes items 61 - 66	2
61	Terminal, male	18995-G1		1
62	Turn signal, amber	20574-G2	includes items 63 - 66	1
63	Screw	*		2
64	Lens, turn signal	*		1
65	Bulb	21760-G1		1
66	Housing, turn signal	*		1
67	Washer, lock	00563-G7	1/4	1
68	Wire, jumper	20606-G1		1
69	Nut, lock	00532-G1	1/4 - 20	1
73	Meter kit, state of charge	19197-G7	Round, includes items 74 - 77	1
74	Meter, state of charge	19714-G1		1
75	Bracket	18001-G1		1
76	Screw	00414-G4	1/4 - 20 x 1/2 LG	2
77	Nut, lock	11027-G2	1/4 - 20	2
79	Meter kit, state of charge	19197-G3	Square, includes items 80 - 85	1
80	Meter, state of charge	19196-G2		1
81	Screw	00372-G5	#8 - 32 x 5/8 LG	2
82	Washer	00559-G4	#8	2
83	Washer, lock	00565-G4	#8	2
84	Nut	00526-G1	#8 - 32	2

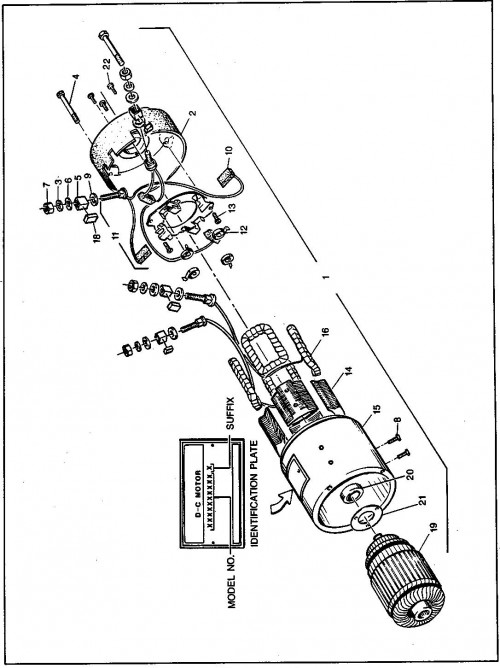

Motor

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Motor	22858-G1	includes items 2 - 22	1	1
2	Endshield, commutator end	16922-G1		1	1
3	Washer	13483-G1		4	4
4	Screw, motor clamp	16919-G1		2	2
5	Bushing, insulator	15437-G1		4	4
6	Washer, insulator	15438-G1		4	4
7	Nut, lock	15440-G1		4	4
8	Screw, pole piece	23234-G1		8	8
9	Washer, insulator, terminal	15442-G1		4	4
10	Brush	16917-G1		2	2
11	Brush rigging	16916-G1	includes item 12	1	1
12	Brush spring	15446-G1		4	4
13	Screw, brush rigging mount	51333-G1		2	2
14	Field pole pieces	*		4	4
15	Shell, stator	*		1	1
16	Field coils	23235-G1	Set	1	1
18	Gasket	16948-G1		4	4
19	Armature	23237-G1		1	1
20	Ball bearing, commutator end	16918-G1		1	1
21	Retainer, bearing	16930-G1		1	1
22	Screw, bearing retainer	23236-G1		3	3

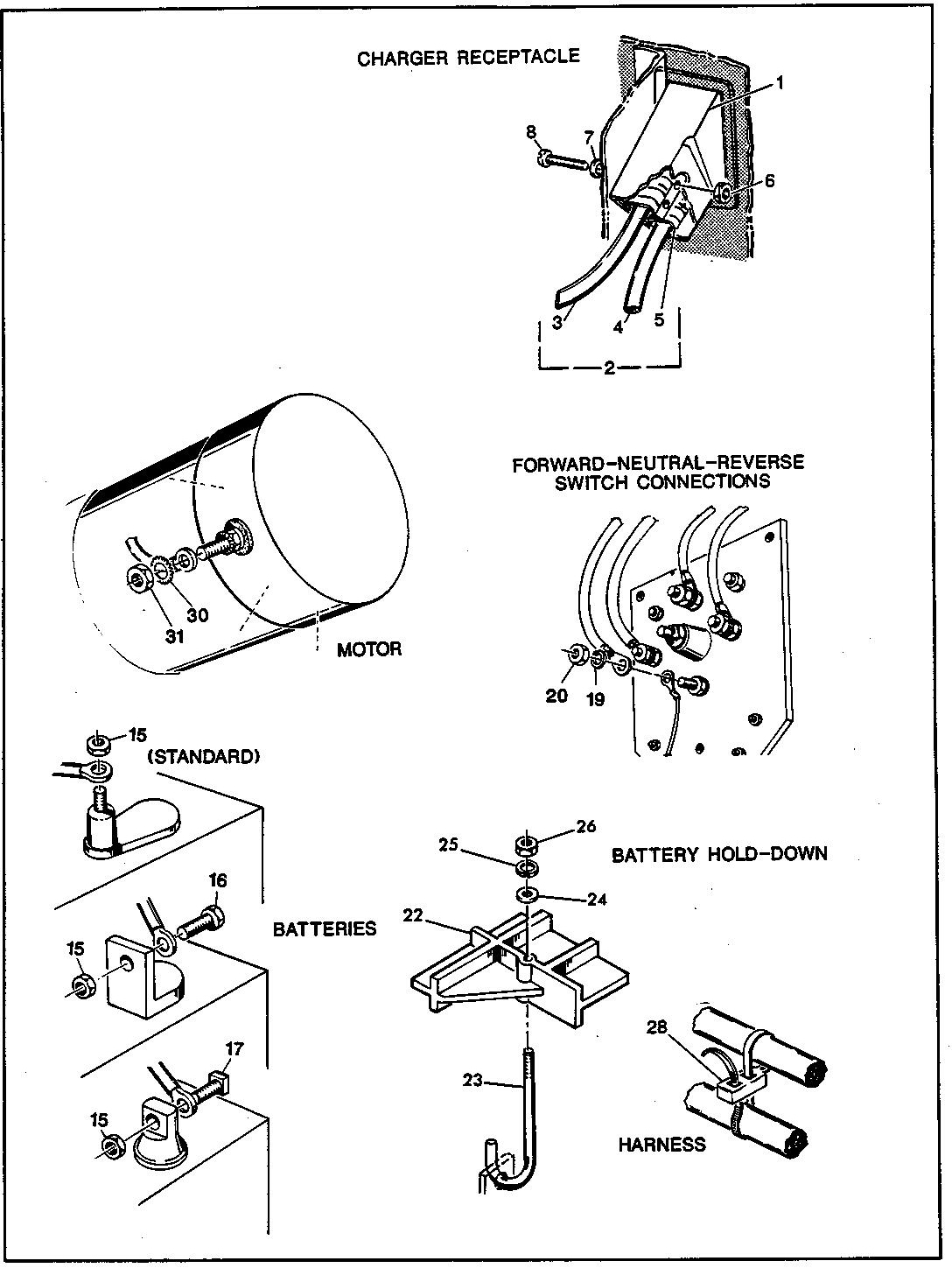

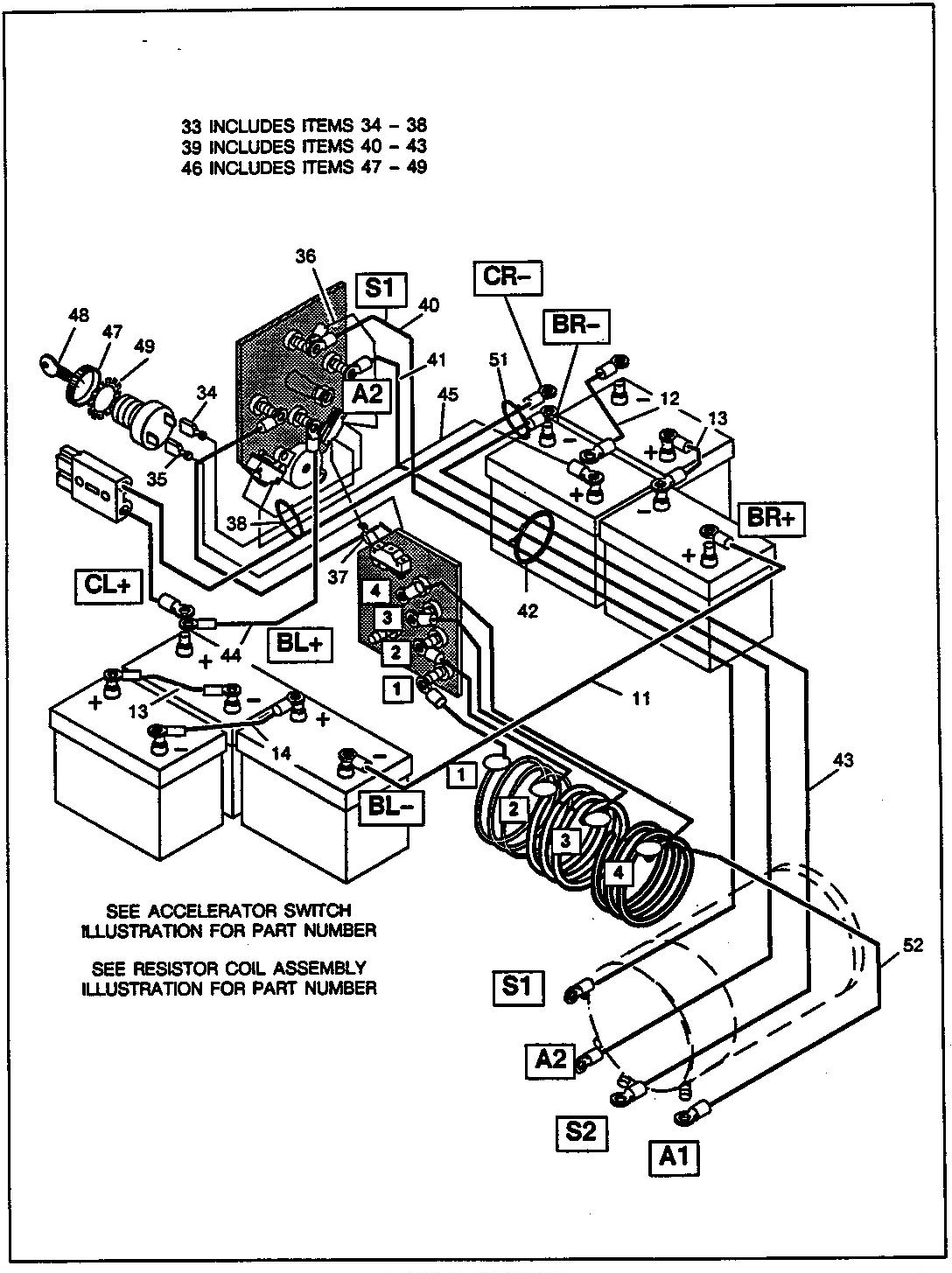

Power Wiring

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Charger receptacle holder	18724-G1		1	1
2	Wiring harness charger connector	18784-G1	includes items 3-5	1	1
3	Wire	14852-G1	CR-	1	1
4	Wire	14852-G2	CL+	1	1
5	Connector, anderson	18782-G1		1	1
6	Nut, lock	14390-G9	#6 - 32	2	2
7	Washer	00559-G3	#6	2	2
8	Screw	00645-G2	#6 - 32 x 1 1/4 LG	2	2
11	wire	11885-G4		1	1
12	Wire	23540-G1		1	1
13	Wire	11893-G1		2	2
14	Wire	11894-G1		1	1
15	Nut	00702-G2	5/16 - 18	12	12
16	Screw	00270-G6	5/16 - 18 x 3/4 LG	12	12
17	Bolt, battery, square head	12649-G1	5/16 - 18 x 1 LG	12	12
19	Washer, lock	00565-G8	5/16	4	4
20	Nut	00702-G2	5/16 - 18	4	4
22	Battery hold down	15736-G1		2	2
23	J bolt, battery	15734-G2		2	2
24	Washer	00559-G8	5/16	2	2
25	Washer, lock	00565-G8	5/16	2	2
26	Nut	00702-G2	5/16 - 18	2	2
28	Clamp, nylon, double	23544-G1		4	4
30	Washer, lock, external tooth	00567-G8	5/16	2	2
31	Nut	00532-G3	5/16 - 18	4	4
33	Control wiring harness, F-N-R switch	17868-G1	includes items 34 - 38	1	1
34	Wire	14619-G2	Light blue	1	1
35	Wire	17870-G1	Yellow	1	1
36	Wire	14615-G1	Black	1	1
37	Wire	17869-G1	Red and white	1	1
38	Clamp, nylon	17618-G1		2	2
39	Wiring harness, F-N-R switch	18894-G1	includes items 40 - 43	1	1
40	Wire	17855-G1	SI	1	1
41	Wire	17856-G1	A2	1	1
42	Clamp, nylon	17618-G1	Black	5	5
43	Wire	17858-G1	S2	1	1
44	Wire	14610-G1	BL+	1	1
45	Wire	23645-G1		1	1
46	Ignition switch kit	17421-G1	includes items 47 - 49	1	1
47	Face nut	17137-G1		1	1
48	Ignition key	17063-G1		1	1
49	Washer, lock, external tooth	00568-G6	3/4	1	1
51	Clamp, nylon	17618-G1		2	2
52	Wire	18897-G3	A1-4	1	1
	Current indicator	**		NA	NA
	Battery tester	**	Discharge machine	NA	NA
	Hydrometer	**		NA	NA
	OHM meter	**	multi-meter	NA	NA

Power Wiring – First Used for 1990 Vehicles

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Charger receptacle holder	18724-G1		1	1
2	Wiring harness charger connector	18784-G1	Includes items 3-5	1	1
3	Wire	14852-G1	CR-	1	1
4	Wire	14852-G2	CL+	1	1
5	Connector, anderson	18782-G1		1	1
6	Nut, lock	14390-G9	#6 - 32	2	2
7	Washer	00559-G3	#6	2	2
8	Screw	00645-G2	#6 - 32 x 1 1/4 LG	2	2
11	Wire	11885-G4		1	1
12	Wire	23540-G1		1	1
13	Wire	11893-G1		2	2
14	Wire	11894-G1		1	1
15	Nut	00702-G2	5/16 - 18	12	12
16	Screw	00270-G6	5/16 - 18 x 3/4 LG	12	12
17	Bolt, battery, square head	12649-G1	5/16 - 18 x 1 LG	12	12
19	Washer, lock	00565-G8	5/16	4	4
20	Nut	00702-G2	5/16 - 18	4	4
22	Battery hold down	15736-G1		2	2
23	J bolt, battery	15734-G2		2	2
24	Washer	00559-G8	5/16	2	2
25	Washer, lock	00565-G8	5/16	2	2
26	Nut	00702-G2	5/16 - 18	2	2
28	Clamp, nylon, double	23544-G1		4	4
30	Washer, lock, external tooth	00567-G8	5/16	2	2
31	Nut	00532-G3	5/16 - 18	4	4
35	Wire	23968-G1	Red	1	1
39	Wiring harness, F-N-R switch	23978-G1	includes items 40 - 45	1	1
40	Wire	23793-G9	S1	1	1
41	Wire	23793-G7	A2	1	1
42	Clamp, nylon	17618-G1	Black	5	5
43	Wire	23793-G8	S2	1	1
45	Wire	23793-G6	A1	1	1
46	Ignition switch kit	17421-G1	includes items 47 - 49	1	1
47	Face nut	17137-G1		1	1
48	Ignition key	17063-G1		1	1
49	Washer, lock, external tooth	00568-G6	3/4	1	1
51	Clamp, nylon	17618-G1		2	2
	Current indicator	**		NA	NA
	Battery tester	**	Discharge machine	NA	NA
	Hydrometer	**		NA	NA
	OHM meter	**	multi-meter	NA	NA

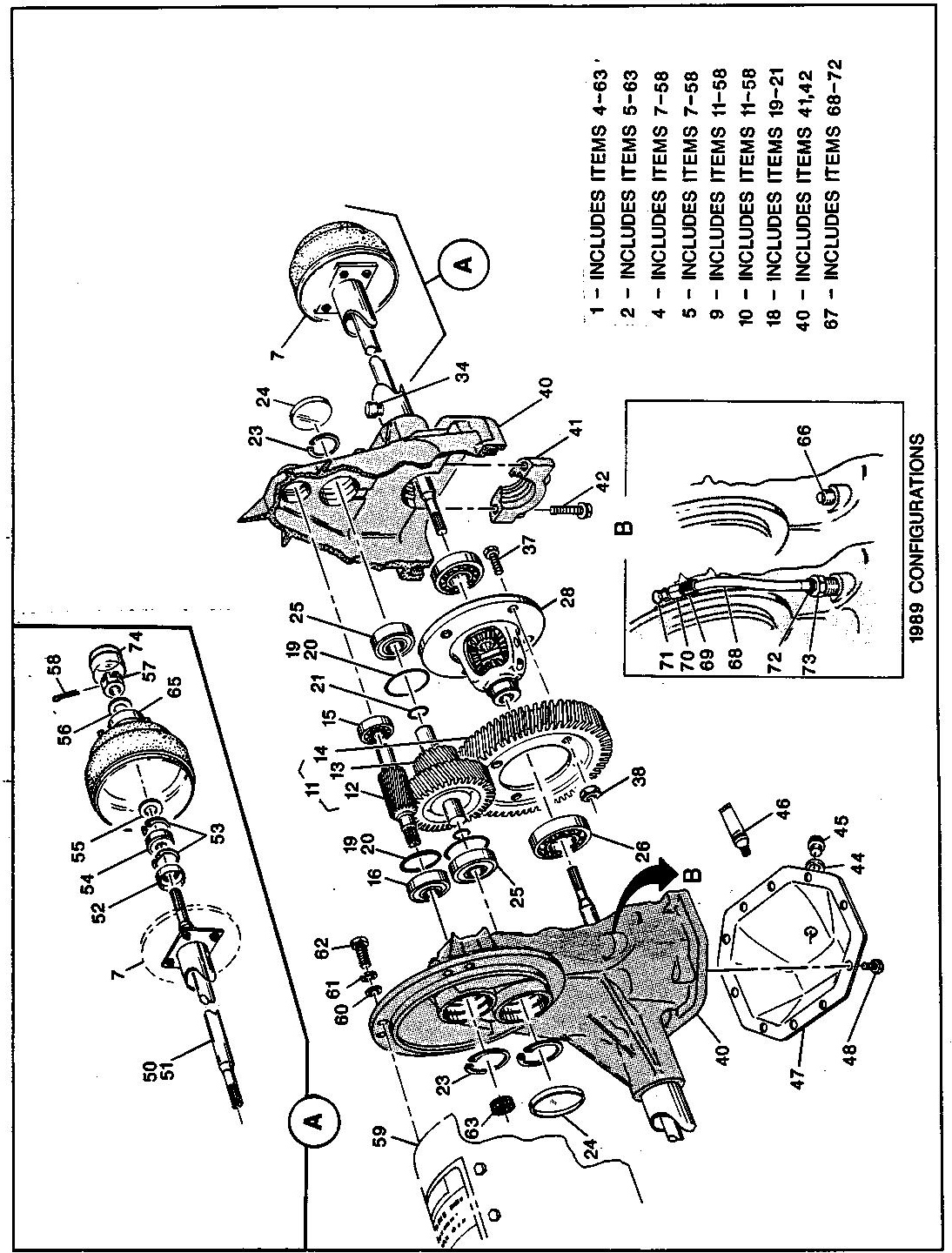

Rear Axle

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Rear axle, motor and brake assembly, model year 1989	25283-G21	includes items 4 - 63	1	1
2	Rear axle, motor and brake assembly, model year 1990	25283-G01	includes items 5 - 63	1	1
4	Rear axle and brake assembly, model year 1989	25283-G22	includes items 7 - 58	1	1
5	Rear axle and brake assembly, model year 1990	25283-G02	includes items 7 - 58	1	1
7	Brake set	XXXXX-XX	See section NN for part no. and quantity
9	Rear axle assembly, model year 1989	25283-G23	includes 11 - 58	1	1
10	Rear axle assembly, model year 1990	25283-G03	includes 11 - 58	1	1
11	Gear set	23501-G3	includes items 12 - 14	1	1
12	Gear , input	*		1	1
13	Gear, intermediate	*		1	1
14	Gear, output	*		1	1
15	Ball bearing, input gear	23520-G1		1	1
16	Ball bearing, input gear, motor side	23519-G1		1	1
18	Seal set	24627-G1	includes items 19 - 21	1	1
19	Seal, "O" ring, thick	*		AR	AR
20	Seal, "O" ring, thin	*		AR	AR
21	Seal, "O" ring	*		2	2
23	Retaining ring	23530-G1		3	3
24	Plug cap	24461-G1		2	2
25	Ball bearing, intermediate gear	23521-G1		2	2
26	Ball bearing, output gear	17473-G1		2	2
28	Differential assembly	18463-G1		1	1
34	Valve vent, late 1989 and 1990	25229-G1		1	1
37	Screw	00433-G1	3/8 - 24 x 1 1/8 LG	4	4
38	Nut	00532-G6	3/8 - 24	4	4
40	Axle housing assembly	*	includes items 41 and 42	1	1
41	Retainer, bearing	*		2	2
42	Screw	15118-G1	3/8 - 16 x 2 1/8 LG	4	4
44	Washer	25227-G1		1	1
45	Plug, fill/check	25226-G1		1	1
46	Sealant	20536-G1	Enough for 1 application	1	1
47	Cover	25228-G1		1	1
48	Screw	15558-G1	5/16 - 18 x 3/4 LG	10	10
50	Shaft, axle, passenger side	20377-G4		1	1
51	Shaft, axle, driver's side	20377-G3		1	1
52	Seal, axle	15114-G1		2	2
53	Ring, retaining	15113-G1		4	4
54	Ball bearing, axle	15112-G1		2	2
55	Washer, 20 MM	15485-G1		2	2
56	Washer, brake drum	15487-G1	5/8	2	2
57	Nut, slotted	15483-G1	5/8 - 18	2	2
58	Cotter pin	10387-G1	1/8 x 1 1/2 LG	2	2
59	Motor	XXXXX-XX	See section Y for part no. and quantity
60	Washer	00559-G7	1/4	3	3
61	Washer, lock	00565-G7	1/4	3	3
62	Screw	00797-G2	1/4 - 20 x 1 1/4 LG	3	3
63	Bumper, spline	24261-G1		1	1
65	Adaptor, spindle cap, model 1990	24939-G1		1	1
66	Plug, pipe, late 1989 models	24459-G1		1	1
67	Vent tube assembly, model year 1989	24502-G1	includes items 68-72	1	1
68	Tube, vinyl	17431-G5	1/4 I.D. (4 1/2 LG)	1	1
69	Clamp, cable, insulated	11845-G5		1	1
70	Connector, female	24466-G1		1	1
71	Vent, valve	24464-G1		1	1
72	Clamp	17433-G1		1	1
73	Fitting, plastic	24878-G1		1	1
74	Spindle cap, model year 1990	12091-G1		1	1
76	Slide hammer kit	**		NA	NA
77	Tool, seal installation	**		NA	NA

Rear Suspension Components

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Leaf spring	20398-G1		2	2
2	Leaf spring, heavy duty	11645-G2		2	2
5	Spring shackle	19675-G1	includes items 6 - 8	2	2
6	Stud plate, shackle	*		2	2
7	Plate, shackle	*		2	2
8	Nut, lock	19676-G1	3/8 - 24	4	4
11	Bushing, rubber	20098-G1		12	12
12	Bolt, shoulder	15727-G1	3/8 - 16	2	2
13	Washer, lock	00566-G1	3/8	2	2
14	Nut	00532-G5	3/8 - 16	2	2
16	Shock absorber	20278-G1		2	2
17	Shock absorber, heavy duty	20279-G1		2	2
18	Screw	00428-G4	3/8 - 16 x 2 1/2 LG	2	2
19	Washer	00560-G1	3/8	2	2
20	Nut, lock	00550-G5	3/8 - 16	2	2
21	Washer, shock absorber	10435-G1		4	4
22	Bushing, shock absorber	10194-G1		4	4
23	Nut	00532-G6	3/8 - 24	2	2
26	Stabilizer bar spring bracket assembly	14770-G1	includes items 27-32	2
27	Nut	00532-G5	3/8 - 16	4
28	Washer, shock absorber	10435-G1		4
29	Bushing, shock absorber	10194-G1		4
30	Spacer	10840-G3		1
31	Rod, threaded	10579-G6		1
32	Bracket, spring retainer	17141-G1		1
33	Plate, spring retainer	17034-G1			2
35	"U" bolt, axle	12058-G2		4	4
36	Nut	00532-G5	3/8 - 16	8	8
37	Washer, lock	00566-G1	3/8	8	8
40	Bracket, stabilizer bar	11640-G1		2
41	Stabilizer bar assembly	17284-G1	includes items 42 - 43	1
42	Bushing, stabilizer	11155-G1		2
43	Bar, stabilizer	*		1
44	Nut, lock	11027-G4	5/16 - 24	4

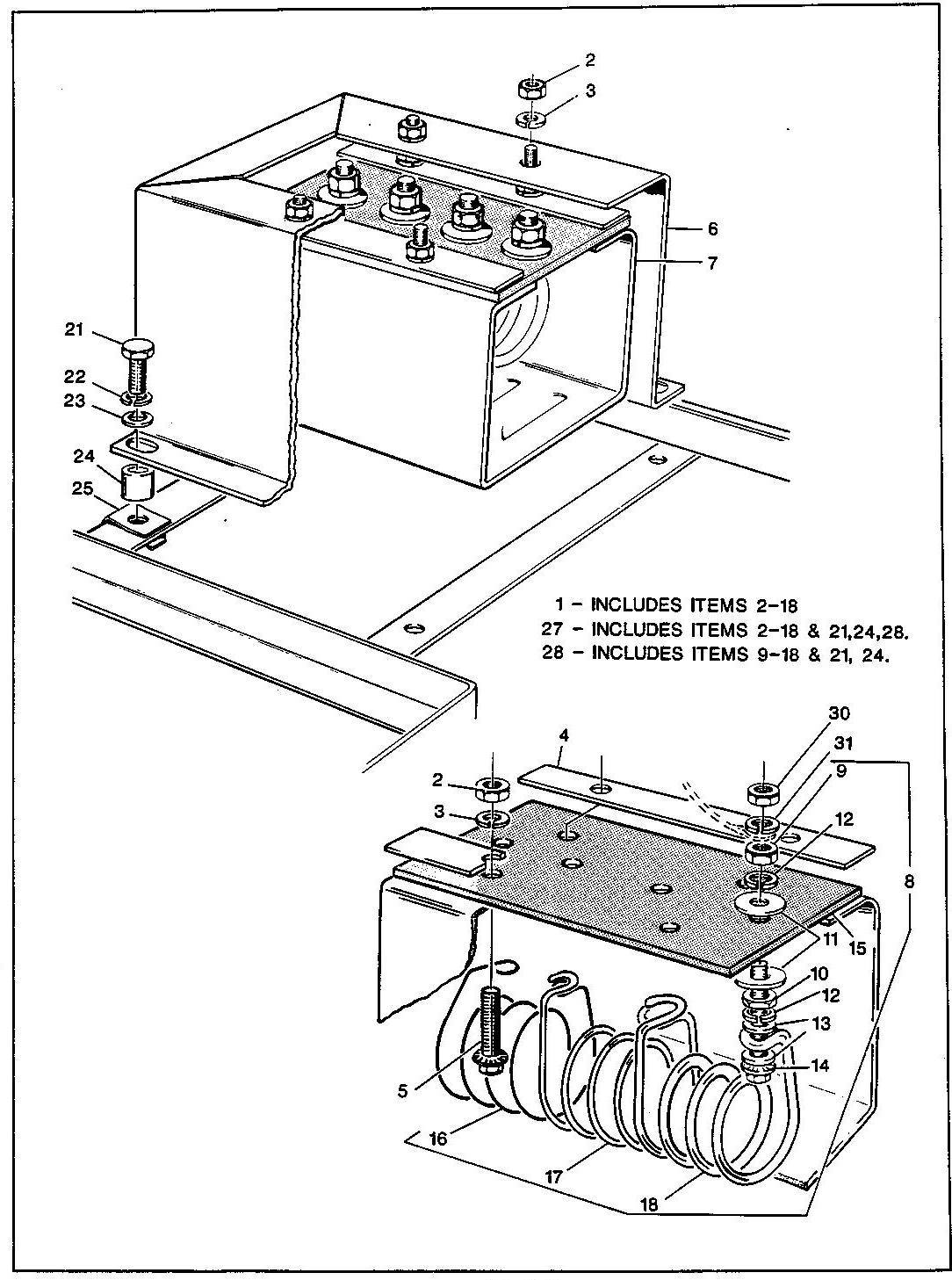

Resistor Coil and Housing Assembly

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Resistor coil assembly	24904-G1	includes items 2-18, see item 27	1	1
2	Nut	00883-G1	1/4 - 20	8	8
3	Washer, lock, stainless steel	00664-G7	1/4	8	8
4	Strip, support	22951-G1		2	2
5	Screw, stainless steel	00661-G8	1/4 - 20 x 1 LG	4	4
6	Shield, resistor	18814-G1		1	1
7	Housing, resistor	18812-G1		1	1
8	Resistor board assembly	24903-G1	includes items 9-18, see item 28	1	1
9	Nut	51401-G1	5/16 - 18	8	8
11	Washer	00907-G3	5/16	8	8
12	Washer, lock	00664-G8	5/16	8	8
13	Washer, stainless steel	00660-G8	5/16	8	8
14	Screw, lock	00685-G9	5/16 - 18 x 2 LG	4	4
15	Board, resistor	18811-G1		1	1
16	Coil, resistor, light	23293-G1		1	1
17	Coil, resistor, medium	23294-G1		1	1
18	Coil, resistor, heavy	23295-G1		1	1
21	Screw, stainless steel	00933-G1	1/4 - 20 x 1 1/4 LG	4	4
22	Washer, lock, stainless steel	00664-G7	1/4	4	4
23	Washer, stainless steel	00660-G7	1/4	4	4
24	Spacer	24907-G1		4	4
25	Nut, "U"	00709-G1	1/4 - 20	4	4
28	Resistor board retro-fit kit, vehicles without item 24	23302-G1	includes items 9-18 & 21, 24	1	1
30	Nut	00883-G3	5/16 - 18	4	4
31	Washer,lock	00882-G8	5/16	4	4

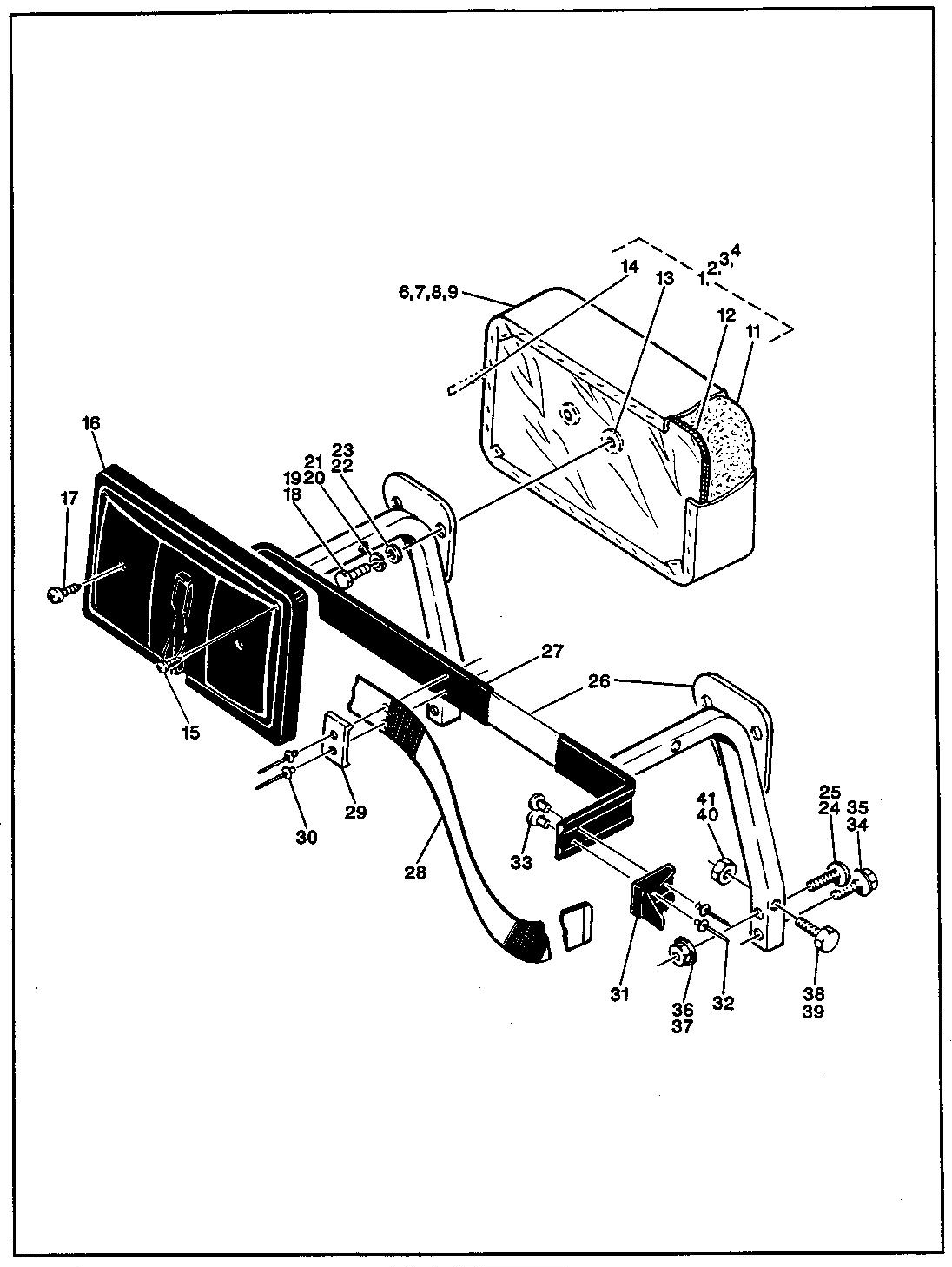

Seats and Bag Holder

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Back rest assembly, white	24115-G2	includes items 6, 11-14	2	2
2	Back rest assembly, oyster	24115-G6	includes items 7, 11-14	2	2
3	Back rest assembly, tan	24115-G7	includes items 8, 11-14	2	2
4	Back rest assembly, gray	24115-G8	includes items 9, 11-14	2	2
6	Cover, back rest cushion, white	14371-G1		1	1
7	Cover, back rest cushion, oyster	14371-G4		1	1
8	Cover, back rest cushion, tan	14371-G5		1	1
9	Cover, back rest cushion, gray	14371-G8		1	1
11	Cushion foam, back rest	25433-G1		1	1
12	Plywood seat back	19226-G1		1	1
13	Nut, tee	*		2	2
14	Staple, flat	*		60	60
15	Screw, self-tapping, stainless steel	00924-G6	#8 - 15 x 3/4 LG	4	4
16	Cover, back rest, black	19056-G3		2	2
17	Screw, self-tapping, stainless steel	00666-G6	#10 - 16 x 3/4 LG	4	4
18	Screw	00414-G8	1/4 - 20 x 1 LG	4	4
19	Screw, stainless steel	00661-G8	1/4 - 20 x 1 LG, Freedom only	4	4
20	Washer, lock	00565-G7	1/4	4	4
21	Washer, lock, stainless steel	00664-G7	1/4, freedom only	4	4
22	Washer, lock	00559-G7	1/4	4	4
23	Washer, stainless steel	00660-G7	1/4, freedom only	4	4
24	Screw, truss	00763-G4	5/16 - 18 x 1 1/2 LG	2	2
25	Screw, truss, stainless steel	00762-G4	5/16 - 18 x 1 1/2 LG, Freedom only	2	2
26	Seat back bracket and bag holder	16924-G2		1	1
27	Extrusion, vinyl	14643-G2		1	1
28	Strap, retainer	15902-G1		1	1
29	Anchor, plate	16610-G1		1	1
30	Rivet	17226-G1		2	2
31	Retainer, strap	16920-G1		2	2
32	Rivet, aluminum black	15058-G1		4	4
33	Nut, tee	16935-G1		4	4
34	Screw, lock	00439-G6	5/16 - 18 x 1 3/4 LG	4	4
35	Screw, lock, stainless steel	00685-G7	5/16 - 18 x 1 3/4 LG, freedom only	2	2
36	Nut, lock	11027-G1	5/16 - 18	4	4
37	Nut, lock	00891-G3	5/16 - 18, freedom only	4	4
38	Screw	00427-G4	3/8 - 18 x 1 1/2 LG	2	2
39	Screw, stainless steel	00665-G4	3/8 - 16 x 1 1/2 LG, freedom only	2	2
40	Nut, lock	11027-G5	3/8 - 16	2	2
41	Nut, lock	00891-G5	3/8 - 16, freedom only	2	2

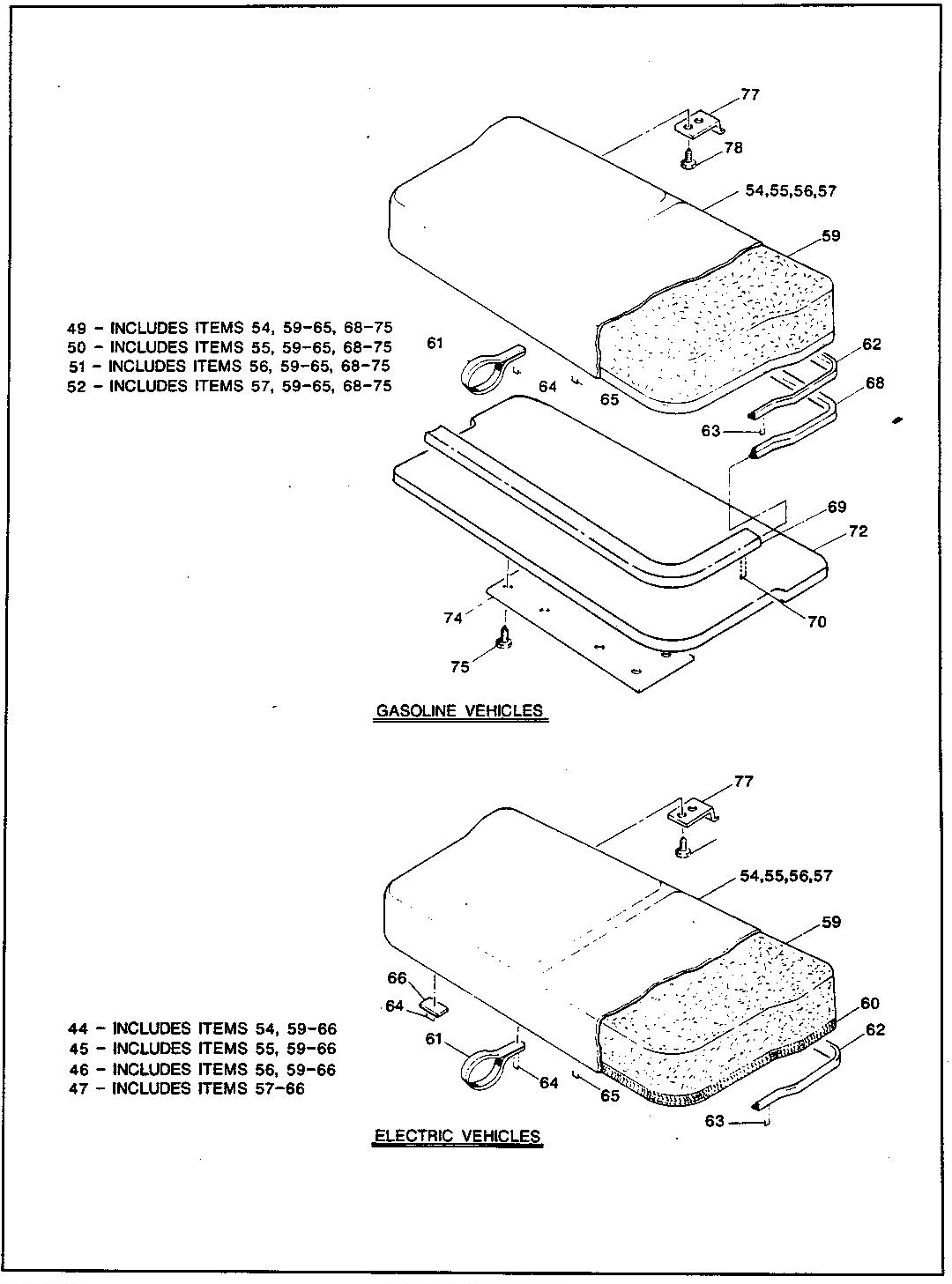

44	Seat bottom assembly, white, electric vehicle	24077-G2	includes items 54, 59 - 66	1	1
45	Seat bottom assembly, oyster, electric vehicle	24077-G6	includes items 55, 59 - 66	1	1
46	Seat bottom assembly, tan, electric vehicle	24077-G7	includes items 56, 59-66	1	1
47	Seat bottom assembly, gray, electric vehicle	24077-G8	includes items 57-66	1	1
49	Seat bottom assembly, white, gasoline vehicle	22460-G02	includes items 54, 59-65, 68-75	1	1
50	Seat bottom assembly, oyster, gasoline vehicle	22460-G06	includes items 55, 59-65, 68-75	1	1
51	Seat bottom assembly, tan, gasoline vehicle	22460-G07	includes items 56, 59-65, 68-75	1	1
52	Seat bottom assembly, gray, gasoline vehicle	22460-G08	includes items 57, 59-65, 68-75	1	1
54	Cover, seat bottom cushion, white	15146-G1		1	1
55	Cover, seat bottom cushion, oyster	15146-G2		1	1
56	Cover, seat bottom cushion, tan	15146-G3		1	1
57	Cover, seat bottom cushion, gray	15146-G4		1	1
59	Cushion foam	25432-G1		1	1
61	Webbing	11394-G1		1	1
62	Trim, vinyl	17113-G1		1	1
63	Staple	*		24	24
64	Staple	*		4	4
65	Staple, flat	*		110	110
66	Soiling slab	17074-G1		2	2
68	Gasket, seat, front	12727-G7	Gas vehicle only	1	1
69	Gasket, seat, rear	17283-G1		1	1
70	Staple	*		71	71
72	Plywood seat bottom	12441-G2		1	1
74	Shield, heat	25588-G1		1	1
75	Screw, self-tapping	00114-G6	1/4 - 10 x 3/4 LG	10	10
77	Bracket, seat hinge	18250-G1		2	2
78	Screw, self-tapping	00114-G6	1/4 - 10 x 3/4 LG, gasoline vehicle	4	4

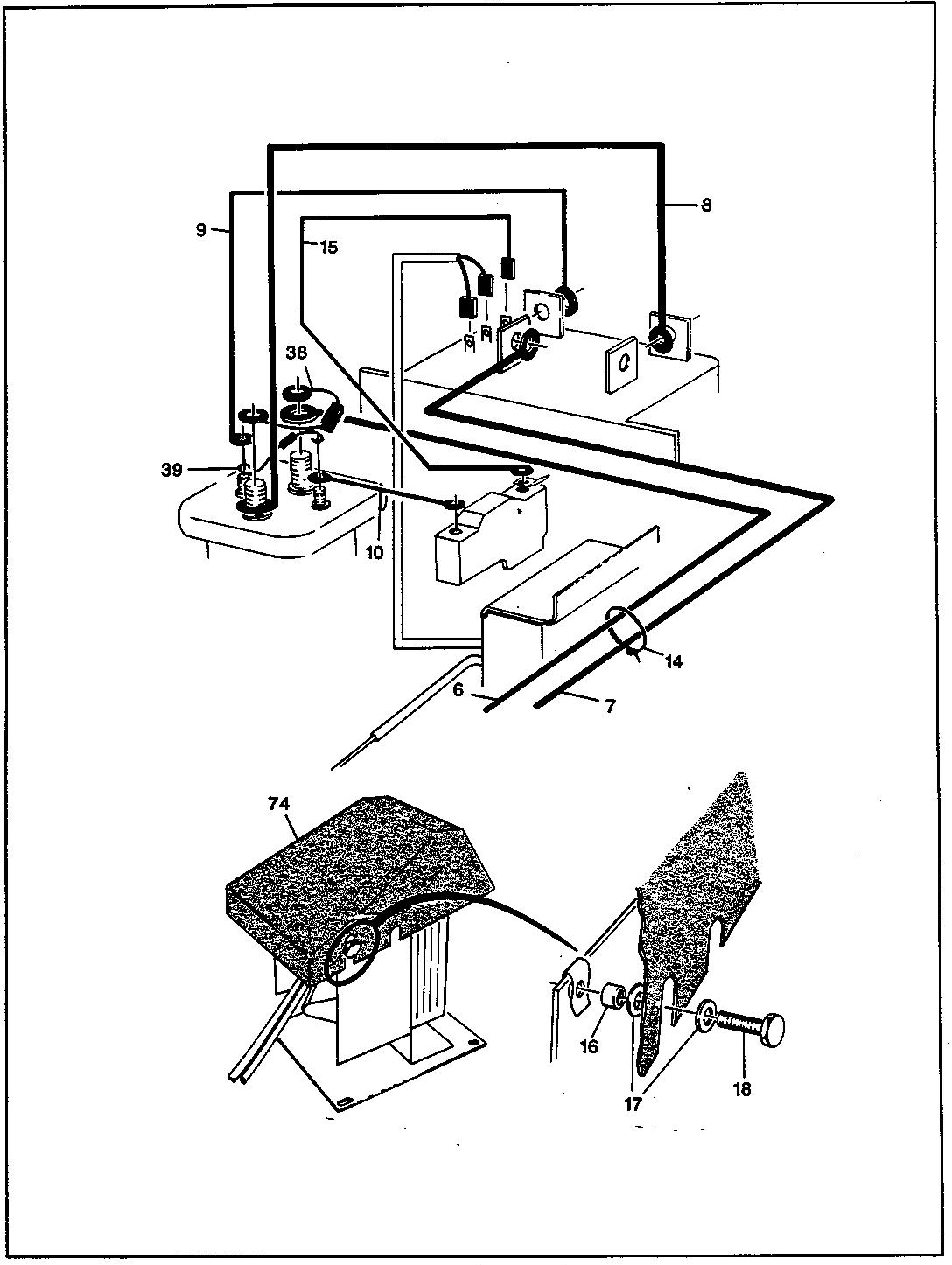

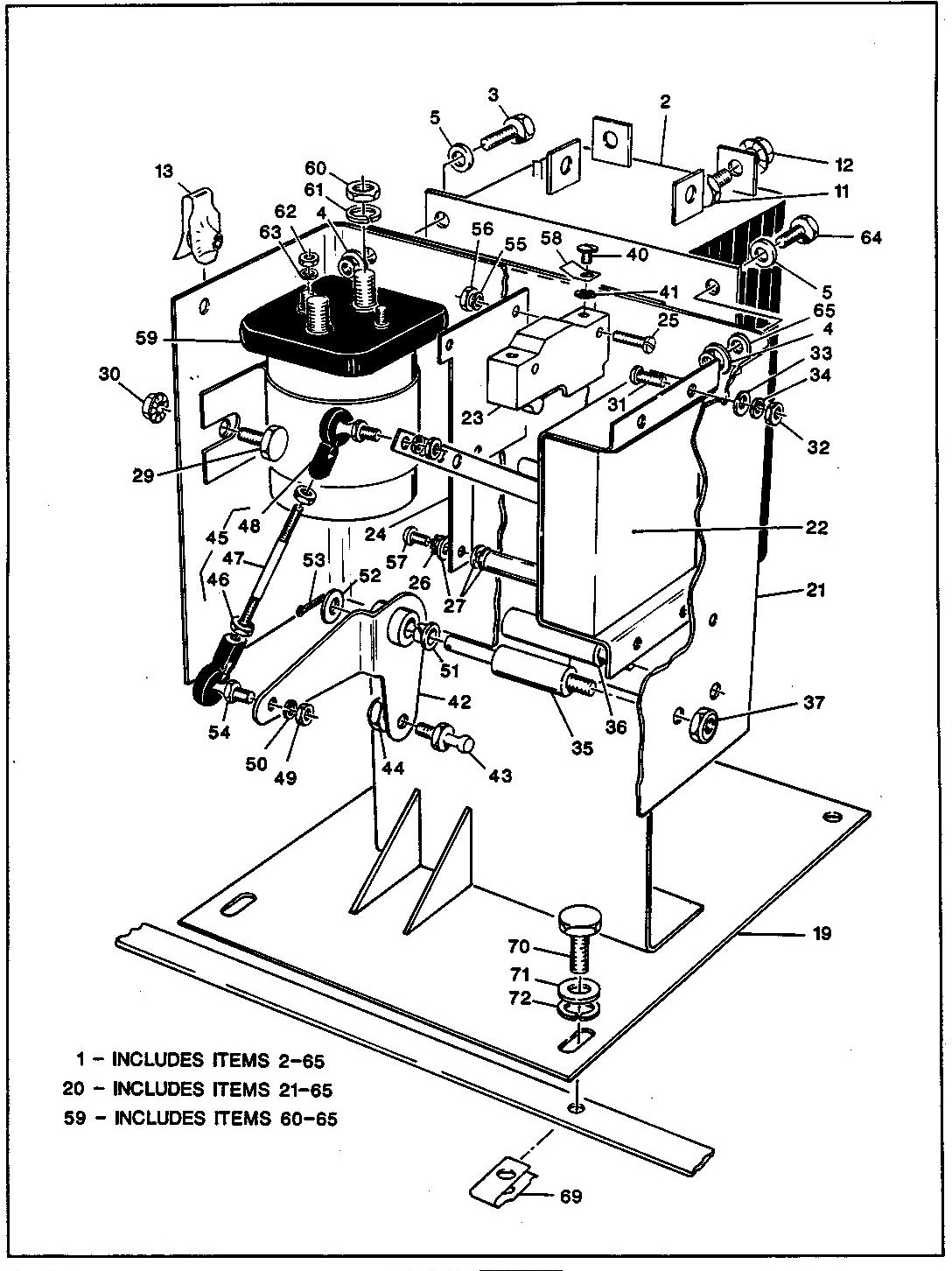

Solid State Control Module

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Electronic speed control assembly	*	includes items 2- 65	1	1
2	Control box, LDI	20972-G1		1	1
3	Screw	00414-G5	1/4 - 20 x 5/8 LG	3	3
4	Nut, lock	11027-G2	1/4 - 20	4	4
5	Washer	00561-G7	1/4	4	4
6	Wire	23793-G3	SOL- BL+	1	1
7	Wire	23793-G4	M - C	1	1
8	Wire	23793-G1	SOL- B+	1	1
9	Wire	24021-G1	Black	1	1
10	Wire	23975-G1	Orange	1	1
11	Screw	00270-G5	5/16 - 18 x 5/8 LG	4	4
12	Nut, lock	11027-G1	5/16 - 18	4	4
13	"U" nut	00709-G1		3	3
14	Clamp, nylon	17618-G1		1	1
15	Wire	24019-G2	Blue	1	1
16	Spacer	23726-G1		3	3
17	Washer	00559-G7	1/4	6	6
18	Screw	00414-G8	1/4 - 20 x 1 LG	3	3
19	Mounting bracket	23608-G1		1	1
20	Mounting assembly	25261-G1	includes items 21 - 65	1	1
21	Bracket, mounting	23603-G1		1	1
22	Potentiometer	25399-G1		1	1
23	Micro, switch	10606-G5		1	1
24	Support, micro switch	23275-G1		1	1
25	Screw	00138-G8	#6 - 32 x 1 LG	2	2
26	Washer, lock, external	00567-G4	#8	2	2
27	Washer	00559-G4	#8	6	6
29	Screw	00414-G4	1/4 - 20 x 1/2 LG	2	2
30	Nut, lock	11027-G2	1/4 - 20	2	2
31	Screw	00150-G4	#10 - 24 x 1/2 LG	3	3
32	Nut	00526-G3	#10 - 24	3	3
33	Washer	00559-G5	#10	3	3
34	Washer, lock	00565-G5	#10	3	3
35	Rod, pivot	23605-G1		1	1
36	Rod, stop	23721-G1		1	1
37	Nut	14390-G1	3/8- 24	2	2
38	Resistor	21764-G1		1	1
39	Diode	30353-G1		1	1
40	Screw, brass	13514-G1	#6 - 32 x 7/32 LG	2	2
41	Washer, lock, external tooth	00567-G3	#6	1	1
42	Pivot arm	24568-G1		1	1
43	Ball, ball joint	15944-G3	5/16	1	1
44	Nut, lock	11098-G9	5/16 - 24	1	1
45	Rod, control assembly	22587-G5	includes items 46 - 48	1	1
46	Nut	00526-G4		2	2
47	Rod, control	23722-G1		1	1
48	Socket	24465-G1		2	2
49	Nut	00526-G4	#10 - 32	2	2
50	Washer, lock	00565-G5	#10	2	2
51	Bushing, nyliner	17838-G1		2	2
52	Washer	00559-G8	5/16	1	1
53	Pin, cotter	10387-G3		1	1
54	Ball, ball joint	24479-G1		2	2
55	Washer, lock	00565-G3	#6	2	2
56	Nut	00525-G5	#6 - 32	2	2
57	Screw	00372-G3	#8 - 32 x 3/8 LG	2	2
58	Faston tab	14628-G1		1	1
59	Solenoid	20468-G1	includes items 60 - 63	1	1
60	Nut, jam	00544-G4	5/16 - 24	2	2
61	Washer, lock	00565-G8	5/16	2	2
62	Nut	00526-G4	#10 - 32	2	2
63	Washer, lock	00565-G5	#10	2	2
64	Screw	00414-G6	1/4 - 20 x 3/4 LG	1	1
65	Clip, cable	11845-G5		1	1
69	U' nut	00709-G1		4	4
70	Screw, stainless steel	00661-G6	1/4 - 20 x 3/4 LG	4	4
71	Washer, stainless steel	00660-G7	1/4	4	4
72	Washer, lock stainless steel	00664-G7	1/4	4	4
74	Cover, speed control	23723-G1		1	1

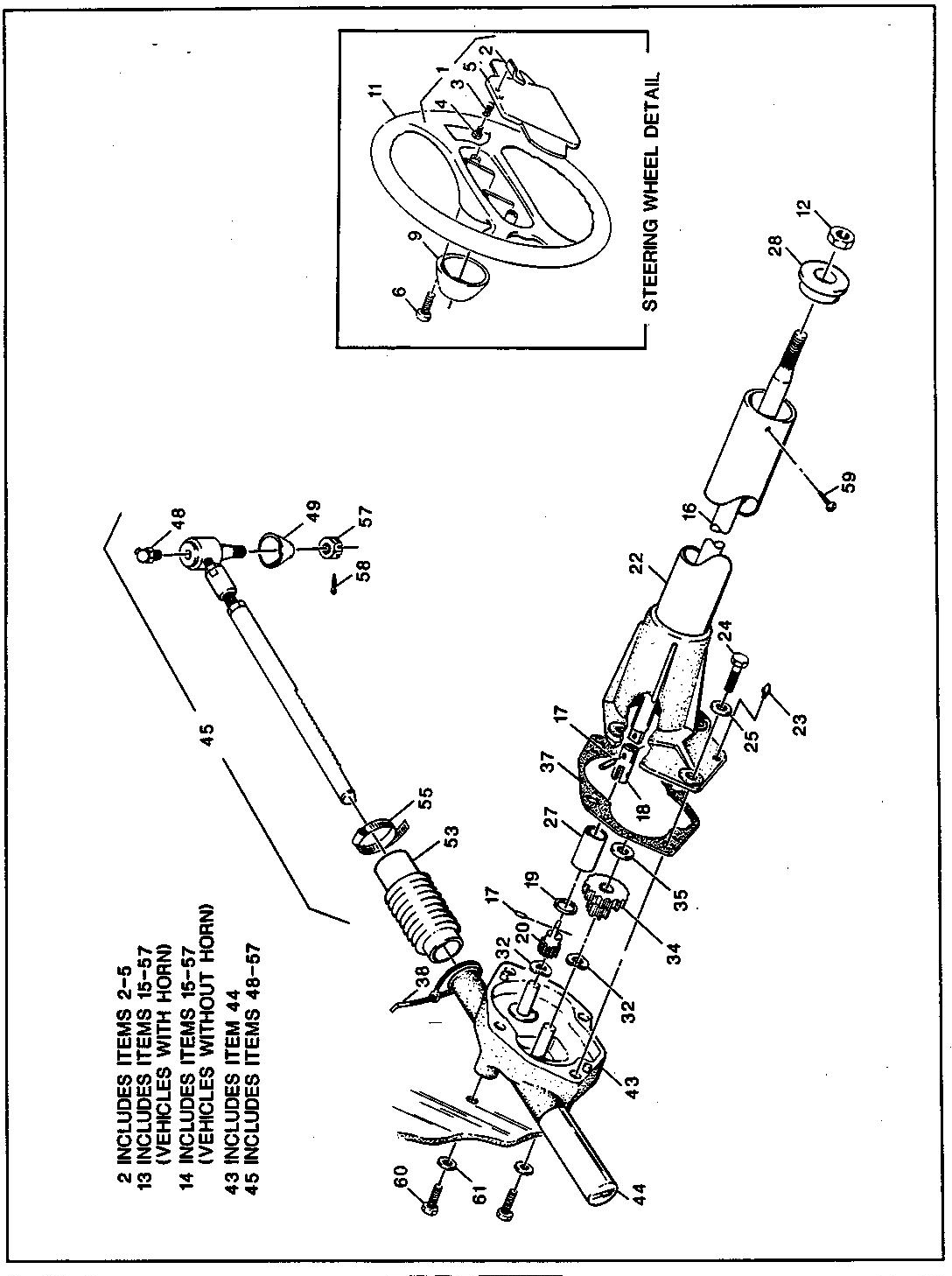

Steering

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Plate, scorecard holder assembly	23650-G1	includes items 2-5	1	1
2	Clip, scorecard	23290-G1		1	1
3	Spring, stainless steel	18410-G1		2	2
4	Screw, stainless steel	18411-G1	#6 - 18 x 3/4 LG	2	2
5	Plate, scorecard holder	23289-G1		1	1
6	Screw, self-tapping	18464-G1	#8 x 7/8 LG	2	2
9	Hub, cover extension	23225-G1		1	1
11	Wheel, steering	23172-G1		1	1
12	Nut, lock	14390-G2	5/8 - 18	1	1
13	Steering unit assembly	19152-G3	vehicles with horn, includes items 15 - 57	1	1
14	Steering unit assembly	19152-G1	vehicles without horn, includes items 15 - 57	1	1
15	Steering, shaft assembly	17163-G1	includes items 16 - 20	1	1
16	Shaft, steering	*		1	1
17	Pin, dowel	*	1/4	2	2
18	Coupling	*		1	1
19	Washer, thrust	*		1	1
20	Pinion, steering	*		1	1
22	Steering column unit	19153-G2		1	1
23	Grease fitting	*		1	1
24	Screw	00444-G8	5/16 - 24 x 1 LG	4	4
25	Washer, lock	00565-G8	5/16	4	4
27	Sleeve	17140-G1		1	1
28	Bushing and seal	17161-G1		1	1
32	Washer, wave tape, spring	51294-G1		2	2
34	Gear, reduction	23279-G1		1	1
35	Washer, thrust	13059-G2		1	1
37	Gasket, housing	19154-G1		1	1
38	Clamp, nylon	17618-G1		1	1
43	Housing assembly	13097-G1	includes item 44	1	1
44	Cover, rack	13570-G1		1	1
45	Rack and rod assembly	15407-G1	includes items 48 - 57	1	1
48	Grease fitting	18456-G1	90	1	1
49	Rubber boot, tie rod end	50641-G1		1	1
53	Bellows	17617-G1		1	1
55	Clamp, hose	11391-G1		1	1
57	Nut, slotted	50209-G1	7/16 - 20	1	1
58	Cotter pin	10387-G2	3/16 x 1 LG	1	1
59	Screw, self-tapping	00118-G2	#6 - 18 x 1/4 LG	1	1
60	Screw	00276-G6	5/16 - 24 x 3/4 LG	3	3
61	Washer, lock	00565-G8	5/16	3	3

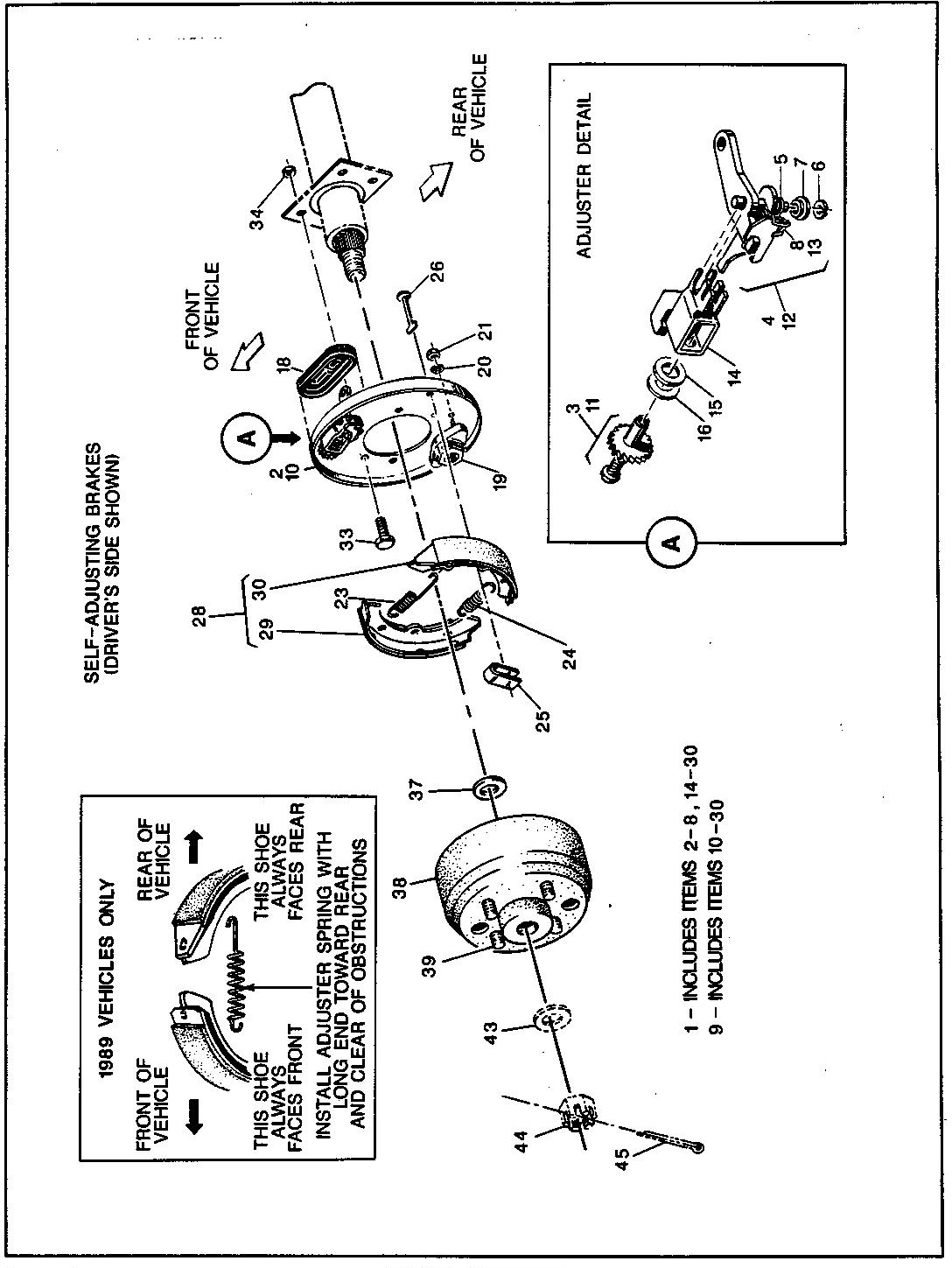

Wheel Brake

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Brake assembly, driver's side	22997-G2	includes items 2-8, 14-30	1	1
2	Backing plate, driver's side	22518-G1		1	1
3	Adjuster, driver's side	23360-G1		1	1
4	Lever assembly, driver's side	23357-G1	includes items 5-8	1	1
5	Spring	*		1	1
6	Retainer	*		1	1
7	Washer, shoulder	*		1	1
8	Spring, torsion, driver's side	23536-G1		1	1
9	Brake assembly, passenger side	22997-G1	includes items 10-30	1	1
10	Backing plate, passenger side	22519-G1		1	1
11	Adjuster, passenger side	23361-G1		1	1
12	Lever assembly, passenger side	23358-G1	includes items 5-7 and 13	1	1
13	Spring, torsin, passenger side	23537-G1		1	1
14	Adjuster body	23363-G1		1	1
15	Washer	23382-G1		1	1
16	Washer, thrust	23362-G1		1	1
18	Dust cover	22511-G1		1	1
19	Anchor block	23356-G1		1	1
20	Washer, lock	00565-G1	1/4	2	2
21	Nut, 6 mm	13632-G1		2	2
23	Spring, brake, adjuster	23359-G1		1	1
24	Spring, brake, anchor	17290-G1		1	1
25	Spring, shoe, clamp	17291-G1		2	2
26	Pin, tension	17292-G1		2	2
28	Brake shoe set	23364-G1	includes items 29 and 30	1	1
29	Brake shoe, leading	*		1	1
30	Brake shoe, trailing	*		1	1
33	Bolt	17083-G1	5/16 - 24 X 3/4 LG	8	8
34	Nut,lock	15126-G1	5/16 - 24	8	8
37	Washer	15485-G1	51/64	2	2
38	Brake drum assembly	19186-G1	includes item 39	2	2
39	Lug bolt	19862-G1	1/2 - 20 x 1 7/32 LG	4	4
43	Washer	XXXXX-XX	See section CC for part number and quantity
44	Nut, slotted	XXXXX-XX	See section CC for part number and quantity
45	Cotter pin	XXXXX-XX	See section CC for part number and quantity

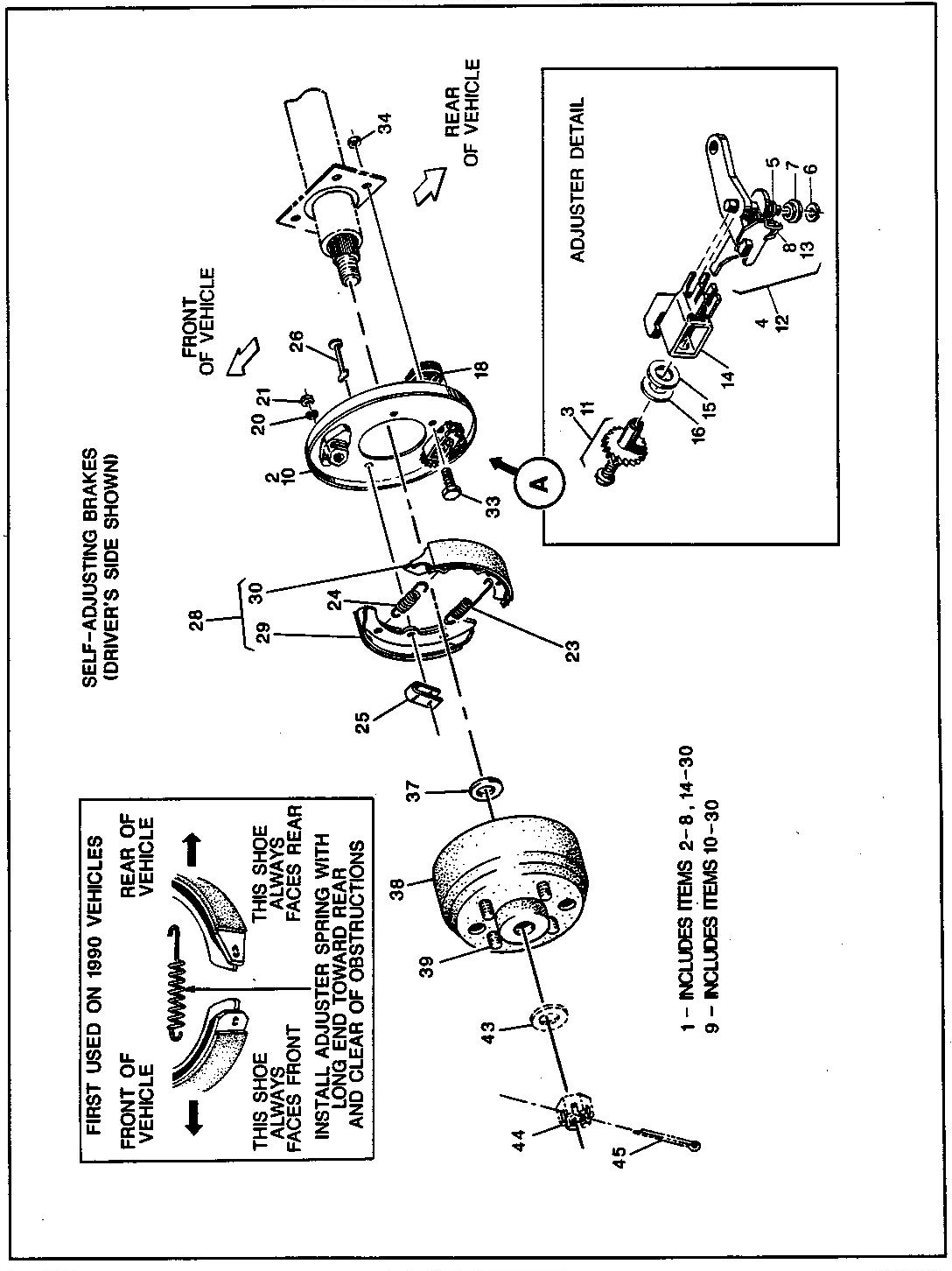

Wheel Brake – First Used for Model Year 1990

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	Brake assembly, passenger side	22997-G2	includes items 2-8, 14-30	1	1
2	Backing plate, passenger side	22518-G1		1	1
3	Adjuster, passenger side	23360-G1		1	1
4	Lever assembly, passenger side	23357-G1	includes items 5-8	1	1
5	Spring	*		1	1
6	Retainer	*		1	1
7	Washer, shoulder	*		1	1
8	Spring, torsion, passenger side	23536-G1		1	1
9	Brake assembly, driver's side	22997-G1	includes items 10 - 30	1	1
10	Backing plate, driver's side	22519-G1		1	1
11	Adjuster, driver's side	23361-G1		1	1
12	Lever assembly, driver's side	23358-G1	includes items 5-7 and 13	1	1
13	Spring, torsion, driver's side	23537-G1		1	1
14	Adjuster body	23363-G1		1	1
15	Washer	23382-G1		1	1
16	Washer, thrust	23362-G1		1	1
18	Dust cover	22519G-1		1	1
19	Anchor block	23356-G1		1	1
20	Washer, lock	00565-G1	1/4	2	2
21	Nut	13632-G1	6 mm	2	2
23	Spring, brake, adjuster	23359-G1		1	1
24	Spring, brake, anchor	17290-G1		1	1
25	Spring, shoe,clamp	17291-G1		2	2
26	Pin, tension	17292-G1		2	2
28	Brake shoe set	23364-G1	includes items 29 and 30	1	1
29	Brake shoe, leading	*		1	1
30	Brake shoe, trailing	*		1	1
33	Bolt	17083-G1	5/16 - 24 x 3/4 LG	8	8
34	Nut, lock	15126-G1	5/16 - 24	8	8
37	Washer	15485-G1	51/64	2	2
38	Brake drum assembly	19186-G1	includes item 39	2	2
39	Lug bolt	19862-G1	1/2 - 20 x 1 7/32 LG	4	4
43	Washer	XXXXX-XX	See section CC for part number and quantity
44	Nut, slotted	XXXXX-XX	See section CC for part number and quantity
45	Cotter pin	XXXXX-XX	See section CC for part number and quantity

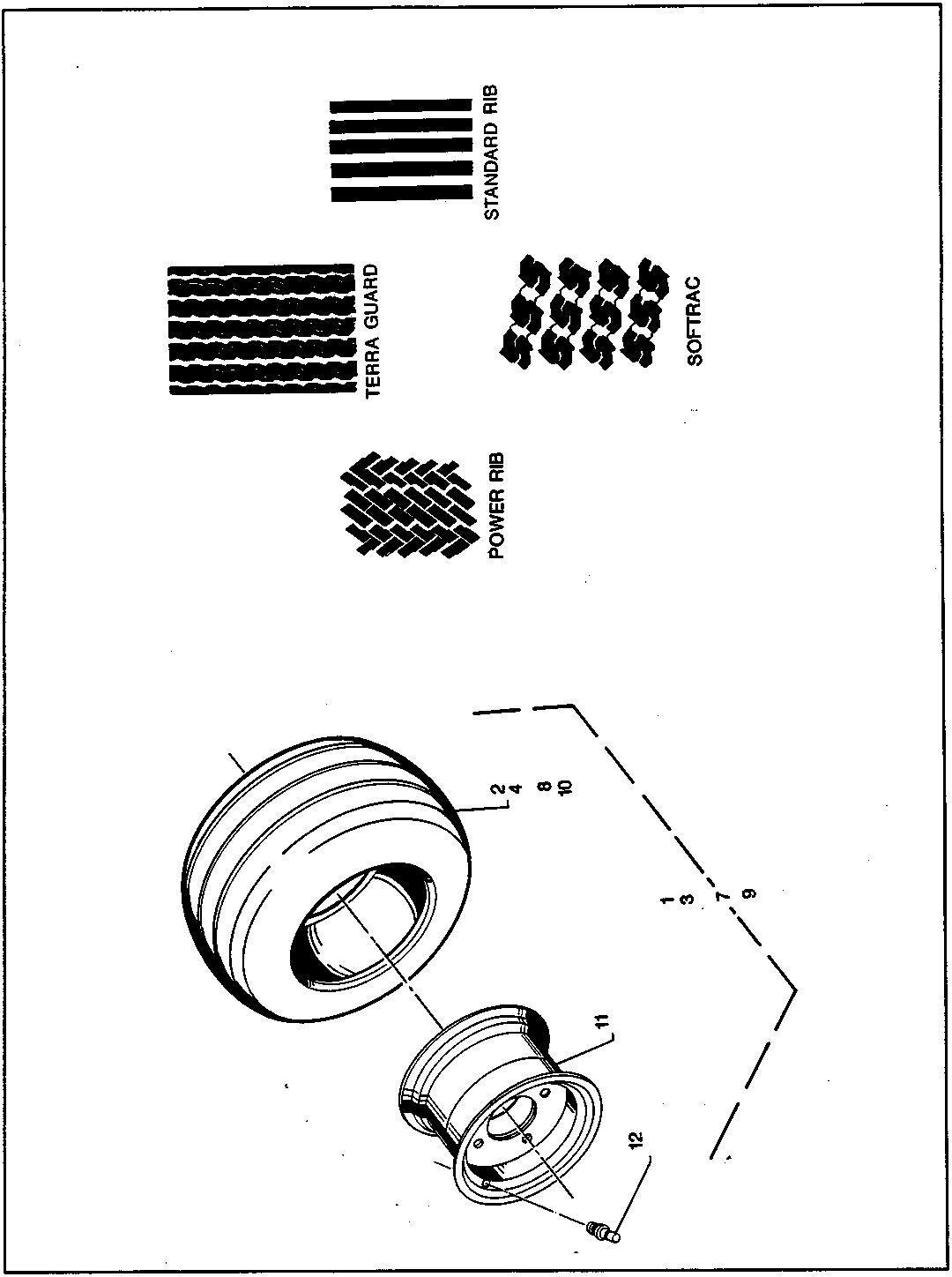

Wheels and Tires

Sl. No.	Part description	Part number	Notes	Quantity (3 wheel)	Quantity (4 wheel)	Purchase
1	18 x 8.50 x 8 tire and wheel rim assembly, standard RIB	15170-G1		AR	AR
2	18 x 8.50 x 8 tire, standard RIB	11594-G1		AR	AR
3	18 x 8.50 x 8 tire and wheel rim assembly, softrac	14697-G2		AR	AR
4	18 x 8.50 x 8 tire, softrac	14697-G1		AR	AR
7	18 x 8.50 x 8 tire and wheel rim assembly, power RIB	14728-G2		AR	AR
8	18 x 8.50 x 8 tire, power RIB	14728-G1		AR	AR
9	18 x 8.50 x 8 tire and wheel rim assembly, terra guard	20258-G1		AR	AR
10	18 x 8.50 x 8 tire, terra guard	20259-G1		AR	AR
11	Wheel rim, 1 piece 8.50/9.50 x 8, standard	15169-G1	included in items 1,3,7, and 9	AR	AR
12	Valve stem	11657-G1	included in items 1,3,7, and 9	AR	AR
13	18 x 8.50 x 8 tire and wheel rim assembly, power RIB, white wall	14728-G4		AR	AR
14	18 x 8.50 x 8 tire, power RIB, white wall	14728-G3		AR	AR

Service Accessories and Special Tools

Sl. No.	Part description	Part number	Notes	Quantity	Purchase
1	Current indicator	16489-G2
2	Dipstick, service	23528-G1
3	Multi-meter	51020-G2	OHM meter
4	Seal installation tool	18739-G1	Rear axle shaft seal
5	Slide hammer kit	18753-G1	Axle puller
6	Primer	51130-G1	Spray can
7A	Gloss black	50633-G1	Spray can
7B	Gloss black	50633-G3	Quarts
7C	Gloss black	50633-G4	Gallons
8A	Flat black	15430-G1	Spray can
8B	Flat black	15632-G1	Quarts
8C	Flat black	15632-G2	Gallons
9A	Glenwood green	50628-G1	Spray can
9B	Glenwood green	50628-G3	Quarts
9C	Glenwood green	50628-G4	Gallons
10A	Bimini blue	50630-G1	(mist blue) spray can
10B	Bimini blue	50630-G3	(mist blue) Quarts
10C	Bimini blue	50630-G4	(mist blue) Gallons
11A	Arctic white	50632-G1	(Pure white) Spray can
11B	Arctic white	50632-G3	(Pure white) Quarts
11C	Arctic white	50632-G4	(pure white) Gallons
12A	Pearl grey	24643-G1	(Georgia grey) Spray can
12B	Pearl grey	24643-G2	(Georgia grey) Quarts
12C	Pearl grey	24643-G3	(Georgia grey) gallons
13A	Bright red	24644-G1	(Bulldog red) Spray can
13B	Bright red	24644-G2	(Bulldog red) Quarts
13C	Bright red	24644-G3	(Bulldog red) gallons
14A	Frost beige	20874-G1	Spray can
14B	Frost beige	20874-G2	Quarts
14C	Frost beige	20874-G3	Gallons
15A	Primer kit	25555-G01	High solids, Quarts
15B	Primer kit	25555-G02	High solids, gallons
16A	Glenwood green	25556-G01	High solids, Quarts
16B	Glenwood green	25556-G02	High solids, gallons
17A	Mist blue	25556-G03	High solids, Quarts
17B	Mist blue	25556-G04	High solids, gallons
18A	Bulldog red	25556-G05	High solids, Quarts
18B	Bulldog red	25556-G06	High solids, gallons
19A	White	25556-G07	High solids, Quarts
19B	White	25556-G08	High solids, gallons
20A	Georgia grey	25556-G09	High solids, Quarts
20B	Georgia grey	25556-G10	High solids, gallons
21A	Turf green	25556-G11	High solids, Quarts
21B	Turf green	25556-G12	High solids, gallons
22A	Frost beige	25556-G13	High solid, quarts
22B	Frost beige	25556-G14	High solid, gallons
23A	Black	25556-G15	High solids, Quarts
23B	Black	25556-G16	High solids, gallons
24A	Special colors	25556-G17	High solids, Quarts
24B	Special colors	25556-G18	High solids, gallons
