Freedom, Year 2006
Accelerator
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Pedal box assembly | 72717-G04 | includes items 3 - 45 | 1 | |
| 3 | Accelerator pedal assembly | 25799-G03 | Includes items 4 - 7 | 1 | |
| 4 | Accelerator pedal pad kit | 27844-G01 | Includes items 5 - 6 | 1 | |
| 5 | Oval rivet | 15766-G1 | 3/16" x 7/16" LG | 6 | |
| 6 | Accelerator pedal pad | 27512-G01 | 1 | ||
| 7 | Accelerator pedal | * | 1 | ||
| 8 | Nylon bushing | 17838-G1 | 3 | ||
| 9 | Pedal pivot pin | 74432-G01 | 1 | ||
| 10 | Push nut | 12064-G6 | 9/32" | 1 | |
| 11 | Clevis pin | 10386-G3 | 5/16" x 13/16" LG | 1 | |
| 12 | Teflon washer | 17255-G1 | 5/16" | 1 | |
| 13 | Cotter pin | 10387-G3 | 3/32" x 3/4" LG | 1 | |
| 16 | Clevis yoke | 10385-G4 | Adjustable | 1 | |
| 17 | Nut | 00532-G4 | 5/16 - 24 | 2 | |
| 18 | Accelerator rod | 72072-G01 | 1 | ||
| 19 | Spring retainer | 17677-G2 | 3/8" | 1 | |
| 20 | Compression spring | 73046-G01 | 1 | ||
| 21 | Accelerator rod bushing | 17979-G1 | 1 | ||
| 22 | Spring retainer | 17677-G1 | 1/2" | 1 | |
| 25 | Micro switch cam | 72716-G01 | 1 | ||
| 26 | Setscrew | 00487-G3 | 1/4 - 20 x 3/8" LG | 1 | |
| 27 | Lock nut | 15126-G1 | 5/16 - 24 | 1 | |
| 28 | Pedal box and cover | 25853-G03 | 1 | ||
| 29 | Screw | 01051-G01 | #8 - 16 x 1/2" LG | 4 | |
| 30 | Screw | 00684-G6 | #8 - 32 x 3/4" LG (Stainless steel) | 2 | |
| 32 | Micro switch | 25861-G01 | 1 | ||
| 33 | Screw | 01050-G01 | #4 - 20 x 5/8" LG | 2 | |
| 34 | Wire harness | 72201-G04 | Pedal box | 1 | |
| 35 | Flex loom | 17313-G1 | Bulk | AR | |
| 36 | Wire tie | 17618-G1 | 2 | ||
| 38 | Accelerator cable | 72713-G01 | 1 | ||
| 40 | Accelerator cable bushing | 72706-G01 | 1 | ||
| 41 | Compression spring | 72707-G01 | 1 | ||
| 42 | Clip washer | 25727-G02 | 3/16" | 1 | |
| 43 | Lock nut | 00734-G5 | #10 - 32 | 1 | |
| 45 | Accelerator pedal bracket | 70116-G02 | 1 | ||
| 46 | Bolt | 00715-G2 | 5/16 - 18 x 13/16" LG | 4 | |
| 47 | Pedal pivot cover | 70135-G01 | 1 | ||
| 49 | Accelerator cable mounting bracket | 72701-G02 | 1 | ||
| 50 | Lock nut | 26830-G01 | M8 x 1.25 MM | 2 | |
| 51 | Throttle cable mounting bracket | 72703-G02 | 1 | ||
| 52 | Lock nut | 26830-G01 | M8 x 1.25 MM | 2 | |
| 55 | Governor arm | 72708-G01 | 1 | ||
| 56 | Lock nut | 26830-G01 | M8 x 1.25 MM | 1 | |
| 61 | Accelerator cable bracket | 72055-G01 | 1 | ||
| 62 | Wire tie | 17618-G1 | 1 | ||
| 64 | Governor cover / label assembly | 74457-G02 | Includes items 65, 66 | 1 | |
| 65 | Governor cover | 72705-G01 | 1 | ||
| 66 | Label | 24880-G01 | Warning - governor | 1 | |
| 67 | Bonded washer | 00915-G1 | 1/4" | 2 | |
| 68 | Rivet | 14601-G11 | 3/16" x 9/16" LG (Aluminum) | 2 | |
| 70 | Throttle cable | 72714-G01 | 1 | ||
| 71 | Wire tie | 17618-G1 | 1 |
Air filter
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Air filter bracket | 75878-G02 | Cable actuated carburetor | 1 | |
| 2 | Bolt | 12547-G3 | M6 x 1MM X 20MM LG | 1 | |
| 3 | Lock washer | 00664-G7 | 1/4" | 1 | |
| 4 | Washer | 00559-G7 | 1/4" | 1 | |
| 5 | Bolt | 00415-G2 | 1/4 - 20 x 1 1/4" LG | 2 | |
| 6 | Washer | 00559-G7 | 1/4" | 2 | |
| 7 | Lock nut | 14390-G4 | 1/4 - 20 | 2 | |
| 8 | Rivet | 14601-G11 | 2 | ||
| 9 | Bonded washer | 00915-G1 | 2 | ||
| 10 | Air cleaner canister assembly | 72607-G01 | includes items 11 - 15 | 1 | |
| 11 | Air cleaner canister | 72598-G01 | 1 | ||
| 12 | Air cleaner cover | 72599-G01 | 1 | ||
| 13 | Air cleaner latch | 72604-G01 | 2 | ||
| 14 | Air cleaner dust collector | 28462-G01 | 1 | ||
| 15 | Air cleaner element | 28463-G01 | 1 | ||
| 16 | Hose clamp | 11391-G7 | 1 | ||
| 17 | Hose | 72592-G01 | Air filter to carburetor | 1 | |
| 18 | Hose clamp | 11391-G6 | 2 | ||
| 19 | Carburetor gasket | 26727-G01 | 2 | ||
| 20 | Choke / throttle bracket | 74498-G02 | 1 | ||
| 21 | Choke / throttle cover | 604117 | 1 | ||
| 22 | Carburetor adapter | 72591-G01 | 1 | ||
| 23 | PCV hose | 72151-G01 | 1 | ||
| 24 | Carbureor mounting spacer | 23726-G11 | 4 | ||
| 25 | Washer | 00664-G7 | 1/4" | 2 | |
| 26 | Nut | 13632-G1 | M6 x 1 | 4 | |
| 27 | Carburetor baffle | 72605-G01 | 1 | ||
| 28 | Stud | 72514-G01 | 2 | ||
| 29 | Bolt and washer | 25532-G1 | M8 x 1.25 x 18 MM | 2 |
Body – Front
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Instrument panel assembly | 71151-G01 | Includes items 2-5 | 1 | |
| 2 | Deflector | 71153-G01 | Passenger side | 1 | |
| 3 | Deflector | 71154-G01 | Driver side | 1 | |
| 4 | Screw | 00614-G5 | #8 - 18 x 5/8" LG | 6 | |
| 5 | Instrument panel insert | 71158-G01 | 4 cup holder | 1 | |
| 8 | Vinyl trim | 71115-G01 | 2 | ||
| 9 | Rivet | 71055-G01 | 3/16" x 1" LG (Aluminum) | 10 | |
| 12 | Splash panel | 71413-G01 | 1 | ||
| 13 | Ratchet fastener | 16816-G2 | 1/4" x 3/4" LG | 5 | |
| 16 | Label | 603872 | Safety | 1 | |
| 18 | Label | 74443-G01 | Anti-rollback | 1 | |
| 22 | Bolt | 01038-G01 | 1/4 - 20 x 11/16" LG | 4 | |
| 23 | Washer | 16469-G1 | 1/4" | 2 | |
| 24 | Rivet | 01057-G01 | 1/4" x 1" LG | 2 | |
| 25 | Front shield | 27166-G04 | 1 | ||
| 26 | Front shield brace | 70725-G02 | 2 | ||
| 29 | Cowl | 71051-G** | 1 | ||
| 30 | Rivet | 71055-G01 | 3/16" x 1" LG (Aluminum) | 9 | |
| 31 | Rivet | 10570-G11 | 3/16" x 3/4" LG (Stainless steel) | 2 | |
| 32 | Bolt | 71056-G01 | 5/16 - 18 x 5/8" LG | 4 | |
| 33 | Washer | 00570-G2 | 5/16 | 4 | |
| 34 | Bolt | 00438-G6 | 5/16 - 18 x 3/4" LG (with top) | 2 | |
| 35 | Washer | 00571-G2 | 5/16" | 2 | |
| 37 | E-Z-GO nameplate | 71037-G02 | Gold | 1 | |
| 38 | Nut, self-threaded | 71597-G01 | 5MM STUD X 10MM HEX | 2 | |
| 45 | Instrument panel woodgrain applique kit | 74239-G01 | 1 |
Body – Mid Section
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Upper floorpan | 70662-G01 | 1 | ||
| 2 | Lower floorpan | 70451-G01 | 1 | ||
| 3 | Access cover | 70452-G01 | 1 | ||
| 4 | Rivet | 14601-G11 | 3/16" x 9/16" LG (Aluminum) | 16 | |
| 5 | Floormat | 70995-G01 | 1 | ||
| 6 | Floormat with horn hole | 70995-G02 | 1 | ||
| 9 | Seat frame | 70440-G04 | 1 | ||
| 10 | Bolt | 00715-G2 | 5/16 - 18 x 4/5" LG | 2 | |
| 13 | Battery tray | 600496 | 1 | ||
| 14 | Splash panel | 70244-G03 | 1 | ||
| 15 | Bolt | 00715-G2 | 5/16 - 18 x 4/5" LG | 4 | |
| 18 | Fender liner | 71812-G01 | Passenger side | 1 | |
| 19 | Fender liner | 71812-G02 | Driver side | 1 | |
| 20 | Ratchet fastener | 16816-G2 | 1/4" x 3/4" LG | 8 |
Body Rear
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Rear body | 71912-G4** | Without taillights, includes items 3, 4 | 1 | |
| 2 | Rear body | 71334-G0** | With taillights, includes items 3, 4 | 1 | |
| 3 | Bagwell liner | 71318-G01 | 1 | ||
| 4 | Ratchet fastener | 16816-G1 | 1/4" x 9/16" LG | 26 | |
| 5 | Rivet | 10570-G10 | 5/32" x 9/16" LG (Stainless steel) | 6 | |
| 6 | Rivet | 10570-G12 | 1/4" x 9/16" LG (Aluminum) | 4 | |
| 7 | Rivet | 18436-G1 | 1/4" x 3/4" LG | 2 | |
| 11 | Fender scuffguard | 75126-G01 | Driver side | 1 | |
| 12 | Fender scuffguard | 75126-G02 | Passenger side | 1 | |
| 13 | Ratchet fastener | 16816-G2 | 1/4" x 3/4" LG | 8 | |
| 17 | Access panel | 71320-G01 | 1 | ||
| 18 | J' clip | 71364-G02 | 1 | ||
| 19 | Screw | 01107-G01 | #8 x 5/8" LG (Stainless steel) | 5 | |
| 23 | Seat hinge plate | 71609-G01 | 2 | ||
| 24 | Rivet | 10570-G11 | 3/16" x 3/4" LG (Stainless steel) | 4 | |
| 28 | Rear bumper | 71578-G01 | 1 | ||
| 29 | Washer | 00571-G2 | 5/16" | 4 | |
| 30 | Bolt | 71102-G01 | 1/4 - 20 x 3/4" LG | 4 | |
| 31 | Bumper plug | 71514-G01 | 4 | ||
| 32 | Rivet | 14601-G17 | 3/16" x 9/16" LG (Aluminum) | 4 | |
| 36 | Rear bumper | 71456-G01 | Shuttle 2+2 | 1 | |
| 37 | Bolt | 71398-G01 | 1/4 - 20 x 1 1/4" LG | 2 | |
| 38 | Bumper plug | 71455-G01 | 4 | ||
| 39 | Bolt | 71102-G01 | 1/4 - 20 x 3/4" LG | 2 | |
| 40 | J' type nut retainer | 71554-G01 | 2 | ||
| 41 | Bumper stay | 71455-G01 | 4 | ||
| 45 | Rocker panel | 71501-G01 | Passenger side | 1 | |
| 46 | Rocker panel | 71502-G01 | Driver side | 1 | |
| 47 | Rivet | 15058-G6 | 3/16" x 15/16" LG (Aluminum) | 4 | |
| 51 | Sill plate | 71507-G01 | Passenger side | 1 | |
| 52 | Sill plate | 71507-G02 | Driver side | 1 | |
| 53 | Screw | 16705-G1 | 1/4 - 20 x 1" LG (Stainless steel) | 4 | |
| 54 | Spacer | 23726-G4 | 5/16" | 4 | |
| 55 | Lock nut | 14390-G4 | 1/4 - 20 | 4 | |
| 59 | Label | 75960-G01 | Freedom | 2 | |
| 60 | Label | 75962-G01 | Freedom SE | 2 | |
| 61 | Label | 75964-G01 | Freedom LE | 2 | |
| 62 | Label | 35434-G01 | Shuttle | 2 | |
| 63 | Label | 35430-G19 | TXT 2+2 | 2 | |
| 68 | Label | * | Serial number | 1 | |
| 72 | Seat wrap mounted noise suppressor | 74024-G01 | 1 |
Body – Footrest
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Footrest assembly | 70361-G01 | includes items 2 - 5 | 1 | |
| 2 | Footrest | 70633-G01 | 1 | ||
| 3 | Floor mat | 70362-G01 | 1 | ||
| 5 | Label | 74074-G01 | Warning | 1 | |
| 6 | End cap | 19853-G1 | 1" | 2 | |
| 8 | Vertical frame support | 74126-G01 | Passenger side | 1 | |
| 9 | Vertical frame support | 74126-G02 | Driver side | 1 | |
| 10 | Bolt | 00427-G6 | 3/8 - 16 x 1 1/2" LG | 2 | |
| 11 | Washer | 00560-G1 | 3/8" | 10 | |
| 12 | Carriage bolt | 00769-G2 | 3/8 - 16 x 1 1/4" LG | 2 | |
| 13 | Lock nut | 11098-G5 | 3/8 - 16 | 10 | |
| 14 | Bolt | 01006-G02 | 3/8 - 16 x 1" LG | 2 | |
| 16 | Valance panel | 74149-G01 | 1 | ||
| 17 | Ratchet fastener | 16816-G2 | 1/4" x 3/4" LG | 4 | |
| 19 | Support | 75268-G01 | 1 | ||
| 20 | Self threading screw | 00106-G6 | #12 - 24 x 3/4" LG | 2 | |
| 21 | End cap | 19859-G1 | 3/4" | 2 | |
| 22 | Hole plug | 20271-G2 | 1/2" | 2 | |
| 26 | Two bag attachment kit | 75183-G01 | includes items 27 - 30 | 1 | |
| 27 | Two bag attachment | 75188-G01 | 1 | ||
| 28 | Knob | 22238-G2 | 3/8 - 16 x 1 1/2" LG | 1 | |
| 29 | Teflon washer | 17255-G1 | 5/16" | 1 | |
| 30 | Support bracket | 75187-G01 | 1 |
Body – Accessories
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Sand bottle divot repair kit | 28661-G01 | Includes items 2 - 4 | 1 | |
| 2 | Bolt | 71102-G01 | 1/4 - 20 x 3/4" LG | 1 | |
| 3 | Sand bottle holder | 28660-G01 | 1 | ||
| 4 | Sand bottle | 28659-G01 | 1 | ||
| 7 | Basket divot repair kit | 23300-G01 | includes scoop | 1 | |
| 10 | Side basket kit | 75007-G02 | Includes items 11 - 13 | 1 | |
| 11 | Side basket | 75460-G01 | 1 | ||
| 12 | Bolt | 71102-G01 | 1/4 - 20 x 3/4" LG | 3 | |
| 13 | Flat washer | 00793-G2 | 1/4" (Stainless steel) | 3 | |
| 16 | Center basket kit | 75003-G02 | includes items 17 - 20 | 1 | |
| 17 | Center basket | 75461-G01 | 1 | ||
| 18 | Bolt | 71102-G01 | 1/4 - 20 x 3/4" LG | 2 | |
| 19 | Flat washer | 00793-G2 | 1/4" (Stainless steel) | 2 | |
| 20 | Screw | 01105-G01 | #10 x 5/8" LG (Stainless steel) | 2 |
Body – Accessories
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Message holder | 75509-G01 | one piece | 1 | |
| 2 | Message holder | 75496-G01 | 1 | ||
| 5 | Cooler jug and bracket kit | 75495-G01 | 1 | ||
| 6 | Box cooler and bracket kit | 75344-G01 | 1 | ||
| 9 | Rake holder | 25885-G01 | 1 | ||
| 10 | Square head bolt | 00989-G06 | 1/4 - 20 x 3/4" LG | 2 | |
| 11 | Lock nut | 11027-G2 | 1/4 - 20 | 2 | |
| 12 | Rake | 14735-G1 | 1 |
Body – Accessories
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Four bag attachment kit | 75335-G01 | includes items 2 - 18 | 1 | |
| 2 | Top assembly | * | 1 | ||
| 3 | Bottom assembly | * | 1 | ||
| 4 | Clevis pin | 17651-G2 | 5/16 x 1 1/8" LG | 1 | |
| 5 | Push nut | 28129-G01 | 5/16" | 1 | |
| 6 | Clevis pin | 17651-G2 | 5/16 x 1 1/8" LG | 1 | |
| 7 | Clevis pin | 17651-G3 | 5/16 x 1/2" LG | 2 | |
| 8 | Washer | 00559-G8 | 5/16" | 3 | |
| 9 | Push nut | 28129-G01 | 5/16" | 3 | |
| 10 | Clevis pin | * | 3/8 x 1 1/4" LG | 2 | |
| 11 | Washer | 00560-G1 | 3/8" | 2 | |
| 12 | Push nut | * | 3/8" | 2 | |
| 13 | Rubber bumper | 13728-G1 | 2 | ||
| 14 | Screw | 00150-G6 | #10 - 24 x 3/4" LG | 2 | |
| 15 | Washer | 00559-G5 | #10 | 2 | |
| 16 | Lock washer | 00565-G5 | #10 | 2 | |
| 17 | Nut | 00526-G3 | #10 - 24 | 2 | |
| 18 | Label | * | Warning | 1 | |
| 23 | Ash tray kit | 75109-G02 | includes items 24 - 27 | 1 | |
| 24 | Ash tray | 27731-G01 | 1 | ||
| 25 | Gasket | 27736-G01 | 1 | ||
| 26 | Bracket | 75108-G02 | 1 | ||
| 27 | Screw | 00100-G4 | #10 - 16 x 1/2" LG | 4 |
Brakes
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Brake pedal assembly | 70612-G02 | without brake lights, includes items 2 - 10 | 1 | |
| 2 | Torsion spring | 70681-G01 | 2 | ||
| 3 | Pivot pin | 70682-G01 | 1 | ||
| 4 | Pushnut | 01071-G01 | 5/16" | 2 | |
| 5 | Brake pedal | * | 1 | ||
| 6 | Park brake pedal | 70611-G02 | 1 | ||
| 7 | Brake/Park brake pedal pad kit | 70274-G01 | includes items 8 - 10 | 1 | |
| 8 | Service brake pad | * | 1 | ||
| 9 | Park brake pedal pad | * | 1 | ||
| 10 | Oval rivet | 15766-G1 | 3/16" x 7/16" LG | 9 | |
| 12 | Shoulder bolt | 70582-G01 | 3/8 - 16 x 4" LG (Stainless steel) | 1 | |
| 13 | Flanged bushing | 70581-G01 | 2 | ||
| 14 | Torsion spring | 70676-G01 | 1 | ||
| 15 | Washer | 00643-G1 | 3/8" | 1 | |
| 16 | Lock nut | 11098-G5 | 3/8 - 16 | 1 | |
| 18 | Compensator assembly | 70272-G04 | includes items 19, 20 | 1 | |
| 19 | Spherical nut | 00963-G01 | 5/16 - 24 | 1 | |
| 20 | Lock nut | 11098-G9 | 5/16 - 24 | 1 | |
| 22 | Equalizer and brake cable assembly | 70969-G03 | includes items 23 - 26 | 1 | |
| 23 | Equalizer bracket | 28082-G01 | 1 | ||
| 24 | Brake compensator bumper | 28083-G01 | 2 | ||
| 25 | Brake cable | * | Driver side | 1 | |
| 26 | Brake cable | * | Passenger side | 1 | |
| 28 | Retaining ring | 01111-G01 | 4/5" (Stainless steel) | 4 | |
| 30 | Clevis pin | 10386-G3 | 5/16" x 13/16" LG | 1 | |
| 31 | Cotter pin | 10387-G3 | 3/32" x 3/4" LG | 3 | |
| 32 | Clevis pin | 14443-G2 | 5/16" x 5/8" LG | 2 | |
| 34 | Kick-off link | 70601-G01 | 1 | ||
| 35 | Nylon bushing | 17838-G1 | 2 | ||
| 36 | Teflon washer | 20835-G1 | 3/8" | 2 | |
| 37 | Washer | 00559-G8 | 5/16" | 2 | |
| 38 | Cotter pin | 10387-G3 | 3/32" x 3/4" LG | 2 | |
| 39 | Kick-off cam pivot | 70098-G01 | 1 | ||
| 40 | Flanged bearing | 10097-G6 | 2 | ||
| 41 | Kick-off cam | 70587-G01 | 1 | ||
| 42 | Setscrew | 71215-G01 | 1/4 - 20 x 1/2" LG | 2 | |
| 43 | Spacer | 14134-G4 | 1 | ||
| 45 | Adjustable bumper | 70113-G01 | 1 | ||
| 46 | Lock nut | 11027-G1 | 5/16 - 18 | 1 | |
| 48 | Catch bracket | 70080-G02 | 1 | ||
| 49 | Bolt | 00414-G6 | 1/4 - 20 x 3/4" LG | 2 | |
| 50 | Lock nut | 14390-G4 | 1/4 - 20 | 2 | |
| 53 | Brake pedal assembly | 70690-G02 | with brake lights, includes items 54 - 79 | 1 | |
| 54 | Brake pedal | * | 1 | ||
| 55 | Park brake pedal | 70611-G02 | 1 | ||
| 56 | Brake/Park brake pedal pad kit | 70274-G01 | Includes items 57 - 59 | 1 | |
| 57 | Service brake pad | * | 1 | ||
| 58 | Park brake pad | * | 1 | ||
| 59 | Oval rivet | 15766-G1 | 3/16" x 7/16" LG | 9 | |
| 61 | Brake pedal plate | 70258-G02 | 1 | ||
| 62 | Pivot pin | 70682-G01 | 1 | ||
| 63 | Torsion spring | 70681-G01 | 2 | ||
| 64 | Pushnut | 12064-G1 | 5/16" | 1 | |
| 65 | Screw | 00737-G8 | #10 - 24 x 7/8" LG | 4 | |
| 66 | Rubber nut | 00739-G1 | #10 - 24 | 2 | |
| 67 | Brake pedal standoff | 22362-G3 | 2 | ||
| 68 | Conical spring | 27137-G01 | 2 | ||
| 69 | Lock nut | 11098-G7 | #10 - 24 | 2 | |
| 70 | Micro switch | 10606-G8 | 1 | ||
| 71 | Bolt | 00957-G1 | #6 - 32 x 1 1/4" LG | 2 | |
| 72 | Washer | 00559-G5 | #10 | 2 | |
| 73 | Washer | 00559-G3 | #6 | 4 | |
| 74 | Lock washer | 00565-G3 | #6 | 2 | |
| 75 | Nut | 00525-G5 | #6 - 32 | 2 | |
| 76 | Screw and lock washer | 13514-G1 | #6 - 32 x 1/4" LG (Brass) | 2 | |
| 77 | Push on male terminal | 14628-G1 | 2 | ||
| 78 | Wire harness | 24605-G1 | Brake light | 1 | |
| 79 | Wire tie | 17618-G1 | 3 | ||
| 82 | Brake assembly | 70998-G01 | Driver side, includes items 84-92, 94, 95 | 1 | |
| 83 | Brake assembly | 70998-G02 | passenger side, includes items 84-91, 93-95 | 1 | |
| 84 | Brake shoe kit | 70794-G01 | Includes item 85 | 2 | |
| 85 | Brake shoe | * | 2 | ||
| 86 | Brake spring kit | 27944-G01 | Includes items 87 - 91 | 2 | |
| 87 | Upper spring | * | 1 | ||
| 88 | Lower spring | * | 1 | ||
| 89 | Pin | * | 2 | ||
| 90 | Cup and spring | * | 2 | ||
| 91 | Adjuster spring | * | 1 | ||
| 92 | Brake adjuster kit | 72582-G01 | Driver side, includes items 94, 95 | 1 | |
| 93 | Brake adjuster kit | 72582-G02 | Passenger side, includes items 94, 95 | 1 | |
| 94 | Adjuster | * | 1 | ||
| 95 | Teflon washer | * | 2 | ||
| 96 | Bolt | 17083-G2 | 5/16 - 24 x 1" LG | 8 | |
| 97 | Lock nut | 15126-G1 | 5/ 16 - 24 | 8 | |
| 98 | Inner brake drum washer | 21809-G1 | 1 5/16" O.D. X 1" I.D. X 1/32" | 2 | |
| 100 | Brake drum assembly | 21807-G1 | includes items 101 - 102 | 2 | |
| 101 | Brake drum | * | 1 | ||
| 102 | Lug bolt | 19862-G1 | 1/2 - 20 x 1 3/16" LG | 4 | |
| 105 | Outer brake drum washer | 21830-G1 | 2 | ||
| 106 | Castellated nut | 00518-G8 | 3/4 - 16 | 2 | |
| 107 | Cotter pin | 10387-G1 | 1/8" x 1 1/2" LG | 2 | |
| 108 | Spindle cap | 74175-G01 | 2 | ||
| 110 | Brake cable bracket | 72036-G01 | Passenger side | 1 | |
| 111 | Brake cable bracket | 72036-G02 | Driver side | 1 |
Carburetor and Choke
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Carburetor | 72840G01 | For vehicles originally equipped with 295cc (EH29C & EH292C) engines, includes items 3 - 15 | 1 | |
| 2 | Carburetor | 72840G03 | For vehicles originally equipped with 350cc (EH35C & EH352C) engines, includes items 4 - 16 | 1 | |
| 3 | Main jet | 26646G06 | #80 | 1 | |
| 4 | Pilot jet | 26649G05 | #46 | 1 | |
| 5 | Plug | 26841G01 | 1 | ||
| 6 | Gasket | 72306G01 | 1 | ||
| 7 | Needle valve | 72578G01 | 1 | ||
| 8 | Float | 26648G01 | 1 | ||
| 9 | Float pin | 26840G01 | 1 | ||
| 10 | Float bowl gasket | 26843G01 | 1 | ||
| 11 | Float chamber | 26844G01 | 1 | ||
| 12 | Bowl screw | 26839G01 | 1 | ||
| 13 | Bowl gasket | 26838G01 | 1 | ||
| 14 | Drain screw | 72579G01 | 1 | ||
| 15 | Vent tube | 26650G01 | 1 | ||
| 16 | Main jet | 26646G29 | #85 | 1 | |
| 20 | Main jet | 26646G** | #**, for elevations of 3000 FT - 6000 FT | 1 | |
| 21 | Main jet | 26646G** | #**, for elevations of 6000 FT - 10000 FT | 1 | |
| 24 | Carburetor mount gasket | 26726G01 | 2 | ||
| 25 | Carburetor shield | 603871 | for fuji 295 engine | 1 | |
| 26 | Carburetor insulator | 72854G01 | 1 | ||
| 27 | Carburetor mount gasket | 26726G01 | for fuji 295 engine | 1 | |
| 29 | Choke cable | 25693G04 | 22 1/4" LG with nuts | 1 | |
| 32 | Lock washer | 00568G4 | 9/16" | 1 | |
| 33 | Jam nut | 00545G4 | 9/16 - 18 | 1 | |
| 34 | Retainer | 72155G01 | 1 | ||
| 35 | Choke cable adapter | 72154G01 | 1 | ||
| 36 | Jam nut | 00544G4 | 5/16 - 24 | 2 |
Clutch
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Drive clutch | 26952-G01 | 1 | ||
| 3 | Bolt | 00473-G9 | 7/16 - 20 x 6 1/2" LG | 1 | |
| 4 | Lock washer | 00566-G2 | 7/16" | 1 | |
| 5 | Pilot washer | 25757-G1 | 1 | ||
| 7 | Driven clutch assembly | 26301-G02 | includes items 8 - 15 | 1 | |
| 8 | Movable sheave | * | Includes items 9 - 10 | 1 | |
| 9 | Screw | 00979-G01 | #10 - 24 x 7/8" LG | 3 | |
| 10 | Ramp button | 26479-G01 | 3 | ||
| 11 | Cam | * | 1 | ||
| 12 | Spacer | 24600-G1 | 1 1/2" | 1 | |
| 13 | Compression spring | 26304-G01 | 1 | ||
| 14 | Sheave and post | * | 1 | ||
| 15 | Heavy duty retaining ring | 27270-G01 | 1 | ||
| 17 | Bolt | 00441-G8 | 5/16 - 18 x 4" LG | 1 | |
| 18 | Lock washer | 00565-G8 | 5/16" | 1 | |
| 19 | Retaining washer | 25756-G1 | 1 | ||
| 20 | Drive belt | 72054-G01 | 1 | ||
| 22 | Drive belt | 72328-G01 | High altitude | 1 | |
| 24 | Drive clutch | 26952-G01 | High altitude | 1 | |
| 25 | Driven clutch assembly | 26301-G03 | High altitude, includes items 12, 14, 15, 26, 27, 28, 29 | 1 | |
| 26 | Cam | * | 1 | ||
| 27 | Compression spring | 26304-G01 | 1 | ||
| 28 | Movable sheave | * | Includes items 9, 29 | 1 | |
| 29 | Ramp button, 4 cycle | 72324-G01 | 3 |
Direction Selector
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Direction selector assembly | 72721-G05 | includes items 2 - 33 | 1 | |
| 2 | Direction selector bracket with bushing | 72737-G02 | 1 | ||
| 3 | Direction selctor shaft | 70233-G01 | 1 | ||
| 4 | Direction selector cam | 72738-G01 | 1 | ||
| 5 | Lock nut | 14390-G1 | 3/8 - 24 | 1 | |
| 6 | Bushing | 25664-G2 | 1 | ||
| 8 | Neutral lock pin | 72724-G01 | 1 | ||
| 9 | Compression spring | 72733-G01 | 3/8" x 5/8" LG | 1 | |
| 10 | Neutral lock bracket | 72729-G01 | 1 | ||
| 11 | Lock nut | 00734-G2 | 1/4 - 28 | 1 | |
| 12 | Extension spring | 28574-G01 | 1 | ||
| 13 | Ball stud | 72732-G01 | 1/4" | 1 | |
| 14 | Lock nut | 00734-G5 | #10 - 32 | 1 | |
| 17 | Micro switch | 72736-G01 | 1 | ||
| 18 | Screw | 01062-G01 | #4 - 40 x 1" LG | 2 | |
| 19 | Washer | 00559-G1 | #4 | 2 | |
| 20 | Lock washer | 00565-G1 | #4 | 2 | |
| 21 | Nut | 00526-G2 | #4 - 40 | 2 | |
| 24 | Reverse warning buzzer | 73290-G03 | 1 | ||
| 25 | Screw | 01063-G01 | #6 - 32 x 3/8" LG | 2 | |
| 26 | 18 GA wire | 25978-G345 | Red 7" | 1 | |
| 29 | Push / pull shifter cable | 602891 | 1 | ||
| 30 | Cup washer | 25727-G01 | 1/4" | 4 | |
| 31 | Compression spring | 72735-G01 | 19/32" x 1" LG | 2 | |
| 32 | Shifter bracket with bushing | 72730-G01 | 1 | ||
| 33 | Lock nut | 00734-G5 | #10 - 32 | 1 | |
| 36 | Screw | 70227-G01 | 1/4 - 20 x 7/8" LG | 2 | |
| 37 | Lock nut | 11027-G2 | 1/4 - 20 | 2 | |
| 40 | Lock nut | 26830-G01 | M8 x 1.25 MM | 1 | |
| 43 | Direction selector handle | 71205-G01 | 1 | ||
| 44 | Screw | 00740-G4 | #10 - 32 x 1/2" LG (Stainless steel) | 1 | |
| 47 | Wire tie | 31539-G1 | 1 | ||
| 48 | Cable clip | 01072-G01 | 2 |
Electrical System
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Pulser coil | 72865-G01 | EH292C & EH352C engines, includes item 2 | 1 | |
| 2 | Bolt and washer assembly | 26707-G01 | M5 x 0.8 x 10 MM LG | 2 | |
| 6 | Ignition coil | 72866-G01 | EH292C & EH352C engines, incl. spark plug wires | 1 | |
| 7 | Flat washer | * | 2 | ||
| 8 | Lock washer | * | 2 | ||
| 9 | Screw | 72871-G01 | 2 | ||
| 13 | 6 GA wire | 25887-G01 | Black, 6" F1 - A2 | 1 | |
| 14 | Terminal cover | 25682-G1 | 3 | ||
| 17 | Battery H.D. | 600597 | Prolink | 1 | |
| 18 | Battery | 24775-G* | 12V | 1 | |
| 19 | Bolt | 00962-G1 | 5/16 - 18 x 1 1/4" LG | 2 | |
| 20 | Lock washer | 00993-G01 | 5/16" (Silicon bronze) | 2 | |
| 21 | Nut | 00994-G01 | 5/16 - 18 (Silicon bronze) | 2 | |
| 23 | Battery hold down | 72101-G02 | 1 | ||
| 24 | Bolt | 00438-G6 | 5/16 - 18 x 3/4" LG | 1 | |
| 25 | Lock washer | 00565-G8 | 5/16" | 1 | |
| 26 | Washer | 00571-G2 | 5/16" | 1 | |
| 28 | Battery cable | 601227 | -ve, prolink | 1 | |
| 29 | Ground cable | 27044-G03 | 1 | ||
| 30 | 14 GA wire | 25976-G19 | Black 6" | 1 | |
| 31 | Bolt | 00438-G6 | 5/16 - 18 x 3/4" LG | 2 | |
| 32 | Lock nut | 11027-G1 | 5/16 - 18 | 2 | |
| 33 | Flanged bolt | 26676-G01 | M6 x 1 X 23 MM LG | 1 | |
| 35 | 6 GA wire | 25972-G85 | Black 23", F2 -SOL | 1 | |
| 37 | Wire harness | 74938-G01 | Control, EH292C & EH352C engines | 1 | |
| 40 | Wire tie | 17618-G1 | AR | ||
| 42 | Cover | 73049-G01 | 1 | ||
| 43 | Washer | 16469-G1 | 1/4" | 1 | |
| 44 | Screw | 00114-G6 | 1/4 - 14 x 3/4" LG | 1 | |
| 47A | Elec. Plate assy | 72909-G01 | EH292C & EH352C engines, incl. items 48 - 72 | 1 | |
| 47B | Electrical plate assy | 72909-G02 | Prolink, EH29C & EH35C engines | 1 | |
| 48 | Bracket | 73057-G01 | 1 | ||
| 49 | Voltage regulator | 27739-G01 | 1 | ||
| 50 | Solenoid | 27153-G01 | 1 | ||
| 51 | Bolt | 00415-G2 | 1/4 - 20 x 1 1/4" LG | 1 | |
| 52 | Bolt | 00414-G8 | 1/4 - 20 x 1" LG | 1 | |
| 53 | Lock nut | 11027-G2 | 1/4 - 20 | 2 | |
| 56 | Ignitor | 72872-G01 | EH292C & EH352C engines | 1 | |
| 57 | Bolt | 00414-G5 | 1/4 - 20 x 5/8" LG | 1 | |
| 58 | Lock nut | 11027-G2 | 1/4 - 20 | 1 | |
| 62 | Faston tab | 73446-G01 | 90 | 2 | |
| 63 | Lock washer | 00565-G5 | #10 | 2 | |
| 64 | Nut | 00526-G4 | #10 - 32 | 2 | |
| 67 | 18 GA wire | 25978-G56 | Black, 5 3/4" | 1 | |
| 69 | In-line fuse holder | 600418-G01 | 1 | ||
| 70 | Lock washer | 00565-G8 | 5/16" | 2 | |
| 71 | Jam nut | 00544-G4 | 5/16 - 24 | 2 | |
| 72 | 6 GA wire | 25972-G33 | Black, 24", B+ -SOL | 1 | |
| 73 | Battery cable | 601226 | +ve, prolink | 1 | |
| 76 | Fuse block | 22674-G1 | 1 | ||
| 77 | Rivet | 01041-G01 | 1/8" x 13/16" LG | 2 | |
| 78 | 15 AMP fuse | 18392-G1 | 3 | ||
| 81 | Horn | 32860-G1 | 1 | ||
| 82 | Bolt | 00414-G5 | 1/4 - 20 x 5/8" LG | 1 | |
| 83 | Washer | 00559-G7 | 5/16" | 1 | |
| 84 | Lock nut | 14390-G4 | 1/4 - 20 | 1 | |
| 86 | Horn switch | 17318-G1 | 1 | ||
| 87 | Horn switch cap and nut | 17318-G2 | 1 | ||
| 88 | Horn switch boot | 27068-G01 | 1 | ||
| 89 | Horn switch label | 19233-G1 | 1 | ||
| 90 | Rivet | 71055-G01 | 3/16" x 1" LG (aluminum) | 2 | |
| 93 | Headlight mount bracket | 74236-G03 | Passenger side | 1 | |
| 94 | Headlight mount bracket | 74236-G04 | Driver side | 1 | |
| 95 | Bolt | 01038-G01 | 1/4 - 20 x 11/16" LG | 2 | |
| 96 | Bolt | 00414-G6 | 1/4 - 20 x 3/4" LG | 2 | |
| 97 | Lock nut | 11027-G2 | 1/4 - 20 | 2 | |
| 98 | Headlight and turn signal light | 74001-G01 | 1 | ||
| 99 | Screw | 00114-G6 | 1/4 - 14 x 3/4" LG | 4 | |
| 101 | Headlight bulb | 74004-G01 | AR | ||
| 102 | Marker light bulb | 74005-G01 | AR | ||
| 103 | Turn signal bulb | 74006-G01 | AR | ||
| 105 | Bezel | 74371-G01 | Driver side | 1 | |
| 106 | Bezel | 74371-G02 | Passenger side | 1 | |
| 107 | J' clip | 71364-G02 | 8 | ||
| 108 | Countersunk screw | 71425-G01 | #8 | 8 | |
| 109 | Brake / taillight lamp | 22288-G2 | 1 | ||
| 110 | Rivet | 14601-G11 | 3/16" x 9/16" LG (Aluminum) | 4 | |
| 111 | Taillight bulb | 21759-G1 | AR | ||
| 113 | Turn signal kit | 75107-G02 | Includes items 114 - 118 | 1 | |
| 114 | Turn signal | 17867-G1 | With mounting hardware, includes item 115 | 1 | |
| 115 | Turn signal flasher | 21640-G1 | 1 | ||
| 116 | Flex loom | 32307-G3 | 3/8 x 8" LG | 1 | |
| 117 | Wire tie | 17618-G1 | 2 | ||
| 118 | Steering column cover | 20965-G3 | 1 | ||
| 120 | Wire harness | 72228-G01 | Accessory | 1 | |
| 121 | Key switch kit | 18602-G1 | w/o lights - standard - with hardware | 1 | |
| 122 | Key switch | 17955-G1 | Without lights - non standard | 1 | |
| 123 | Key switch | 18027-G1 | Without lights - individually keyed | 1 | |
| 124 | Key switch | 33639-G** | With lights | 1 | |
| 125 | Lock washer | 00568-G6 | 3/4" | 1 | |
| 126 | Face nut | 17137-G1 | 3/4 - 20 | 1 | |
| 127 | Key | 17063-G1 | Set | 1 | |
| 128 | Wire harness | 73041-G01 | Key switch | 1 | |
| 131 | Plate | 73030-G01 | Key switch only | 1 | |
| 132 | Label | 71145-G01 | Key switch only, without headlights | 1 | |
| 133 | Label | 71181-G01 | Key switch only, with headlights | 1 | |
| 136 | Plate | 73030-G04 | Fuel guage and oil light | 1 | |
| 137 | Label | 71127-G01 | Oil light and fuel gauge w/o headlights | 1 | |
| 138 | Label | 71131-G01 | Oil light and fuel gauge with headlights | 1 | |
| 139 | Fuel gauge | 21553-G1 | 1 | ||
| 140 | Indicator light | 23474-G1 | 1 | ||
| 141 | Wire harness | 74311-G01 | Oil light/Fuel gauge | 1 | |
| 142 | 18 GA wire | 25978-G122 | Red, 6" LG | 1 | |
| 145 | Plate | 73030-G04 | Low fuel and oil light indicator | 1 | |
| 146 | Label | 71125-G01 | Low fuel and oil light w/o headlights | 1 | |
| 147 | Label | 71183-G01 | Low fuel and oil light with headlights | 1 | |
| 148 | Indicator light | 23474-G1 | 2 | ||
| 149 | Wire harness | 74311-G01 | Oil light / fuel light | 1 | |
| 150 | 18 GA wire | 25978-G122 | Red, 6" LG | 1 | |
| 152 | Drive rivet | 33623-G02 | 3/16" x 3/8' LG | 2 | |
| 155 | Hour meter kit | 75114-G02 | includes items 156 - 160 | 1 | |
| 156 | Hour meter | 21573-G1 | 1 | ||
| 157 | Hour meter bracket | 74019-G02 | 1 | ||
| 158 | Screw | 00379-G4 | #10 - 24 x 1/2" LG | 2 | |
| 159 | Lock nut | 14390-G10 | #10 - 24 | 2 | |
| 160 | Wire harness | 75117-G01 | Hour meter | 1 |
Engine 9 HP and Muffler
| Sl no. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Engine | 604254 | EH292C, includes items 3-10, 12-20 | 1 | |
| 3 | Timing belt | 26626-G01 | 1 | ||
| 4 | Timing belt cover | 72908-G01 | 1 | ||
| 5 | Timing belt cover grommet | 26631-G01 | 1 | ||
| 6 | Bolt | 26678-G01 | M6 x 1 x 12 MM LG | 3 | |
| 8 | Ignition coil bracket | 72885-G01 | 1 | ||
| 9 | Spark plug | 25523-G5 | NGK FR2A-D | 2 | |
| 12 | Valve cover | 72848-G01 | 1 | ||
| 13 | Valve cover gasket | 72876-G01 | 1 | ||
| 14 | Flanged bolt | 26676-G01 | M6 x 1 x 23 MM LG | 6 | |
| 15 | Oil filler cap | 26601-G01 | 1 | ||
| 16 | Oil filler 'O' ring | 26720-G01 | 1 | ||
| 17 | Oil filter | 26591-G01 | 1 | ||
| 18 | Oil filter 'O' ring | 26710-G01 | 1 | ||
| 19 | Bolt and washer | 26680-G01 | M6 x 1 x 12 MM LG | 3 | |
| 20 | Stud | 603911 | M6 x 1 x 135 MM LG | 2 | |
| 23 | Muffler | 74829-G01 | 1 | ||
| 24 | Exhuast gasket | 25531-G01 | 1 | ||
| 25 | Nut | 72851-G01 | M8 x 1.25 MM | 2 | |
| 26 | Bolt and washer | 25532-G1 | M8 x 1.25 x 18 MM LG | 1 | |
| 27 | Bolt | 00438-G8 | 5/16 - 18 x 1" LG | 1 | |
| 28 | Lock washer | 00565-G8 | 5/16" | 3 | |
| 29 | Washer | 00642-G8 | 5/16" | 1 |
Engine 11 HP and Muffler
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Engine | 72846-G02 | For vehicles originally equipped with 350cc (EH35C), includes items 3 - 20 | 1 | |
| 3 | Timing belt | 26626-G01 | 1 | ||
| 4 | Timing belt cover | 72908-G01 | 1 | ||
| 5 | Timing belt cover grommet | 26631-G01 | 1 | ||
| 6 | Bolt | 26678-G01 | M6 x 1 x 12 MM LG | 3 | |
| 9 | Ignition coil bracket | 72869-G01 | 1 | ||
| 10 | Spark plug | 72867-G01 | NGK BPR5ES | 2 | |
| 12 | Valve cover | 72848-G01 | 1 | ||
| 13 | Valve cover gasket | 72876-G01 | 1 | ||
| 14 | Flanged bolt | 26676-G01 | M6 x 1 x 23 MM LG | 6 | |
| 15 | Oil filler cap | 26601-G01 | 1 | ||
| 16 | Oil filler 'O' ring | 26720-G01 | 1 | ||
| 17 | Oil filter | 26591-G01 | 1 | ||
| 18 | Oil filter 'O' ring | 26710-G01 | 1 | ||
| 19 | Bolt and washer | 26680-G01 | M6 x 1 x 12 MM LG | 3 | |
| 20 | Stud | 72307-G01 | M6 x 1 x 115MM LG | 2 | |
| 23 | Muffler | 74829-G01 | 1 | ||
| 24 | Exhaust gasket | 25531-G01 | 1 | ||
| 25 | Flange nut | 72851-G01 | M8 x 1.25 MM | 2 | |
| 26 | Bolt and washer | 25532-G1 | M8 x 1.25 x 18 MM LG | 1 | |
| 27 | Bolt | 00438-G8 | 5/16 - 18 x 1" LG | 1 | |
| 28 | Lock washer | 00565-G8 | 5/16" | 3 | |
| 29 | Washer | 00642-G8 | 5/16" | 1 |
Engine Mounting
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Front engine mount | 72010-G01 | 1 | ||
| 2 | Rear engine mount | 72011-G01 | 1 | ||
| 3 | Bolt | 00463-G4 | 7/16 - 14 x 1 1/2" LG | 4 | |
| 4 | Lock washer | 00566-G2 | 7/16" | 4 | |
| 5 | Washer | 00922-G3 | 7/16" | 4 | |
| 8 | Bolt | 00428-G6 | 3/8 - 16 x 2 3/4" LG | 2 | |
| 9 | Spacer | 72016-G01 | 2 | ||
| 10 | Crossmember brace | 70269-G02 | 1 | ||
| 11 | Mount bracket | 72044-G02 | 1 | ||
| 12 | Washer | 00643-G1 | 3/8" | 2 | |
| 13 | Lock nut | 11098-G5 | 3/8 - 16 | 2 | |
| 14 | Bolt | 00438-G7 | 5/16 - 18 x 7/8" LG | 2 | |
| 15 | Washer | 01110-G03 | 5/16" (Stainless steel) | 2 | |
| 16 | Lock nut | 01109-G01 | 5/16 - 18 (Stianless steel) | 2 | |
| 19 | Bolt | 00430-G4 | 3/8 - 16 x 4 1/2" LG | 1 | |
| 20 | Washer | 15121-G1 | 3/8" | 1 | |
| 21 | Plastic washer | 72050-G01 | 2 1/4" OD X 5/8" ID X 1/8" | 4 | |
| 22 | Washer | 72051-G01 | 2 1/2" OD X 5/8" ID X 1/8" | 2 | |
| 23 | Isolation mount | 72015-G01 | 1 | ||
| 24 | Washer | 72051-G02 | 3/8" | 1 | |
| 25 | Lock nut | 11098-G5 | 3/8 - 16 | 1 | |
| 28 | Engine guard | 72719-G03 | 1 | ||
| 29 | Bolt | 00463-G4 | 7/16 - 14 x 1 1/2" LG | 4 | |
| 30 | Lock washer | 00566-G2 | 7/16" | 4 | |
| 31 | Washer | 00922-G3 | 7/16" | 4 | |
| 34 | Bolt | 00439-G1 | 5/16 - 18 x 1 1/8" LG | 1 | |
| 35 | Lock nut | 11098-G6 | 5/16 - 18 (Stainless steel) | 1 | |
| 38 | U' bolt | 72035-G01 | 7/16 - 14 x 3 7/16" x 3 9/16" LG | 2 | |
| 39 | Washer | 00922-G3 | 7/16" | 4 | |
| 40 | Lock nut | 00734-G1 | 7/16 - 14 | 4 |
Front Suspension and Steering
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Front axle | 602513 | 1 | ||
| 3 | Spindle and hub assembly | 70942-G03 | 4 lug, Passenger side, includes items 4 - 13 | 1 | |
| 4 | Spindle assembly | 70940-G04 | Passenger side, includes items 5 - 6 | 1 | |
| 5 | Bearing | 70648-G01 | 1 | ||
| 6 | Bearing | 70749-G01 | DP4 | 1 | |
| 7 | Grease seal | 25146-G1 | 1 | ||
| 8 | Roller bearing and race assembly | 50892-G1 | 2 | ||
| 9 | Wheel hub assembly with races | 70589-G1 | 4 lug, includes item 10 | 1 | |
| 10 | Lug bolt | 19862-G1 | 1/2 - 20 x 1 7/32" LG | 4 | |
| 11 | Slotted nut | 12093-G1 | 1 -14 | 1 | |
| 12 | Cotter pin | 00798-G8 | 5/32" x 1 3/4" LG | 1 | |
| 13 | Spindle cap | 12091-G2 | 2 | ||
| 16 | Spindle and hub assembly | 70673-G03 | 4 lug, Driver side, includes items 7-13 & 17 | 1 | |
| 17 | Spindle assembly | 70742-G02 | Driver side, includes items 5-6 | 1 | |
| 18 | Bolt | 00407-G6 | 1/2 - 13 x 6" LG | 2 | |
| 19 | Washer | 00560-G3 | 1/2" | 4 | |
| 20 | King pin tube | 70745-G01 | 2 | ||
| 21 | Thrust washer | 70754-G01 | Stainless steel | 2 | |
| 22 | Lock nut | 14390-G6 | 1/2 - 13 | 2 | |
| 25 | Shock absorber | 76419-G01 | 2 | ||
| 28 | Shock absorber washer | 10435-G1 | 8 | ||
| 29 | Rubber shock absorber bushing | 10194-G1 | 8 | ||
| 30 | Nut | 00532-G6 | 3/8 - 24 | 4 | |
| 31 | Vinyl cap | 10044-G01 | 4 | ||
| 34 | Leaf spring | 70664-G03 | Heavy duty, see part number on spring | 2 | |
| 35 | Spring plate | 70163-G03 | 4 | ||
| 36 | Bolt | 00463-G4 | 7/16 - 14 x 1 1/2" LG | 4 | |
| 37 | Lock nut | 00734-G1 | 7/16 - 14 | 11 | |
| 38 | Bolt | 00463-G6 | 7/16 - 14 x 1 3/4" LG | 7 | |
| 41 | Rack and pinion unit | 74964-G02 | Complete, includes items 42 - 65 | 1 | |
| 42 | Steering rack cover & bearing | 70965-G01 | 1 | ||
| 43 | Jam nut | * | 1/2 - 20 | 1 | |
| 44 | Retaining ring | 70750-G01 | External | 1 | |
| 45 | Ball bearing | 15115-G1 | 1 | ||
| 46 | Pinion | 70603-G01 | 1 | ||
| 47 | Retaining ring | 70751-G01 | Internal | 1 | |
| 48 | Seal pinion | 70638-G01 | 1 | ||
| 49 | Rack steering | 70604-G01 | 1 | ||
| 50 | Screw | 01053-G01 | 10 - 32 | 1 | |
| 51 | Rack loader | 70590-G01 | 1 | ||
| 52 | Spring compression | 70666-G01 | 1 | ||
| 53 | Gasket rack loader | 70645-G01 | 1 | ||
| 54 | Cover rack loader | 70591-G01 | 1 | ||
| 55 | Screw | 71102-G01 | 1/4 - 20 | 2 | |
| 56 | Grease fitting, straight | 10389-G3 | 1 | ||
| 57 | Rack ball joint | 70695-G01 | includes items 58 - 60 | 1 | |
| 58 | Rubber boot | 50641-G1 | 1 | ||
| 59 | Slotted nut | 50209-G2 | 7/16 - 20 | 1 | |
| 60 | Cotter pin | 10387-G2 | 3/32" x 1" LG | 1 | |
| 61 | Rod end | 74694-G01 | Inner | 1 | |
| 62 | Rack boot | 70961-G01 | 1 | ||
| 63 | Wire tie | 12416-G2 | 1 | ||
| 64 | Wire tie | 11391-G8 | 1 | ||
| 65 | Tag steering wheel | 604328 | 1 | ||
| 74 | Bolt | 00464-G6 | 7/16 - 14 x 2 3/4" LG | 2 | |
| 75 | Bolt | 01068-G01 | 7/16 - 14 x 3 1/2" LG | 1 | |
| 76 | Spacer | 70667-G02 | 2 | ||
| 77 | Spacer | 70667-G03 | Short | 1 | |
| 78 | Nut | 00532-G7 | 7/16- 14 | 1 | |
| 79 | Flat washer | 00560-G2 | 7/16" | 7 | |
| 80 | Lock nut | 00734-G1 | 7/16 - 14 | 3 | |
| 83 | Steering shaft | 70607-G01 | 1 | ||
| 85 | Steering column kit | 70758-G05 | includes items 86 - 88 | 1 | |
| 86 | Steering column | 70610-G03 | 1 | ||
| 87 | Steering column bushing | 28569-G01 | 1 | ||
| 88 | Screw | 01022-G01 | #6 - 20 x 5/16" LG | 1 | |
| 95 | Bolt | 01006-G01 | 3/8 - 16 x 1 1/4" LG with patchlock | 4 | |
| 96 | Lock washer | 00879-G1 | 3/8" | 4 | |
| 98 | Intermediate shaft | 70580-G01 | includes items 99, 100 | 1 | |
| 99 | Bolt | 01055-G01 | M8 x 1 1/4" LG | 2 | |
| 100 | Lock washer | 00565-G8 | 5/16" | 2 | |
| 102 | Retaining ring | 70751-G01 | Internal | 1 | |
| 103 | Retaining ring | 70888-G01 | External | 1 | |
| 104 | Ball bearing | 15112-G1 | 1 | ||
| 105 | Wave washer | 70887-G01 | 1 | ||
| 106 | Steering wheel | 602979 | 1 | ||
| 113 | Lock nut | 14390-G2 | 5/8 - 18 | 1 | |
| 114 | Clipboard | 71950-G01 | 1 | ||
| 117 | Tie rod assembly | 74604-G01 | includes items 118 - 122 | 1 | |
| 118 | Threaded rod | 74603-G01 | 24" LG | 1 | |
| 119 | Tie rod end | 70902-G01 | Left hand threads | 1 | |
| 120 | Jam nut | 01069-G01 | M12 x 1.25-05 (Left hand threads) | 1 | |
| 121 | Tie rod end | 70902-G02 | Right hand threads | 1 | |
| 122 | Jam nut | 01069-G02 | M12 x 1.25-05 (Right hand threads) | 1 | |
| 124 | Lock nut | 00734-G1 | 7/16 - 14 | 2 |
Fuel System – California Requirement
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Fuel tank | 72092G01 | For vehicles without gauge | 1 | |
| 2 | Fuel tank cap | 72282G01 | 1 | ||
| 3 | Spacer | 70486G01 | 1 | ||
| 4 | Washer | 00559G8 | 5/16" | 2 | |
| 5 | Lock nut | 01109G01 | 5/16 - 18 (Stainless steel) | 2 | |
| 7 | Fuel tank assembly with level switch | 72231G01 | Includes items 8-14 | 1 | |
| 8 | Fuel tank | 72092G02 | For vehicles with fuel guage | 1 | |
| 9 | Fuel tank cap | 72282G01 | 1 | ||
| 10 | Fuel level sender adapter | 72229G01 | 1 | ||
| 11 | Screw | 72230G01 | #6 - 32 x 1/2" LG | 2 | |
| 12 | Fuel level sender | 20048G2 | includes item 13 | 1 | |
| 13 | Gasket | * | 1 | ||
| 14 | Screw | 72232G01 | #10 x 3/4" LG | 5 | |
| 16 | Bolt | 00438G8 | 5/16 - 18 x 1" LG | 1 | |
| 17 | Washer | 00559G8 | 5/16" | 2 | |
| 18 | Lock nut | 01109G01 | 5/16 - 18 (Stainless steel) | 1 | |
| 21 | Fuel hose, california requirement | 604596 | Bulk | 14" | |
| 22 | Fuel line filter | 12902G1 | 1 | ||
| 23 | Clamp | 18292G1 | 5 | ||
| 24 | Fuel pump | 72873G01 | 1 | ||
| 25 | Screw | 00114G6 | 1/4 - 14 x 3/4" LG | 2 | |
| 26 | Low pressure fuel line | 27183G01 | Bulk | 26" | |
| 27 | Fuel hose, california requirement | 604596 | Bulk | 16" | |
| 28 | Hose clamp | 11391G4 | 1/4" | 3 | |
| 29 | Wire tie | 17618G1 | 3 | ||
| 30 | Vinyl trim | 22280G1 | Black (Bulk) | 7" |
Fuel System
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Fuel tank | 72092G01 | For vehicles without gauge | 1 | |
| 2 | Fuel tank cap | 72282G01 | 1 | ||
| 3 | Spacer | 70486G01 | 1 | ||
| 4 | Washer | 00559G8 | 5/16" | 2 | |
| 5 | Lock nut | 01109G01 | 5/16 - 18 (Stainless steel) | 2 | |
| 7 | Fuel tank assembly with level switch | 72231G01 | Includes items 8-14 | 1 | |
| 8 | Fuel tank | 72092G02 | For vehicles with fuel gauge | 1 | |
| 9 | Fuel tank cap | 72282G01 | 1 | ||
| 10 | Fuel level sender adapter | 72229G01 | 1 | ||
| 11 | Screw | 72230G01 | #6 - 32 x 1/2" LG | 2 | |
| 12 | Fuel level sender | 20048G2 | includes item 13 | 1 | |
| 13 | Gasket | * | 1 | ||
| 14 | Screw with seal | 72232G01 | #10 x 3/4" LG | 5 | |
| 16 | Bolt | 00438G8 | 5/16 - 18 x 1" LG | 1 | |
| 17 | Washer | 00559G8 | 5/16" | 2 | |
| 18 | Lock nut | 01109G01 | 5/16 - 18 (Stainless steel) | 1 | |
| 21 | Low pressure fuel line | 17470G1 | Bulk | 4" | |
| 22 | Fuel line filter | 72084G01 | 1 | ||
| 23 | Clamp | 18292G1 | 5 | ||
| 24 | Fuel pump | 72873G01 | 1 | ||
| 25 | Screw | 00114G6 | 1/4 - 14 x 3/4" LG | 2 | |
| 26 | Low pressure fuel line | 27183G01 | Bulk | 26" | |
| 27 | Low pressure fuel line | 17470G1 | Bulk | 26" | |
| 28 | Hose clamp | 11391G4 | 1/4" | 3 | |
| 29 | Wire tie | 17618G1 | 3 | ||
| 30 | Vinyl trim | 22280G1 | Black (Bulk) | 7 |
Rear Axle
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Rear axle | 72715-G01 | 13.32:1, includes items 3-23 | 1 | |
| 2 | Rear axle, freedom HP | 72715-G02 | 10.67:1, includes items 3 - 23 | 1 | |
| 3 | Flanged bolt | 26823-G01 | M8 x 1.25 x 100 MM LG | 5 | |
| 4 | Flanged bolt | 26824-G01 | M8 x 1.25 x 110 MM LG | 2 | |
| 5 | Bolt | * | M8 x 1.25 x 146 MM LG | 2 | |
| 6 | Flanged bolt | 72052-G01 | M8 x 1.25 x 130 MM LG | 1 | |
| 7 | Flange nut | 72269-G01 | M8 x 1.25 MM | 12 | |
| 8 | Oil check plug | 26768-G01 | 1 | ||
| 9 | Gasket | 26769-G01 | 8 MM | 1 | |
| 10 | Oil drain plug | 26770-G01 | 1 | ||
| 11 | Gasket | 26771-G01 | 14 MM | 1 | |
| 12 | Oil filler plug | 26772-G01 | 1 | ||
| 13 | Input shaft seal | 26761-G01 | 1 | ||
| 14 | Shifter shaft seal | 26762-G01 | 1 | ||
| 15 | Axle shaft seal | 72259-G01 | 2 | ||
| 17 | Axle tube | 72115-G01 | Driver side | 1 | |
| 18 | Axle tube | 72116-G01 | Passenger side | 1 | |
| 19 | Axle shaft | 72056-G01 | Driver side | 1 | |
| 20 | Axle shaft | 72057-G01 | Passenger side | 1 | |
| 21 | Retaining ring | 26814-G01 | 4 | ||
| 22 | Ball bearing | 26811-G01 | 2 | ||
| 23 | Flanged bolt | 72260-G01 | M10 x 1.5 x 23 MM LG | 10 | |
| 26 | Axle bracket | 72017-G02 | 1 | ||
| 27 | Lock nut | 26830-G01 | M8 x 1.25 MM | 2 | |
| 28 | Spacer | 75048-G01 | 1/2" | 1 |
Rear Suspension
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Leaf spring set | 603109 | Contains 2 springs | 1 | |
| 2 | Isomount base plate | 72028-G02 | 2 | ||
| 3 | Isomount bushing | 72117-G01 | 2 | ||
| 4 | Isomount cap | 72037-G01 | 2 | ||
| 5 | U' bolt | 72618-G01 | 3/8 - 16 x 2" x 2 1/2" LG | 4 | |
| 6 | Washer | 00560-G1 | 3/8" | 8 | |
| 7 | Lock nut | 11098-G5 | 3/8 - 16 | 8 | |
| 9 | Flanged bushing | 70291-G01 | 4 | ||
| 10 | Shoulder bolt | 14158-G1 | 3/8 - 16 x 3 1/4" LG | 2 | |
| 11 | Lock nut | 12262-G1 | 3/8 - 16 | 2 | |
| 13 | Bolt | 00665-G9 | 3/8 - 16 x 3 1/2" LG (Stainless steel) | 4 | |
| 14 | Shackle plate | 70290-G02 | 4 | ||
| 15 | Flanged bushing | 70291-G01 | 8 | ||
| 16 | Spacer | 70289-G02 | 4 | ||
| 17 | Lock nut | 11098-G5 | 3/8 -16 | 4 | |
| 19 | Shock absorber | 76418-G01 | 2 | ||
| 20 | Shock absorber washer | 10435-G1 | 8 | ||
| 21 | Rubber bushing | 10194-G1 | 8 | ||
| 22 | Nut | 00532-G6 | 3/8 - 24 | 4 | |
| 23 | Vinyl cap | 10044-G01 | 4 | ||
| 25 | Leaf spring set | 74207-G03 | Use on shuttle 2+2 and convertible carrier only, contains 2 springs | 1 |

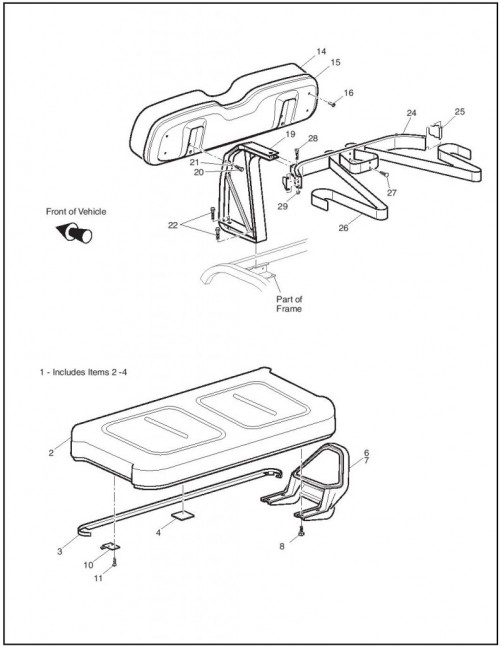

Seating and Bag Holder – Golf Car
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Seat bottom assembly | 71611-G** | includes items 2 - 4 | 1 | |
| 2 | Vinyl seat bottom cover | 71602-G** | 1 | ||
| 3 | Vinyl trim | 71012-G01 | Seat bottom | 1 | |
| 4 | Rubber pad | 17074-G1 | 2 | ||
| 6 | Hip restraint | 71701-G01 | Passenger side | 1 | |
| 7 | Hip restraint | 71702-G01 | Driver side | 1 | |
| 8 | Bolt | 71204-G01 | 1/4 - 20 x 7/8" LG | 8 | |
| 10 | Seat hinge | 71610-G01 | 2 | ||
| 11 | Screw | 00720-G08 | #12 - 14 x 1" LG (Stainless steel) | 4 | |
| 13 | Seat back assembly | 71751-G** | includes items 14 - 16 | 1 | |
| 14 | Vinyl seat back cover | 71753-G** | 1 | ||
| 15 | Plastic seat back cover | 71752-G01 | 1 | ||
| 16 | Screw | 01107-G01 | #8 x 5/8" LG (Stainless steel) | 4 | |
| 19 | Seat support bracket | 71811-G03 | 2 | ||
| 20 | Bolt | 00661-G8 | 1/4 - 20 x 1" LG (Stainless steel) | 4 | |
| 21 | Lock washer | 00664-G7 | 1/4" (Stainless steel) | 4 | |
| 22 | Bolt | 01075-G01 | 3/8 - 16 x 2 1/2" LG | 4 | |
| 24 | Bag holder bracket | 71851-G01 | 1 | ||
| 25 | Bag retainer clamp | 71856-G01 | 2 | ||
| 26 | Bag retainer strap | 71853-G01 | 1 | ||
| 27 | Ratchet fastener | 16816-G1 | 1/4" x 9/16" LG | 2 | |
| 28 | Carriage bolt | 01102-G01 | 1/4 - 20 x 1 1/2" LG (Stainless steel) | 2 | |
| 29 | Lock nut | 11027-G2 | 1/4 - 20 | 2 |
Seating – Convertible Carrier
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Seat bottom assembly | 71611-G** | Includes items 2 - 4 | 1 | |
| 2 | Vinyl seat bottom cover | 71602-G** | 1 | ||
| 3 | Vinyl trim | 71012-G01 | Seat bottom | 1 | |
| 4 | Rubber pad | 17074-G1 | 2 | ||
| 7 | Hip restraint | 71701-G01 | Passenger side | 1 | |
| 8 | Hip restraint | 71702-G01 | Driver side | 1 | |
| 9 | Bolt | 71204-G01 | 1/4 - 20 x 1' LG (stainless steel) | 8 | |
| 12 | Seat hinge | 71610-G01 | 2 | ||
| 13 | Screw | 00720-G08 | #12 - 14 x 1" LG (Stainless steel) | 4 | |
| 16 | Seat back assembly | 71751-G** | Includes items 17 - 19 | 1 | |
| 17 | Vinyl seat back cover | 71753-G** | 1 | ||
| 18 | Plastic seat back cover | 71752-G01 | 1 | ||
| 19 | Screw | 01107-G01 | #8 x 5/8" LG (Stainless steel) | 4 | |
| 22 | Spacer | 70364-G01 | 2 | ||
| 23 | Seat back support | 74111-G01 | 2 | ||
| 24 | Bolt | 01006-G02 | 3/8 - 16 x 1 1/2" LG | 4 | |
| 25 | Washer | 00560-G1 | 3/8" | 4 | |
| 26 | Adjustable bumper | 70113-G01 | 2 | ||
| 27 | Lock nut | 11027-G1 | 5/16 - 18 | 2 | |
| 28 | Latch bracket - left | 74508-G02 | 1 | ||
| 29 | Bolt | 00661-G8 | 1/4 - 20 x 1" LG (Stainless steel) | 4 | |
| 30 | Lock washer | 00664-G7 | 1/4" (Stainless steel) | 4 | |
| 33 | Seat back assembly | 71751-G** | Includes items 17 - 19 | 1 | |
| 34 | Seat back support | 75258-G01 | 1 | ||
| 35 | Bolt | 00661-G8 | 1/4 - 20 x 1" LG (Stainless steel) | 4 | |
| 36 | Lock washer | 00664-G6 | 1/4" (Stainless steel) | 4 | |
| 37 | Screw | 16705-G6 | 1/4 - 20 x 1 3/4" LG (Stainless steel) | 2 | |
| 38 | Acorn nut | 00520-G1 | 1/4 - 20 (Stainless steel) | 2 | |
| 39 | End cap | 75261-G01 | 3/4" | 2 | |
| 41 | Bed | 71062-G01 | 1 | ||
| 42 | Seat bottom assembly | 71063-G** | includes item 43 | 1 | |
| 43 | Seat bottom | 75197-G** | includes item 44 | 1 | |
| 44 | Vinyl seat bottom cover | 75252-G** | 1 | ||
| 45 | Screw | 00762-G2 | 5/16 - 18 x 1 1/2" LG (Stainless steel) | 2 | |
| 46 | Lock washer | 00664-G8 | 5/16" (Stainless steel) | 4 | |
| 47 | Acorn nut | 00520-G3 | 5/16 - 18 (Stainless steel) | 2 | |
| 48 | End cap | 75261-G01 | 3/4" | 4 | |
| 51 | Bed front | 71060-G01 | Includes mat | 1 | |
| 52 | Bolt | 00661-G6 | 1/4 - 20 x 3/4" LG (Stainless steel) | 4 | |
| 53 | Lock washer | 00664-G7 | 1/4" (Stainless steel) | 4 | |
| 54 | Support frame | 75193-G01 | 1 | ||
| 55 | Bolt | 00438-G8 | 5/16 - 18 x 1" LG | 2 | |
| 56 | Washer | 00559-G8 | 5/16" | 2 | |
| 57 | Lock nut | 75279-G1 | 5/16 - 18 | 2 | |
| 58 | Bolt | 00440-G4 | 5/16 - 18 x 2 1/2" LG | 2 | |
| 59 | Nylon bushing | 17838-G1 | 4 | ||
| 60 | Washer | 00559-G8 | 5/16" | 2 | |
| 61 | Lock nut | 11098-G6 | 5/16 - 18 (Stainless steel) | 2 | |
| 62 | Handrail | 75196-G01 | 2 | ||
| 63 | Screw | 00762-G2 | 5/16 - 18 x 1 1/4" LG (Stainless steel) | 2 | |
| 64 | Lock washer | 00664-G8 | 5/16" (Stainless steel) | 2 | |
| 65 | Acorn nut | 00520-G3 | 5/16 - 18 (Stainless steel) | 2 | |
| 66 | End cap | 75261-G02 | 1" | 4 | |
| 69 | Side basket | 75460-G01 | Black | 2 | |
| 70 | Self threading screw | 00106-G6 | #12 - 24 x 3/4" LG | 4 |
Starter – Generator
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Starter / generator | 27065-G01 | includes items 2 - 27 | 1 | |
| 2 | Armature | 26870-G01 | 1 | ||
| 3 | Rear ball bearing | 26871-G01 | 1 | ||
| 4 | Front ball bearing | 26872-G01 | 1 | ||
| 5 | bearing holder | 26873-G01 | 1 | ||
| 8 | Field coil | 26875-G01 | 1 | ||
| 9 | Insulating brush assembly | 26876-G01 | F' | 2 | |
| 10 | Pole core setscrew | 26877-G01 | 4 | ||
| 11 | Front cover | 26878-G01 | 1 | ||
| 12 | Rear cover | 27879-G01 | 1 | ||
| 13 | Terminal assembly | 26880-G01 | A' | 2 | |
| 16 | Brush holder assembly | 26881-G01 | includes items 17 - 19 | 1 | |
| 17 | Brush | 26658-G01 | 4 | ||
| 18 | Brush spring | 26882-G01 | 4 | ||
| 19 | Brush connector | 26883-G01 | 2 | ||
| 22 | Key | 26884-G01 | 1 | ||
| 23 | Pulley | 26885-G01 | 1 | ||
| 24 | Brush and pulley hardware kit | 26886-G01 | 1 | ||
| 25 | Brush 1 cover | 26887-G01 | 3 | ||
| 26 | Brush 2 cover | 26888-G01 | 2 | ||
| 27 | Housing hardware kit | 26889-G01 | 2 | ||
| 31 | Bolt | 00938-G4 | 1/2 - 13 x 8" LG | 1 | |
| 32 | Washer | 00560-G3 | 1/2" | 2 | |
| 33 | Lock washer | 00566-G3 | 1/2" | 1 | |
| 34 | Nut | 00533-G1 | 1/2 - 13 | 1 | |
| 37 | Starter / generator adjuster | 28617-G01 | 1 | ||
| 38 | Jam nut | 00544-G5 | 3/8 - 16 | 1 | |
| 39 | Nut | 00532-G5 | 3/8 - 16 | 1 | |
| 40 | Washer | 00560-G1 | 3/8" | 1 | |
| 41 | Push nut | 12064-G4 | 5/16" | 1 | |
| 44 | Starter / generator belt | 26414-G01 | 1 |
Tow Bar – Permanent
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Mounting plate | 75318-G01 | 1 | ||
| 2 | Stop mount plate | 75319-G01 | 1 | ||
| 3 | Screw | 16705-G1 | 1/4 - 20 x 1" LG (Stainless steel) | 3 | |
| 4 | Lock nut | 00891-G2 | 1/4 - 20 (Stainless steel) | 3 | |
| 5 | Female stop | 75338-G02 | 1 | ||
| 8 | Tow bar assembly | 75304-G01 | Towing vehicle, includes items 9-29 | 1 | |
| 9 | Tow bar | 75299-G01 | 1 | ||
| 10 | Upper pivot | 75302-G01 | 1 | ||
| 11 | Lower pivot | 75291-G01 | 1 | ||
| 12 | Bolt | 00410-G8 | 1/2 - 20 x 3" LG | 1 | |
| 13 | Washer | 00675-G3 | 1/2" (Stainless steel) | 1 | |
| 14 | Spring washer | 75339-G01 | 1 | ||
| 15 | Washer | 00571-G5 | 1/2" | 1 | |
| 16 | Lock nut | 11098-G8 | 1/2 - 20 | 1 | |
| 17 | Latch stop | 75362-G01 | 1 | ||
| 18 | Washer | 75340-G01 | 3/8" | 2 | |
| 19 | Pivot pin | 75360-G01 | 1 | ||
| 20 | Spring pin | 13571-G7 | 1 | ||
| 21 | Latch | 75303-G01 | 1 | ||
| 22 | Compression spring | 20852-G2 | 1 | ||
| 23 | Cup washer | 25661-G02 | 1 | ||
| 24 | Shoulder bolt | 13005-G4 | 5/16 - 18 x 2" LG | 1 | |
| 25 | Label | 75370-G01 | Warning | 1 | |
| 26 | Male stop | 75338-G03 | 1 | ||
| 27 | Bolt | 12547-G4 | 6MM X 1 X 30 MM LG | 1 | |
| 28 | Lock washer | 00565-G8 | 5/16" | 1 | |
| 29 | Acorn nut | 00520-G3 | 5/16 - 18 (Stainless steel) | 1 | |
| 31 | Tow bar hitch assembly | 75308-G01 | Towed vehicle, includes items 32-48 | 1 | |
| 32 | Hitch | 75305-G01 | 1 | ||
| 33 | Pivot bolt | 75292-G01 | 1 | ||
| 34 | Thrust washer | 75309-G01 | 2 | ||
| 35 | Washer | 75342-G01 | 3/4" | 1 | |
| 36 | Castellated nut | 00518-G8 | 3/4 - 16 | 1 | |
| 37 | Cotter pin | 10387-G1 | 1/8" x 1 1/2" LG | 2 | |
| 38 | Bearing | 75307-G01 | 1 | ||
| 39 | Lock washer | 00566-G6 | 3/4" | 1 | |
| 40 | Nut | 00533-G8 | 3/4 - 16 | 1 | |
| 42 | Tie rod assembly | 602981 | includes items 43 - 48 | 1 | |
| 43 | Threaded rod | 603089 | 1 | ||
| 44 | Tie rod end | 27205-G01 | Left hand threads | 1 | |
| 45 | Jam nut | 18434-G3 | M12 x 1.25-05 (Left hand threads) | 1 | |
| 46 | Tie rod end | 27205-G02 | Right hand threads | 1 | |
| 47 | Jam nut | 18434-G4 | M12 x 1.25-05 (Right hand threads) | 1 | |
| 48 | Cotter pin | 10387-G2 | 2 | ||
| 49 | Lock nut | 00734-G3 | 7/16 - 14 | 2 |
Tow Bar – Casual
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Casual tow bar | 75033-G01 | includes items 2-15 | 1 | |
| 2 | Tow bar | * | 1 | ||
| 3 | Tie rod | 75034-G01 | includes nut and cotter pin | 1 | |
| 4 | Coupling | 75060-G01 | 1 | ||
| 5 | Lock pin | * | 1 | ||
| 6 | Compression spring | 75065-G01 | 1 | ||
| 7 | Washer | 00922-G2 | 3/8" | 1 | |
| 8 | Cotter pin | 10387-G2 | 3/32" x 1" LG | 1 | |
| 9 | Safety pin | 75068-G01 | 1 | ||
| 10 | Wire rope | 14869-G5 | 1 | ||
| 11 | Ferrule | 16783-G1 | 3 | ||
| 12 | Ferrule | 75067-G01 | 1 | ||
| 13 | Hex head plug | 75035-G02 | 1 | ||
| 14 | Wire rope | 14869-G3 | 1 | ||
| 15 | Label | 75091-G01 | Warning | 1 |

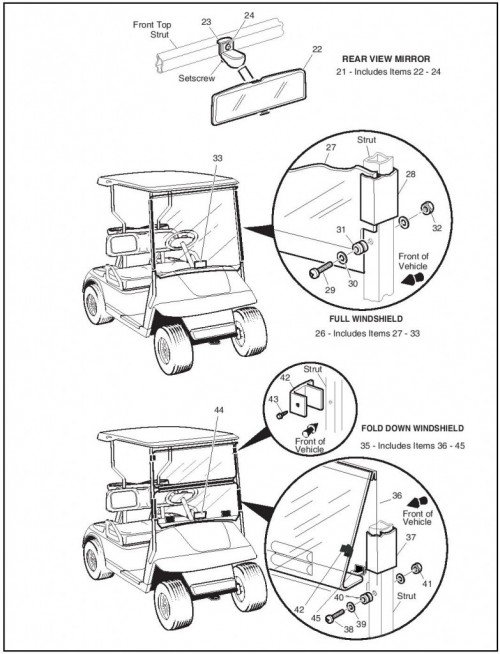

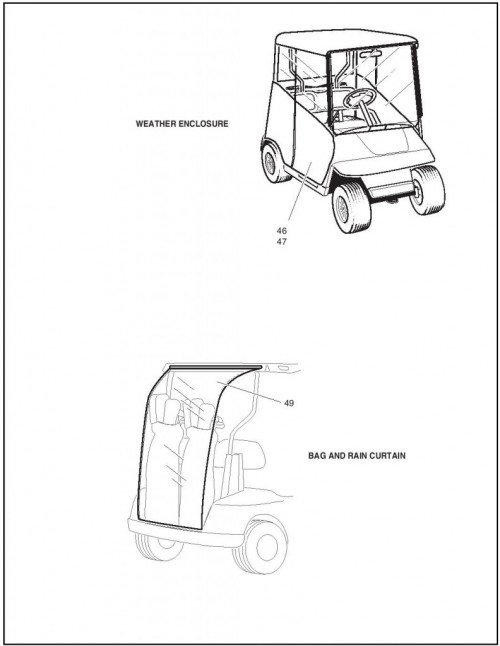

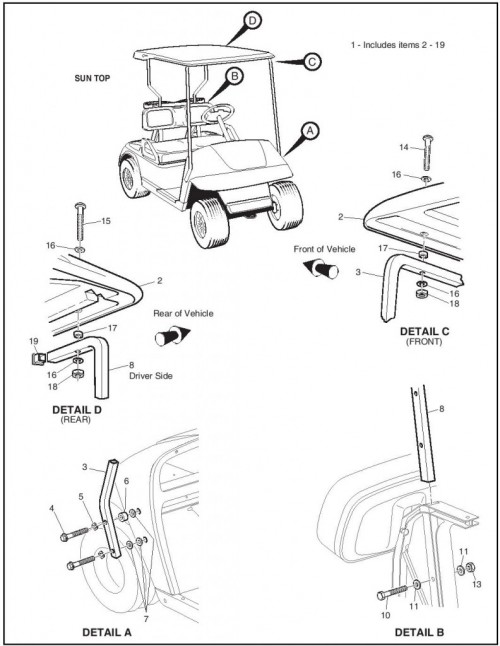

Weather Protection – Golf Car
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Sun top kit | 75040-G** | Golf car, includes items 2-19 | 1 | |
| 2 | Sun top | 27069-G** | 1 | ||
| 3 | Front strut | 75045-G01 | 1 | ||
| 4 | Bolt | 00440-G2 | 5/16 - 18 x 2 1/4' LG | 4 | |
| 5 | Washer | 00559-G8 | 5/16" | 4 | |
| 6 | Spacer | 75048-G01 | 1/2" | 2 | |
| 7 | Washer | 00570-G2 | 5/16" | 6 | |
| 8 | Rear strut | 75046-G02 | 2 | ||
| 10 | Bolt | 00685-G7 | 5/16 - 18 x 1 3/4" LG (Stainless steel) | 4 | |
| 11 | Washer | 01110-G03 | 5/16" (Stainless steel) | 8 | |
| 13 | Lock nut | 11098-G6 | 5/16 - 18 (Stainless steel) | 4 | |
| 14 | Screw | 00753-G5 | 1/4 - 20 x 2" LG (Stainless steel) | 2 | |
| 15 | Screw | 00753-G6 | 1/4 - 20 x 2 1/4" LG (Stainless steel) | 2 | |
| 16 | Washer | 01110-G01 | 1/4" (Stainless steel) | 8 | |
| 17 | Spacer | 75051-G01 | 4 | ||
| 18 | Lock nut | 00891-G2 | 1/4 - 20 (Stainless steel) | 4 | |
| 19 | End cap | 19853-G1 | 1" | 2 | |
| 21 | Rear view mirror kit | 19528-G2 | includes items 22 - 24 | 1 | |
| 22 | Rear view mirror | 19496-G1 | 1 | ||
| 23 | Support bracket | 19502-G3 | 1 | ||
| 24 | Screw | 19527-G1 | #8 - 32 x 5/8" LG (Stianless steel) | 1 | |
| 26 | Windshield kit | 75524-G01 | Golf car, includes items 27 - 33 | 1 | |
| 27 | Windshield | * | 1 | ||
| 28 | Sash | EGWHC12 | 26" LG | 2 | |
| 29 | Screw | EGWHS12 | 1/4 - 20 x 1 3/4" LG (Stainless steel) | 2 | |
| 30 | Washer | EGWHW12 | 1/4" (Stainless steel) | 4 | |
| 31 | Rubber grommet | EGWHG13 | 2 | ||
| 32 | Lock nut | EGWHN12 | 1/4 - 20 (Stainless steel) | 2 | |
| 33 | Label | EGWHL14 | Safety | 1 | |
| 35 | Fold down windshield kit | 74910-G01 | Golf car, includes items 36 - 45 | 1 | |
| 36 | Windshield | * | 1 | ||
| 37 | Sash | 110-032A | 12" LG | 2 | |
| 38 | Screw | EGWHS12 | 1/4 - 20 x 1 3/4" LG (Stainless steel) | 2 | |
| 39 | Washer | EGWHW12 | 1/4" (Stainless steel) | 4 | |
| 40 | Rubber grommet | EGWHG13 | 2 | ||
| 41 | Lock nut | EGWHN12 | 1/4 - 20 (Stainless steel) | 2 | |
| 42 | Top grip | 110-055C | 3/4" x 2" | 2 | |
| 43 | Top grip fastener | 136-008 | 2 | ||
| 44 | Label | EGWHL14 | Safety | 1 | |
| 45 | Bottom grip | 110-056C | 2 | ||
| 46 | Weather enclosure | 75078-G01 | 3 sided, recommended for vehicles with windshields | 1 | |
| 47 | Weather enclosure | 75079-G01 | 4 sided, recommended for vehicles without windshields | 1 | |
| 49 | Bag cover and rain curtain kit | 75191-G01 | 1 |
Wheels and Tires
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Tire and wheel assembly | 28757-G01 | links 18 x 8.50-8, includes items 2-4 | 4 | |
| 2 | Tire | 28764-G01 | Links 18 x 8.50 - 8 | 1 | |
| 3 | Wheel rim | 28759-G01 | 4 Lug | 1 | |
| 4 | Valve stem | 11657-G2 | 1 | ||
| 6 | Wheel and tire assembly | 28757-G03 | Turf saver 18 x 8.50 - 8, includes items 7-9 | 4 | |
| 7 | Tire | 28764-G03 | Turf saver 18 x 8.50 - 8 | 1 | |
| 8 | Wheel rim | 28759-G01 | 4 lug | 1 | |
| 9 | Valve stem | 11657-G2 | 1 | ||
| 11 | Wheel and tire assembly | 28842-G01 | Sure trail 18.5 x 8.50 - 8 load range C, includes items 12 - 14 | 4 | |
| 12 | Tire | 28764-G08 | Sure trail 18.5 x 8.50 - 8 load range C | 1 | |
| 13 | Wheel rim | 28759-G01 | 4 lug | 1 | |
| 14 | Valve stem | 11657-G2 | 1 | ||
| 16 | Wheel and tire assembly | 28757-G02 | Turf glide 18 x 8.5 - 8, includes items 17 - 19 | 4 | |
| 17 | Tire | 28764-G02 | Turf glide 18 x 8.5 - 8 | 1 | |
| 18 | Wheel rim | 28759-G01 | 4 lug | 1 | |
| 19 | Valve stem | 11657-G2 | 1 | ||
| 21 | Wheel and tire assembly | 28757-G04 | Fairway 18 x 8.5 - 8, includes items 22 - 24 | 4 | |
| 22 | Tire | 28764-G04 | Fairway 18 x 8.5 - 8 | 1 | |
| 23 | Wheel rim | 28759-G01 | 4 lug | 1 | |
| 24 | Valve stem | 11657-G2 | 1 | ||
| 26 | Lug nut | 14723-G1 | 1/2 - 20 | 16 | |
| 28 | 6" chrome hubcap | 16042-G01 | 4 | ||
| 29 | 6" chrome hubcap | 16042-G02 | Set of four | 1 | |
| 30 | 8" chrome hubcap | 14913-G01 | 4 | ||
| 31 | 8" chrome hubcap | 14913-G02 | Set of four | 1 | |
| 32 | Gold spoke hubcap | 19241-G02 | 4 | ||
| 33 | Gold spoke hubcap | 19241-G04 | Set of four | 1 | |
| 34 | Silver spoke hubcap | 19241-G01 | 4 | ||
| 35 | Silver spoke hubcap | 19241-G03 | Set of four | 1 | |
| 38 | Alloy wheel and tire assembly | 600599 | includes items 39 - 42 | 4 | |
| 39 | Tire | 601768 | 1 | ||
| 40 | Alloy wheel | 601766 | 1 | ||
| 41 | Alloy wheel cap | 601353 | 1 | ||
| 42 | Valve stem | 601767 | Chrome | 1 | |
| 44 | Alloy wheel lug nut | 601354 | 16 |
Options Accessories
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | 2 Bag attachment | 75183-G01 | Body - footrest | ||
| 2 | 4 Bag attachment | 75335-G01 | Body - accessories | ||
| 3 | Alloy wheel and tire assembly | 600599 | Wheels and tires | ||
| 4 | Alloy wheel cap | 601353 | Wheels and tires | ||
| 5 | Alloy wheel lug nut | 601354 | Wheels and tires | ||
| 6 | 8" chrome hubcap | 14913-G* | Wheels and tires | ||
| 7 | 6" chrome hubcap | 16042-G* | Wheels and tires | ||
| 8 | Gold spoke hubcap | 19241-G* | Wheels and tires | ||
| 9 | Silver spoke hubcap | 19241-G* | Wheels and tires | ||
| 10 | Ashtray kit | 75109-G02 | Body - accessories | ||
| 11 | Bag cover / rain curtain kit | 75191-G01 | Weather protection - golf car | ||
| 12 | Convertible carrier kit | 75179-G* | Body, seating - Convertible carrier | ||
| 13 | Center basket | 75003-G01 | Body - accessories | ||
| 14 | Cooler jug and bracket kit | 75495-G01 | Body - accessories | ||
| 15 | Cooler box and bracket kit | 75344-G01 | Body - accessories | ||
| 16 | Divot repair kit | 23300-G1 | Body - accessories | ||
| 17 | High altitude conversion kit | 72754-G02 | Carburetor and choke | ||
| 18 | High altitude conversion kit | 72754-G01 | Carburetor and choke | ||
| 19 | Hour meter | 75114-G02 | Electrical system | ||
| 20 | Message holder kit | 75509-G01 | Body - accessories | ||
| 21 | Message holder kit | 75496-G01 | Body - accessories | ||
| 22 | Rear view mirror | 19528-G2 | Weather protection - golf car | ||
| 23 | Sand bottle | 28661-G01 | Body - Accessories | ||
| 24 | Sand rake | 14735-G1 | Body - accessories | ||
| 25 | Sand rake holder | 75006-G01 | Body - accessories | ||
| 26 | Shuttle 2+2 kit | 74150-G** | Body, seating - shuttle 2+2 | ||
| 27 | Side basket | 75007-G** | Body - accessories | ||
| 28 | Sun top kit, golf car | 75040-G** | Weather protection - golf car | ||
| 29 | Sun top kit, shuttle 2+2 | 75123-G01 | Weather protection - shuttle 2+2 | ||
| 30 | Tow bar kit | 75033-G01 | Tow bar - Casual | ||
| 31 | Tow bar kit | 75310-G01 | Tow bar - Permanent | ||
| 32 | Turn signal kit | 75107-G02 | Electrical system | ||
| 33 | Weather enclosure | 75078-G01 | 3 sided, Weather protection - golf car | ||
| 34 | Weather enclosure | 75492-G01 | 3 sided, Weather protection - shuttle 2+2 | ||
| 35 | Weather enclosure | 75079-G01 | 4 Sided, Weather protection - golf car | ||
| 36 | Windshield kit | 75524-G01 | Weather protection - golf car | ||
| 37 | Windshield kit | 75524-G02 | Weather protection - shuttle 2+2 | ||
| 38 | Windshield kit | 75525-G01 | Weather protection fold down, golf car | ||
| 39 | Windshield kit | 75525-G02 | Weather protection fold down, shuttle 2+2 |
Specialty Products
| Sl. No. | Part description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | High resistance spark plug wire set | 26733-G02 | |||
| 2 | Clutch puller | 19779-G2 | Drive | ||
| 3 | Flywheel puller | 27111-G01 | |||
| 4 | Current indicator | 16489-G2 | |||
| 5 | Digital multimeter | 27481-G01 | |||
| 6 | Slide hammer | 15947-G1 | Axle / hub removal | ||
| 7 | Slide hammer | 18753-G1 | Axle removal only | ||
| 8 | Compression tester | 72524-G01 | |||
| 9 | Feeler gauge | 72525-G01 | |||
| 10 | Techometer | 72526-G01 | |||
| 11 | 4 cycle engine oil | 25730-G03 | 5 gallon | 19 liter | |
| 12 | 4 cycle engine oil | 25730-G04 | 12 quart case | ||
| 13 | 4 cycle engine oil | 25730-G06 | 1 quart bottle | 950 ml | |
| 14 | Pen 3 ounce - hunter green | 28432-G02 | 89 ml | ||
| 15 | Pen 3 ounce - champagne beige | 28432-G01 | 89 ml | ||
| 16 | Pen 3 ounce - white | 28432-G05 | 89 ml | ||
| 17 | Pen 3 ounce - industrial yellow | 28432-G03 | 89 ml | ||
| 18 | Pen 3 ounce - orange | 28432-G04 | 89 ml | ||
| 19 | Pen 3 ounce - steel b lue pearl | 28432-G24 | 89 ml | ||
| 20 | Pen 3 ounce - olive green | 28432-G** | 89 ml | ||
| 21 | Pen 3 ounce - camouflage paint | 75831-G01 | Three pens | 89 ml | |
| 22 | Aerosol 12 ounce - hunter green | 28140-G09 | 360 ml | ||
| 23 | Aerosol 12 ounce - Champagne beige | 28140-G15 | 360 ml | ||
| 24 | Aerosol 12 ounce - white | 28140-G03 | 360 ml | ||
| 25 | Aerosol 12 ounce - industrial yellow | 28140-G14 | 360 ml | ||
| 26 | Aerosol 12 ounce - orange | 28140-G13 | 360 ml | ||
| 27 | Aerosol 12 ounce - Steel blue pearl | 28140-G** | 360 ml | ||
| 28 | Aerosol 12 ounce - olive green | 28140-G** | 360 ml | ||
| 29 | Formula 40 vinyl - coat white | 28166-G01 | |||
| 30 | Plexus cleaner | 28433-G01 | 7 ounce, For windshields | 210 ml | |
| 31 | Plexus cleaner | 28433-G02 | 13 ounce, For windshields | 380 ml | |
| 32 | Battery protector | 75500-G01 | 14 ounce spray | 410 ml | |
| 33 | Carburetor & choke cleaner | 75501-G01 | 15 ounce spray | 440 ml | |
| 34 | White lithium grease | 75502-G01 | 14 ounce spray | 410 ml | |
| 35 | Penetrant/Lubricant | 75503-G01 | 15 ounce spray | 440 ml | |
| 36 | Multi purpose cleaner & degreaser | 75504-G01 | 14 ounce spray | 410 ml | |
| 37 | Multi purpose hand cleaner | 75505-G01 | 32 ounce liquid | 950 ml | |
| 38 | Battery cleaner | 75506-G01 | 32 ounce with trigger sprayer | 950 ml | |
| 39 | Bio-degradeable cleaner | 75507-G01 | 32 ounce with trigger sprayer | 950 ml | |
| 40 | Multi purpose value pack | 75508-G01 | |||
| Battery protector | 4 ounce spray | 120 ml | |||
| Penetrant/Lubricant | 4 ounce spray | 120 ml | |||
| White lithium grease | 4 ounce spray | 120 ml | |||
| Carburetor & choke cleaner | 4 ounce spray | 120 ml |
