EZGO Golf Cart

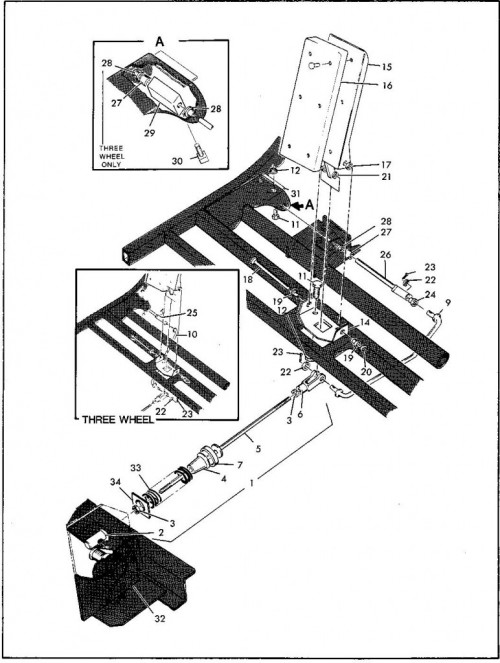

Accelerator And Hill Brake – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Accelerator rod assembly	C-18043-G1		1	1
2	Ball joint	B-14444-G3	Socket	1	1
3	Nut, Jam 5/16 - 24	B-00544-G4		2	2
4	Bushing - accelerator rod	B-17979-G1		1	1
5	Accelerator rod	B-19710-G1		1	1
6	Clevis yoke reamed	B-18036-G1		1	1
7	Retainer, spring	A-17677-G1		1	1
9	Rod assembly, linkage	B-19706-G1			1
10	Rod assembly, linkage	B-19707-G1		1
11	Screw, hex hd.	B-00414-G6	#1/4-20 x 3/4 lg.	4	4
12	Nut, lock, 1/4-20	A-11027-G2		4	4
13	Accelerator pedal sub assembly	C-18083-G1		1	1
14	Base plate, accelerator	B-12511-G1		1	1
15	Accelerator pedal, weldment	C-18084-G1		1	1
16	Accelerator pedal, pad kit	A-15827-G1	includes rivets	1	1
17	Washer, flat, 1/4	B-00559-G7		1	1
18	Pin, accelerator pedal	A-12512-G1		1	1
19	Bearing, plastic	A-12513-G1		2	2
20	Nut, push	A-12064-G2		1	1
21	Washer, teflon	A-17255-G1		2	2
22	Washer	B-00559-G8		2	2
23	Cotter pin	B-10387-G3		2	2
24	Bushing, nyliner	A-17838-G1		2	2
25	Pivot arm assembly	B-17657-G1		1
26	Pivot arm assembly	B-17658-G1			1
27	Spacer	A-14134-G2		1	2
28	Bearing, flanged, reamed	B-10097-G6		1	2
29	Cam, hill brake kickoff	B-12156-G1		1	1
30	Setscrew, square hd.	B-00491-G3	#1/4-20 x 3/8 Lg.	2	2
31	Bracket, catch	B-15022-G2		1	1
32	Accelerator switch assembly	X-XXXX-XX	See accel, switch assy.	1	1
33	Spring, compression	B-17675-G1		1	1
34	Retainer, spring	B-18034-G1		1	1

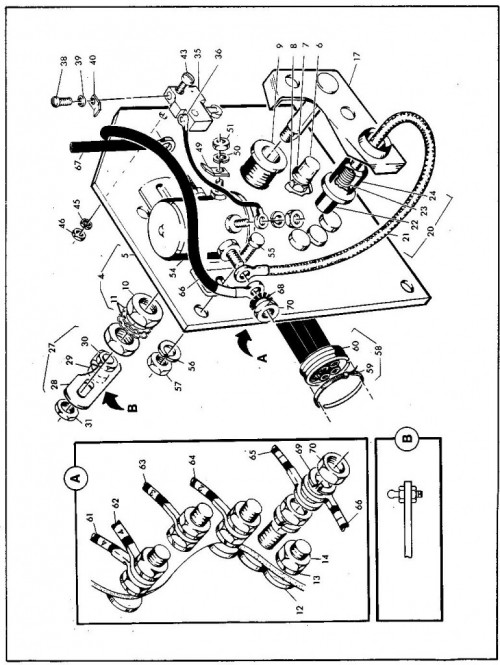

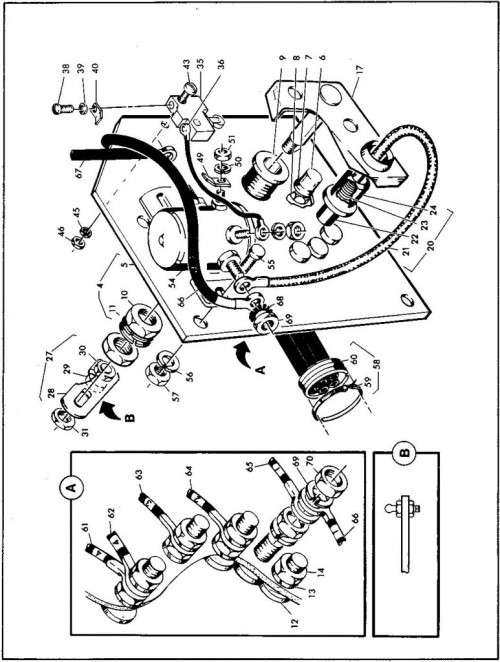

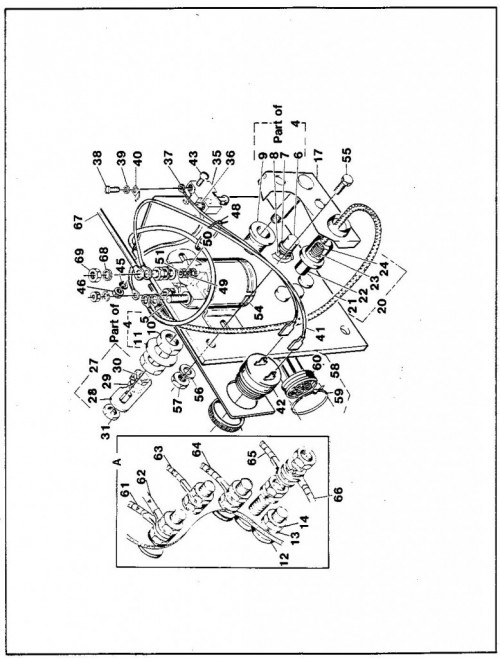

Accelerator Switch Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Accelerator switch assembly	D-18742-G1		1	1
4	Contact board assembly	D-18741-G1		1	1
5	Plate, accelerator	*		1	1
6	Stud, stop	A-17491-G1		1	1
7	Washer, flat	B-00560-G1	3/8	1	1
8	Nut, lock, plastic insert	B-14390-G1	3/8-24 UNF-3B	1	1
9	Bushing, shaft	B-11902-G1		1	1
10	Nut, hex, jam	B-00545-G8	3/4-16 UNF-2B	2	2
11	Washer, flat	B-00560-G6	3/4	1	1
12	Stud, contact	*		5	5
13	Washer, lock, spring	*	5/16	5	5
14	Nut, hex	*	5/16-24 UNF-2B	5	5
17	Shaft and arm assembly	B-17973-G1		1	1
20	Brush and lead assembly	B-17504-G2		1	1
21	Terminal, ring	*	#6 x 5/16	1	1
22	Copper brush with lead	*		1	1
23	Spring, arm contact	*		1	1
24	Holder, brush	*		1	1
27	Pivot arm assembly	A-17663-G1		1	1
28	Arm, accelerator linkage	A-17655-G1		1	1
29	Ball, ball joint	B-15944-G3		1	1
30	Nut, lock, two way	B-00556-G4	1/4-20 UNC-2B	1	1
31	Nut, lock, plastic insert	B-11098-G3	1/2-20 UNF-3B	1	1
35	Switch, micro	B-10606-G2		1	1
36	Wire assembly, Black	A-17969-G1		1	1
37	Wire assembly, Red	A-18801-G1		1	1
38	Screw, brass limit switch	A-13514-G1		2	2
39	Washer, lock, external tooth	B-00567-G4	#8	2	2
40	Faston tab	A-14628-G1		1	1
41	Wire assembly green	A-17970-G2		1	1
42	Warning device	B-18779-G1		1	1
43	Screw, mach, Rd. Hd., Slot	B-00139-G2	#6-32UNC X 1 1/4 Lg.	2	2
45	Washer, lock, spring	00565-G3	#6	2	2
46	Nut, hex	B-00525-G5	#6-32 UNC-2B	2	2
48	Clamp, nylon	A-16172-G1		1	1
49	Faston tab	A-12914-G1		1	1
50	Washer, lock, spring	B-00565-G5	#10	2	2
51	Nut, hex	B-00526-G4	#10-32 UNF-2B	2	2
54	Solenoid	B-18408-G1	36 volt, SPNO	1	1
55	Screw, hex, head	B-00414-G6	1/4-20 UNC X 3/4 Lg.	2	2
56	Washer, lock, spring	00565-G7	1/4	2	2
57	Nut, hex	B-00532-G1	1/4-20 UNC - 2B	2	2
58	Wire harness, accelerator switch	C-18838-G1		1	1
59	Clamp, nylon	A-16172-G1		4	4
60	Loom, flex, zip	B-18834-G2	3/4	1	1
61	Wire assembly	A-14632-G1	4 to Al	1	1
62	Wire assembly	A-11892-G4	4	1	1
63	Wire assembly	A-11891-G4	3	1	1
64	Wire assembly	A-11890-G1	2	1	1
65	Wire assembly	A-11889-G1	1	1	1
66	Wire assembly, Lo speed, Solenoid	A-17965-G1		1	1
67	Wire assembly, solenoid, F & R switch	A-13493-G1		1	1
68	Washer, lock, spring	B-00565-G8	5/16	6	6
69	Nut, hex, jam	B-00544-G4	5/16-24 UNF-2B	6	6
70	Plate, mounting	B-18780-G1		1	1

Accelerator Switch Assembly – J1884 337245, A3185 344761 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Accelerator switch assembly	D-19255-G2		1	1
4	Contact board assembly	D-18741-G1		1	1
5	Plate, accelerator	*		1	1
6	Stud, stop	A-17491-G1		1	1
7	Washer, Flat	B-00560-G1	3/8	1	1
8	Nut, lock, plastic insert	B-14390-G1	3/8-24 UNF-3B	1	1
9	Bushing, shaft	B-11902-G1		1	1
10	Nut, hex, jam	B-00545-G8	3/4-16 UNF-2B	2	2
11	Washer, Lock	B-00568-G6	3/4	2	2
12	Stud, contact	*		5	5
13	Washer, lock, spring	*	5/16	5	5
14	Nut, hex	*	5/16-24 UNF-2B	5	5
17	Shaft and arm assembly	B-17973-G1		1	1
20	Brush and lead assembly	B-17504-G1		1	1
21	Terminal, ring	*	#6 x 5/16	1	1
22	Copper brush with lead	*		1	1
23	Spring, arm contact	*		1	1
24	Holder, brush	*		1	1
27	Pivot arm assembly	A-17663-G1		1	1
28	Arm, accelerator linkage	A-17655-G1		1	1
29	Ball, ball joint	B-15944-G3		1	1
30	Nut, lock, two way	B-00556-G4	1/4-20 UNC-2B	1	1
31	Nut, lock, plastic insert	B-11098-G3	1/2-20 UNF-3B	1	1
35	Switch, micro	B-10606-G2		1	1
36	Wire assembly, Black	A-17969-G1		1	1
38	Screw, brass limit switch	A-13514-G1		2	2
39	Washer, lock, external tooth	B-00567-G4	#8	2	2
40	Faston tab	A-14628-G1		1	1
43	Screw, mach, Rd. Hd., Slot	B-00139-G2	#6-32UNC X 1 1/4 Lg.	2	2
45	Washer, lock, spring	B-00565-G3	#6	2	2
46	Nut, hex	B-00525-G5	#6-32 UNC-2B	2	2
49	Faston tab	A-12914-G1		1	1
50	Washer, lock, spring	B-00565-G5	#10	2	2
51	Nut, hex	B-00526-G4	#10-32 UNF-2B	2	2
54	Solenoid	B-11761-G1	36 volt, SPNO	1	1
55	Screw, hex, head	B-00414-G6	1/4-20 UNC X 3/4 Lg.	2	2
56	Washer, lock, spring	B-00565-G7	1/4	2	2
57	Nut, hex	B-00532-G1	1/4-20 UNC - 2B	2	2
58	Wire harness, accelerator switch	C-18838-G1		1	1
59	Clamp, nylon	A-17618-G1		4	4
60	Loom, flex, zip	B-18848-G1	1.00 18" Long	1	1
61	Wire assembly	A-14632-G1	4 to Al	1	1
62	Wire assembly	A-11892-G4	4	1	1
63	Wire assembly	A-11891-G4	3	1	1
64	Wire assembly	A-11890-G1	2	1	1
65	Wire assembly	A-11889-G1	1	1	1
66	Wire assembly, Lo speed, Solenoid	A-17965-G1		1	1
67	Wire assembly, solenoid, F & R switch	A-13493-G1		1	1
68	Washer, lock, external tooth	B-00567-G8		6	6
69	Washer, lock	B-00565-G8		4	4
70	Nut, hex, jam	B-00544-G4	5/16-24 UNF-2B	6	6

Accelerator Switch Assembly – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Accelerator switch assembly	D-19255-G2		1	1
4	Contact board assembly	D-18741-G1		1	1
5	Plate, accelerator	*		1	1
6	Stud, stop	A-17491-G1		1	1
7	Washer, Flat	B-00560-G1	3/8	1	1
8	Nut, lock, plastic insert	B-14390-G1	3/8-24 UNF-3B	1	1
9	Bushing, shaft	B-11902-G1		1	1
10	Nut, hex, jam	B-00545-G8	3/4-16 UNF-2B	2	2
11	Washer, Lock	B-00568-G6	3/4 External tooth	2	2
12	Stud, contact	*		5	5
13	Washer, lock, spring	*	5/16	5	5
14	Nut, hex	*	5/16-24 UNF-2B	5	5
17	Shaft and arm assembly	B-17973-G1		1	1
20	Brush and lead assembly	B-17504-G1		1	1
21	Terminal, ring	*	#6 x 5/16	1	1
22	Copper brush with lead	*		1	1
23	Spring, arm contact	*		1	1
24	Holder, brush	*		1	1
27	Pivot arm assembly	A-17663-G1		1	1
28	Arm, accelerator linkage	A-17655-G1		1	1
29	Ball, ball joint	B-15944-G3		1	1
30	Nut, lock, two way	B-00556-G4	1/4-20 UNC-2B	1	1
31	Nut, lock, plastic insert	B-11098-G3	1/2-20 UNF-3B	1	1
35	Switch, micro	B-10606-G2		1	1
36	Wire assembly, Black	A-17969-G1		1	1
38	Screw, brass limit switch	A-13514-G1		2	2
39	Washer, lock, external tooth	B-00567-G4	#8	2	2
40	Faston tab	A-14628-G1		1	1
43	Screw, mach, Rd. Hd., Slot	B-00139-G2	#6-32UNC X 1 1/4 Lg.	2	2
45	Washer, lock, spring	B-00565-G3	#6	2	2
46	Nut, hex	B-00525-G5	#6-32 UNC-2B	2	2
49	Faston tab	A-12914-G1		1	1
50	Washer, lock, spring	B-00565-G5	#10	2	2
51	Nut, hex	B-00526-G4	#10-32 UNF-2B	2	2
54	Solenoid	B-11761-G1	36 volt, SPNO	1	1
55	Screw, hex, head	B-00414-G6	1/4-20 UNC X 3/4 Lg.	2	2
56	Washer, lock, spring	B-00565-G7	1/4	2	2
57	Nut, hex	B-00532-G1	1/4-20 UNC - 2B	2	2
58	Wire harness, accelerator switch	C-18902-G1		1	1
59	Clamp, nylon	A-16172-G1		4	4
60	Loom, flex, zip	B-18834-G1	3/4	1	1
62	Wire assembly	C-18897-G5	4	1	1
63	Wire assembly	C-18897-G4	3	1	1
64	Wire assembly	C-18897-G2	2	1	1
65	Wire assembly	C-18897-G1	1	1	1
66	Wire assembly, Lo speed, Solenoid	A-17965-G1		1	1
67	Wire assembly, solenoid, F & R switch	A-13493-G1		1	1
68	Washer, lock, external tooth	B-00567-G8		6	6
69	Washer, lock	B-00565-G8		6	6
70	Nut, hex, jam	B-00544-G4	5/16-24 UNF-2B	1	1

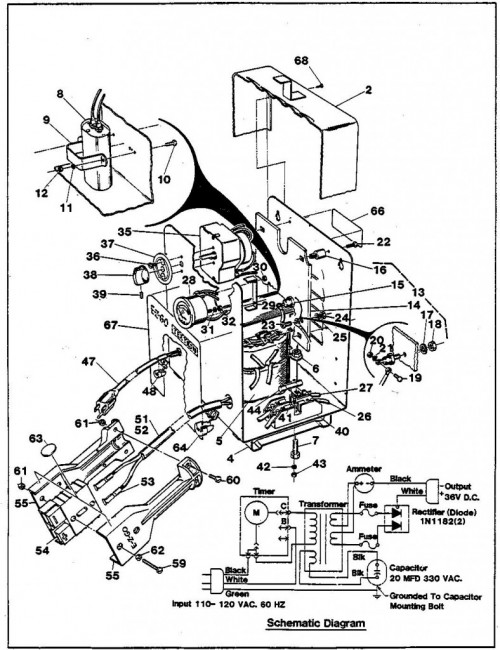

Battery Charger, 36 Volt – Standard – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Battery charger	C-18762-G1	36 Volt (Complete)	1	1
2	Top cover assembly	B-11569-G2		1	1
4	Bottom housing assembly	B-11556-G2		1	1
5	Transformer	D-18771-G1	36 volt charger	1	1
6	Nut, lock, flanged	B-11027-G2	1/4-20	4	4
7	Screw, machine, hex	B-00240-G5	1/4-20 x 5/8 Lg.	4	4
8	Capacitor	B-17077-G1		1	1
9	Capacitor bracket	B-11559-G1		1	1
10	Screw, machine, phillips	B-00372-G4	#8-32 x 1/2 Lg.	2	2
11	Washer, lock, spring type	B-00565-G4	#8	2	2
12	Nut, hex, machine, cad plate	B-00526-G1	#8-32	2	2
13	Heat sink assembly	C-18768-G2		1	1
14	Heat sink	C-18489-G1		1	1
15	Diode	B-18488-G1	Silicon rectifier	2	2
16	Nut, plastic expansion	B-11572-G2		3	3
17	Washer, lock, spring	B-00565-G7	1/4	2	2
18	Nut, hex	B-00532-G2	1/4-24	2	2
19	Screw, cad plated	B-00138-G3	#6-32 x 3/8 Lg.	2	2
20	Nut, hex, machine	B-00525-G5	#6-32	2	2
21	Washer, lock, external tooth, cad plated	B-00567-G3		2	2
22	Screw, self tapping, phillips	B-00512-G7	#8 x 7/8 Lg.	3	3
23	Screw, machine, phillips	B-00378-G4	#10-24 x 1/2 Lg.	1	1
24	Nut, hex, machine, cad plate	B-00526-G3	#10-24	1	1
25	Washer, lock, spring type	B-00565-G5	#10	1	1
26	Wire	A-18769-G1	12 Ga. 9", white	1	1
27	Wire	A-18769-G2	12Ga. 10" white	1	1
28	D. C. ammeter	B-18764-G1		1	1
29	Ammeter bracket	*		1	1
30	Nut, hex, machine, cad plate	B-00525-G5	#6-32	2	2
31	Washer, lock, spring type	B-00565-G5	#10	2	2
32	Nut, hex, machine, cad plate	B-00526-G4	#10-32	2	2
35	Timer	C-18052-G1		1	1
36	Screw, machine, phillips	B-00372-G2	#8-32 x 1/4 Lg.	2	2
37	Decal, timer	B-11561-G1		1	1
38	Knob, timer	B-11575-G1		1	1
39	Screw, set, cup point, socket	B-00486-G4	#8-32 x 1/2 Lg.	1	1
40	Fuse block	B-18245-G1		1	1
41	Screw, machine, phillips	B-00372-G4	#8-32 x 1/2 Lg.	2	2
42	Washer, lock, spring type	B-00565-G4	#8	2	2
43	Nut, hex, machine, cad plate	B-00526-G1	#8-32	2	2
44	Fuse	A-18758-G1		2	2
47	A. C. cord	B-11564-G1		1	1
48	Strain relief, plastic	B-13557-G2	A.C. cord	1	1
49	D. C. cord assembly 10 ft.	C-18747-G1		1	1
50	D. C. cord assembly 15 ft.	C-18747-G3		1	1
51	D. C. cord sub assembly 10 ft.	C-14489-G2		1	1
52	D. C. cord sub assembly 15 ft.	C-14489-G4		1	1
53	Contact, connector	B-13802-G1		2	2
54	Connector	B-18782-G1		1	1
55	Handle installation kit	B-18972-G1		1	1
56	Handle - half - LH	*		1	1
57	Handle - half - RH	*		1	1
59	Screw, machine, slot	B-00647-G9	#6-32 x 29-32 Lg.	2	2
60	Screw, mach, slot, stainless steel	B-00647-G3	#6-32 x 3/8 Lg.	2	2
61	Nut, hex, stainless steel	B-00646-G1	#6-32	4	4
62	Washer, flat	B-00650-G2	#5	2	2
63	Decal, side identification	A-16568-G1		1	1
64	Strain relief, plastic	B-13557-G3	D. C. cord	1	1
66	Serial number decal, battery charger			1	1
67	Decal, operating instructions, charger	C-18710-G1		1	1
68	Screw, self tapping, phillips	B-00614-G4	#8 - 1/2 Lg.	10	10

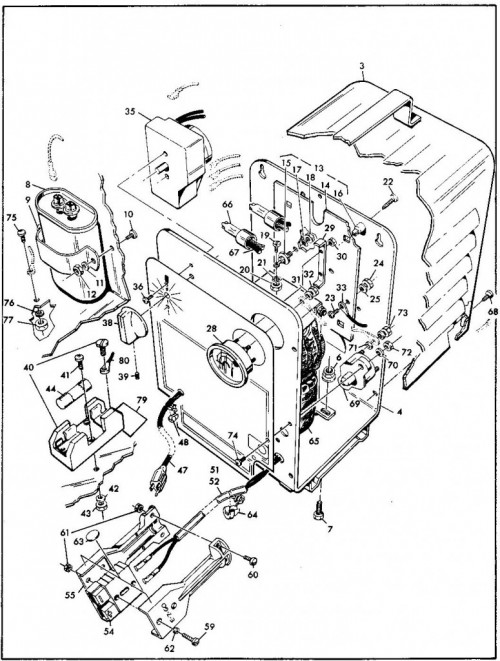

Battery Charger, 36 Volt – U.L – UL 0001

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Battery charger	C-19012-G1	36 Volt (Complete), 10 Ft. D.C. cord	1	1
2	Battery charger	C-19012-G3	36 volt (Complete), 15 Ft. D. C. cord	1	1
3	Top cover assembly	B-11569-G2		1	1
4	Bottom housing assembly	C-19086-G4		1	1
6	Nut, lock, flanged	B-11027-G2	1/4-20	4	4
7	Screw, machine, hex	B-00240-G5	1/4-20 x 5/8 Lg.	4	4
8	Capacitor	B-17077-G1		1	1
9	Capacitor bracket	B-11559-G1		1	1
10	Screw, machine, phillips	B-00372-G4	#8-32 x 1/2 Lg.	2	2
11	Washer, lock, spring type	B-00565-G4	#8	2	2
12	Nut, hex, machine, cad plate	B-00526-G1	#8-32	2	2
13	Heat sink assembly	C-18768-G2		1	1
14	Heat sink	C-18489-G1		1	1
15	Diode	B-18488-G1	Silicon rectifier	2	2
16	Nut, plastic expansion	B-11572-G2		3	3
17	Washer, lock, spring	B-00567-G7	1/4	2	2
18	Nut, hex	B-00532-G2	1/4-28	2	2
19	Screw, cad plated	B-00138-G3	#6-32 x 3/8 Lg.	2	2
20	Nut, hex, machine	B-00525-G5	#6-32	2	2
21	Washer, lock, external tooth, cad plated	B-00567-G3		2	2
22	Screw, self tapping, phillips	B-00512-G7	#8 x 7/8 Lg.	3	3
23	Screw, machine, phillips	B-00378-G4	#10-24 x 1/2 Lg.	1	1
24	Nut, hex, machine, cad plate	B-00526-G3	#10-24	1	1
25	Washer, lock, spring type	B-00565-G5	#10	1	1
28	D. C. ammeter	B-18764-G1		1	1
29	Ammeter bracket	*		1	1
30	Nut, hex, machine, cad plate	B-00525-G5	#6-32	2	2
31	Washer, lock, spring type	B-00565-G5	#10	2	2
32	Nut, hex, machine, cad plate	B-00526-G4	#10-32	2	2
33	Wire	B-19441-G1	12 Ga., 9", White	1	1
35	Timer	C-18052-G1		1	1
36	Screw, machine, phillips	B-00372-G2	#8-32 x 1/4 Lg.	2	2
38	Knob, timer	B-11575-G1		1	1
39	Screw, set, cup point, socket	B-00486-G4	#8-32 x 1/2 Lg.	1	1
40	Fuse block	C-19363-G1		1	1
41	Screw, machine, phillips	B-00372-G5	#8 - 32 x 5/8 Lg.	2	2
42	Washer, lock, spring type	B-00565-G4	#8	2	2
43	Nut, hex, machine, cad plate	B-00526-G1	#8-32	2	2
44	Fuse	B-19361-G1	A.C., 15 amp	1	1
47	A. C. cord	C-19388-G1		1	1
48	Strain relief, plastic	B-13557-G2	A.C. cord	1	1
49	D. C. cord assembly 10 ft.	C-18747-G1		1	1
50	D. C. cord assembly 15 ft.	C-18747-G3		1	1
51	D. C. cord sub assembly 10 ft.	C-14489-G2		1	1
52	D. C. cord sub assembly 15 ft.	C-14489-G4		1	1
53	Contact, connector	B-13802-G1		2	2
54	Connector	B-18782-G1		1	1
55	Handle installation kit	B-18972-G1		1	1
56	Handle - half - LH	*		1	1
57	Handle - half - RH	*		1	1
59	Screw, machine, slot	B-00647-G9	#6-32 x 29-32 Lg.	2	2
60	Screw, mach, slot, stainless steel	B-00647-G3	#6-32 x 3/8 Lg.	2	2
61	Nut, hex, stainless steel	B-00646-G1	#6-32	4	4
62	Washer, flat	B-00650-G2	#5	2	2
63	Decal, side identification	A-16568-G2		1	1
64	Strain relief, plastic	B-13557-G3	D. C. cord	1	1
65	Transformer assembly	C-19928-G1		1	1
66	Wire splice, closed end	*		2	2
67	Wire	*	12 Gauge, 10" white	2	2
68	Screw, self tapping, phillips	B-00614-G4	#8 - 1/2 Lg.	10	10
69	Circuit breaker	C-19362-G1	50 Amp	1	1
70	Washer, lock, spring type	B-00565-G4	#8	2	2
71	Washer, flat	B-00565-G5	Type #10	4	4
72	Nut, hex, machine, cad plate	B-00526-G1	#8-32	2	2
73	Nut, hex, machine, cad plate	B-00526-G4	#10-32	2	2
74	Screw, medium, pan head, cad plate	B-00372-G6	#8-32 x 3/4 Lg.	2	2
75	Screw, machine, pan head, cad plate	B-00372-G3	#8-32 x 3/8 Lg.	1	1
76	Washer, lock, spring type	B-00565-G4	#8	1	1
77	Nut, hex, machine, cad plate	B-00526-G1	#8-32	1	1
79	Label, fuse identification	B-19434-G1		1	1
80	Wire assembly	B-19402-G1	16 Ga. Black	1	1

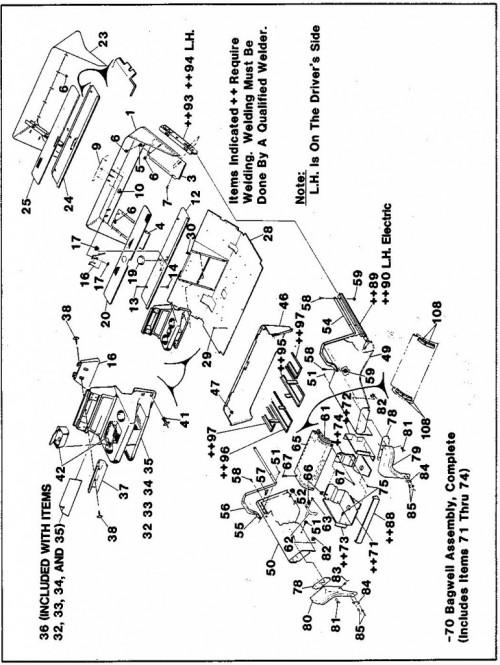

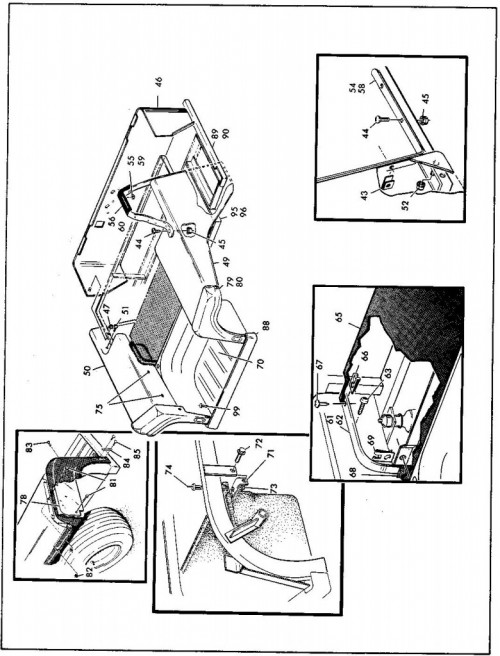

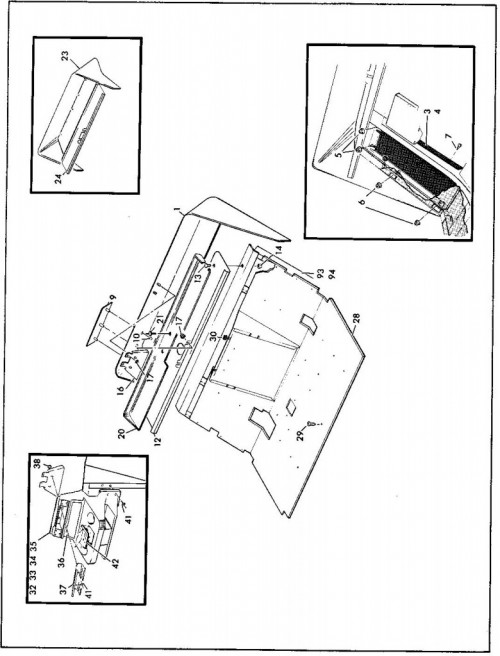

Body And Associated Parts – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Cowl Assembly	D-17107-G2		1
3	Cover plate assembly, right	B-15680-G2		1
4	Cover plate assembly, left	B-15681-G2		1
5	Nut, hex, jam, cad plate	B-00544-G3	5/16-18	4
6	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	16	13
7	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	2
9	Emblem	B-14614-G1	E-Z-GO	1	1
10	Nut, cap, push on	B-11377-G1		3	3
12	Dash tray assembly	C-18352-G2		1
13	Screw, cap, hex Hd, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	5	5
14	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	3	3
16	Cowl support assembly	C-18348-G1		1	1
17	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
19	Cap, fork stem	B-12110-G1		1
20	Mat, dash tray	B-17098-G1		1
23	Cowl Assembly	C-17104-G2			1
24	Dash tray assembly	C-18353-G2			1
25	Mat, dash tray	B-17097-G1			1
28	Floorboard assembly	D-15671-G2		1	1
29	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4	23	23
30	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	2	2
32	Console, center	D-18487-G1	Does not accept ash tray	1
33	Console, center	D-18487-G2	Does not accept ash tray		1
34	Console, center	D-18487-G3	Accepts ash tray	1
35	Console, center	D-18487-G4	Accepts ash tray		1
36	Decal, safety	B-18332-G1	Includes in items 32, 33,34 & 35
37	Ball holder	B-18275-G1		1	1
38	Washer	B-00559-G7	Flat 1/4	2	2
41	Rivet, drive, plastic	A-18436-G1		6	6
42	Ash tray, recessed	A-17581-G1		1	1
46	Seat wrap assembly	D-16140-G2		1	1
47	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	8	8
49	Fender weldment, right	D-14707-G7		1	1
50	Fender weldment, left	D-14707-G8		1	1
51	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	10	10
52	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
54	Bent arm rest trim assembly, right	C-14775-G1		1	1
55	Bent arm rest trim assembly, left	C-14775-G2		1	1
56	Vinyl tubing	B-12117-G1	Heat shrink	2	2
57	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	4	4
58	Screw, machine, truss Hd., phillips, stainless steel	B-16705-G1	1/4- 20 x 1 Lg.	10	10
59	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
61	Fillet, trunk lid, right	B-16645-G3		1	1
62	Fillet, trunk lid, left	B-16645-G4		1	1
63	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	4	4
65	Trunk lid	C-16642-G2		1	1
66	Nut, speed, "U" type	A-15844-G1		4	4
67	Screw, tapping, truss hd phillips, cad plate	B-00598-G6	#10-16 x 3/4	4	4
70	Bagwell assembly, complete	D-17550-G2		1	1
71	Bottom, bagwell	C-17174-G2		1	1
72	Panel, side, bagwell, Right	C-15674-G3		1	1
73	Panel, side bagwell, Left	C-15674-G4		1	1
74	Panel, front, bagwell	B-15675-G2		1	1
75	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4	8	8
78	Plate, mounting	B-14726-G1		2	2
79	Flexible fender cap, right	D-14700-G1		1	1
80	Flexible fender cap, left	D-14700-G2		1	1
81	Screw, cap, hex, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	6	6
82	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
83	Rivet, aluminum, black	A-15058-G1		2	2
84	Trim strip	B-14705-G1		2	2
85	Rivet, aluminum	B-14601-G2		4	4
88	Bumper, rear	C-11707-G2		1	1
89	Side rail assembly, right	B-15533-G3		1	1
90	Side rail assembly, left	B-15533-G4		1	1
93	Top rail, right	C-15536-G3		1	1
94	Top rail, left	C-15536-G4		1	1
95	Battery rock, inner, right	C-17026-G1		1	1
96	Battery rock, inner, left	C-17026-G2		1	1
97	Battery rock, outer	C-15528-G2		2	2
108	Noise suppressor, trunk lid	A-18391-G1		2	2

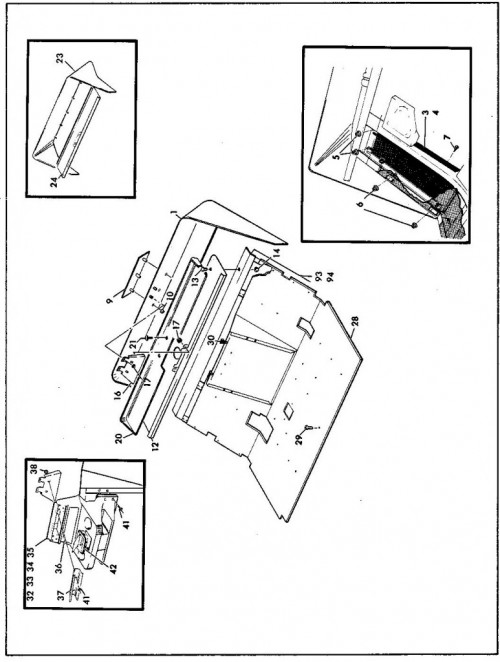

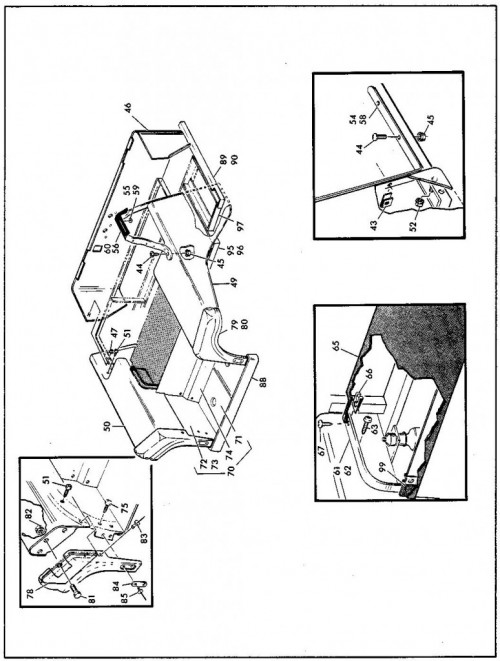

Body And Associated Parts – B2784 313485 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Cowl Assembly	D-17107-G2		1
3	Cover plate assembly, right	B-15680-G2		1
4	Cover plate assembly, left	B-15681-G2		1
5	Nut, hex, jam, cad plate	B-00544-G3	5/16-18	4
6	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	16	13
7	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	2
9	Emblem	B-14614-G1	E-Z-GO	1	1
10	Nut, cap, push on	B-11377-G1		3	3
12	Dash tray assembly	C-18352-G2		1
13	Screw, cap, hex Hd, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	5	5
14	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	3	3
16	Cowl support assembly	C-18348-G1		1	1
17	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
20	Liner, dash tray	D-18796-G1		1	1
21	Rivet, plastic drive	A-18436-G1		2	2
23	Cowl Assembly	C-17104-G2			1
24	Dash tray assembly	C-18353-G2			1
28	Floorboard assembly	D-15671-G2		1	1
29	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4	23	23
30	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	2	2
32	Console, center	C-18487-G1	Does not accept ash tray	1
33	Console, center	C-18487-G2	Does not accept ash tray		1
34	Console, center	C-18487-G3	Accepts ash tray	1
35	Console, center	C-18487-G4	Accepts ash tray		1
36	Decal, safety	B-18332-G1	Includes in items 32, 33,34 & 35
37	Ball holder	B-18275-G1		1	1
38	Washer	B-00559-G7	Flat 1/4	2	2
41	Rivet, drive, plastic	A-18436-G1		6	6
42	Ash tray, recessed	A-17581-G1		1	1
43	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	4	4
44	Screw, machine, truss Hd., Phillips, S. S.,	B-16705-G1	1/4-20 x 1 Lg.	10	10
45	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
46	Seat wrap assembly	D-18372-G2		1	1
47	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	8	8
49	Fender weldment, right	D-14707-G7		1	1
50	Fender weldment, left	D-14707-G8		1	1
51	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	10	10
52	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
53	Restraint, Hip-hand hold assembly, R.S.	D-19379-G1		1	1
54	Restraint, hip-hand hold	D-19357-G1		1	1
55	Nut, self-Threading	A-19577-G1	3/16	2	2
56	Trim, hand hold	C-19356-G1		1	1
57	Restraint, hip-hand hold assembly, L.S.	D-19379-G2		1	1
58	Restraint, Hip-hand hold	D-19358-G1		1	1
59	Nut, self-Threading	A-19577-G1	3/16	2	2
60	Trim, hand hold	C-19356-G1		1	1
61	Fillet, trunk lid, right	B-16645-G3		1	1
62	Fillet, trunk lid, left	B-16645-G4		1	1
63	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	4	4
65	Trunk lid	C-16642-G2		1	1
66	Nut, speed, "U" type	A-15844-G1		4	4
67	Screw, tapping, truss hd phillips, cad plate	B-00598-G6	#10-16 x 3/4	4	4
70	Bagwell assembly, complete	D-17550-G2		1	1
71	Bottom, bagwell	C-17174-G2		1	1
72	Panel, side, bagwell, Right	C-15674-G3		1	1
73	Panel, side bagwell, Left	C-15674-G4		1	1
74	Panel, front, bagwell	B-15675-G2		1	1
75	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4	8	8
78	Plate, mounting	B-14726-G1		2	2
79	Flexible fender cap, right	D-14700-G1		1	1
80	Flexible fender cap, left	D-14700-G2		1	1
81	Screw, cap, hex, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	6	6
82	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
83	Rivet, aluminum, black	A-15058-G1		2	2
84	Trim strip	B-14705-G1		2	2
85	Rivet, aluminum	B-14601-G2		4	4
88	Bumper, rear	C-11707-G2		1	1
89	Side rail assembly, right	B-15533-G3		1	1
90	Side rail assembly, left	B-15533-G4		1	1
93	Top rail, right	C-15536-G3		1	1
94	Top rail, left	C-15536-G4		1	1
95	Battery rock, inner, right	C-17026-G1		1	1
96	Battery rock, inner, left	C-17026-G2		2	2
97	Battery rock, outer	C-15528-G2		2	2
99	Noise suppressor, trunk lid	A-18391-G1		2	2

Body And Associated Parts – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Cowl Assembly	D-20211-G2		1
3	Cover plate assembly, right	B-15680-G2		1
4	Cover plate assembly, left	B-15681-G2		1
5	Nut, hex, jam, cad plate	B-00544-G3	5/16-18	4
6	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	16	13
7	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	2
9	Emblem	C-19817-G1	E-Z-GO	1	1
10	Nut, cap, push on	A-12064-G3		3	3
12	Dash tray assembly	C-18352-G2		1
13	Screw, cap, hex Hd, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	5	5
14	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	3	3
16	Cowl support assembly	C-18348-G1		1	1
17	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
20	Liner, dash tray	D-18796-G1		1	1
21	Rivet, plastic drive	A-18436-G1		2	2
23	Cowl Assembly	C-20210-G2			1
24	Dash tray assembly	C-18353-G2			1
28	Floorboard assembly	D-15671-G2		1	1
29	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4	23	23
30	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	2	2
32	Console, center	C-18487-G1	Does not accept ash tray	1
33	Console, center	C-18487-G2	Does not accept ash tray		1
34	Console, center	C-18487-G3	Accepts ash tray	1
35	Console, center	C-18487-G4	Accepts ash tray		1
36	Decal, safety	B-18332-G1	Includes in items 32, 33,34 & 35
37	Ball holder	B-18275-G1		1	1
38	Washer	B-00559-G7	Flat 1/4	2	2
41	Rivet, drive, plastic	A-18436-G1		6	6
42	Ash tray, recessed	A-17581-G1		1	1
43	Retainer, nut "J" type, black phosphate	A-14776-G1	1/4-20	4	4
44	Screw, machine, truss Hd., Phillips, S. S.,	B-16705-G1	1/4-20 x 1 Lg.	10	10
45	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
46	Seat wrap assembly	D-20297-G2		1	1
47	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	8	8
49	Fender weldment, right	D-19555-G3		1	1
50	Fender weldment, left	D-19555-G4		1	1
51	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	10	10
52	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	4	4
53	Restraint, Hip-hand hold assembly, R.S.	D-19379-G1		1	1
54	Restraint, hip-hand hold	D-19357-G1		1	1
55	Nut, self-Threading	A-12064-G3	3/16	2	2
56	Trim, hand hold	C-19356-G1		1	1
57	Restraint, hip-hand hold assembly, L.S.	D-19379-G2		1	1
58	Restraint, Hip-hand hold	D-19358-G1		1	1
59	Nut, self-Threading	A-12064-G3	3/16	2	2
60	Trim, hand hold	C-19356-G1		1	1
61	Fillet, trunk lid, right	C-19534-G3		1	1
62	Fillet, trunk lid, left	C-19534-G4		1	1
63	Screw, self drill & top, pan Hd., phillips, cad plate	B-00106-G6	#12-24 x 3/4 Lg.	4	4
64	Truck lid installation kit	C-19533-G2
65	Trunk lid	C-19554-G2		1	1
66	Nut, speed, "U" type	A-15844-G1	1/32" mat	2	2
67	Screw, tapping, truss hd phillips, cad plate	B-00598-G6	#10-16 x 3/4	4	4
68	Noise suppressor, Trunk lid	A-17684-G1		4	4
69	Nut, speed, "U" type	A-19599-G1	1/8" mat	2	2
70	Bagwell plastic	D-19034-G1		1	1
71	Bagwell mount	B-19524-G1		2	2
72	Screw, lock, flanged, whiz	B-13437-G4	3/8 - 16 x 1" Lg.	2	2
73	Nut, lock, flanged, whiz	B-11027-G5	3/8 - 16 - 2B	1	1
74	Rivet, plastic drive	A-18436-G1		4	4
75	Rivet, alum, black	A-15058-G1	3/16"	4	4
78	Plate, mounting	B-14726-G1		2	2
79	Flexible fender cap, right	D-14700-G1		1	1
80	Flexible fender cap, left	D-14700-G2		1	1
81	Screw, cap, hex, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	6	6
82	Nut, lock, flanged, cad plate	A-11027-G2	1/4-20	6	6
83	Rivet, aluminum, black	A-15058-G1		2	2
84	Trim strip	B-14705-G1		2	2
85	Rivet, aluminum	B-14601-G2		4	4
88	Bumper, rear	C-19755-G1		1	1
89	Side rail assembly, right	B-15533-G3		1	1
90	Side rail assembly, left	B-15533-G4		1	1
93	Top rail, right	C-15536-G3		1	1
94	Top rail, left	C-15536-G4		1	1
95	Battery rock, inner, right	C-17026-G1		1	1
96	Battery rock, inner, left	C-17026-G2		1	1
97	Battery rock, outer	C-15528-G2		2	2

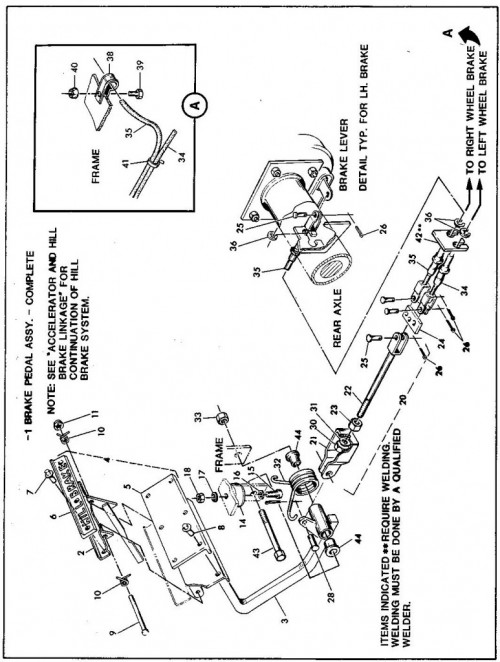

Brake Linkage – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Brake pedal assembly	B-15812-G1	Complete	1	1
2	Hill brake pedal assembly	C-15813-G1		1	1
3	Brake pedal arm assembly	C-15814-G1		1	1
4	Brake pedal pad kit	A-15826-G1		1	1
5	Brake pedal pad kit	*		1	1
6	Hill brake pad	*		1	1
7	Rivet	A-15766-G1	Small head	3	3
8	Rivet	A-15767-G1	Large head	6	6
9	Pin, hill brake pedal	B-15932-G1		1	1
10	Spring, hill brake	B-11737-G1		2	2
11	Nut, push on	A-12064-G1		1	1
14	Pedal bumper kit	A-14061-G1		1	1
15	Screw, machine, slotted	*	#10-24 x 3/4 Lg.	1	1
16	Washer, flat, cad plate	*	#12	1	1
17	Washer, lock, spring	*	#10	1	1
18	Nut, hex, cad plate	*	#10-24	1	1
20	Brake yoke assembly	C-19960-G1		1	1
21	Yake brake	C-19852-G1		1	1
22	Turnbuckle jaw	B-19957-G1	7.31 in.	1	1
23	Nut, hex	B-00532-G3	5/16 - 18	1	1
24	Equalizing bar	A-13659-G1		1	1
25	Pin, clevis	B-10386-G3		6	6
26	Cotter, pin	B-10387-G3		6	6
30	Nut, lock, plastic insert	B-00556-G3	5/16 - 18	1	1
31	Washer	B-00559-G8	Flat 5/16	1	1
32	Torsion spring kit	A-13315-G1		1	1
33	Nut, lock, uni-torque	B-13521-G4		1	1
34	Brake cable	C-19038-G1	Left	1	1
35	Brake cable	C-19038-G2	Right	1	1
36	Retaining ring	A-12305-G1	Brake cables	4	4
38	Clip, cable	A-11845-G2		1	1
39	Screw, cap, hex, cad plate	B-00414-G6	1/4-20 x 3/4 Lg.	1	1
40	Nut, lock, flanged	A-11027-G2	1/4-20	1	1
41	Clamp, nylon	A-16172-G1		1	1
42	Bracket, brake cable	B-13332-G1		1	1
43	Bolt, shoulder	A-14158-G1	3/8-16	1	1
44	Bushing, flanged, nylon	B-11079-G1		2	2

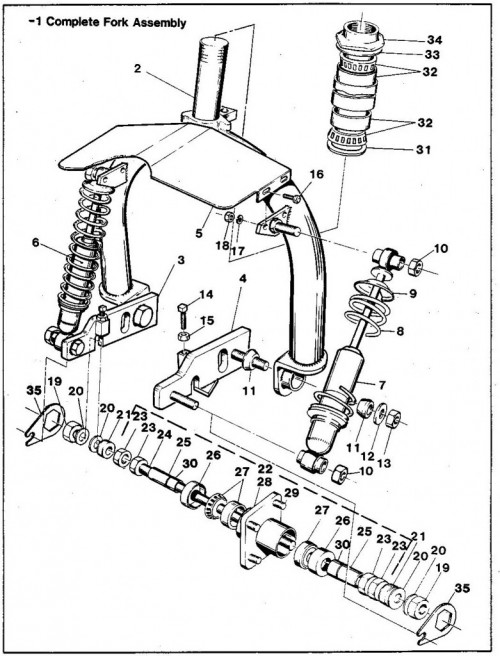

Fork Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Fork assembly	D-17533-G1	Complete assembly	1
2	Fork sub assembly	D-17537-G1		1
3	Axle bracket assembly	C-17542-G1	R.H.	1
4	Axle bracket assembly	C-17542-G2	L.H.	1
5	Shield	C-15643-G1		1
6	Shock absorber assembly	C-17547-G1		2
7	Shock absorber sub assembly	B-17907-G1	1 per assembly	2
8	Spring compression	C-19794-G2	1 per assembly	2
9	Retainer spring	B-17816-G1	1 per assembly	2
10	Nut, hex, lock	B-00557-G1	1/2-13	4
11	Bushing, pivot	B-15588-G1		4
12	Washer	B-00560-G5	flat 5/8	2
13	Nut, lock, plastic insert	B-14390-G7	5/8-11	2
14	Screw, set square hd.	B-00492-G6	1/4-20 x 1 3/4 Lg.	2
15	Nut, hex, jam	B-00544-G1	1/4-20	2
16	Screw, machine	B-00378-G4	10-24 x 1/2 Lg.	4
17	Washer, lock, split	B-00565-G5	#10	4
18	Nut, hex	B-00526-G3	10-24	4
19	Nut, jam, lock	A-11081-G1	3/4-16	2
20	Washer, flat	B-00560-G6	3/4	4
21	Ring, adjuster	B-17650-G1		2
22	Hub and axle assembly	C-17535-G1		1
23	Nut, hex jam	B-00545-G8	3/4-16	4
24	Axle, front	B-10223-G5		1
25	Spacer, axle	B-17536-G1		2
26	Seal, grease	A-11492-G1		2
27	Bearing, race assembly	A-50908-G1		2
28	Hub assembly	C-19888-G1	includes item 28 and bearing race	1
29	Bolt hub	B-19862-G1	1/2-20	4
30	Spacer, axle	A-11655-G1		2
31	Spacer	A-13136-G1		1
32	Bearing, roller complete	B-11103-G1		2
33	Washer, special	B-10669-G3		1
34	Nut, lock, plastic insert	B-11098-G1	1 3/8-12	1
35	Retainer, axle nut	B-18256-G1		2

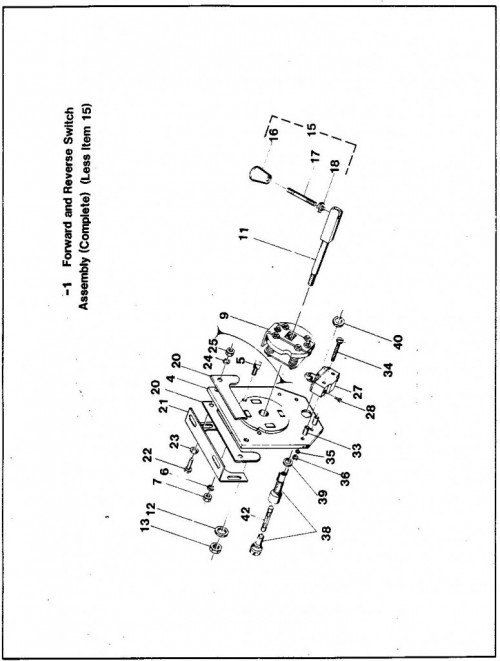

Forward And Reverse Switch Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Forward & reverse switch assembly	C-16787-G2	Complete	1	1
4	F & R contact board assembly	C-14651-G1	includes contacts	1	1
5	Stop, F & R switch	A-14654-G1		2	2
6	Washer, lock, spring type, cad plated	B-00565-G7	1/4	2	2
7	Nut, hex, cad plated	B-00532-G1	1/4-20	2	2
9	F & R switch cam assembly	B-12835-G1		1	1
11	Shaft, forward & reverse switch	B-13124-G1		1	1
12	Washer, flat, cad plated	B-00560-G1	3/8	1	1
13	Nut, lock, plastic insert	B-14390-G1	3/8-24	1	1
15	Forward & reverse switch handle assembly	B-11988-G1		1	1
16	Knob, plastic	*		1	1
17	F & R switch handle	*		1	1
18	Nut, hex, jam, cad plated	*	5/16-18	1	1
20	Bracket, mounting support	B-15461-G1		2	2
21	Bracket, mounting	B-12863-G1		1	1
22	Screw, machine, hex, cad plated	B-00240-G8	1/4-20 X 1 Lg.	2	2
23	Washer, flat, medium, cad plated	B-00559-G7	1/4	2	2
24	Washer, lock, spring type, cad plated	B-00565-G7	1/4	2	2
25	Nut, hex, cad plated	B-00532-G1	1/4-20	2	2
27	Switch, micro	B-10606-G2		1	1
28	Screw, brass	A-13514-G1	#6-32 x .22	2	2
33	Spacer, micro switch	A-12806-G1		2	2
34	Screw, machine, round Hd., slotted, cad plated	B-00139-G6	#6-32 x 1 3/4	2	2
35	Washer, lock, spring type, cad plated	B-00565-G3	#6	2	2
36	Nut, hex, machine, cad plated	B-00525-G5	#6-32	2	2

Forward And Reverse Switch Assembly – J1884 337245, A3185 344761 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Forward & reverse switch assembly complete	D-19297-G2	Less item 34	1	1
2	Contact board assembly	C-14561-G1		1	1
3	Stop	A-14654-G1		2	2
4	Washer, lock	B-00565-G7	1/4	2	2
5	Nut, hex	B-00532-G1	1/4-20	2	2
7	F & R switch cam assembly	B-12835-G1		1	1
8	Shaft, forward & reverse switch	B-13124-G1		1	1
9	Washer, flat	B-00560-G1	3/8	1	1
10	Nut, lock, plastic insert	B-14390-G1	3/8-24	1	1
12	Switch, micro	B-10606-G2		2	2
13	Screw, machine, round, slotted	B-00139-G6	#6-32 x 1 3/4 Lg.	4	4
14	Spacer, micro switch	A-12806-G1		4	4
15	Washer, lock, spring type, cad plated	B-00565-G3	#6	4	4
16	Nut, hex, machine, cad plated	B-00525-G5	#6-32	4	4
18	Buzzer assembly	B-17940-G1		1	1
19	Screw	B-00138-G5	#6-32 x 5/8 Lg.	2	2
20	Washer, lock	B-00565-G3	#6	2	2
21	Nut, hex	B-00525-G5	#6-32	2	2
23	Bracket, mounting	B-12863-G1		1	1
24	Bracket, mounting support	B-15461-G1		2	2
25	Screw, hex	B-00414-G8	1/4-20 x 1 Lg.	2	2
26	Washer, flat	B-00559-G7	1/4	2	2
27	Washer, lock, spring type, cad plated	B-00565-G7	1/4	2	2
28	Nut, hex, cad plated	B-00532-G1	1/4-20	2	2
30	Screw, brass	A-13514-G1	#6-32 x .22	4	4
31	Faston, tab	A-14628-G1		2	2
32	Washer, lock, external tooth	A-00567-G3	#6	2	2
34	Forward & reverse switch handle assembly	B-11988-G1		1	1
35	Knob, plastic	*		1	1
36	F & R switch handle	*		1	1
37	Nut, hex, jam, cad plated	*	5/16-18	1	1
39	Bushing, snap	B-19022-G1		1	1

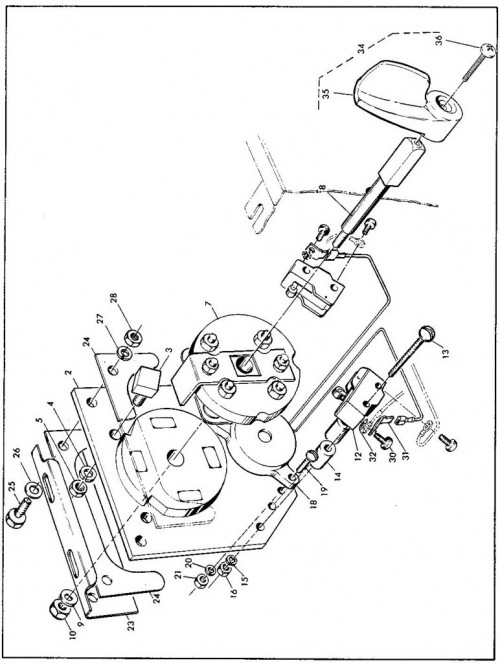

Forward And Reverse Switch Assembly – L2486 380275, 280275 and Later

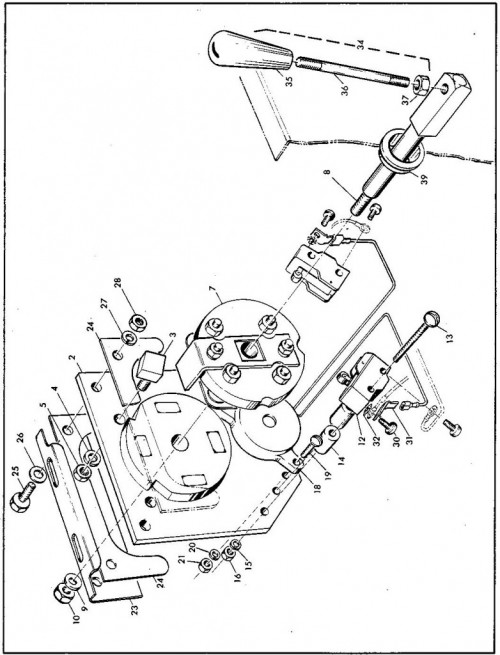

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Forward & reverse switch assembly complete	D-20270-G2		1	1
2	Contact board assembly	C-14561-G1		1	1
3	Stop	A-14654-G1		2	2
4	Washer, lock	B-00565-G7	1/4	2	2
5	Nut, hex	B-00532-G1	1/4-20	2	2
7	F & R switch cam assembly	B-12835-G1		1	1
8	Shaft, forward & reverse switch	B-19470-G1		1	1
9	Washer, flat	B-00560-G1	3/8	1	1
10	Nut, lock, plastic insert	B-14390-G1	3/8-24	1	1
12	Switch, micro	B-10606-G2		2	2
13	Screw, machine, round, slotted	B-00139-G6	#6-32 x 1 3/4 Lg.	4	4
14	Spacer, micro switch	A-12806-G1		4	4
15	Washer, lock, spring type, cad plated	B-00565-G3	#6	4	4
16	Nut, hex, machine, cad plated	B-00525-G5	#6-32	4	4
18	Buzzer assembly	B-17940-G1		1	1
19	Screw	B-00138-G5	#6-32 x 5/8 Lg.	2	2
20	Washer, lock	B-00565-G3	#6	2	2
21	Nut, hex	B-00525-G5	#6-32	2	2
23	Bracket, mounting	B-12863-G1		1	1
24	Bracket, mounting support	B-15461-G1		2	2
25	Screw, hex	B-00414-G8	1/4-20 x 1 Lg.	2	2
26	Washer, flat	B-00559-G7	1/4	2	2
27	Washer, lock, spring type, cad plated	B-00565-G7	1/4	2	2
28	Nut, hex, cad plated	B-00532-G1	1/4-20	2	2
30	Screw, brass	A-13514-G1	#6-32 x .22	4	4
31	Faston, tab	A-14628-G1		2	2
32	Washer, lock, external tooth	A-00567-G3	#6	2	2
34	Forward & reverse switch handle kit	A-20325-G1		1	1
35	handle, plastic	C-19886-G1		1	1
36	Screw	B-00681-G6	#8 - 32 x .75 Lg.	1	1

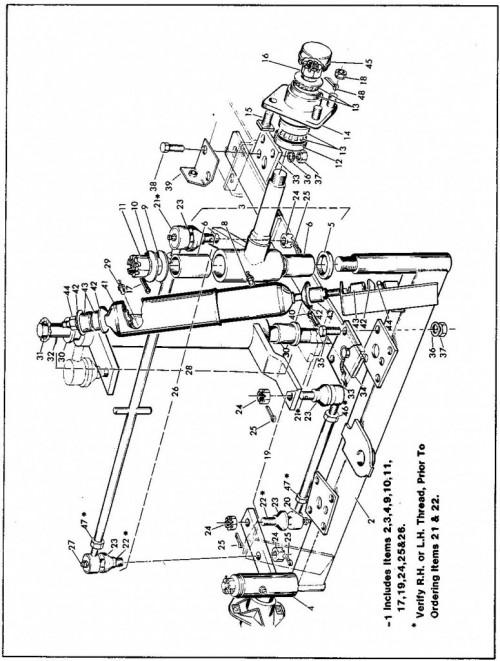

Four Wheel Front Suspension – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity	Purchase

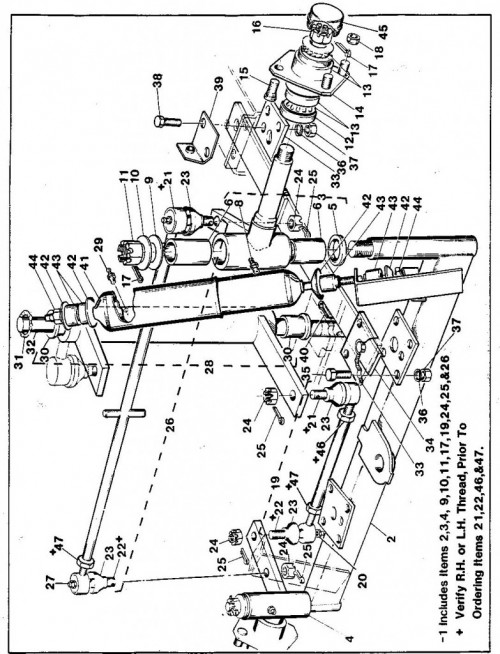

1	Front axle assembly.	C-17047-G1	includes 2,3,4,9,10,11,17,19,24,25,26	1
2	Axle weldment	C-16633-G1		1
3	Spindle assembly	B-16625-G1	Left	1
4	Spindle assembly	B-16624-G1	Right	1
5	Seal	A-16626-G1		2
6	Bearing - bronze	B-16623-G1		4
8	Grease fitting	B-10389-G3		2
9	Bearing - thrust	B-16982-G1		2
10	Washer	A-00560-G5	5/8	2
11	Nut, hex, slotted	A-15019-G1	5/8-18	2
12	Seal, grease	B-16103-G1		2
13	Bearing and race assembly	A-50892-G1		4
14	Hub assembly	B-17477-G1		2
15	Bolt, hub	B-17126-G1	1/2-20	8
16	Nut, hex, slotted	A-12093-G1	1/14	2
17	Cotter pin	B-10387-G1		4
18	Nut, lug, cad plated	B-14723-G1	1/2-20	8
19	Tie rod assembly	B-18377-G1	includes (I) L.H. and (I) R.H. rod end	1
20	Grease fitting	A-18372-G1	(2) per assembly	2
21	Tie rod end	A-50210-G1	L.H. thread (1) per assembly	2
22	Tie rod end	A-50165-G1	R.H. thread (1) per assembly	2
23	Rubber boot	A-50641-G1	Tie rod end (2) per assembly	4
24	Nut, hex, slotted	A-50209-G1	7/16-20 (2) per tie rod assy	4
25	Cotter pin	B-10387-G2	(2) per tie rod assembly	4
26	Tie rod w/tow pin assembly	C-18376-G1	includes (I) L.H. and (I) R.H. rod end	1
27	Grease fitting	B-18372-G1		2
28	Idler assembly	C-16707-G1		1
29	Grease fitting	B-10389-G3		1
30	Bushing - flanged	B-15012-G1		2
31	Spring washer, wave type	A-13221-G1		1
32	Shaft, idler	B-16417-G1		1
33	Spring retainer	B-15023-G2		4
34	Leaf spring assembly	C-15040-G1		2
35	Screw, cap, hex, cad plated	B-00427-G4	3/8-16 x 1 1/2 Lg.	8
36	Washer, lock, spring type	B-00566-G1	3/8	14
37	Nut, hex, cad plated	B-00532-G5	3/8-16	14
38	Screw, cap, hex, cad plated	B-00427-G6	3/8-16 x 1 3/4 Lg.	6
39	Pivot arm support assembly	B-18219-G1		1
40	Cotter pin	B-10387-G6		1
41	Shack absorber	B-15707-G1		2
42	Washer, shock absorber	B-10435-G1		8
43	Bushing, rubber, shock	B-10194-G1		8
44	Nut, hex, cad plated	B-00532-G6	3/8-24	4
45	Cap, spindle	A-12091-G1		2
46	Nut, hex, jam, plated	A-18434-G1	9/16-18 L.H. Thd.	2
47	Nut, hex, jam, plated	A-18434-G2	9/16-18 R.H. Thd.	2
50	Front axle kit	A-19519-G1	Retro-fit kit to convert old front suspensions to new tighter turning radius suspensions, Includes items 2,3,4,9,10,11,17,19,24,25,26,and 28 on page 38C for conversion	1

Four Wheel Front Suspension – H2385 344009 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity	Purchase
1	Front axle assy.	C-19518-G1	includes 2,3,4,9,10,11,17,19,24,25,26	1
2	Axle weldment	C-19385-G1		1
3	Spindle assembly	B-16625-G1	Left	1
4	Spindle assembly	B-19397-G1	Right	1
5	Seal	A-16626-G1		2
6	Bearing - bronze	B-16623-G1		4
8	Grease fitting	B-10389-G3		2
9	Bearing - thrust	B-16982-G1		2
10	Washer	A-00560-G5	5/8	2
11	Nut, hex, slotted	A-15019-G1	5/8-18	2
12	Seal, grease	B-16103-G1		2
13	Bearing and race assembly	A-50892-G1		4
14	Hub assembly	C-19932-G1	Includes bearing race	2
15	Bolt, hub	B-19862-G1	1/2-20	8
16	Nut, hex, slotted	A-12093-G1	1-14	2
17	Cotter pin	B-10387-G1		2
18	Nut, lug, cad plated	B-14723-G1	1/2-20	8
19	Tie rod assembly	B-18377-G1	includes (I) L.H. and (I) R.H. rod end	1
20	Grease fitting	A-18372-G1	(2) per assembly	2
21	Tie rod end	B-18375-G1	L.H. thread (1) per assembly	2
22	Tie rod end	B-18375-G2	R.H. thread (1) per assembly	2
23	Rubber boot	A-50641-G1	Tie rod end (2) per assembly	4
24	Nut, hex, slotted	A-50209-G1	7/16-20 (2) per tie rod assy	4
25	Cotter pin	B-10387-G2	(2) per tie rod assembly	4
26	Tie rod w/tow pin assembly	C-19202-G1	includes (I) L.H. and (I) R.H. rod end	1
27	Grease fitting	B-18372-G1		2
28	Idler assembly	C-19306-G1		1
29	Grease fitting	B-10389-G3		1
30	Bushing - flanged	B-15012-G1		2
31	Spring washer, wave type	A-13221-G1		1
32	Shaft, idler	B-16417-G1		1
33	Spring retainer	B-15023-G2		4
34	Leaf spring assembly	C-15040-G1		2
35	Screw, cap, hex, cad plated	B-00427-G4	3/8-16 x 1 1/2 Lg.	8
36	Washer, lock, spring type	B-00566-G1	3/8	14
37	Nut, hex, cad plated	B-00532-G5	3/8-16	14
38	Screw, cap, hex, cad plated	B-00427-G6	3/8-16 x 1 3/4 Lg.	6
39	Pivot arm support assembly	B-18219-G1		1
40	Cotter pin	B-10387-G6		1
41	Shack absorber	B-15707-G1		2
42	Washer, shock absorber	B-10435-G1		8
43	Bushing, rubber, shock	B-10194-G1		8
44	Nut, hex, cad plated	B-00532-G6	3/8-24	4
45	Cap, spindle	A-12091-G1		2
46	Nut, hex, jam, plated	A-18434-G1	9/16-18 L.H. Thd.	2
47	Nut, hex, jam, plated	A-18434-G2	9/16-18 R.H. Thd.	2
48	Cotter pin	B-10387-G1		2

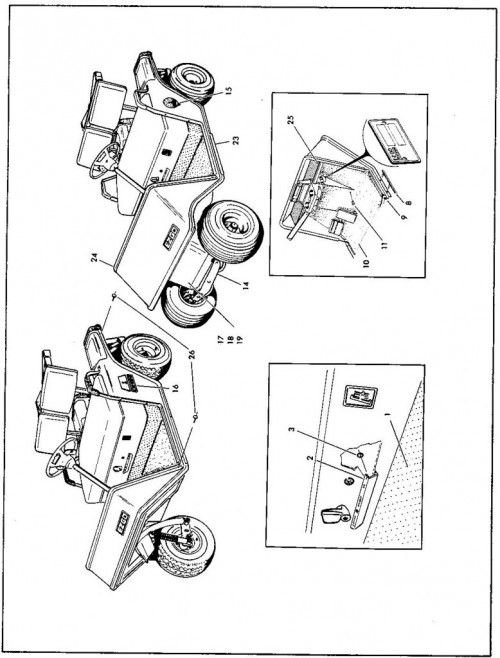

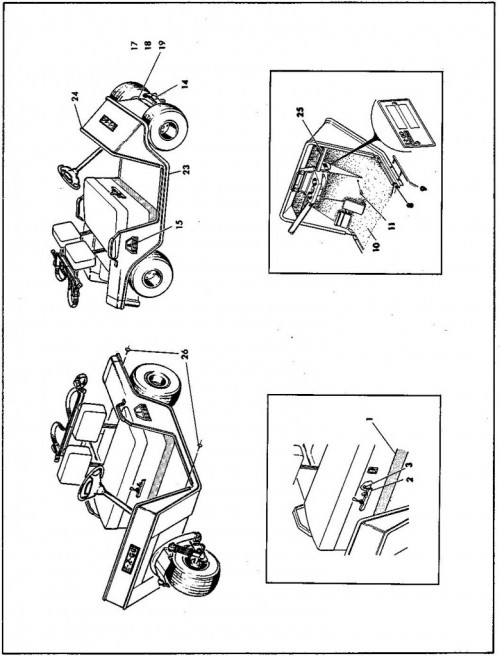

Model Details – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Scuff guard	A-18787-G1		1	1
2	Indicator, forward & reverse	B-12431-G1	Electric	1	1
3	Retainer - push on	A-12471-G1		3	3
8	Trim assembly, vinyl bumper	B-12055-G1		2	2
9	Nut, acorn, open top	B-17763-G1		10	10
10	Floormat	D-18350-G1		1	1
11	Fastener - ratchet type	A-16816-G1		2	2
14	Bumper installation kit	A-17061-G1			1
15	Decal installation	B-17758-G1	Specify no. 1 through 100	1	1
17	Shield	D-15929-G1			1
18	Hex head, machine screw	B-00240-G8	1/4-20 x 1 Lg.		4
19	Nut, lock, plastic insert	B-14390-G4	1/4-20		4
22	Vinyl bumper trim kit	A-18472-G1	Includes items 30-33 & 16-17	1	1
23	Vinyl bumper, body trim	B-17203-G6	Sides & front	1	1
24	Vinyl bumper, body trim	B-17203-G5	Back of cowl	1	1
25	Vinyl bumper, body trim	B-17203-G9	Dash tray	2	2
26	Rivet, alum, black	A-15058-G2		4	4
29	Primer	A-51130-G1	Spray can	AR	AR
30	Paint, glass black	A-50633-G1	Spray can	AR	AR
31	Paint, glenwood green	A-50628-G1	Spray can	AR	AR
32	Paint, mist blue	A-50630-G1	Spray can	AR	AR
33	Paint, Pure white	A-50632-G1	Spray can	AR	AR
34	Paint, flat black	A-15430-G1	Spray can	AR	AR
35	Paint, glenwood green	A-50628-G3	Quarts	AR	AR
36	Paint, glenwood green	A-50628-G4	Gallons	AR	AR
37	Paint, mist blue	A-50630-G3	Quarts	AR	AR
38	Paint, mist blue	A-50630-G4	Gallons	AR	AR
39	Paint, Pure white	A-50632-G3	Quarts	AR	AR
40	Paint, Pure white	A-50632-G4	Gallons	AR	AR
41	Paint, flat black	A-15632-G2	Quarts	AR	AR
42	Paint, glass black	A-50633-G3	Quarts	AR	AR
43	Paint, glass black	A-50633-G4	Gallons	AR	AR
44	Paint, special color	A-50634-G3	Quarts	AR	AR
45	Paint, special color	A-50634-G4	Gallons	AR	AR

Model Details – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Scuff guard, Seat wrap	A-18787-G1		1	1
2	Indicator, forward & reverse	D-19882-G1	Electric	1	1
3	Retainer - push on	A-12064-G3		3	3
8	Trim assembly, vinyl bumper	B-12055-G1		2	2
9	Nut, acorn, open top	B-17763-G1		10	10
10	Floormat	D-18350-G1		1	1
11	Fastener - ratchet type	A-16816-G1		2	2
14	Bumper installation kit	A-17061-G1			1
15	Decal installation kit	B-20060-G1	(Specify no. 1 through 100) golf ball	1	1
16	Decal installation kit	B-20514-G1	(Specify no. 1 through 100) trapezoid	1	1
17	Shield	D-15929-G1			1
18	Hex head, machine screw	B-00240-G8	1/4-20 x 1 Lg.		4
19	Nut, lock, plastic insert	B-14390-G4	1/4-20		4
22	Vinyl bumper trim kit	A-18472-G1	Includes items 30-33 & 16-17	1	1
23	Vinyl bumper, body trim	B-17203-G6	Sides & front	1	1
24	Vinyl bumper, body trim	B-17203-G5	Back of cowl	1	1
25	Vinyl bumper, body trim	B-17203-G9	Dash tray	2	2
26	Rivet, alum, black	A-15058-G2		4	4
29	Primer	A-51130-G1	Spray can	AR	AR
30	Paint, glass black	A-50633-G1	Spray can	AR	AR
31	Paint, glenwood green	A-50628-G1	Spray can	AR	AR
32	Paint, mist blue	A-50630-G1	Spray can	AR	AR
33	Paint, Pure white	A-50632-G1	Spray can	AR	AR
34	Paint, flat black	A-15430-G1	Spray can	AR	AR
35	Paint, glenwood green	A-50628-G3	Quarts	AR	AR
36	Paint, glenwood green	A-50628-G4	Gallons	AR	AR
37	Paint, mist blue	A-50630-G3	Quarts	AR	AR
38	Paint, mist blue	A-50630-G4	Gallons	AR	AR
39	Paint, Pure white	A-50632-G3	Quarts	AR	AR
40	Paint, Pure white	A-50632-G4	Gallons	AR	AR
41	Paint, flat black	A-15632-G2	Quarts	AR	AR
42	Paint, glass black	A-50633-G3	Quarts	AR	AR
43	Paint, glass black	A-50633-G4	Gallons	AR	AR
44	Paint, special color	A-50634-G3	Quarts	AR	AR
45	Paint, special color	A-50634-G4	Gallons	AR	AR
46	Paint, flat black	A-15632-G1	Quarts	AR	AR

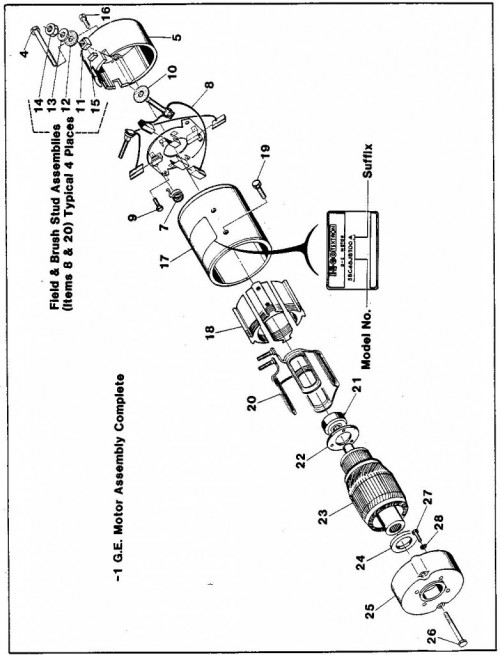

Motor G.E. – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	G. E. motor assembly complete	A-16979-G1		1	1
4	Screw, motor clamp	A-16919-G1	Commutator end	2	2
5	Endshield, commutator end	A-16922-G1		1	1
6	Brush rigging	A-16916-G1		1	1
7	Brush spring	A-15446-G1		4	4
8	Brush assembly	A-16917-G1		2	2
9	Screw, brush rigging mount	A-51333-G1		2	2
10	Washer, insulator, terminal	A-15442-G1		8	8
11	Bushing, insulator	A-15436-G1		4	4
12	Washer, insulator	A-15438-G1		4	4
13	Washer	A-15439-G1		4	4
14	Lock nut	A-15440-G1		4	4
15	Gasket	A-16948-G1		4	4
16	Bearing retainer screw	A-16921-G1		3	3
17	Shell, stator	*		1	1
18	Field pole pieces	*		4	4
19	Screw, pole piece	A-16928-G1		8	8
20	Field coils	A-16929-G1		1	1
21	Ball bearing, commutator end	A-16918-G1		1	1
22	Bearing retainer, commutator end	A-16930-G1		1	1
23	Armature	A-16931-G1		1	1
24	Shaft seal	B-12639-G1		1	1
25	Endshield, pulley end	A-16932-G1		1	1
26	Screw, motor clamp	A-16933-G1		2	2
27	Screw, machine hex Hd.	B-00258-G7	3/8-16 UNC - 7/8 Lg.	4	4
28	Washer, lock, spring	B-00566-G1	3/8	4	4

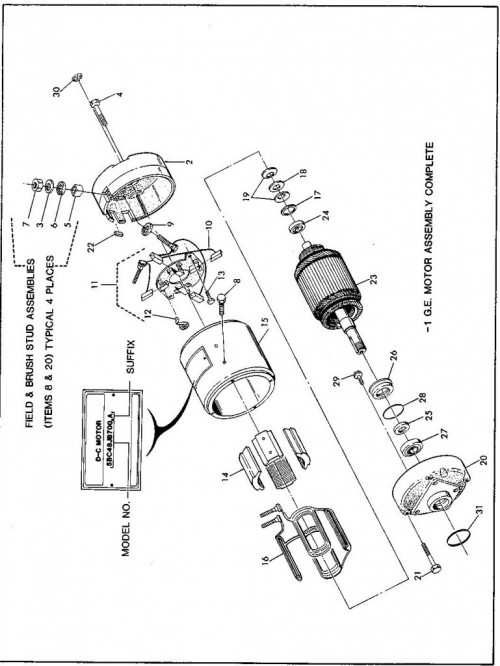

Model 5BC48Jb-783A Motor – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	G. E. Motor	D-18686-G1		1	1
2	Endshield, commutator end	A-19644-G1		1	1
3	Washer	A-15439-G1		4	4
4	Screw, motor clamp	A-16919-G1		2	2
5	Bushing, insulator	A-15437-G1		4	4
6	Washer, insulator	A-15438-G1		4	4
7	Lock nut	A-15440-G1		4	4
8	Screw, pole piece	A-16928-G1		8	8
9	Washer, insulator, termidal	A-15442-G1		4	4
10	Brush assy.	A-16917-G1		2	2
11	Brush rigging	A-16916-G1		1	1
12	Brush spring	A-15446-G1		4	4
13	Screw, brush rigging mount	A-51333-G1		2	2
14	Field pole pieces			4	4
15	Shell, stator			1	1
16	Field coils	A-19645-G1	Set	1	1
17	Washer, shim	A-19646-G1
18	Washer, spacer	A-19647-G1		1	1
19	Washer, conical	A-19648-G1		2	2
20	Endshield, gear end	A-20389-G1		1	1
21	Screw, motor clamp	A-19649-G1		4	4
22	Gasket	A-16948-G1		4	4
23	Armature	A-20390-G1		1	1
24	Ball bearing, commutator end	A-16918-G1		1	1
25	Sea, shaft	A-20388-G1		1	1
26	Bearing Retainer	A-20386-G1		1	1
27	Ball bearing, gear end	B-19650-G1		1	1
28	Seal, O'Ring	A-20387-G1		1	1
29	Screw, bearing retainer	A-20392-G1		3	3
30	Plug, hole	A-20391-G1		1	1
31	Seal, 'O' Ring	A-17732-G1		1	1

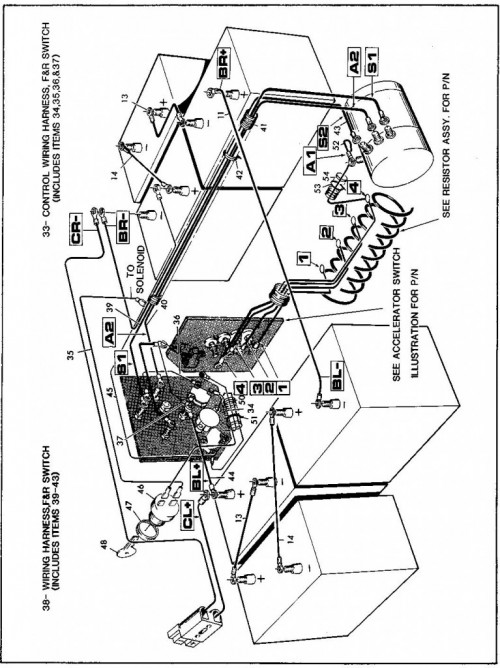

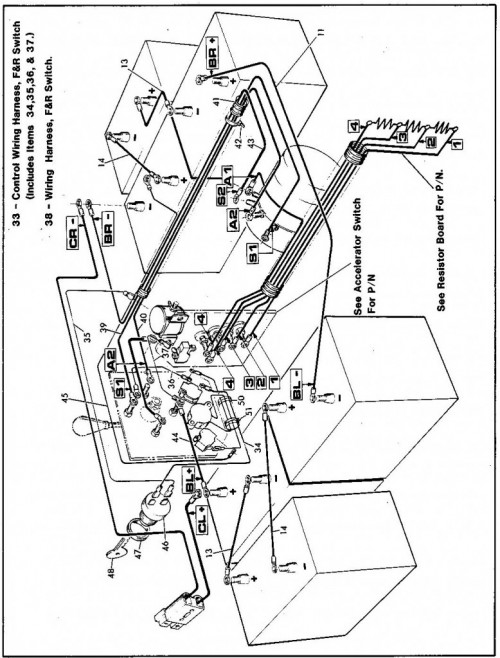

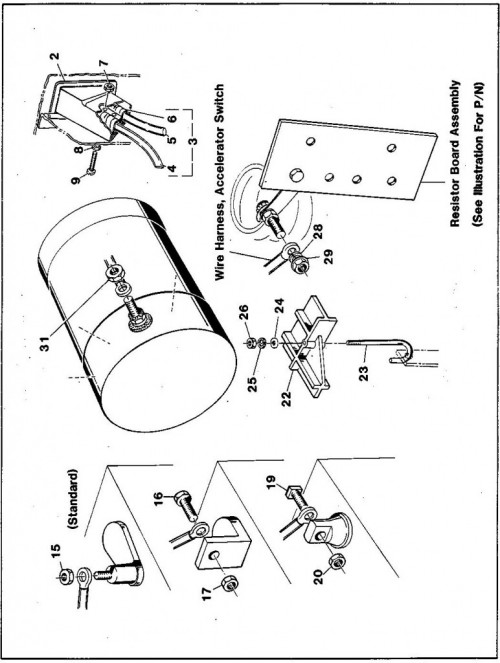

Power Wiring – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
2	Charger receptacle holder	D-18724-G1		1	1
3	Wiring harness charger connector	B-18784-G1		1	1
4	Wire assembly	B-14852-G1	CR-	1	1
5	Wire assembly	B-14852-G2	CL+	1	1
6	Connector, anderson	B-18782-G1		1	1
7	Nut, lock, nylon insert	B-14390-G9	#6-32	2	2
8	Washer, flat, cad plate	B-00559-G3	#6	2	2
9	Screw, machine, cad plate	B-00645-G2	#6-32 x 1 1/4 Lg.	2	2
11	Wire assembly	A-11885-G4		1	1
13	Wire assembly	A-11893-G1		2	2
14	Wire assembly	A-11894-G1		2	2
15	Nut, hex, cad plate	B-00532-G3	5/16-18	12	12
16	Screw, machine, hex, cad plate	B-00270-G6	5/16-18 x 3/4" Lg.	12	12
17	Nut, hex, cad plate	B-00532-G3	5/16-18	12	12
18	Wire assembly	A-11885-G2		1	1
19	Bolt, battery, square Hd., cad plate	A-12649-G1	5/16-18 x 1" Lg.	12	12
20	Nut, battery, heavy hex, cad plate	A-12650-G1	5/16-18	12	12
22	Battery hold down	C-15736-G1		2	2
23	j bolt, battery	B-15734-G2		2	2
24	Washer, flat, narrow, type B, cad plate	B-00559-G8	5/16	2	2
25	Washer,lock, spring type, cad plate	B-00565-G8	5/16	2	2
26	Nut, hex, cad plate	00532-G3	5/16-18	2	2
28	Washer, lock, spring type, cad plate	B-00565-G8	5/16	4	4
29	Nut, hex, jam, cad plate	B-00544-G3	5/16-18	4	4
31	Nut, hex, cad plate	B-00532-G3	5/16-18	4	4
33	Control wiring harness, F & R switch	B-17868-G1		1	1
34	Wire assembly	A-14619-G2	Light blue	1	1
35	Wire assembly	A-17870-G1	Yellow	1	1
36	Wire assembly	A-14615-G1	Black	1	1
37	Wire assembly	A-17869-G1	Red & white	1	1
38	Wiring harness, F & R switch	C-18835-G1		1	1
39	Wire assembly	A-11884-G1	S1	1	1
40	Wire assembly	A-11883-G1	A-2	1	1
41	Loom, flex, zip	B-18834-G1		1	1
42	Clamp, nylon	A-16172-G1	Black	7	7
43	Wire assembly	A-11888-G3		1	1
44	Wire assembly	A-14610-G1		1	1
46	Ignition switch kit	A-17421-G1		1	1
47	Face nut	B-17137-G1		1	1
48	Ignition key	B-17063-G1		1	1
49	Currect indicator	A-16489-G1		NA	NA
50	Battery tester	A-11806-G1	Discharge machine	NA	NA
51	Hydrometer	A-50900-G1		NA	NA
52	Ohm meter	A-51020-G2	Multi-Meter	NA	NA

Power Wiring – J1884 337245 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Receptacle and harness assembly	B-18840-G1		1	1
2	Charger receptacle holder	D-18724-G1		1	1
3	Wiring harness charger connector	A-18784-G1		1	1
4	Wire assembly	B-14852-G1	CR-	1	1
5	Wire assembly	B-14852-G2	CL+	1	1
6	Connector, anderson	B-18782-G1		1	1
7	Nut, lock, nylon insert	B-14390-G9	#6-32	2	2
8	Washer, flat, cad plate	B-00559-G3	#6	2	2
9	Screw, machine, cad plate	B-00645-G2	#6-32 x 1 1/4 Lg.	2	2
11	Wire assembly	A-11885-G4		1	1
13	Wire assembly	A-11893-G1		2	2
14	Wire assembly	A-11894-G1		2	2
15	Nut, heavy, hex, cad plate	B-00702-G2	5/16-18	12	12
16	Screw, machine, hex, cad plate	B-00270-G6	5/16-18 x 3/4" Lg.	12	12
19	Bolt, battery, square Hd., cad plate	A-12649-G1	5/16-18 x 1" Lg.	12	12
22	Battery hold down	C-15736-G1		2	2
23	J bolt, battery	B-15734-G2		2	2
24	Washer, flat, narrow, type B, cad plate	B-00559-G8	5/16	2	2
25	Washer,lock, spring type, cad plate	B-00565-G8	5/16	2	2
26	Nut, heavy hex	B-00702-G2	5/16-18	2	2
28	Washer, Lock, Spring type, cad plate	B-00565-G8	5/16	4	4
29	Nut, hex, jam, cad plate	B-00544-G3	5/16-18	4	4
31	Nut, hex, cad plate	B-00532-G3	5/16-18	4	4
33	Control wiring harness, F & R switch	B-17868-G1		1	1
34	Wire assembly	A-14619-G2	Light blue	1	1
35	Wire assembly	A-17870-G1	Yellow	1	1
36	Wire assembly	A-14615-G1	Black	1	1
37	Wire assembly	A-17869-G1	Red & white	1	1
38	Wiring harness, F & R switch	C-18835-G1		1	1
39	Wire assembly	A-11884-G1	S1	1	1
40	Wire assembly	A-11883-G1	A-2	1	1
41	Loom, flex, zip	B-18834-G1		1	1
42	Clamp, nylon	A-17618-G1	Black	7	7
43	Wire assembly	A-11888-G3	S2	1	1
44	Wire assembly	A-14610-G1		1	1
45	Wire assembly	A-18518-G1		1	1
46	Ignition switch kit	A-17421-G1		1	1
47	Face nut	B-17137-G1		1	1
48	Ignition key	B-17063-G1		1	1
50	Loom flex	A-17314-G8		1	1
51	Clamp, nylon	A-16172-G1		2	2
	Related test equipment
	Current indicator	**		NA	NA
	Battery tester	**	Discharge machine	NA	NA
	Hydrometer	**		NA	NA
	Ohm meter	**	Multi-meter	NA	NA

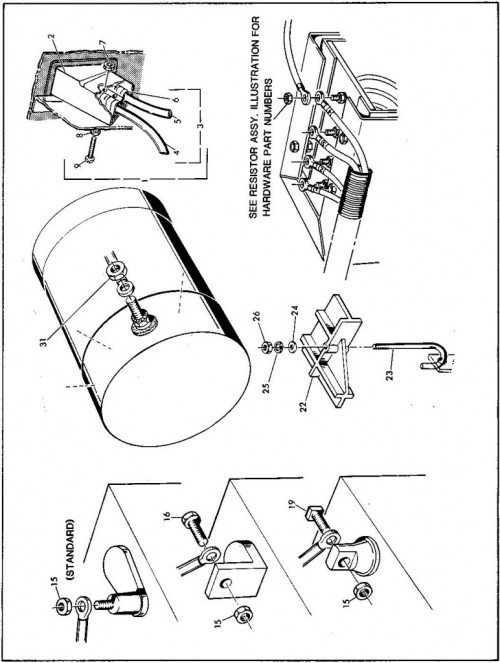

Power Wiring – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Receptacle and harness assembly	B-18840-G1		1	1
2	Charger receptacle holder	D-18724-G1		1	1
3	Wiring harness charger connector	A-18841-G1		1	1
4	Wire assembly	B-14852-G1	CR-	1	1
5	Wire assembly	B-14852-G2	CL+	1	1
6	Connector, anderson	B-18782-G1		1	1
7	Nut, lock, nylon insert	B-14390-G9	#6-32	2	2
8	Washer, flat, cad plate	B-00559-G3	#6	2	2
9	Screw, machine, cad plate	B-00645-G2	#6-32 x 1 1/4 Lg.	2	2
11	Wire assembly	A-11885-G4		1	1
13	Wire assembly	A-11893-G1		2	2
14	Wire assembly	A-11894-G1		2	2
15	Nut, heavy, hex, cad plate	B-00702-G2	5/16-18	12	12
16	Screw, machine, hex, cad plate	B-00270-G6	5/16-18 x 3/4" Lg.	12	12
19	Bolt, battery, square Hd., cad plate	A-12649-G1	5/16-18 x 1" Lg.	12	12
22	Battery hold down	C-15736-G1		2	2
23	J bolt, battery	B-15734-G2		2	2
24	Washer, flat, narrow, type B, cad plate	B-00559-G8	5/16	2	2
25	Washer,lock, spring type, cad plate	B-00565-G8	5/16	2	2
26	Nut, heavy hex	B-00702-G2		2	2
31	Nut, hex, cad plate	B-00532-G3	5/16-18	4	4
33	Control wiring harness, F & R switch	B-17868-G1		1	1
34	Wire assembly	A-14619-G2	Light blue	1	1
35	Wire assembly	A-17870-G1	Yellow	1	1
36	Wire assembly	A-14615-G1	Black	1	1
37	Wire assembly	A-17869-G1	Red & white	1	1
38	Wiring harness, F & R switch	C-18894-G1		1	1
39	Wire assembly	A-17855-G1	S1	1	1
40	Wire assembly	A-17856-G1	A2	1	1
41	Loom, flex, zip	A-18834-G3		1	1
42	Clamp, nylon	A-17618-G1	Black	7	7
43	Wire assembly	A-17858-G1	S2	1	1
44	Wire assembly	A-14610-G1		1	1
45	Wire assembly	A-18518-G1		1	1
46	Ignition switch kit	A-17421-G1		1	1
47	Face nut	B-17137-G1		1	1
48	Ignition key	B-17063-G1		1	1
50	Loom flex	A-17314-G8		1	1
51	Clamp, nylon	A-16172-G1		2	2
52	Wire assembly	C-18897-G3	A1-4	1	1
53	Clamp, nylon	A-16172-G1		3	3
54	Loom flex	A-17316-G6		1	1
	Related test equipment
	Current indicator	**		NA	NA
	Battery tester	**	Discharge machine	NA	NA
	Hydrometer	**		NA	NA
	Ohm meter	**	Multi-meter	NA	NA

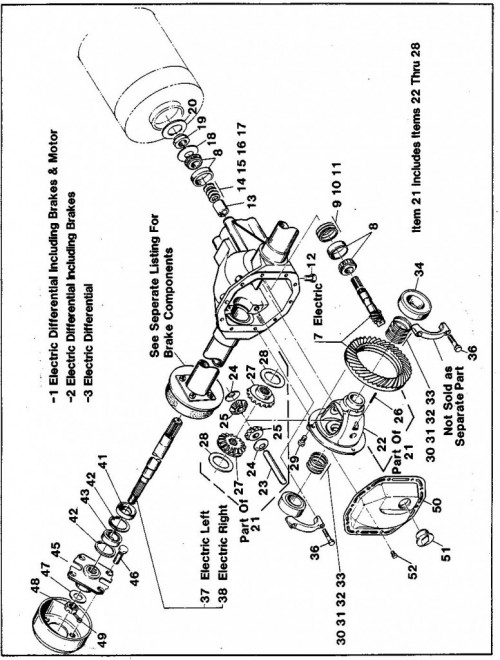

Rear Axle Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Rear axle assembly	D-17521-G2	Including brakes & motor	1	1
2	Rear axle assembly	D-17522-G1	Including brakes	1	1
3	Rear axle assembly	D-17522-G2		1	1
7	Pinion & gear assembly	A-51279-G1	Matched set	1	1
8	Pinion bearing assembly	A-13109-G1		2	2
9	Drive pinion shim	A-51264-G1	0.003	AR	AR
10	Drive pinion shim	A-51264-G2	0.005	AR	AR
11	Drive pinion shim	A-51264-G3	0.01	AR	AR
12	Vent valve	A-51270-G1		1	1
13	Pinion bearing spacer	A-51265-G1		1	1
14	Pinion bearing shim	A-51263-G1	0.003	AR	AR
15	Pinion bearing shim	A-51263-G2	0.005	AR	AR
16	Pinion bearing shim	A-51263-G3	0.01	AR	AR
17	Pinion bearing shim	A-51263-G4	0.03	AR	AR
18	Pinion bearing slinger	A-51260-G1		1	1
19	Pinion nut	A-51280-G1		1	1
21	Differential case assembly	A-18463-G1		1	1
22	Differential case	A-13108-G1		1	1
23	Spider gear shaft	A-13107-G1		1	1
24	Spider gear thrust washer	A-13106-G1		2	2
25	Differential spider gear	A-13105-G1		2	2
26	Spider shaft lock pin	A-13102-G1		1	1
27	Differential side gear	A-18060-G1		2	2
28	Side gear thrust washer	A-13104-G1		2	2
29	Drive gear screw	A-50528-G1		4	4
30	Differential case shim	A-50527-G1	0.003	AR	AR
31	Differential case shim	A-50527-G2	0.005	AR	AR
32	Differential case shim	A-50527-G3	0.01	AR	AR
33	Differential case shim	A-50527-G4	0.03	AR	AR
34	Ball bearing differential	A-17473-G1		2	2
36	Cap screw	A-15118-G1	Bearing cap	4	4
37	Axle	A-17784-G1	Left length 21.438	1	1
38	Axle	A-17783-G1	Right length 20.724	1	1
41	Oil seal	A-15114-G1		2	2
42	Snap ring, axle bearing	A-15113-G1		4	4
43	Ball bearing axle	A-15112-G1		2	2
45	Hub & wheel bolt assembly	B-17298-G1		2	2
46	Lug bolt	B-17126-G1		8	8
47	Washer, brake drum	A-15487-G1		2	2
48	Nut, hex slotted	A-15483-G1		2	2
49	Cotter pin	B-10387-G1		2	2
50	Gear carrier cover	A-17780-G1		1	1
51	Fill plug	A-15053-G1		1	1
52	Cover bolt, hex, flange Hd.	A-15558-G1	3/4 Lg.	10	10
53	Slide hammer kit	A-18753-G1		NA	NA
54	Tool, seal installation	B-18739-G1		NA	NA
55	Tool kit, pinion removal	A-18738-G1		NA	NA

Rear Axle Assembly – H2384 334068 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Rear axle assembly	D-17521-G2	Including brakes & motor	1	1
2	Rear axle assembly	D-17522-G1	Including brakes	1	1
3	Rear axle assembly	D-17522-G2		1	1
4	Rear axle assembly	D-17522-G3	Including brake drum only	1	1
6	Pinion & gear assembly	A-51279-G1	Matched set	1	1
8	Pinion bearing assembly	A-13109-G1		2	2
9	Drive pinion shim	A-51264-G1	0.003	AR	AR
10	Drive pinion shim	A-51264-G2	0.005	AR	AR
11	Drive pinion shim	A-51264-G3	0.01	AR	AR
12	Vent valve	A-19039-G1		1	1
13	Pinion bearing spacer	A-51265-G1		1	1
14	Pinion bearing shim	A-51263-G1	0.003	AR	AR
15	Pinion bearing shim	A-51263-G2	0.005	AR	AR
16	Pinion bearing shim	A-51263-G3	0.01	AR	AR
17	Pinion bearing shim	A-51263-G4	0.03	AR	AR
18	Pinion bearing slinger	A-51260-G1		1	1
19	Pinion nut	A-51280-G1		1	1
20	Gasket	A-12625-G1		1	1
21	Differential case assembly	A-18463-G1		1	1
22	Differential case	A-13108-G1		1	1
23	Spider gear shaft	A-13107-G1		1	1
24	Spider gear thrust washer	A-13106-G1		2	2
25	Differential spider gear	A-13105-G1		2	2
26	Spider shaft lock pin	A-13102-G1		1	1
27	Differential side gear	A-18060-G1		2	2
28	Side gear thrust washer	A-13104-G1		2	2
29	Drive gear screw	A-50528-G1		4	4
30	Differential case shim	A-50527-G1	0.003	AR	AR
31	Differential case shim	A-50527-G2	0.005	AR	AR
32	Differential case shim	A-50527-G3	0.01	AR	AR
33	Differential case shim	A-50527-G4	0.03	AR	AR
34	Ball bearing differential	A-17473-G1		2	2
36	Cap screw	A-15118-G1	Bearing cap	4	4
37	Axle	A-17784-G1	Left length 21.438	1	1
38	Axle	A-17783-G1	Right length 20.724	1	1
41	Oil seal	A-15114-G1		2	2
42	Snap ring, axle bearing	A-15113-G1		4	4
43	Ball bearing axle	A-15112-G1		2	2
47	Washer, brake drum	A-15487-G1		2	2
48	Nut, hex slotted	A-15483-G1		2	2
49	Cotter pin	B-10387-G1		2	2
50	Gear carrier cover	A-17780-G1		1	1
51	Fill plug	A-15053-G1		1	1
52	Cover bolt, hex, flange Hd.	A-15558-G1	3/4 Lg.	10	10
53	Slide hammer kit	A-18753-G1		NA	NA
54	Tool, seal installation	B-18739-G1		NA	NA
55	Tool kit, pinion removal	A-18738-G1		NA	NA

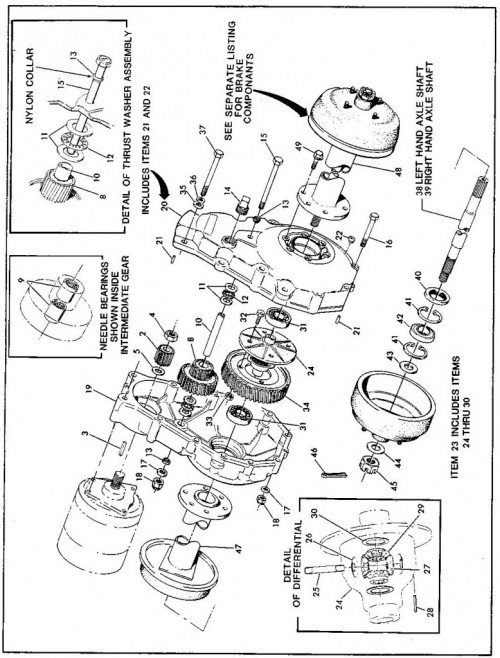

Rear Axle Assembly – Helical – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Rear, axle assy.	D-18693-G3	Includes brakes & motor	1	1
2	Pinion, drive	B-18689-G1	See item #50 for gear set	1	1
3	Key	A-17730-G1		1	1
4	Nut lock	A-11081-G1		1	1
5	Spacer	B-18907-G2		1	1
6	Rear axle assy.	D-20382-G1	Includes brakes	1	1
7	Rear axle assy.	D-18691-G2		1	1
8	Intermediate gear assy.	B-20374-G1	See item #50 for geat set	1	1
9	Bearing, roller	B-17705-G1		2	2
10	Shaft, intermediate	A-20375-G1		1	1
11	Washer, thrust	A-17711-G1		4	4
12	Bearing, thrust	A-17710-G1		2	2
13	Collor, rolled	A-17722-G1		2	2
14	Fill plug	A-17733-G1		1	1
15	Screw, cap, hex	B-00442-G4	5/16 - 18 x 4 1/2	1	1
16	Screw, cap, hex	B-00441-G2	5/16 - 18 x 3 1/4	8	8
17	Washer, flat	B-00559-G8	5/16	9	9
18	Nut - Lk. - Plastic insert	B-11098-G6	5 /16 x -18	9	9
19	Housing, left	D-17667-G2		1	1
20	Housing, right	A-20399-G1		1	1
21	Pin dowel	A-13887-G1		2	2
22	Plug, magnetic	A-17709-G1		1	1
23	Differential case assy.	A-18463-G1		1	1
24	Differential case	A-13108-G1		1	1
25	Spider gear shaft	A-13107-G1		1	1
26	Spider gear thrust washer	A-13106-G1		2	2
27	Differential spider gear	A-13105-G1		2	2
28	Spider shaft lock pin	A-13102-G1		1	1
29	Differential side gear	A-18060-G1		2	2
30	Side gear thrust washer	A-13104-G1		2	2
31	Bearing, ball, differential	A-17473-G1		2	2
32	Screw, cap, hex	B-00433-G1	3/8 - 24 x 1 1/8	4	4
33	Nut, hex	B-00532-G6	3/8 - 24	4	4
34	Gear	C-20376-G1	See item #50 for gear set	1	1
35	Washer - flat	B-00560-G1	3/8	4	4
36	Washer, lock, SP, CP	B-00568-G1	3/8	4	4
37	Screw, cap, hex, CP	B-00429-G4	3/8 16 x 3 1/2	4	4
38	Axle shaft, left	B-20377-G2	25.077 in.	1	1
39	Axle shaft, right	B-20377-G1	17.015 in.	1	1
40	Oil seal	A-15114-G1		2	2
41	Snap ring, axle bearing	A-15113-G1		4	4
42	Bearing, ball, axle	A-15112-G1		2	2
43	Washer	A-15485-G1		2	2
44	Washer, brake drum	A-15487-G1		2	2
45	Nut, hex, slotted	A-15483-G1		2	2
46	Cotter pin	B-10387-G1		2	2
47	Axle tube assy. Left	D-20378-G1		1	1
48	Axle tube assy. Right	D-20379-G1		1	1
49	Screw, thread farming	B-17725-G1		12	12
50	Gear set	A-20528-G1	Includes items 2, 8, 34	1	1
51	Slide hammer kit	A-18753-G1		NA	NA
52	Tool, seal installation	B-18739-G1		NA	NA
53	Tool, bearing removal	A-20380-G1		NA	NA
54	Tool, bearing installation	A-20381-G1		NA	NA

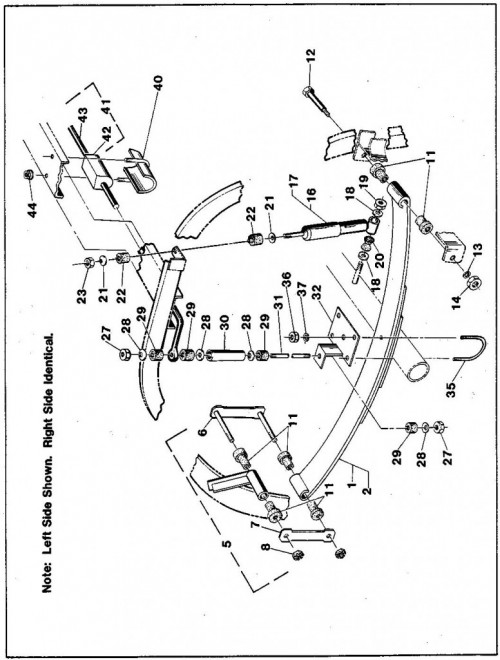

Rear Suspension Components – Electric Car – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Leaf spring	B-16490-G1		2	2
2	Heavy duty leaf spring	B-11645-G2		2	2
5	Spring shackle	A-11652-G1		2	2
6	Stud plate, shackle	*		2	2
7	Plate, shackle	*		2	2
8	Nut, lock	A-11329-G1	Spring shackle bolt	4	4
11	Bushing, rubber	A-14178-G1	Rear leaf spring	12	12
12	Bolt, shoulder	B-15727-G1		2	2
13	Washer, lock	B-00566-G1	3/8	2	2
14	Nut, hex	B-00532-G5	3/8-16	2	2
16	Shock absorber	B-13270-G1		2	2
17	Shock absorber, heavy duty	B-13269-G1		2	2
18	Flat washer	B-00560-G5	5/8	4	4
19	Nut, lock	B-00557-G5	5/8-11	2	2
20	Bushing, shock absorber	B-10195-G1		2	2
21	Washer, shock absorber	B-10435-G1		4	4
22	Bushing, shock absorber	B-10194-G1		4	4
23	Nut, hex	B-00532-G6	3/8-24	2	2
26	Stabilizer bar spring bracket assembly	C-14770-G1		2
27	Nut, hex	B-00532-G5	3/8-16	4
28	Washer, shock absorber	B-10435-G1		8
29	Bushing, shock absorber	B-10194-G1		8
30	Spacer	C-10840-G3		2
31	Rod, threaded	B-10579-G6		2
32	Spring retainer bracket assembly	B-17141-G1		2
35	"U" bolt, axle	B-12058-G2		4
36	Nut, hex	B-00532-G5	3/8-16	8
37	Washer, lock	B-00566-G1	3/8	8
40	Stabilizer bar bracket assembly	B-11640-G1		2
41	Stabilizer bar sub assembly	C-17284-G1		1
42	Bushing, stabilizer	B-11155-G1		2
43	Bar, stabilizer	*		1
44	Nut, lock, flanged	A-11027-G4	5/16-24	4

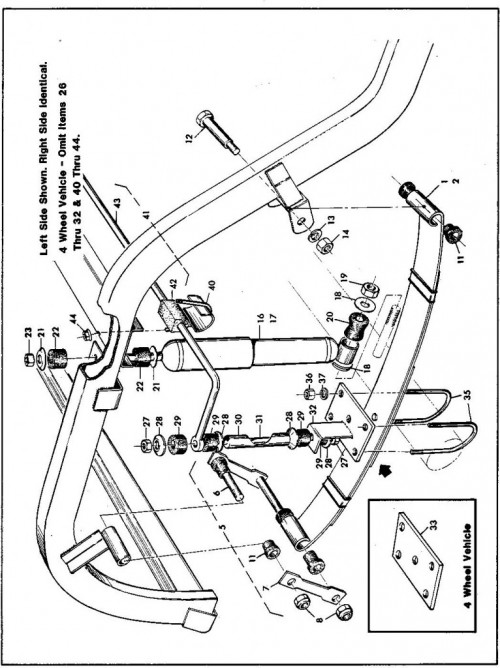

Rear Suspension Components – Electric Car – B2985 350569 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Leaf spring	B-16490-G1		2	2
2	Heavy duty leaf spring	B-11645-G2		2	2
5	Spring shackle	A-19675-G1		2	2
6	Stud plate, shackle	*		2	2
7	Plate, shackle	*		2	2
8	Nut, lock	A-19676-G1	Spring shackle bolt	4	4
11	Bushing, rubber	A-14178-G1	Rear leaf spring	12	12
12	Bolt, shoulder	B-15727-G1		2	2
13	Washer, lock	B-00566-G1	3/8	2	2
14	Nut, hex	B-00532-G5	3/8-16	2	2
16	Shock absorber	B-13270-G1		2	2
17	Shock absorber, heavy duty	B-13269-G1		2	2
18	Flat washer	B-00560-G5	5/8	4	4
19	Nut, lock	B-00557-G5	5/8-11	2	2
20	Bushing, shock absorber	B-10195-G1		2	2
21	Washer, shock absorber	B-10435-G1		4	4
22	Bushing, shock absorber	B-10194-G1		4	4
23	Nut, hex	B-00532-G6	3/8-24	2	2
26	Stabilizer bar spring bracket assembly	C-14770-G1		2
27	Nut, hex	B-00532-G5	3/8-16	4
28	Washer, shock absorber	B-10435-G1		8
29	Bushing, shock absorber	B-10194-G1		8
30	Spacer	C-10840-G3		2
31	Rod, threaded	B-10579-G6		2
32	Spring retainer bracket assembly	B-17141-G1		2
33	Plate, spring retainer	B-17034-G1			2
35	"U" bolt, axle	B-12058-G2		4	4
36	Nut, hex	B-00532-G5	3/8-16	8	8
37	Washer, lock	B-00566-G1	3/8	8	8
40	Stabilizer bar bracket assembly	B-11640-G1		2
41	Stabilizer bar sub assembly	C-17284-G1		1
42	Bushing, stabilizer	B-11155-G1		2
43	Bar, stabilizer	*		1
44	Nut, lock, flanged	A-11027-G4	5/16-24	4

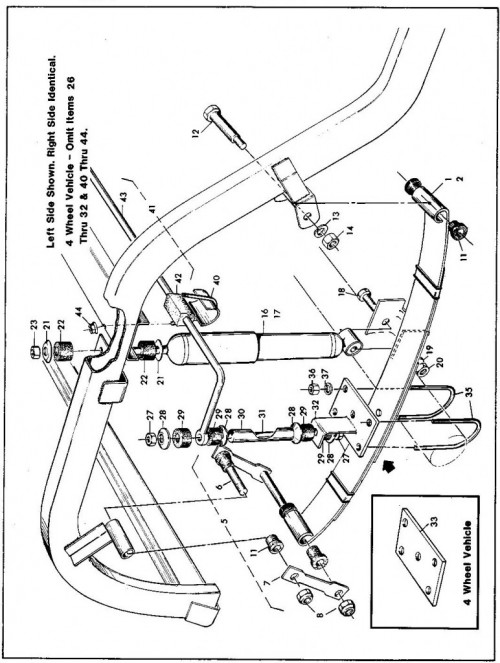

Rear Suspension Components – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Leaf spring	B-16490-G1		2	2
2	Heavy duty leaf spring	B-11645-G2		2	2
5	Spring shackle	A-19675-G1		2	2
6	Stud plate, shackle	*		2	2
7	Plate, shackle	*		2	2
8	Nut, lock	A-19676-G1	Spring shackle bolt	4	4
11	Bushing, rubber	A-14178-G1	Rear leaf spring	12	12
12	Bolt, shoulder	B-15727-G1		2	2
13	Washer, lock	B-00566-G1	3/8	2	2
14	Nut, hex	B-00532-G5	3/8-16	2	2
16	Shock absorber	C-20278-G1		2	2
17	Shock absorber, heavy duty	C-20279-G1		2	2
18	Screw, cap, hex	B-00428-G4	3/8-16 x 2 1/2 Lg.	2	2
19	Washer, flat	B-00560-G1	3/8	2	2
20	Nut, lock, hex	B-00550-G5	3/8-16	2	2
21	Washer, shock absorber	B-10435-G1		4	4
22	Bushing, shock absorber	B-10194-G1		4	4
23	Nut, hex	B-00532-G6	3/8-24	2	2
26	Stabilizer bar spring bracket assembly	C-14770-G1		2
27	Nut, hex	B-00532-G5	3/8-16	4
28	Washer, shock absorber	B-10435-G1		8
29	Bushing, shock absorber	B-10194-G1		8
30	Spacer	C-10840-G3		2
31	Rod, threaded	B-10579-G6		2
32	Spring retainer bracket assembly	B-17141-G1		2
33	Plate, spring retainer	B-17034-G1			2
35	"U" bolt, axle	B-12058-G2		4	4
36	Nut, hex	B-00532-G5	3/8-16	8	8
37	Washer, lock	B-00566-G1	3/8	8	8
40	Stabilizer bar bracket assembly	B-11640-G1		2
41	Stabilizer bar sub assembly	C-17284-G1		1
42	Bushing, stabilizer	B-11155-G1		2
43	Bar, stabilizer	*		1
44	Nut, lock, flanged	A-11027-G4	5/16-24	4

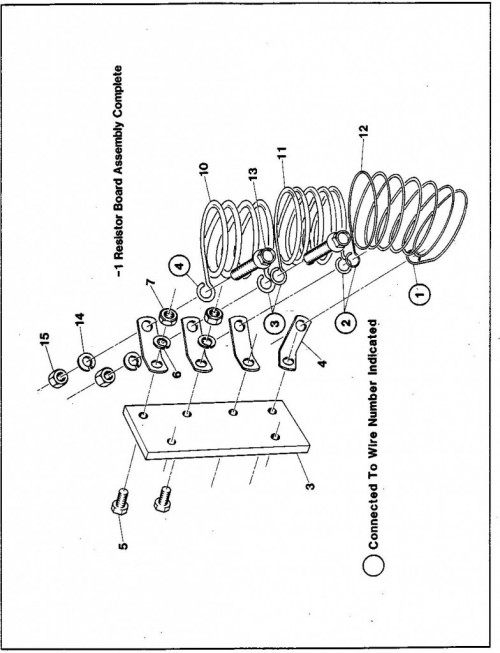

Resistor Board Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Resistor board assembly	B-11877-G1		1	1
3	Resistor mounting board	B-18290-G1		1	1
4	Resistor spacer lead	B-11878-G1		1	1
5	Screw, cap, hex, cad plated	B-00414-G6	1/4-20 x 3/4 Lg.	4	4
6	Washer, lock, spring type, cad plated	B-00565-G7	1/4	4	4
7	Nut, hex, cad plated	B-00532-G1	1/4-20	4	4
10	Resistor wire, heavy	B-11879-G1		1	1
11	Resistor wire, medium	B-11879-G2		1	1
12	Resistor wire, light	B-11879-G3		1	1
13	Screw, lock, flanged, cad plated	B-13437-G3	5/16-18 x 1 Lg.	4	4
14	Washer, lock, spring type, cad plated	B-00565-G8	5'16	4	4
15	Nut, hex, jam, cad plated	B-00544-G3	5/16-18	4	4

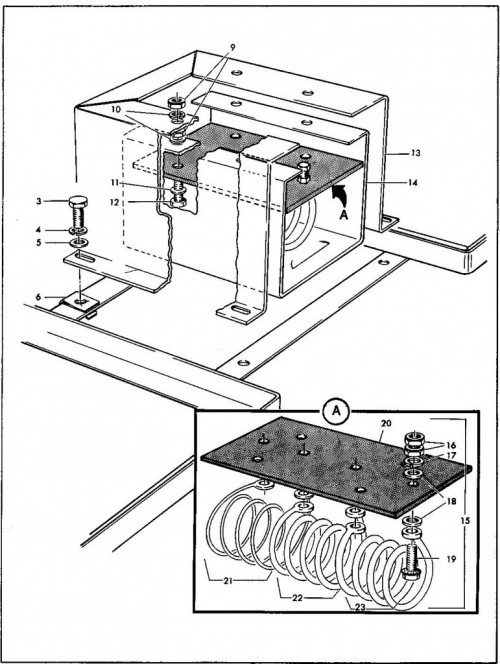

Resistor Coil And Housing Assembly – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
3	Screw, hex, stainless steel	B-00661-G6	1/4-20 x 3/4" Lg.	4	4
4	Washer, lock, stainless steel	B-00664-G7	1/4	4	4
5	Washer, flat, stainless steel	B-00660-G7	1/4	4	4
6	U'-Nut	B-00709-G1	1/4-20	4	4
8	Resistor coil assembly	D-18889-G1		1	1
9	Nut, hex	B-00532-G1	1/4-20	8	8
10	Washer, lock	B-00565-G7	1/4	8	8
11	Washer, flat	B-00559-G7	1/4	4	4
12	Screw, hex	B-00414-G8	1/4-20 x 1" Lg.	4	4
13	Shield, resistor	D-18814-G1		1	1
14	Housing, resistor	D-18812-G1		1	1
15	Resistor board assembly	C-18877-G1		1	1
16	Nut, hex	B-00532-G3	5/16-18	8	8
17	Washer, lock, spring	B-00565-G8	5/16	4	4
18	Washer, flat	B-00559-G8	5/16	8	8
19	Screw, whiz lock, flanged	B-13437-G2	5/16-18 x 1 1/2" Lg.	4	4
20	Board, resistor	C-18811-G1		1	1
21	Coil, resistor, light	B-18861-G1		1	1
22	Coil, resistor, medium	B-18861-G2		1	1
23	Coil, resistor, heavy	B-18861-G3		1	1

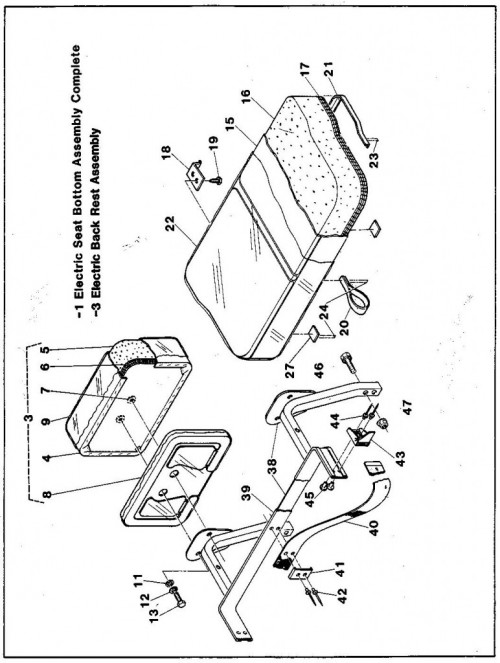

Seats And Bag Holder – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Seat bottom assembly	C-15159-G2	Complete	1	1
3	Back rest assembly	C-14375-G2	Complete	2	2
4	Cover, back rest	C-14371-G1		2	2
5	Cushion, foam, back rest	C-14370-G1		2	2
6	Plywood seat back	B-14568-G1		2	2
7	Nut, tee	*		4	4
8	Cover, back - back rest	D-14724-G2		2	2
9	Bag, plastic	*		1	1
11	Washer, flat, cad plated	B-00559-G7	1/4	4	4
12	Washer, lock, spring type, cad plated	B-00565-G7	1/4	4	4
13	Screw, cap, hex, cad plated	B-00414-G8	1/4-20 x 1 Lg.	4	4
15	Cover, seat bottom	C-15146-G1		1	1
16	Cushion, foam	C-15145-G1		1	1
17	Plywood, seat bottom	C-12441-G2		1	1
18	Bracket, seat hinge	B-18250-G1		2	2
19	Screw, self top, hex, cad plated	B-00115-G2	1/4 x 1 1/4 Lg.	4	4
20	Webbing	A-11394-G1		1	1
21	Trim, vinyl	D-17113-G1		1	1
22	Bag, plastic	*		1	1
23	Staple	*		24	24
24	Staple, flat	*	1/8 x 1	10	10
27	Soiling slab	A-17074-G1		2	2
38	Seat back bracket & bag holder assembly	D-16924-G1		1	1
39	Extrusion, vinyl	B-14643-G1		1	1
40	Strap, bag retainer	B-15902-G1		1	1
41	Anchor plate	B-16610-G1		1	1
42	Rivet	B-17226-G1		2	2
43	Strap retainer assembly	C-16920-G1	Buckle	2	2
44	Rivet, aluminum, black	A-15058-G1		4	4
45	Nut, tee	A-16935-G1		4	4
46	Screw, whiz lock, flanged	B-13437-G2	5/16-18 x 1 1/2 Lg.	4	4
47	Nut, whiz lock, flanged	A-11027-G1	5/16-18	4	4

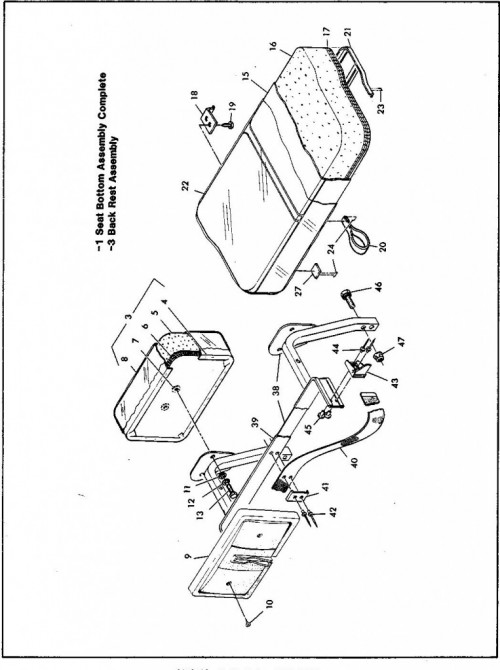

Seats And Bag Holder – H2385 344009 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Seat bottom assembly	C-15159-G2	Complete	1	1
3	Back rest assembly	C-19232-G2		2	2
4	Cover, back rest	C-14371-G1		2	2
5	Cushion, foam, back rest	C-14370-G1		2	2
6	Plywood seat back	D-19226-G1		2	2
7	Nut, tee	*		4	4
8	Bag, plastic	*		1	1
9	Cover, back - Back rest	D-19056-G1		2	2
10	Screw, truss head, stainless steel	B-00666-G6		4	4
11	Washer, flat, cad plated	B-00559-G7	1/4	4	4
12	Washer, lock, spring type, cad plated	B-00565-G7	1/4	4	4
13	Screw, cap, hex, cad plated	B-00414-G8	1/4-20 x 1 Lg.	4	4
15	Cover, seat bottom	C-15146-G1		1	1
16	Cushion, foam	C-15145-G1		1	1
17	Plywood, seat bottom	C-12441-G2		1	1
18	Bracket, seat hinge	B-18250-G1		2	2
19	Screw, self top, hex, cad plated	B-00115-G2	1/4 x 1 1/4 Lg.	4	4
20	Webbing	A-11394-G1		1	1
21	Trim, vinyl	D-17113-G1		1	1
22	Bag, plastic	*		1	1
23	Staple	*		24	24
24	Staple, flat	*	1/8 x 1	10	10
27	Soiling slab	A-17074-G1		2	2
38	Seat back bracket & bag holder assembly	D-16924-G1		1	1
39	Extrusion, vinyl	B-14643-G1		1	1
40	Strap, bag retainer	B-15902-G1		1	1
41	Anchor plate	B-16610-G1		1	1
42	Rivet	B-17226-G1		2	2
43	Strap retainer assembly	C-16920-G1	Buckle	2	2
44	Rivet, aluminum, black	A-15058-G1		4	4
45	Nut, tee	A-16935-G1		4	4
46	Screw, whiz lock, flanged	B-13437-G2	5/16-18 x 1 1/2 Lg.	4	4
47	Nut, whiz lock, flanged	A-11027-G1	5/16-18	4	4

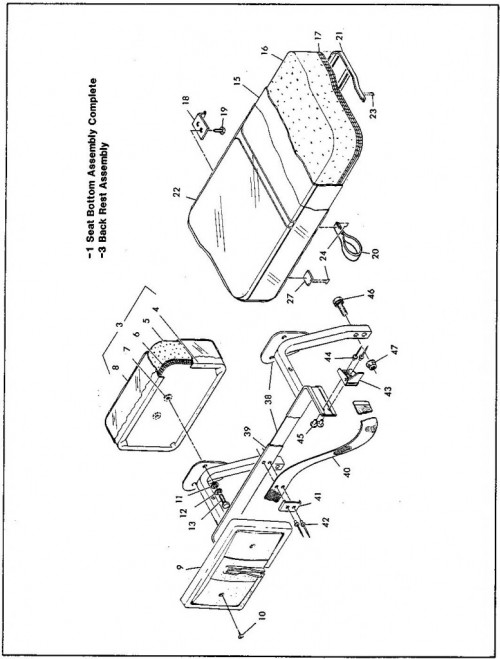

Seats And Bag Holder – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Seat bottom assembly	C-15159-G2	Complete	1	1
3	Back rest assembly	C-19232-G2		2	2
4	Cover, back rest	C-14371-G1		2	2
5	Cushion, foam, back rest	C-14370-G1		2	2
6	Plywood seat back	D-19226-G1		2	2
7	Nut, tee	*		4	4
8	Bag, plastic	*		1	1
9	Cover, back - Back rest, black	D-19056-G3		2	2
10	Screw, truss head, stainless steel	B-00666-G6		4	4
11	Washer, flat, cad plated	B-00559-G7	1/4	4	4
12	Washer, lock, spring type, cad plated	B-00565-G7	1/4	4	4
13	Screw, cap, hex, cad plated	B-00414-G8	1/4-20 x 1 Lg.	4	4
15	Cover, seat bottom	C-15146-G1		1	1
16	Cushion, foam	C-15145-G1		1	1
17	Plywood, seat bottom	C-12441-G2		1	1
18	Bracket, seat hinge	B-18250-G1		2	2
19	Screw, self top, hex, cad plated	B-00115-G2	1/4 x 1 1/4 Lg.	4	4
20	Webbing	A-11394-G1		1	1
21	Trim, vinyl	D-17113-G1		1	1
22	Bag, plastic	*		1	1
23	Staple	*		24	24
24	Staple, flat	*	1/8 x 1	10	10
27	Soiling slab	A-17074-G1		2	2
38	Seat back bracket & bag holder assembly	D-16924-G2		1	1
39	Extrusion, vinyl	B-14643-G1		1	1
40	Strap, bag retainer	B-15902-G1		1	1
41	Anchor plate	B-16610-G1		1	1
42	Rivet	B-17226-G1		2	2
43	Strap retainer assembly	C-16920-G1	Buckle	2	2
44	Rivet, aluminum, black	A-15058-G1		4	4
45	Nut, tee	A-16935-G1		4	4
46	Screw, whiz lock, flanged	B-13437-G2	5/16-18 x 1 1/2 Lg.	4	4
47	Nut, whiz lock, flanged	A-11027-G1	5/16-18	4	4

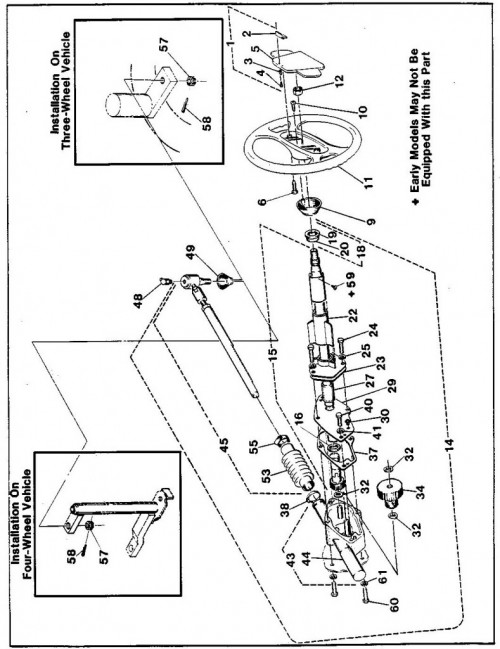

Steering – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Plate, score card holder assembly	C-18322-G1		1	1
2	Clip, score card	A-18409-G1		1	1
3	Spring, stainless steel	A-18410-G1		2	2
4	Stainless steel screw	A-18411-G1		2	2
5	Plate score card holder	B-18412-G1		1	1
6	Screw, self tapping, ,pan Hd., phillips	B-18464-G1	#8 x 7/8 Lg.	2	2
9	Hub, cover extension	B-18324-G1		1	1
10	Screw, self tap, pan Hd., phillips	B-18464-G1	#8 x 7/8 Lg.	2	2
11	Steering wheel	D-18323-G1		1	1
12	Nut, hex	B-00533-G6	5/8 x 18	1	1
14	Steering unit assembly	D-19152-G1		1	1
15	Steering shaft assembly	B-17163-G1		1	1
16	Washer thrust	A-13059-G1		1	1
18	Bushing & seal assembly	B-17161-G1		1	1
19	Seal, shaft	*		1	1
20	Bushing, steering column	*		1	1
22	Steering column assembly kit	C-20056-G1	Svc.	1	1
23	Gasket, steering column	B-13055-G1		1	1
24	Screw, machined, hed Hd.	B-00276-G6	5/16-24 x 1 Lg.	3	3
25	Washer, lock spring, cad plate	B-00565-G8	5/16	3	3
27	Sleeve	B-17140-G1		1	1
29	Cover plate assembly	B-13099-G1		1	1
30	Grease fitting	*		1	1
32	Washer, wave type spring	A-51294-G1		3	3
34	Gear, reduction	B-13133-G1		1	1
37	Gasket, housing plate	B-13132-G1		1	1
38	Clamp, nylon	A-17618-G1		1	1
40	Screw, machine, hed Hd.	B-00276-G6	5/16/24 x 3/4 Lg.	1	1
41	Washer, lock	B-00565-G8	5/16	7	7
43	Housing assembly	C-13097-G1		1	1
44	Cover, rack	B-13570-G1		1	1
45	Rack and rod assembly	C-15407-G1		1	1
48	Grease fittig	B-18456-G1		1	1
49	Rubber boot, tie rod end	A-50640-G1		1	1
53	Bellows	B-17617-G1		1	1
55	Clamp, hose	A-11391-G1		1	1
57	Nut, slotted	A-50209-G1		1	1
58	Cotter pin	B-10387-G2		1	1
59	Screw, thread rolling	B-00652-G1	#6-32 x 1/4 Lg.	1	1
60	Screw, machine, hex Hd.	B-00276-G6	5/16-24 x 1 Lg.	3	3
61	Washer, lock spring, cad plate	B-00565-G8	5/16	3	3

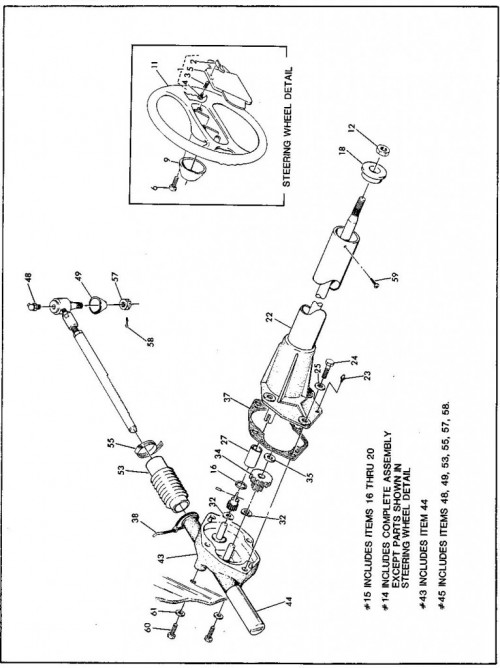

Steering – L2486 380275 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Plate, score card holder assembly	C-18322-G1		1	1
2	Clip, score card	A-18409-G1		1	1
3	Spring, stainless steel	A-18410-G1		2	2
4	Stainless steel screw	A-18411-G1		2	2
5	Plate score card holder	B-18412-G1		1	1
6	Screw, self tapping, ,pan Hd., phillips	B-18464-G1	#8 x 7/8 Lg.	2	2
9	Hub, cover extension	B-18324-G1		1	1
10	Screw, self tap, pan Hd., phillips	B-18464-G1	#8 x 7/8 Lg.	2	2
11	Steering wheel	D-18323-G1		1	1
12	Nut, hex	B-00533-G6	5/8 x 18	1	1
14	Steering unit assembly	D-19152-G1		1	1
15	Steering shaft assembly	B-17163-G1		1	1
16	Washer thrust	A-13059-G1		1	1
18	Bushing & seal assembly	B-17161-G1		1	1
19	Seal, shaft	*		1	1
20	Bushing, steering column	*		1	1
22	Steering column assembly	D-19153-G2	Svc.	1	1
23	Grease fitting	*		1	1
24	Screw, machined, hed Hd.	B-00276-G8	5/16-24 x 1 Lg.	4	4
25	Washer, lock spring, cad plate	B-00565-G8	5/16	3	3
27	Sleeve	B-17140-G1		1	1
30	Grease fitting	*		1	1
32	Washer, wave type spring	A-51294-G1		2	2
34	Gear, reduction	B-13133-G1		1	1
35	Washer, thrust	B-13059-G2		1	1
37	Gasket, housing	C-19154-G1		1	1
38	Clamp, nylon	A-17618-G1		1	1
41	Washer, lock	B-00565-G8	5/16	7	7
43	Housing assembly	C-13097-G1		1	1
44	Cover, rack	B-13570-G1		1	1
45	Rack and rod assembly	C-15407-G1		1	1
48	Grease fittig	B-18456-G1		1	1
49	Rubber boot, tie rod end	A-50640-G1		1	1
53	Bellows	B-17617-G1		1	1
55	Clamp, hose	A-11391-G1		1	1
57	Nut, slotted	A-50209-G1		1	1
58	Cotter pin	B-10387-G2		1	1
59	Screw, tapping	B-00118-G2	#6-18 x 1/4 Lg.	1	1
60	Screw, machine, hex Hd.	B-00276-G6	5/16-24 x 1 Lg.	3	3
61	Washer, lock spring, cad plate	B-00565-G8	5/16	3	3

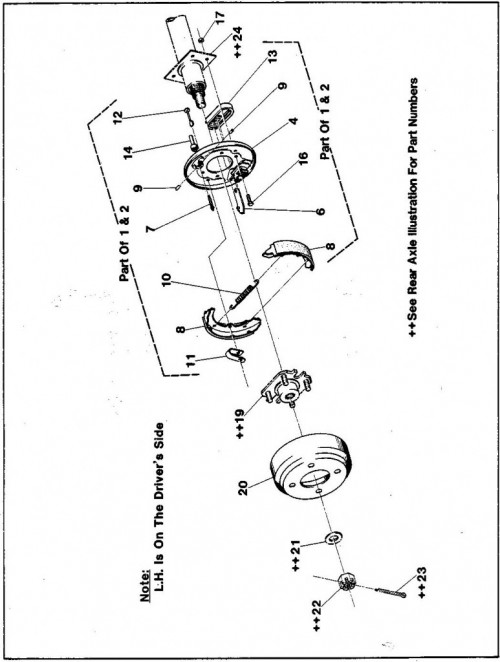

Wheel Brake Assembly – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Brake assembly, left	D-17081-G1		1	1
2	Brake assembly, right	D-17081-G2		1	1
4	Backing plate complete	*	L.H. and R.H.
6	Lever	A-17286-G1		1	1
7	Adjusting bolt	A-17287-G1		1	1
8	Brake shoes	A-17429-G1	Set of 2	1	1
9	Anchor, piston	A-17289-G1		2	2
10	Spring, brake	A-17290-G1		2	2
11	Spring, shoe clamp	A-17291-G1		2	2
12	Pin, tension	A-17292-G1		2	2
13	Cover, dust	A-17293-G1		1	1
14	Cap, adjusting bolt	A-17294-G1		1	1
16	Bolt, hex, cad plate	A-17083-G1	5/16-24 x 3/4 Lg.	4	4
17	Nut, lock	A-15126-G1	5/16-24	4	4
19	Hub & wheel bolt assy.	X-XXXX-XX	See rear axle illustration for part numbers	1	1
20	Brake drum	C-17082-G2		1	1
21	Washer	X-XXXX-XX	See rear axle illustration for part number	1	1
22	Nut, hex, slotted	X-XXXX-XX	See rear axle illustration for part number	1	1
23	Cotter pin	X-XXXX-XX	See rear axle illustration for part no.	1	1
24	Rear axle assembly	X-XXXX-XX	See rear axle illustration for part number	1	1

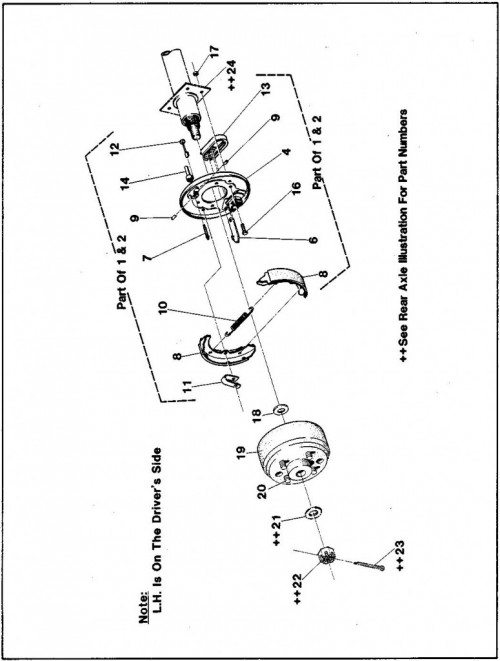

Wheel Brake Assembly – H2384 334068 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	Brake assembly, left	D-17081-G1		1	1
2	Brake assembly, right	D-17081-G2		1	1
4	Backing plate complete	*	L.H. and R.H.
6	Lever	A-17286-G1		1	1
7	Adjusting bolt	A-17287-G1		1	1
8	Brake shoes	A-17429-G1	Set of 2	1	1
9	Anchor, piston	A-17289-G1		2	2
10	Spring, brake	A-17290-G1		2	2
11	Spring, shoe clamp	A-17291-G1		2	2
12	Pin, tension	A-17292-G1		2	2
13	Cover, dust	A-17293-G1		1	1
14	Cap, adjusting bolt	A-17294-G1		1	1
16	Bolt, hex, cad plate	A-17083-G1	5/16-24 x 3/4 Lg.	4	4
17	Nut, lock	A-15126-G1	5/16-24	4	4
18	Washer	A-15485-G1		2	2
19	Brake drum assembly	C-19186-G1		2	2
20	Lug bolt	B-19862-G1		8	8
21	Washer	X-XXXX-XX	See rear axle illustration for part number	1	1
22	Nut, hex, slotted	X-XXXX-XX	See rear axle illustration for part number	1	1
23	Cotter pin	X-XXXX-XX	See rear axle illustration for part no.	1	1
24	Rear axle assembly	X-XXXX-XX	See rear axle illustration for part number	1	1

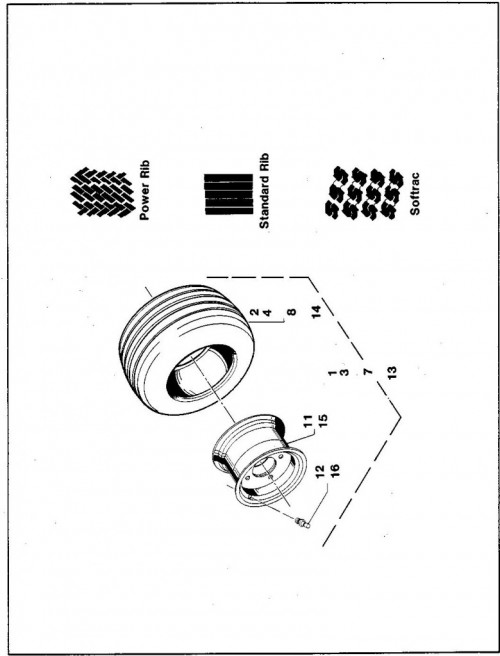

Wheels And Tires – M2584 307744 and Later

Sl.No.	Part Description	Part Number	Notes	Quantity (3 Wheel)	Quantity (4 Wheel)	Purchase
1	8.50 x 8 Tire & wheel assembly	C-15170-G1	Standard	AR	AR
2	8.50 x 8 Tire	C-11594-G1	Standard	AR	AR
3	8.50 x 8 Tire & wheel assembly softrac	A-14697-G2		AR	AR
4	8.50 x 8 Tire, softrac	A-14697-G1		AR	AR
7	8.50 x 8 Tire & wheel assy. Power rib	A-14728-G2		AR	AR
8	8.50 x 8 Tire, power rib	A-14728-G1		AR	AR
11	Wheel rim, 1 piece 8.50/9.50 x 8	C-15169-G1	Standard, Standard with items 1, 3 and 7	AR	AR
12	Valve stem	A-11657-G1	Standard with items 1, 3, and 7	AR	AR
13	5.70-5.00 x 8 Tire & wheel assembly	C-50881-G1		AR	AR
14	5.70-5.00 x 8 Tire	A-11933-G1		AR	AR
15	Wheel rim, 1 piece 5.00 x 8	C-50880-G1	Optional	AR	AR
16	Valve stem	A-11657-G1		AR	AR

Accessories, Option Tools And Special Tools

Sl. No.	Part Description	Part Number	Notes	Quantity	Purchase
1	Ashtray installation kit	B-16056-G1
2	Bumper	A-17061-G1	Chrome (4 wheel)
3	Cigarette lighter	C-13490-G1
4	Convertible 4 passenger installation kit	C-19769-G2
5	Convertible 4 passenger kit top	D-19790-G1	White
6	Four bag attachment kit	A-17653-G1
7	Horn kit	D-18589-G2
8	Hour meter	D-19318-G4	Dash mount
9	Hub caps 6"	C-16042-G1	Individual
10	Hub caps 8"	C-14913-G1
11	Individual wheel inserts	D-19241-G1	Silver
12	Individual wheel inserts	D-19241-G2	Gold
13	Industrial pickup field kit	D-16939-G2
14	Light kit	D-17395-G2
15	Mag wheels	A-17578-G1	Each
16	Mud flaps	B-17779-G1
17	Rake holder and rake	A-14752-G1
18	Rear view mirror installation kit	A-19354-G1
19	Rear vinyl fender	B-14638-G1
20	Scuff guards	B-17397-G1	Differential
21	Scuff guards	D-18706-G1	Rear fenders, Right
22	Scuff guards	D-18706-G2	Rear fenders, Left
23	Steering wheel	B-17845-G1	Custom
24	Sweater basket	B-16987-G1
25	Top frame assy.	B-20059-G2	Including top (White)
26	Tow bar	D-17679-G1	3 Wheel
27	Tow bar	C-15919-G1	4 Wheel
28	Tow bar hitch	A-13704-G1	Small
29	Truckbed - field installation kit	D-19122-G1	4 wheel
30	Turn signal	D-17772-G1
31	Windshield	A-19353-G1
32	Windshield tinted	A-19353-G2
33	Coastal option fork assembly	D-17533-G2	3 wheel
34	Coastal option front axle	D-19382-G2	4 wheel
35	Currect indicator	A-16489-G2
36	Multi-meter	A-51020-G2
37	Pinion removal tool kit	A-18738-G1
38	Seal installation tool	B-18739-G1
39	Slide hammer kit	A-18753-G1
